Are you familiar with engineered boards? These versatile materials are transforming construction and design. Engineered boards like HDF and MDF offer strength and versatility. In this post, you'll learn about their roles, differences, and the MDF/HDF production line.
Understanding HDF: High-Density Fiberboard
High-Density Fiberboard (HDF) is an engineered wood product made from wood fibers compressed under high pressure and heat. It has a density typically above 800 kg/m³, making it denser than Medium-Density Fiberboard (MDF). The fibers are combined with resin binders, usually urea-formaldehyde or phenol-formaldehyde, which help hold the board together. This composition results in a smooth, hard, and uniform surface that is ideal for various applications.
The production of HDF starts with breaking down wood chips into fine fibers using a defibrator or refiner. These fibers are then dried and mixed with resin binders and sometimes wax to improve water resistance. The mixture is formed into a mat, which is pressed under high temperature and pressure to create a dense, compact board. The pressing process ensures the fibers bond tightly, increasing the board's strength and durability. After pressing, the board is cooled, trimmed, and sanded to achieve a smooth finish.
HDF is widely used in flooring, furniture, cabinetry, and decorative paneling. Its high density makes it suitable for laminate flooring substrates, where durability and resistance to wear are crucial. It also serves as a core material for doors and molded products due to its ability to hold intricate shapes and smooth finishes. Additionally, HDF is favored in speaker boxes and other acoustic applications because of its density and sound dampening properties.
Advantages:
High strength and durability due to its density
Smooth surface ideal for painting and laminating
Better resistance to impact and wear compared to MDF
Holds screws and fasteners firmly
Suitable for detailed machining and shaping
Disadvantages:
Heavier than MDF, which can increase transportation costs
More expensive due to higher density and manufacturing complexity
Susceptible to moisture damage if not properly sealed
Contains formaldehyde-based resins, raising environmental and health concerns unless low-emission alternatives are used
Tip: When selecting HDF for your projects, ensure it has a low formaldehyde emission rating to meet environmental standards and protect indoor air quality.
Medium-Density Fiberboard (MDF) is an engineered wood product made from wood fibers combined under moderate pressure and heat. Its density usually ranges between 600 and 800 kg/m³, making it less dense than High-Density Fiberboard (HDF). The fibers are bonded using resin adhesives such as urea-formaldehyde or melamine-formaldehyde. This results in a smooth, uniform surface that is ideal for painting, veneering, or laminating. MDF’s fine fibers allow it to be shaped and machined easily, making it popular for detailed woodworking.
MDF production begins by breaking wood into small fibers using a defibrator. These fibers are then dried and mixed thoroughly with resin binders and sometimes wax to enhance moisture resistance. The mixture is spread into a mat and pressed under heat and pressure to form panels. The pressing process is less intense than HDF, resulting in a board with medium density. After pressing, the boards are cooled, trimmed, and sanded to achieve a smooth surface ready for finishing or further processing.
MDF is widely used in furniture making, cabinetry, molding, and interior paneling. Its smooth surface and ease of machining make it ideal for painted surfaces and decorative projects. MDF is also common in shelving, door panels, and speaker boxes where moderate strength suffices. It’s not usually recommended for flooring or heavy-load applications due to its lower density and strength compared to HDF. However, it remains popular for indoor use where cost-effectiveness and finish quality matter.
Advantages:
Smooth, uniform surface perfect for painting and veneering
Easy to cut, shape, and machine for detailed designs
Generally less expensive than HDF and solid wood
Consistent density and thickness throughout the panel
Good dimensional stability in dry environments
Disadvantages:
Lower strength and durability than HDF
Susceptible to swelling and damage if exposed to moisture
Holds screws less firmly than HDF or solid wood
Contains formaldehyde-based resins, raising health concerns unless low-emission types are used
Heavier than plywood of similar thickness, which can affect handling
Tip: Choose moisture-resistant MDF grades for projects in humid areas to improve durability and lifespan.

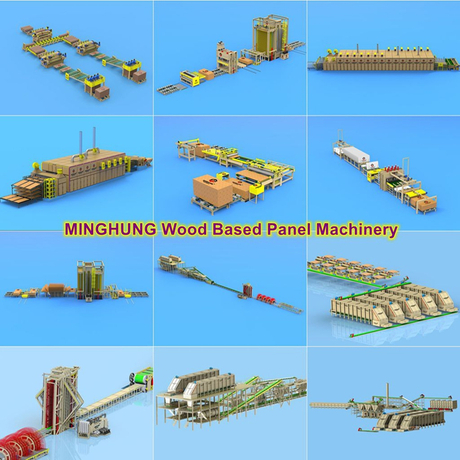

The production line for MDF and HDF involves several key stages to transform raw wood fibers into finished boards. It starts with wood preparation, where logs or wood chips are cleaned and chipped. Next, the wood chips undergo defibration, breaking into fine fibers. The fibers then dry to reduce moisture content. After drying, fibers mix with resin binders and sometimes wax to improve moisture resistance. This mixture forms a mat, which presses under heat and pressure to bond fibers tightly. Finally, the boards cool, trim, and sand to achieve smooth, uniform surfaces. Both MDF and HDF lines share similar steps, but HDF presses at higher pressures and temperatures to reach greater density.

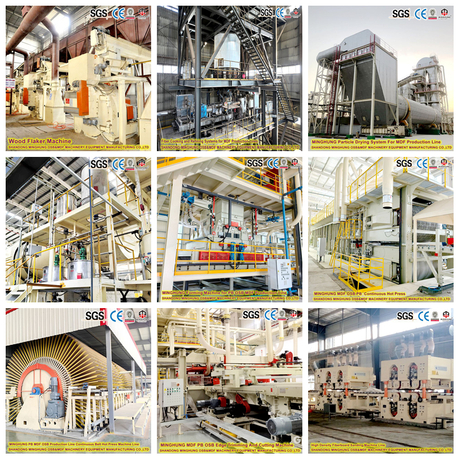

Several machines play crucial roles in MDF and HDF production:
Chippers and Debarkers: Prepare raw wood by cutting and removing bark.
Defibrators: Break wood chips into fine fibers.
Dryers: Remove moisture from fibers.
Blenders: Mix fibers with resin binders and additives.
Formers: Spread fiber mixture into mats.
Hot Presses: Compress mats under heat and pressure to form boards.
Cooling Conveyors: Allow boards to cool gradually.
Trimmers and Sanders: Cut boards to size and smooth surfaces.
Stackers: Organize finished boards for storage or shipment.
Advanced production lines may include automated control systems to monitor temperature, pressure, and moisture, ensuring consistent quality.
Efficiency depends on machinery quality, process control, and raw material consistency. Modern lines can produce thousands of square meters per day. HDF production requires more energy due to higher pressing pressure and temperature, slightly reducing throughput compared to MDF lines. However, automation and continuous processes improve speed and reduce labor costs. Efficient drying systems and resin application also impact output quality and volume. Proper maintenance of equipment prevents downtime, maintaining steady production rates.
Environmental impact is critical in MDF and HDF manufacturing. Key concerns include:
Formaldehyde Emissions: Using low-emission resins minimizes indoor air pollution.
Energy Consumption: Pressing and drying consume significant energy; adopting energy-efficient machines lowers carbon footprint.
Waste Management: Recycling wood residues and dust reduces landfill waste.
Water Usage: Efficient water recycling systems prevent excess consumption.
Sustainable Sourcing: Using certified wood supports forest conservation.
Manufacturers increasingly adopt eco-friendly practices, such as bio-based resins and renewable energy, to meet environmental regulations and market demand.
Tip: Opt for production lines equipped with automated controls to boost efficiency and ensure consistent MDF and HDF quality.
When deciding between HDF and MDF, several factors come into play:
Strength Needs: HDF offers higher density and strength, ideal for load-bearing or high-traffic applications. MDF suits lighter uses.
Moisture Exposure: Both boards can swell if wet, but moisture-resistant grades exist. HDF generally withstands humidity better.
Surface Finish: For fine detailing or smooth finishes, HDF performs slightly better. MDF is easier to machine but may need extra sealing.
Weight: HDF is heavier, affecting handling and transport costs. MDF is lighter and easier to work with.
Budget: MDF costs less upfront, good for budget projects. HDF’s durability can lower long-term costs.
Environmental Impact: Check for low-emission resin types to reduce formaldehyde exposure.
Application Type: Consider the final use, whether furniture, flooring, cabinetry, or decorative panels.
HDF:
Laminate flooring core layers
Door skins and molded panels
Speaker boxes and acoustic panels
High-wear furniture parts
Areas needing impact resistance
MDF:
Indoor furniture and cabinetry
Decorative moldings and trims
Painted wall panels and shelving
Low-load bearing door panels
Prototyping and craft projects
MDF’s lower price makes it attractive for projects with tight budgets or low structural demands. It provides good surface quality and ease of use. However, it may require replacement sooner in demanding environments, increasing lifetime costs.
HDF’s higher initial cost pays off through superior durability and longer service life. It reduces maintenance and replacement frequency, especially in heavy-use or moisture-prone areas. Choosing HDF can be more economical long term despite upfront expense.
Tip: Match board type to project needs—choose MDF for cost-effective, decorative indoor uses, and HDF for durable, high-traffic, or moisture-exposed applications.
HDF and MDF are engineered boards with distinct densities and uses. HDF offers superior strength and durability, while MDF is cost-effective and easy to machine. Both boards serve various applications from furniture to paneling. Consumers should consider project needs when choosing between them. Manufacturers like MINGHUNG OSB&MDF Machinery provide advanced machinery, ensuring high-quality production. Their innovative solutions enhance board performance and sustainability, offering value in the engineered board industry.
A: An MDF/HDF production line is a series of machines and processes that transform raw wood fibers into engineered boards. It includes wood preparation, fiber defibration, drying, resin mixing, mat forming, pressing, cooling, trimming, and sanding.
A: While MDF and HDF production lines share similar steps, HDF requires higher pressure and temperature during pressing to achieve greater density, making it more energy-intensive compared to MDF.
A: HDF is preferable for applications requiring high strength and durability, such as flooring and high-wear furniture, due to its denser composition compared to MDF.
A: MDF production costs less due to lower density and simpler manufacturing processes, whereas HDF's higher density and complex pressing increase production expenses, affecting overall pricing.
A: Key environmental considerations include formaldehyde emissions, energy consumption, waste management, water usage, and sustainable sourcing practices to minimize impact and meet regulations.
