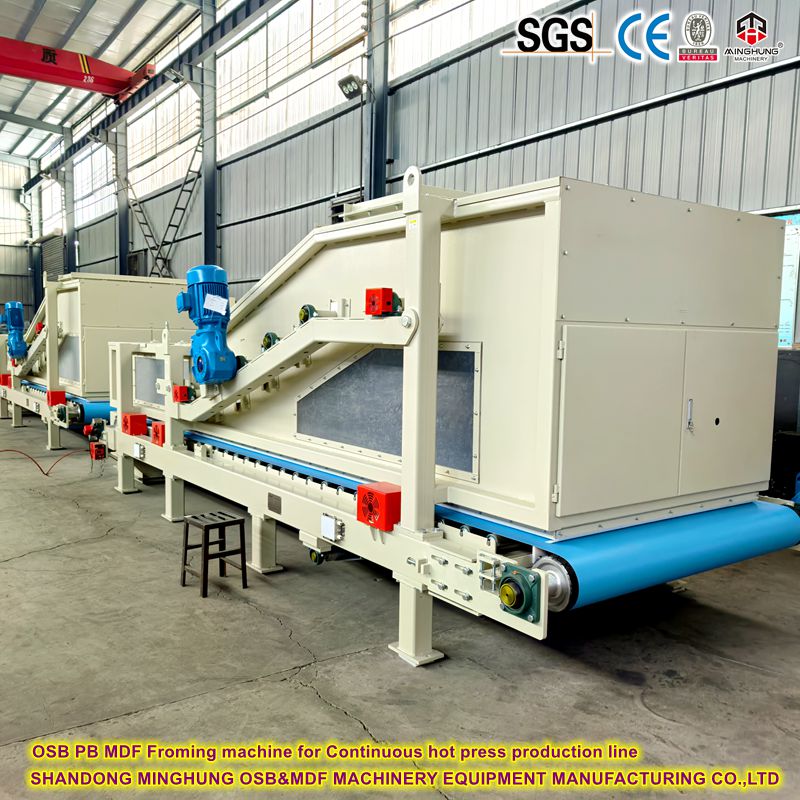

★Mechnical Forming Machine Line
1. Distribution of shavings
The wood shavings in the silo are conveyed to the high-speed rotating throwing roller (with a rotational speed of 500 to 1500 rpm) by the metering belt.
2. Centrifugal throwing
The blades on the throwing roller throw the wood shavings outward and disperse them onto the conveyor belt by centrifugal force (similar to a seeder).
3. Thickness adjustment
The paving thickness is controlled by adjusting the rotational speed of the throwing roller, the speed of the conveyor belt or the height of the baffle.
Features:
Advantages: Simple structure and low energy consumption.
Disadvantages: Poor orientation, only used for laying the core layer of ordinary particleboard
★ Air Flow Forming Machine Line
1. Airflow suspension
The high-pressure fan blows the wood shavings into the diffusion chamber, with an air flow velocity of 5 to 20 m/s, causing the wood shavings to suspend and disperse.
2. Hierarchical orientation
Shavings of different sizes naturally stratify due to weight differences:
Fine materials (light) are blown to the far end (surface layer), while coarse materials (heavy) fall nearby (core layer).
3. Negative pressure adsorption
A negative pressure zone is set under the conveyor belt to absorb the wood shavings and prevent them from shifting, ensuring uniform laying
Features:
Advantages: Even laying, suitable for fine surface materials.
Disadvantages: High energy consumption and the need for a dust removal system

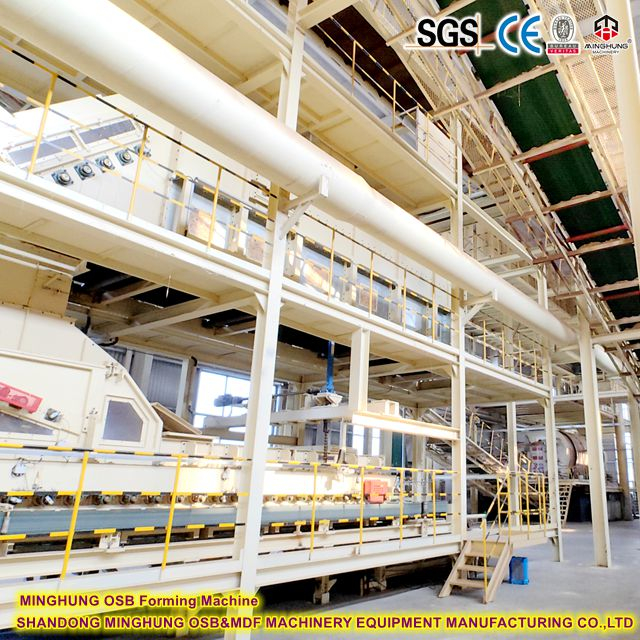

★ Directional Forming Line -For OSB board production
1. Mechanical directional type
Swing arm pusher
The material-pushing teeth on the swinging arm move the wood shavings so that their long axis direction is consistent with the movement direction of the conveyor belt (longitudinal).
Vibrating screen guidance
The vibration of the screen automatically aligns the wood shavings when they fall (similar to the "chopsticks passing through a fence" effect).
2. Electrostatic directional type
The wood shavings pass through a high-voltage electrostatic field (5 to 20 kV), and after being charged, they are arranged in a specific direction under the action of the electric field force (with high precision but expensive cost).
3. Directional paving effect
The surface wood chips are arranged longitudinally → enhancing the longitudinal bending strength of the board.
The core layer wood shavings are arranged laterally → balancing the internal stress of the board

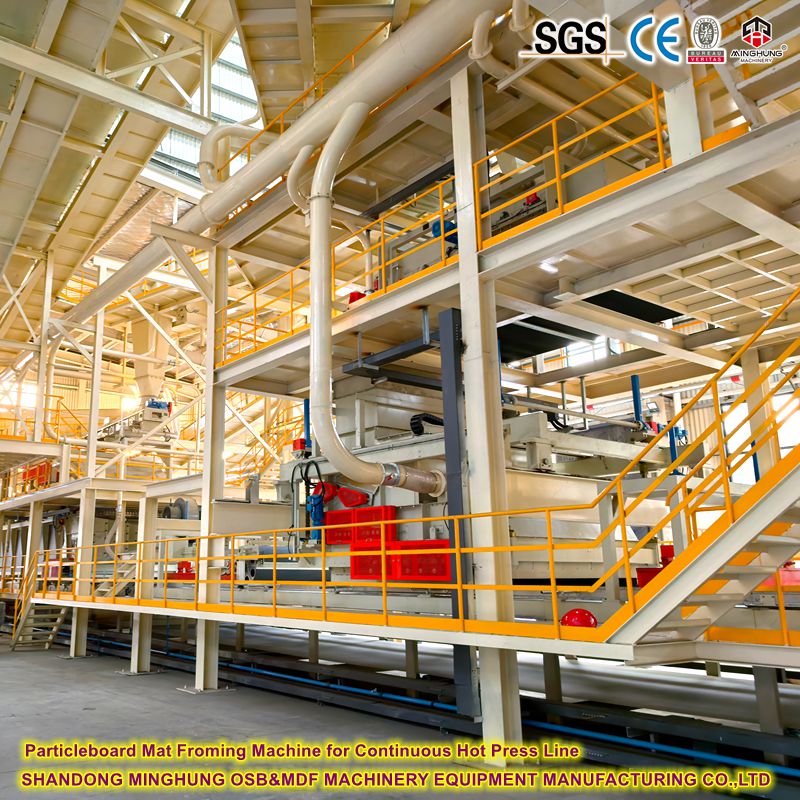

★ Continuous Belt Forming Line
1. Coordination of multiple paving heads
Multiple paving units (such as 4 to 6) are arranged along the steel belt, and each unit is responsible for different levels or areas.
2. Scanning paving
The paving head moves back and forth laterally, cooperating with the movement of the steel belt to form a continuous and uniform slab.
3. Online monitoring
Laser or ultrasonic sensors detect the thickness of the slab in real time and feedback to adjust the laying amount.
Features:
High production capacity (up to 1000 cubic meters per day), suitable for large-scale production of a single specification
As China machine manufacturer, we have exported many wood based panel making machine to different countries and got good feedback
.Our factory have the high technology processing lathes for machine materials and many good workers who has rich production experience, for each production step, we have the quality monitor to check and ensure each step is correct, so we are confident to ensure our machine is better based on the same specification with other suppliers.
China Top brand who offer and produce Wood based panel machinery-Chipboard making machine, MDF making machine. OSB making machine, and Plywood making machine. As your production capacity, panel size and thickness, and other factors and conditions, we can offer the suitable solution and ensure produce good quality panel for you.
