The Engine Room of Modern Woodworking: Inside the Multilayer Wood-Based Panel Hot Press Production Line with SHANDONG MINGHUNG

The global demand for engineered wood panels – OSB (Oriented Strand Board), MDF (Medium Density Fiberboard), Particleboard, and Plywood – continues its relentless rise, driven by construction, furniture, and interior design industries. At the absolute heart of transforming raw wood residues into these versatile, high-performance panels lies the Multilayer Hot Press Production Line. This complex, integrated system is the technological marvel where science, engineering, and precision converge under immense heat and pressure. As a leading force in this specialized machinery sector, SHANDONG MINGHUNG WOOD MACHINERY CO., LTD. (often branded as MINGHUNG OSB&MDF MACHINERY) stands at the forefront, designing and manufacturing the critical equipment that powers this transformation. This article delves into the intricate workings, essential components, technological advancements, and the pivotal role played by manufacturers like Minghung in the multilayer hot press production ecosystem.

I. The Imperative: Why Multilayer Hot Pressing?

Wood-based panels offer consistent quality, dimensional stability, and the ability to utilize fast-growing species or wood waste – advantages solid lumber often cannot match. The core process binding these materials together is thermosetting resin (commonly urea-formaldehyde or phenol-formaldehyde) activated under specific conditions:

1.  Heat:Typically between 160°C to 220°C (depending on resin and panel type), softening the wood components and catalyzing the resin's curing reaction.

2.  Pressure: Ranging from 20 to 50 kg/cm² (or higher for specific products), compressing the loosely formed mat into a dense, homogeneous board with uniform thickness and intimate particle/resin contact.

3.  Time: Precise control of the press cycle duration (from seconds per millimeter for thin boards to several minutes for thick panels) ensures complete resin cure without over- or under-pressing.

The Multilayer Hot Press achieves this simultaneously for multiple panels stacked vertically within its press frame, dramatically boosting production efficiency compared to single-opening presses. This is essential for meeting the high-volume demands of modern panel mills.

II. Anatomy of a Multilayer Hot Press Production Line (The Minghung Scope)

While the hot press itself is the star, it is merely the climax of a meticulously orchestrated symphony of machinery. A complete Minghung production line encompasses several key stages:

1.  Raw Material Preparation (Upstream - Often Supplied by Minghung or Integrated):

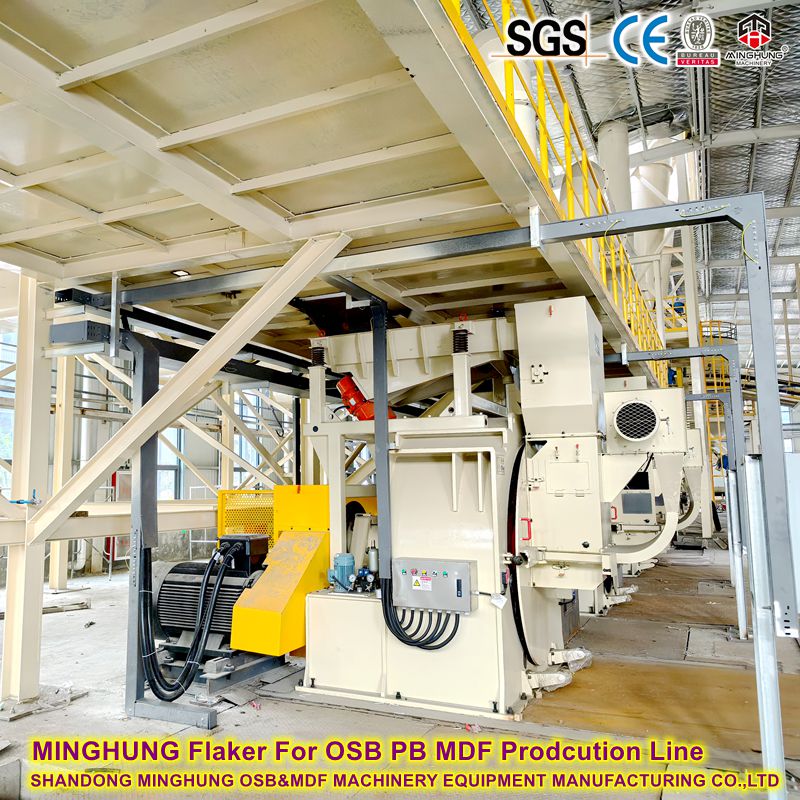

  Chipping/Flaking: Logs or wood residues are reduced to chips (for particleboard) or strands (for OSB) using robust chippers or flakers.

  Drying: Moisture content must be precisely controlled (typically 2-12% depending on panel type) for optimal resin distribution and pressing. High-capacity rotary or belt dryers achieve this.

  Screening & Classification:Particles are sorted by size to ensure optimal surface quality and core structure. Oversize particles are recirculated for further reduction.

  Glue Blending (Resination):The critical step where dried particles or fibers are thoroughly mixed with resin, wax (for moisture resistance), and sometimes additives (fire retardants, insecticides) in sophisticated blenders. Uniform distribution is paramount.

2.  Mat Forming:

  Forming Station: The resinated material (furnish) is distributed onto a continuous moving caul plate or forming belt. Minghung utilizes advanced forming heads (often mechanical or air-assisted) to create a uniform, loosely layered mat with precise weight distribution across the width and length. For OSB, specialized orienting heads align strands in specific directions in the surface layers for enhanced strength.

3.  Pre-Pressing:

  Pre-Press: Before entering the expensive hot press, the loose mat undergoes cold pre-compression. Minghung's pre-presses (single- or multi-opening) significantly reduce mat height (by 50-70%), increasing the number of mats that can fit into the hot press and improving the mat's integrity for transfer. This stage also removes air, facilitating heat transfer later.

4.  The Heart: The Multilayer Hot Press (Minghung's Core Expertise)

  Press Frame:Massive, rigid steel structure designed to withstand enormous closing forces (thousands of tonnes) without deflection, ensuring uniform panel thickness. Minghung employs robust designs with high-strength steel.

  Hydraulic System: High-pressure pumps and precisely controlled hydraulic cylinders generate the required closing force. Minghung emphasizes energy-efficient systems with fast response times and precise pressure control across all platens.

  Heating System:Critical for uniform heat transfer. Minghung presses typically use thermal oil heating circulating through channels within the massive steel platens. Advanced temperature control systems maintain precise, consistent heat across every platen surface. Steam heating is also possible but less common for large multilayer presses today.

  Platens: Precision-machined, thick steel plates that transmit heat and pressure to the panels. Surface flatness is critical (measured in microns). Minghung utilizes high-quality steel and advanced machining.

  Opening Mechanism: Robust systems (chains, rack-and-pinion, direct lift) for rapidly opening and closing the press frame to load and unload panels. Speed is crucial for high cycle rates.

  Press Control System: The brain of the operation. Minghung integrates sophisticated PLC (Programmable Logic Controller) systems with HMI (Human-Machine Interface) panels. This controls:

       Press closing speed and position

       Pressing pressure profile (often multi-stage)

       Platen temperature profile

       Pressing time (total and per stage)

       Opening sequence

       Safety interlocks

   Number of Openings: Minghung manufactures presses ranging from 8 to over 30 openings, tailored to the customer's required capacity and product mix (thickness).

5.  Post-Pressing & Finishing (Downstream - Often Supplied/Integrated):

   Cooling: Hot panels exiting the press are stabilized on cooling stars or conveyors to prevent blistering and warping.

   Trimming & Sanding: Panels are trimmed to exact final dimensions. Sanding ensures precise thickness and a smooth surface finish ready for lamination or painting. Minghung can supply or integrate sanding lines.

   Quality Control: Automated systems (e.g., continuous thickness gauges, density profilers, moisture meters) monitor panel properties in real-time.

   Sawing & Stacking:Panels are cut to required sizes and automatically stacked for packaging and shipment.

III. Technological Advancements & Minghung's Engineering Prowess

Minghung distinguishes itself through continuous innovation and robust engineering:

1.  Energy Efficiency: A major focus. Optimized thermal oil systems with efficient heat exchangers, advanced insulation on platens and piping, and heat recovery systems significantly reduce operating costs.

2. Precision Control & Automation: State-of-the-art PLCs with sophisticated algorithms manage complex pressing cycles (pressure, temperature, time profiles) with extreme precision. Integration with upstream and downstream systems via SCADA allows for centralized monitoring and control.

3.  High Production Speed & Reliability: Robust frame designs, powerful hydraulic systems, and rapid opening/closing mechanisms maximize press cycles per hour. Minghung emphasizes durability and minimal downtime.

4.  Uniformity & Quality: Precision-machined platens, advanced temperature control (multi-zone capabilities possible), and sophisticated pressure distribution systems ensure consistent panel density, thickness, and mechanical properties across the entire board surface and through its thickness.

5.  Flexibility: Lines can be designed to produce multiple panel types (e.g., MDF and Particleboard) or handle a wide range of thicknesses efficiently.

6.  Safety:Comprehensive safety systems include hydraulic safety locks, light curtains, emergency stops, and pressure relief valves.

7. Digitalization: Increasing integration of IoT sensors for predictive maintenance, remote monitoring, and data analytics to optimize performance and quality.

IV. Minghung: A Partner in Panel Production

SHANDONG MINGHUNG OSB&MDF MACHINERY CO., LTD. has built its reputation on:

Deep Technical Expertise: Years of experience focused specifically on wood-based panel machinery.

Vertical Integration: Capability to design, manufacture, and integrate core components (especially the press itself and pre-press).

Customization: Understanding that every mill has unique requirements and offering tailored solutions.

Global Reach & Support: Supplying machinery worldwide backed by installation, commissioning, training, and after-sales service teams.

Focus on Core Technologies: Specialization in the critical, high-value components of the line – the forming, pre-pressing, and hot pressing stages.

Commitment to R&D: Continuous investment in improving press performance, efficiency, and control systems.

V. The Impact: Beyond the Machine

A high-performance Minghung multilayer hot press line directly impacts a panel manufacturer's bottom line:

Increased Capacity:Higher throughput due to multi-opening design and fast cycles.

Improved Product Quality: Consistent density, smooth surfaces, precise thickness, and superior mechanical properties.

Reduced Operating Costs: Lower energy consumption, minimized resin usage (through efficient distribution and pressing), reduced waste, and less downtime.

Enhanced Flexibility: Ability to produce diverse products efficiently.

Competitive Advantage: Enables mills to meet market demands for quality and price effectively.

VI. Future Trends: Where Minghung is Looking

The evolution continues:

Bio-based Resins: Presses must adapt to potentially different curing profiles of sustainable, formaldehyde-free resins.

Advanced Automation & AI: Further integration of AI for predictive process optimization, quality defect detection, and autonomous operation.

Enhanced Sustainability: Even greater energy efficiency, reduced emissions (from heating systems), and compatibility with recycled wood sources.

Hybrid Heating: Exploring combinations (e.g., thermal oil with RF or steam injection) for faster curing or specific properties.

Presses for New Materials: Adapting technology for panels using non-wood fibers (bamboo, agricultural residues).

Conclusion: The Indispensable Core

The multilayer wood-based panel hot press production line is far more than just a machine; it is the technological backbone of a multi-billion dollar global industry. It transforms humble wood chips, strands, and fibers into the strong, stable, and versatile panels that build our homes, furnish our spaces, and shape our built environment. Manufacturers like SHANDONG MINGHUNG WOOD MACHINERY CO., LTD.play a vital role in this ecosystem. By relentlessly focusing on engineering excellence, energy efficiency, precision control, and reliability in their hot press and integrated line solutions, Minghung empowers panel producers worldwide to meet escalating demands efficiently, sustainably, and profitably. As the industry evolves towards greater sustainability and digitalization, Minghung's commitment to innovation positions them as a key partner, ensuring that the "engine room" of wood-based panel manufacturing continues to drive progress for years to come. The heat and pressure applied within their presses not only bond wood particles but also forge the future of modern woodworking.
