In the high-stakes, high-volume world of engineered wood panel manufacturing – producing MDF (Medium Density Fiberboard), OSB (Oriented Strand Board), and Particleboard (PB) – efficiency, quality, and consistency are non-negotiable. While the mighty continuous press often grabs the spotlight, a critical component working tirelessly upstream is the Continuous Pre-Press Machine. This unsung hero plays a pivotal role in determining the final product's quality, the production line's speed, and the overall profitability of the operation. Manufacturers like SHANDONG MINGHUNG OSB&MDF MACHINERY EQUIPMENT MANUFACTURING CO., LTD., understand this deeply, engineering robust continuous pre-presses designed for peak performance and enduring durability.
Why Pre-Press? The Critical Foundation
Before the mat of wood fibers, strands, or particles enters the high-pressure, high-temperature continuous press, it's a fragile, airy structure. Attempting to feed this uncompacted mat directly into the main press would be disastrous:
1. Mat Collapse: The high nip pressure at the press entrance would simply blow the uncompacted mat apart, causing stoppages, material waste, and potential damage.
2. Poor Density Profile: Without initial compaction, achieving the crucial uniform density gradient from surface to core in the final panel becomes extremely difficult, leading to weak spots, warping, and poor machining characteristics.
3. Reduced Production Speed: The main press would be forced to slow down significantly to allow time for initial compression and deaeration within its initial section, becoming a bottleneck.
4. Increased Glue Consumption & Energy Use: An uncompacted mat has low thermal conductivity. Pre-compaction removes air, allowing heat from the main press to penetrate faster and more evenly, reducing curing time and energy consumption. It also brings particles closer, requiring less resin for effective bonding.
5. Surface Defects: Loose surface layers can lead to blowouts, rough surfaces, or delamination when entering the main press.
The Continuous Pre-Press Solution: Performance Unleashed
The continuous pre-press machine elegantly solves these problems. Positioned immediately before the main continuous press, its primary functions are:
Initial Compaction: Applying controlled, significant pressure to drastically reduce the mat thickness (typically by 50-80%) and eliminate most of the air trapped within the furnish.
Mat Stabilization: Transforming the fragile, fluffy mat into a cohesive, stable, semi-rigid "biscuit" that can withstand the forces encountered at the entrance of the main press.
Deaeration: Forcing out air, which is essential for efficient heat transfer and glue cure in the subsequent main press.
Edge Formation: Helping to define and stabilize the edges of the mat, minimizing edge trim loss later.
Performance Highlights of Modern Continuous Pre-Presses (Like Minghung's):
1. High Throughput & Synchronization: Engineered to match the high line speeds of modern continuous presses (often exceeding 1000 mm/s), ensuring a seamless flow without bottlenecks. Precise speed control synchronizes perfectly with the forming station and main press.
2. Controlled, Adjustable Pressure: Utilizes powerful hydraulic or electro-mechanical systems to deliver high, uniform pressure across the entire width of the mat (often 50-150 bar). Pressure profiles can be adjusted longitudinally (along the length of the pre-press) to optimize compaction for different products and furnish types.
3. Superior Mat Surface Quality: Features like precisely ground, hardened steel rolls or specialized belt systems ensure smooth, uniform compression without damaging the surface of the mat, contributing to excellent final panel surface quality.
4. Effective Edge Control: Integrated edge compression systems or guiding devices prevent edge flaring and ensure a consistently rectangular, stable biscuit entering the main press, minimizing trim waste.
5. Optimized Deaeration: The compression process is designed to maximize air expulsion efficiently, preparing the mat for rapid and uniform heat transfer in the main press.
6. Flexibility & Quick Changeovers: Designed to handle the varying thicknesses and furnish characteristics of MDF, OSB, and PB production, often with relatively quick adjustments for product changes.
Durability: The Bedrock of Reliable Operation
In a 24/7 production environment, downtime is the enemy. Continuous pre-presses operate under immense mechanical stress and constant abrasion. Durability isn't just desirable; it's imperative. Leading manufacturers like SHANDONG MINGHUNG prioritize this through:
1. Robust Construction: Heavy-duty, welded steel frames designed to absorb high dynamic loads and vibrations without deflection, ensuring long-term structural integrity and alignment.
2. Premium Wear Components:

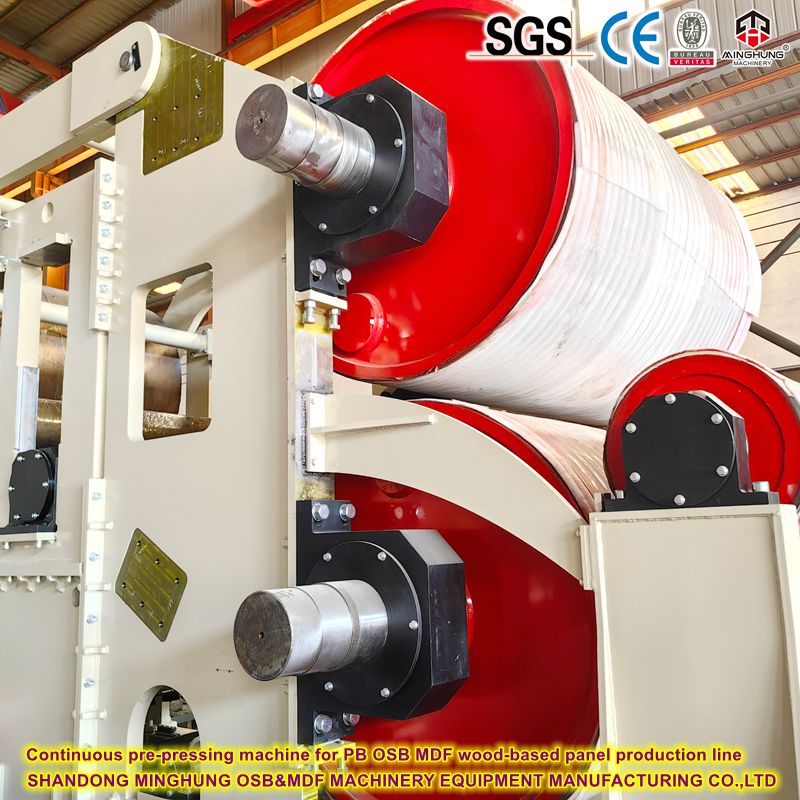

Rolls: Utilizing forged steel rolls with hardened, ground, and often chrome-plated or specialized coated surfaces to resist wear from abrasive wood furnish. High-grade bearings ensure smooth operation under heavy load.
Belts (if applicable): Employing high-tensile strength, abrasion-resistant steel or composite belts designed for extended service life. Robust belt tracking and tensioning systems prevent damage and misalignment.
Hydraulic Systems: Utilizing high-quality pumps, valves, cylinders, and hoses designed for continuous high-pressure operation. Advanced filtration systems keep hydraulic oil clean, preventing component wear.
3. Advanced Sealing and Protection: Effective sealing systems protect critical bearings and hydraulic components from dust, moisture, and heat ingress, significantly extending their lifespan.
4. Corrosion Resistance: Critical components, especially those exposed to the humid plant environment or wood acids, are treated or coated (e.g., galvanizing, specialized paints) to prevent corrosion.
5. Engineered for Maintenance: Design incorporates accessibility for routine maintenance (lubrication points, inspection hatches) and component replacement, minimizing downtime during service. Centralized lubrication systems are often standard.
6. Overload Protection: Integrated safety systems (pressure relief valves, mechanical stops) protect the machine from damage due to unexpected overloads or jams.
Minghung's Commitment: Performance and Durability Embodied
As a dedicated manufacturer of wood-based panel machinery, SHANDONG MINGHUNG OSB&MDF MACHINERY EQUIPMENT MANUFACTURING CO., LTD. leverages its expertise to build continuous pre-presses that embody these performance and durability principles. Their machines are designed with:
Proven Engineering: Drawing on extensive experience in panel production line dynamics.
Quality Materials: Sourcing high-grade steels, alloys, and components from reputable suppliers.
Precision Manufacturing: Utilizing advanced CNC machining and fabrication techniques to ensure accuracy and build quality.
Rigorous Testing: Subjecting critical systems and assemblies to stringent testing before shipment.
Focus on Serviceability: Designing for easier maintenance and providing comprehensive support.
Conclusion: The Indispensable Link
The continuous pre-press machine is far more than just a preliminary compression step. It is the indispensable link that transforms a vulnerable, air-filled mat into a stable, compacted biscuit ready for the transformative power of the continuous press. Its performance directly dictates the achievable line speed, the uniformity and quality of the final panel, the efficiency of resin and energy usage, and the minimization of waste. Its durability is fundamental to achieving the relentless uptime required for profitable, large-scale production of MDF, OSB, and Particleboard.
Investing in a high-performance, durable continuous pre-press, such as those engineered and manufactured by companies like SHANDONG MINGHUNG, is not merely an equipment purchase; it's an investment in the foundation of a smooth-running, high-quality, and cost-effective panel production line. It ensures the mat enters the main press prepared for success, ultimately leading to superior panels that meet the demanding standards of today's global markets. In the symphony of panel production, the continuous pre-press provides the essential, powerful opening note that sets the stage for perfection.
