In the high-stakes world of engineered wood panel manufacturing – producing particleboard (PB), oriented strand board (OSB), and medium-density fiberboard (MDF) – stability isn't just desirable; it's the absolute bedrock of profitability, quality, and safety. Fluctuations in temperature, pressure, feed rates, or resin application can cascade into catastrophic consequences: delaminated boards, inconsistent density, wasted raw materials, costly downtime, and potential safety hazards. At the heart of maintaining this critical stability within a fully automatic intelligent production line, Siemens PLCs and their meticulously engineered ecosystem of electrical components stand as indispensable guardians.
The Particleboard Crucible: Where Precision Meets Complexity

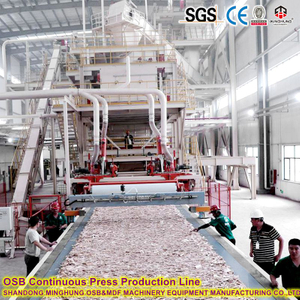

Modern particleboard lines are marvels of integrated engineering, transforming raw wood chips, resin, wax, and additives into uniform, high-strength panels. This involves a tightly choreographed sequence:
1. Raw Material Handling & Preparation: Precise weighing, drying (moisture control is paramount), screening, and blending of wood particles.
2. Resin Application & Blending: Uniform distribution of precisely metered resin and additives onto the particles.
3. Mat Formation: Creating a consistent, homogenous mat of resinated particles on the forming line.
4. Pre-Pressing: Initial compaction to remove air and stabilize the mat.
5. Hot Pressing: The critical phase where heat and pressure activate the resin, bonding particles into a solid board. Temperature and pressure profiles are non-negotiable.
6. Cooling & Conditioning: Controlled cooling to set the bond and achieve equilibrium moisture content.
7. Finishing: Sanding, cutting, and quality control.
Each stage demands precise, synchronized control of motors, drives, valves, sensors (temperature, pressure, moisture, position, speed), heaters, and actuators. A minor deviation in resin flow, a lag in press pressure, or an inconsistency in dryer temperature at any point can propagate through the line, resulting in substandard product or a complete stoppage. This is where Siemens' automation architecture shines.

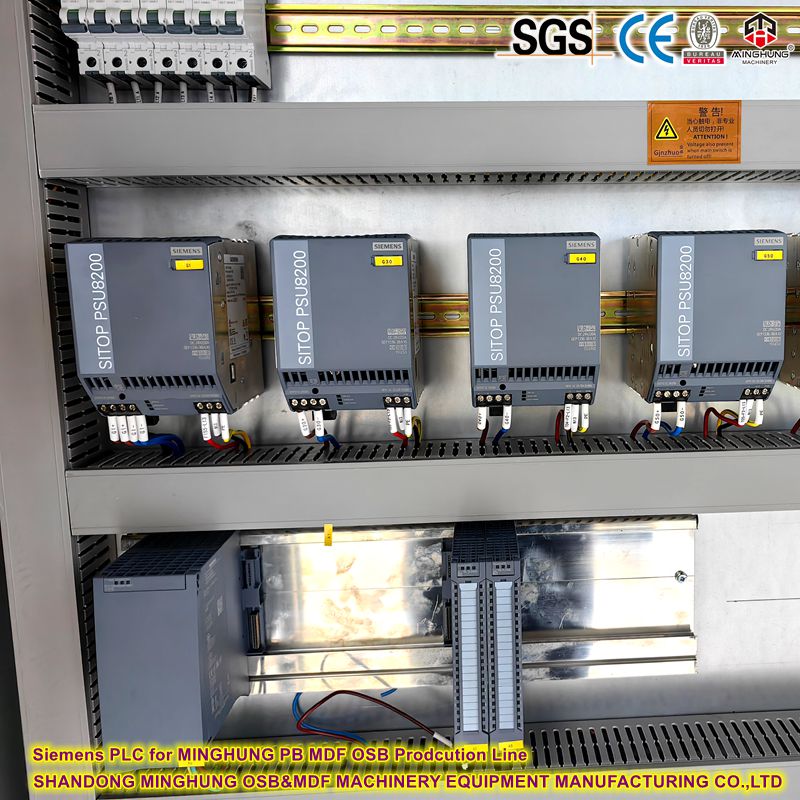

Siemens PLC: The Intelligent Conductor
The Siemens PLC (Programmable Logic Controller), particularly the robust SIMATIC S7-1500 or S7-1200 series, acts as the central nervous system of the intelligent control system:
1. Deterministic Control: PLCs execute control logic in incredibly fast, predictable cycles (milliseconds). This determinism is vital for synchronizing high-speed forming lines, ensuring press platens close simultaneously, and coordinating the precise timing of resin injection valves. Instability in timing leads directly to instability in the product.
2. Complex Algorithm Execution: Modern PLCs handle complex Proportional-Integral-Derivative (PID) control loops for critical parameters:
Temperature: Maintaining exact thermal profiles in dryers and throughout the multi-daylight press is fundamental for resin cure and board density. Siemens PLCs manage hundreds of PID loops simultaneously, adjusting heater outputs based on real-time thermocouple feedback.
Pressure: Precise control of hydraulic or pneumatic systems in the press ensures uniform density across the board and prevents blowouts. PLCs manage pressure ramping, holding times, and decompression with pinpoint accuracy.
Speed & Position: Synchronizing conveyor belts, forming heads, saws, and stackers requires high-precision motion control, often integrated via Siemens SINAMICS drives under PLC supervision.
3. High-Speed Data Acquisition & Processing: Thousands of sensor readings (temperature, pressure, moisture, weight, motor current, valve position) flood the system every second. The PLC processes this vast data stream in real-time, making instantaneous control decisions to maintain setpoints and detect anomalies before they escalate.
4. Seamless Integration: Siemens PLCs communicate flawlessly via PROFINET or PROFIBUS with the entire ecosystem of Siemens components (drives, HMIs, I/O, sensors), creating a unified, deterministic network. This eliminates communication bottlenecks that could introduce control lag and instability.
Beyond the PLC: The Critical Role of Supporting Electrical Components
The PLC is the brain, but the stability of the line hinges equally on the reliability and precision of its "senses" and "muscles" – the Siemens electrical components:

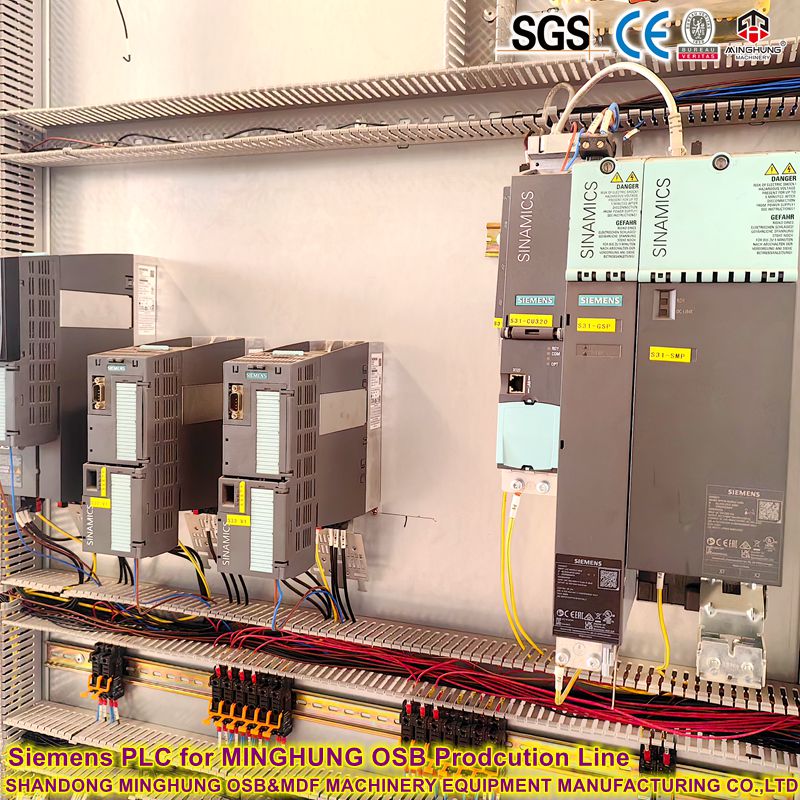

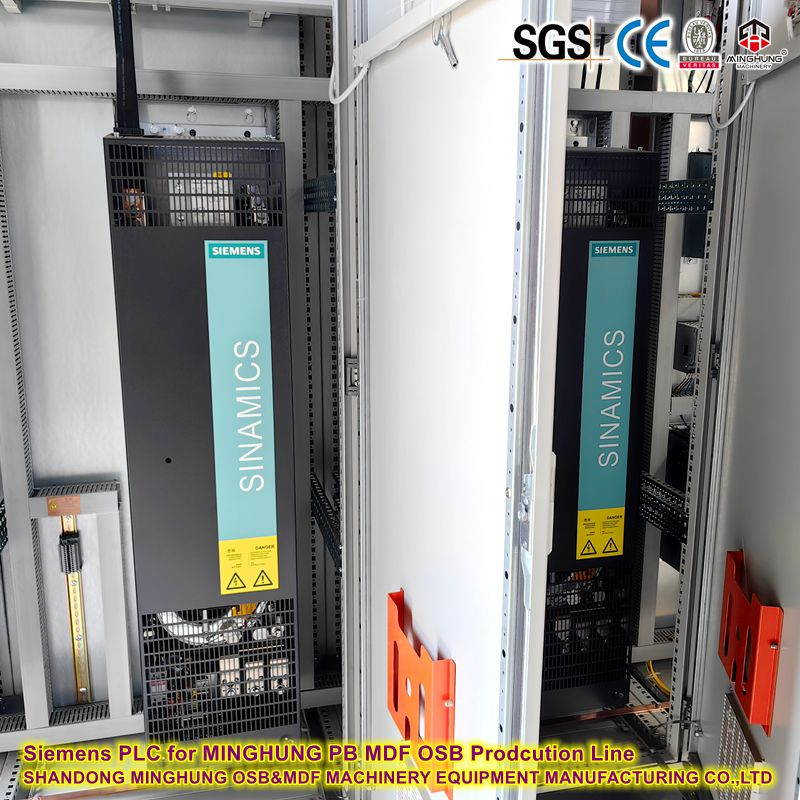

1. SINAMICS Drives & Motors: Particleboard lines involve massive inertia and require precise torque and speed control.
Stability Contribution: SINAMICS drives (like G120, S210) provide smooth acceleration/deceleration, precise speed regulation for feeders and conveyors, and powerful, controlled torque for press platens and saws. Vector control ensures motors maintain speed under varying loads (e.g., a dense mat entering the press), preventing slippage or surging that disrupts uniformity. Regenerative braking capabilities enhance energy efficiency and control during deceleration phases.
2. SIMATIC ET 200 Distributed I/O Systems: Placing I/O modules (digital inputs/outputs, analog inputs for sensors, analog outputs for valve control) directly on the machine near sensors and actuators via rugged ET 200SP or ET 200MP stations is crucial.
Stability Contribution: Reduces wiring complexity and potential points of failure. Minimizes signal degradation and noise over long cable runs, ensuring the PLC receives accurate sensor data (e.g., critical temperature readings from deep within the press) and sends precise control signals (e.g., to resin metering pumps). PROFINET enables high-speed, deterministic communication between the PLC and these remote I/O islands.
3. Precision Sensors (Often Siemens or Partner Brands): Accurate measurement is the foundation of stable control.
Temperature (SITRANS T): High-accuracy thermocouples and RTDs in dryers, presses, and hot glue systems.
Pressure (SITRANS P): Reliable transmitters monitoring hydraulic pressure, steam pressure, and pneumatic systems.
Moisture (Often Microwave or NIR): Critical for controlling dryer output and final board properties. Seamless integration with the PLC via analog or digital interfaces.
Position & Speed: Encoders on motors and linear transducers on press platens provide real-time feedback for closed-loop control.
Weighing Systems (SIWAREX): High-precision scales for raw material dosing and resin/wax metering.
Stability Contribution: Without accurate, drift-free measurements fed reliably to the PLC, control becomes guesswork. Siemens-compatible sensors ensure signal integrity and ease of integration into the TIA Portal ecosystem.
4. Industrial Communication Networks (PROFINET/PROFIBUS): The nervous system connecting PLC, drives, I/O, HMIs, and higher-level systems.
Stability Contribution: PROFINET provides deterministic, real-time communication with microsecond precision. This ensures that a speed command from the PLC reaches all relevant drives simultaneously, or that a critical pressure reading triggers an immediate PLC response. Robustness against electromagnetic interference (EMI) prevalent in industrial environments prevents communication dropouts that cause instability or faults.

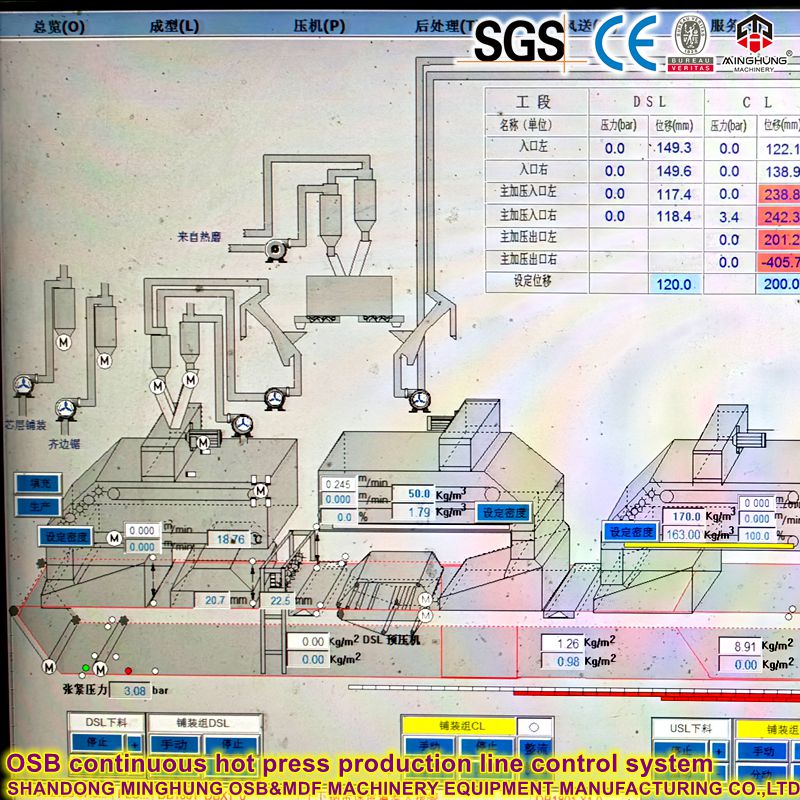

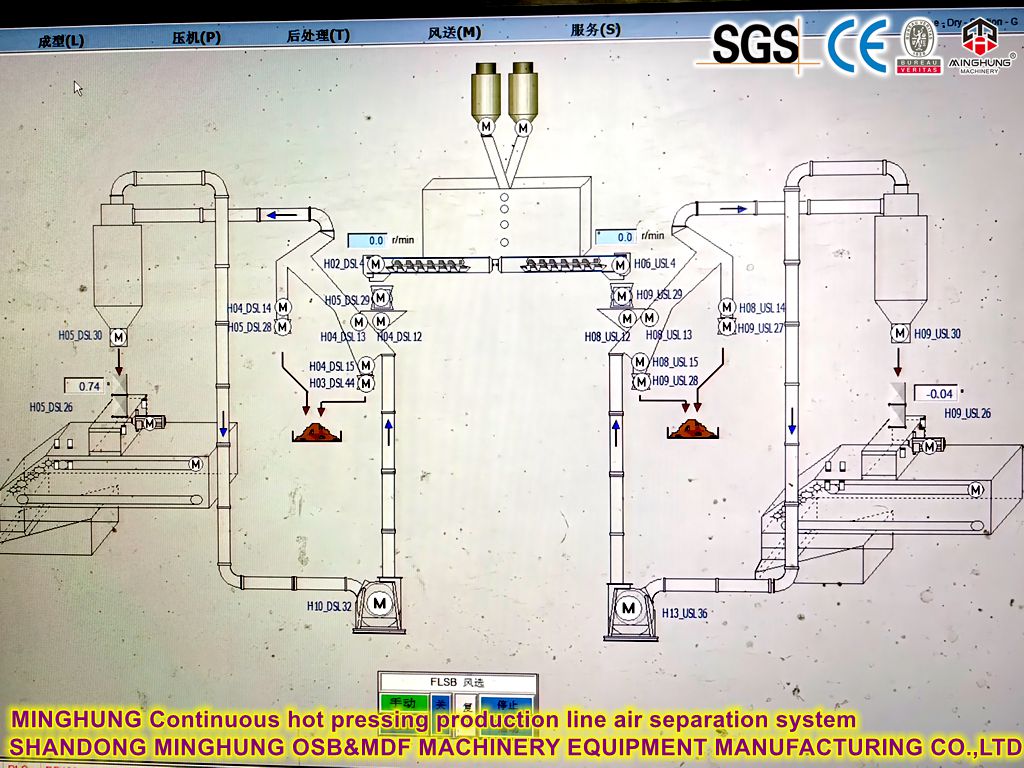

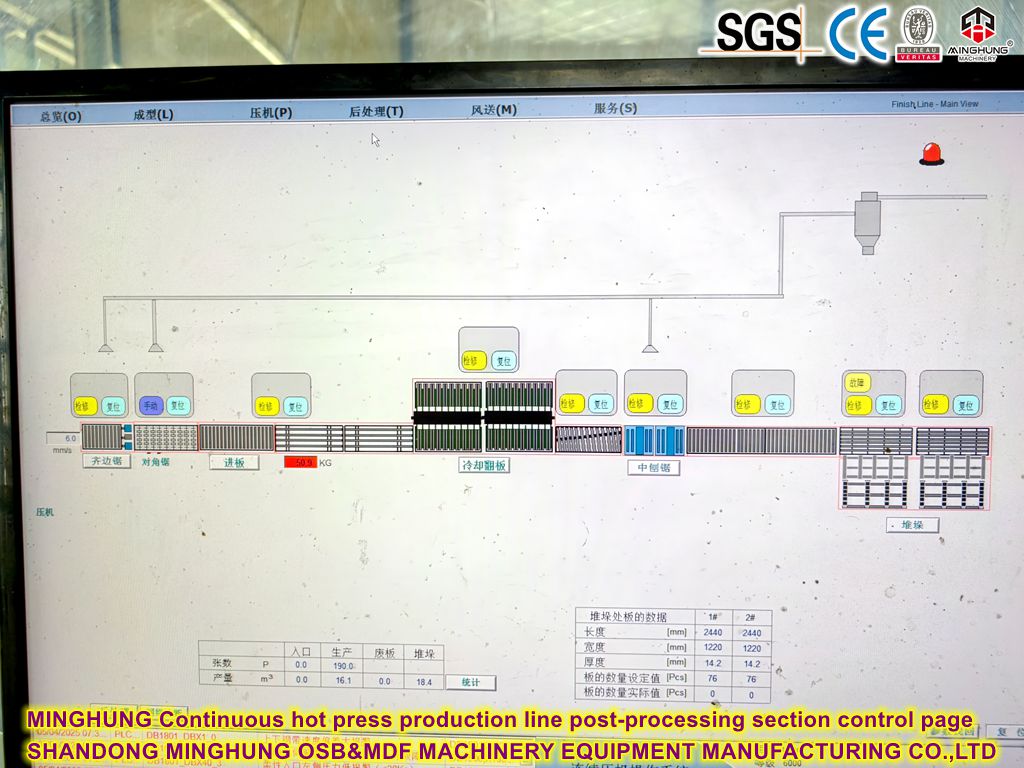

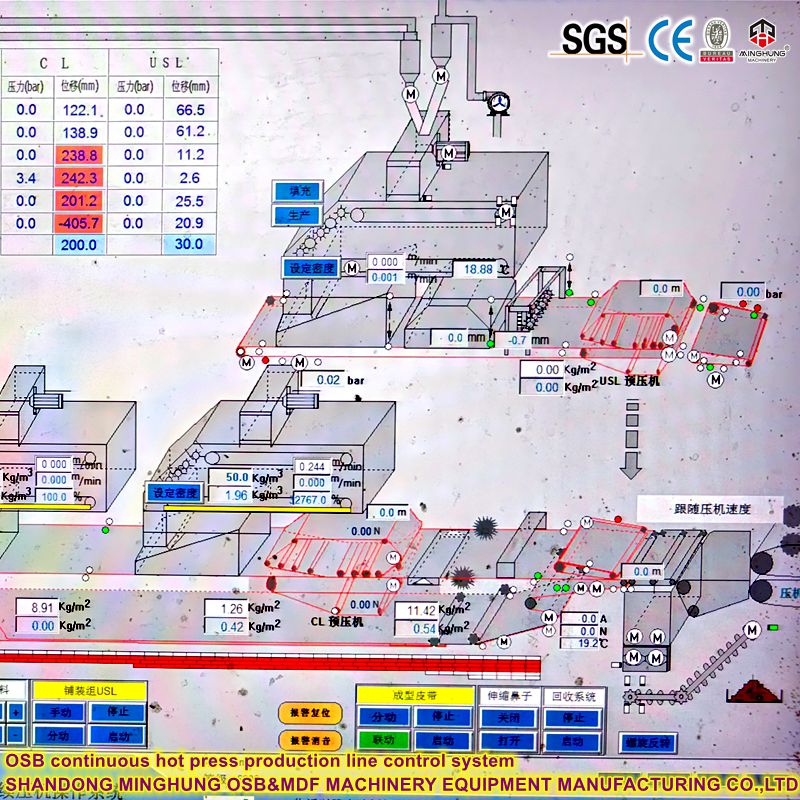

5. Human-Machine Interfaces (HMIs - SIMATIC HMI Panels): Operators monitor the entire process and intervene if necessary.
Stability Contribution: Clear visualization of process parameters and alarms allows operators to spot trends indicating potential instability early. Secure user management prevents unauthorized changes to critical setpoints. Recipe management ensures consistent production parameters for different board grades.
The Siemens Advantage: Integration and Intelligence
The true power lies in the Total Integrated Automation (TIA) Portal . This unified engineering framework allows for the seamless configuration, programming, commissioning, and diagnostics of the entire Siemens ecosystem – PLC, drives, HMI, I/O, networks. This integration minimizes engineering errors, simplifies troubleshooting, and ensures optimal interaction between all components, directly contributing to system-wide stability.
Furthermore, Siemens PLCs support advanced functions crucial for proactive stability:
Condition Monitoring: Analyzing motor current, vibration (via integrated or external sensors), and temperature trends to predict failures before they cause unplanned downtime.
Data Logging & Analysis: Recording process data for traceability, quality assurance, and identifying root causes of past instabilities to prevent recurrence.
Cloud Connectivity (MindSphere): Enabling remote monitoring, predictive maintenance, and fleet-wide optimization based on aggregated data from multiple production lines.
Conclusion: Stability as the Foundation of Success
In the relentless environment of particleboard, OSB, and MDF production, where margins are tight and quality demands are high, stability is non-negotiable. Siemens PLCs, acting as the intelligent core, coupled with the precision, reliability, and seamless integration of Siemens drives, distributed I/O, sensors, and communication networks, create an automation backbone engineered for unwavering stability. This integrated approach ensures precise control of every critical parameter – from resin dosage and mat formation to the intense heat and pressure of the press cycle. The result is consistent, high-quality board output, minimized waste, maximized uptime, reduced energy consumption, and a safe operating environment. For manufacturers aiming for peak performance in the competitive engineered wood panel market, the stability delivered by Siemens' comprehensive automation solution is not just an advantage; it's the fundamental enabler of sustainable success.
