MH-CHP48
MINGHUNG
846599
Continuous flat pressing system with steel belt is one high efficiency equipment for making OSB (Oriented strand board), MDF (Medium density fiberboard), and Particle board with Big production capacity, After the board slab enters the hot press, under high temperature (180~240℃) and high pressure (2~5MPa), the adhesive (usually urea-formaldehyde resin or phenolic resin) cures rapidly, and the wood shavings are closely combined. Segmented control: The hot pressing process is divided into heating, holding and cooling sections. Through continuous pressure application by multiple pressure rollers or steel belts, uniform density of the sheet is ensured. Due to its working way is -continuous and interruptted, therefore its production capacity can be very big such as 100,000m3~600,000m3/yearly
The Continuous flat pressing can be designed to be different length, width as your production capacity and requires
Continuous flat press from MINGHUNG group

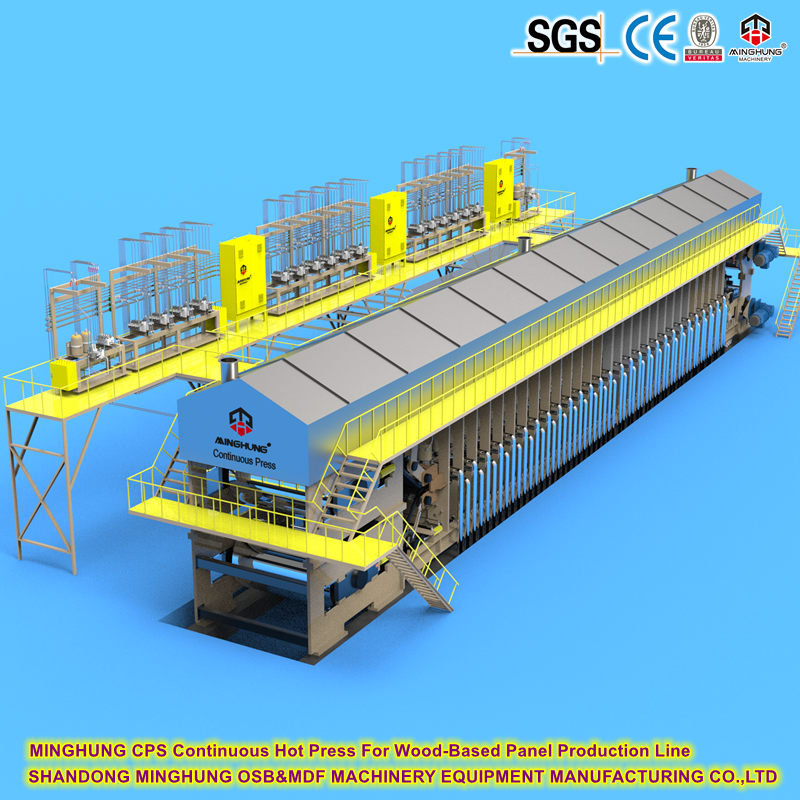

3D drawing of MINGHUNG Continuous flat pressing
√ Main structural components
- Steel belt system: Two ring-shaped heat-resistant steel belts (with a thickness of approximately 1.5 to 3mm) drive the slab to move continuously, and the surface is chrome-plated or sprayed with a wear-resistant layer.
- Heating system: Heat transfer oil heating or electric heating, heat is transferred to the slab through the hot press plate.
- Hydraulic system: It provides pressure and adopts multi-cylinder synchronous technology to ensure uniform pressure distribution.
- Frame and roller group: High-strength frame support, and the arrangement of pressure rollers controls the thickness of the sheet (the adjustable range is usually 2 to 40mm).
Control system: PLC or DCS automated control, with real-time regulation of temperature, pressure and speed (the production line speed can reach 1.5 to 3m/min)
√ Technical Features
- High-efficiency continuous production: Compared with single-layer/multi-layer periodic presses, it can operate continuously for 24 hours and has a high production capacity (annual output of 100,000 to 600,000 cubic meters).
- Energy conservation and environmental protection: Heat energy recovery and utilization (such as waste heat from exhaust gas heating heat transfer oil), optimization of adhesive usage to reduce formaldehyde release.
- Board quality is stable: the density deviation is ≤±3%, the surface flatness is high, and it can be directly used for veneer processing.
- Flexibility: By adjusting parameters, particleboards of different thicknesses (commonly 8 to 40mm) and densities (550 to 750kg/m³) can be produced, and even special boards such as moisture-proof boards and flame-retardant boards can be manufactured.
√ Advantages of Our Continuous flat pressing
- It has high production efficiency and is suitable for large-scale production.
- The longitudinal density gradient of the sheet is small and the mechanical properties are uniform.
- It has a high degree of automation and low demand for labor
√ Parameters of Continuous flat pressing
| Working width | 1200-2800mm |
| Working length | 20-40m |
| Heating temperature | 180-240 ℃ |
| Pressure | 2-5Mpa |
| Power | 500-2000kw |
| Capacity | 100,000~600,000m3/year |
Note: We can offer and design different hot press specifications as your requires and conditions.
We are Shandong MingHung OSB&MDF Machinery Equipment manufacturer in China, our factory can offer the complete line of OSB board making machine, MDF/HDF making machine, and Chipboard making machine for you. Detailed machines such as drum chipper, disc chipper, silo, drum dryer, vibrating screen, glue dosing and applysing system, glue blender, mat forming machine, continuous pre-press, cross-cut saw, multi-layers hot press or continuous press, auto edge cutting machine and sanding machine, belt conveyors and so on.
With Advanced production technology and processing lathes, and Experienced workers and professional engineers and technicians, our factory have the ability to offer suitable and strong wood based panel machinery for you, to make OSB board /MDF panel /Particleboard with Good quality.
We have professional technology team, to keep design and improve our machines features, to make our machinery better and better. And we can design the factory layout for you.
Multi-opening hot press
Vibrating screen
Continuous Pre-press
Ring flaker
A:T/T. 30% as deposit, the left payment before loading.
A: For small capacity line, 5-6 months; For big capacity line, 8-10 months
If you are interested, welcome contact us
+86 18954906501, +86 18769900191, +86 15805496117
