Multi-Opening PB /OSB /MDF /Plywood Hot Press with Auto Loader And Unloader

Multi-Opening Hot press

The Multi-opening Hot Press is the core equipment for the production of artificial boards (such as particleboard, density board and oriented strand board). It presses wood raw materials (shavings, fibers or scraps) and adhesives into boards through high temperature and high pressure.

Mainly structure of Hot press

◇ Heating method:

Steam heating (low cost, but large temperature fluctuations)

Heat transfer oil (precise temperature control, suitable for high-density boards)

Electric heating (energy-saving, but with a high initial investment).

◇ Hydraulic system

The proportional valve controls the pressure curve to prevent the slab from being "overpressurized" or "underpressurized".

◇ Automatic control

The PLC system regulates temperature, pressure and time in real time to meet the requirements of different thicknesses/densities

Hot Press parameters for different panel

MINGHUNG Hot press show

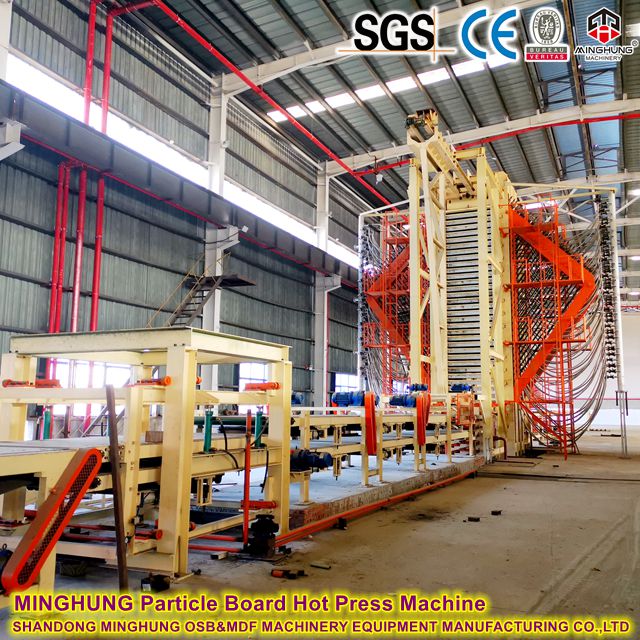

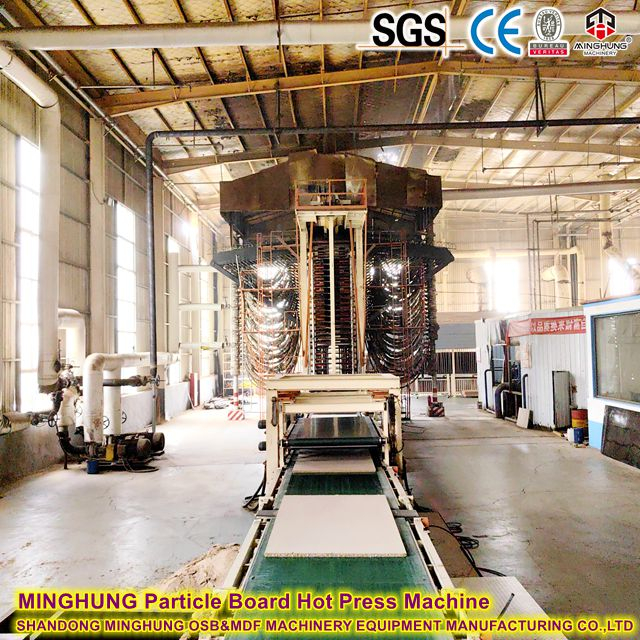

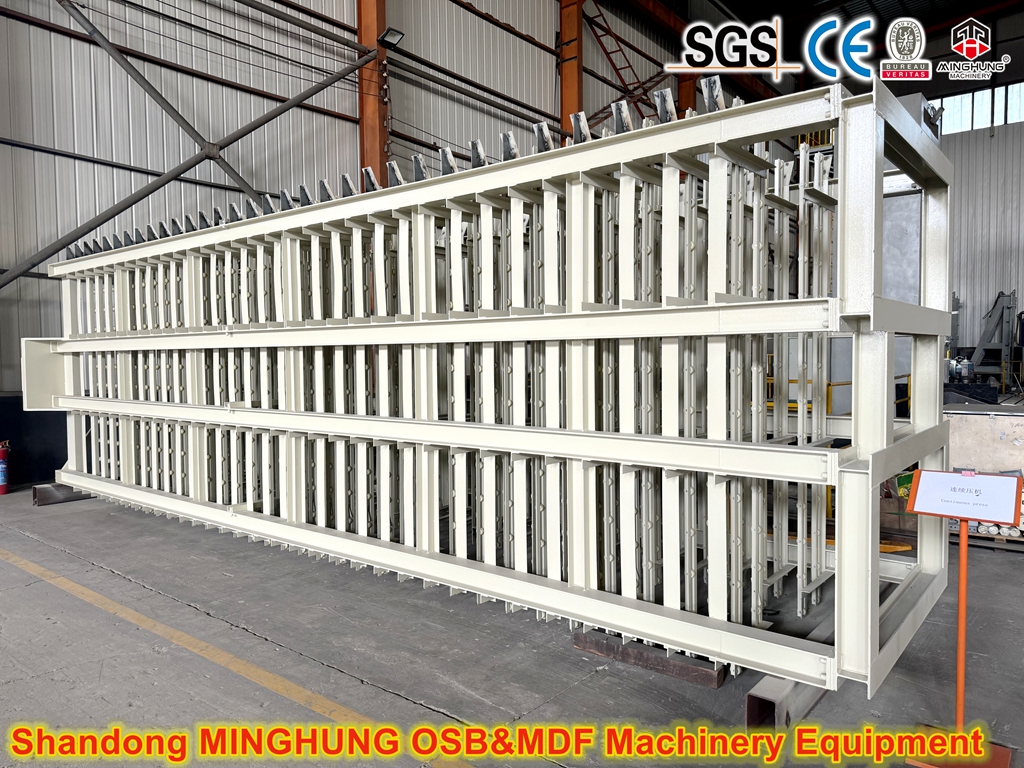

Hot press with Auto loader and unloader system, for automatic infeeding wooden panel and automatic stacking it. The whole press line is fully automatic, no need any workers, improve work efficiency and high production capacity

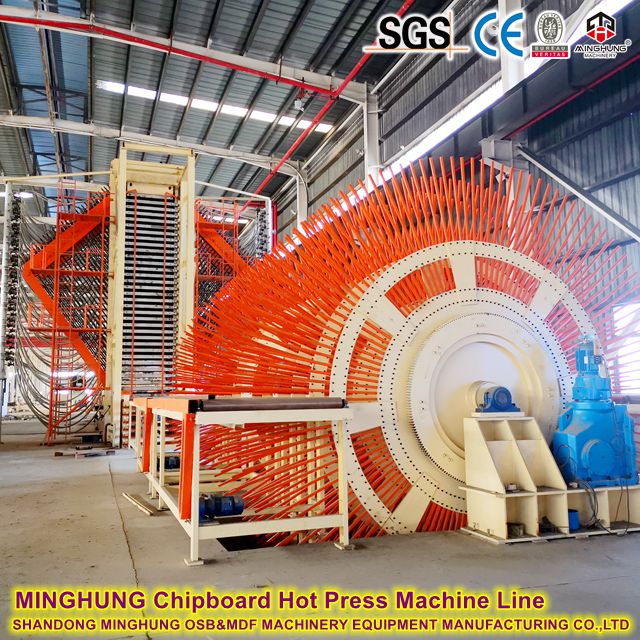

This is Cooling frame after Hot press, it can Uniform cooling and release of internal stress; Equilibrium moisture content Improve dimensional stability

Delivery

Until now we have exported many Hot press to different countries and got good feedback. We can design and offer the suitable and good quality Hot press for you to make good wooden panel

If you are interested, welcome contact us
