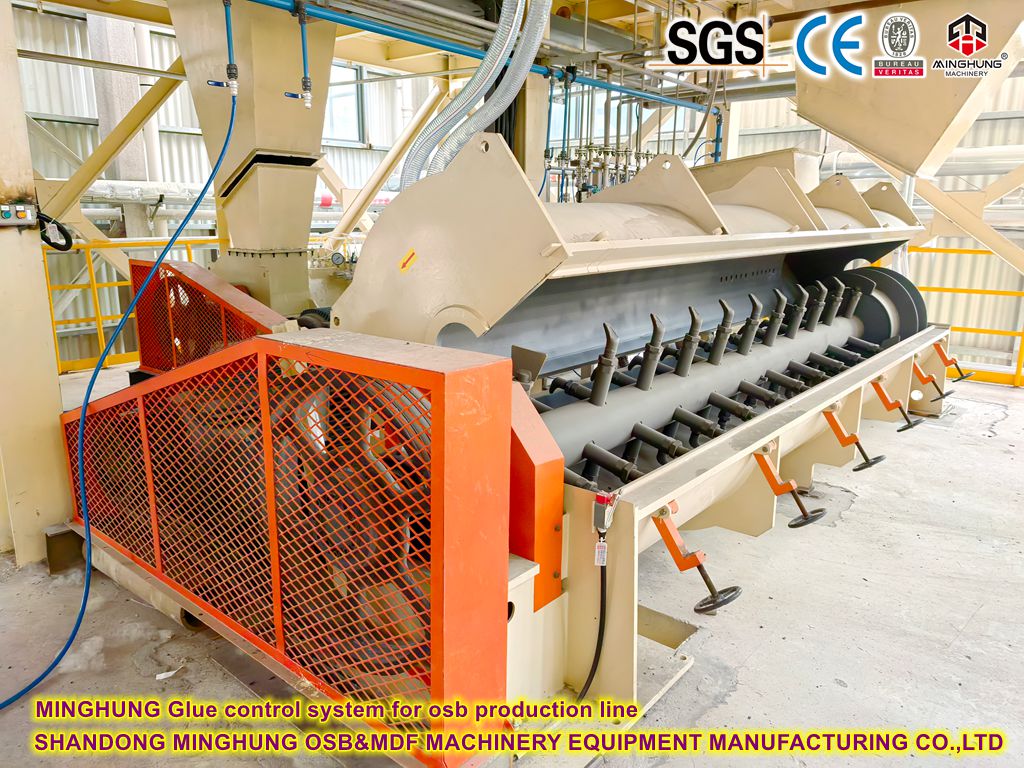

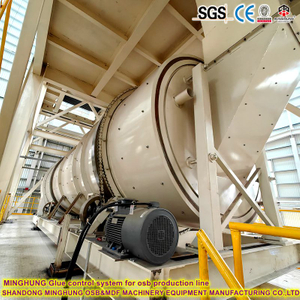

A modern PLC-controlled glue mixer integrates several components:
Mixing Vessel: Stainless steel tank with appropriate size and design (often conical bottom) for efficient mixing and drainage Equipped with a lid and safety interlocks
Agitation System: Motor, gearbox (if needed), and impeller(s) designed for efficient homogenization without excessive air entrainment Controlled by a VFD via the PLC

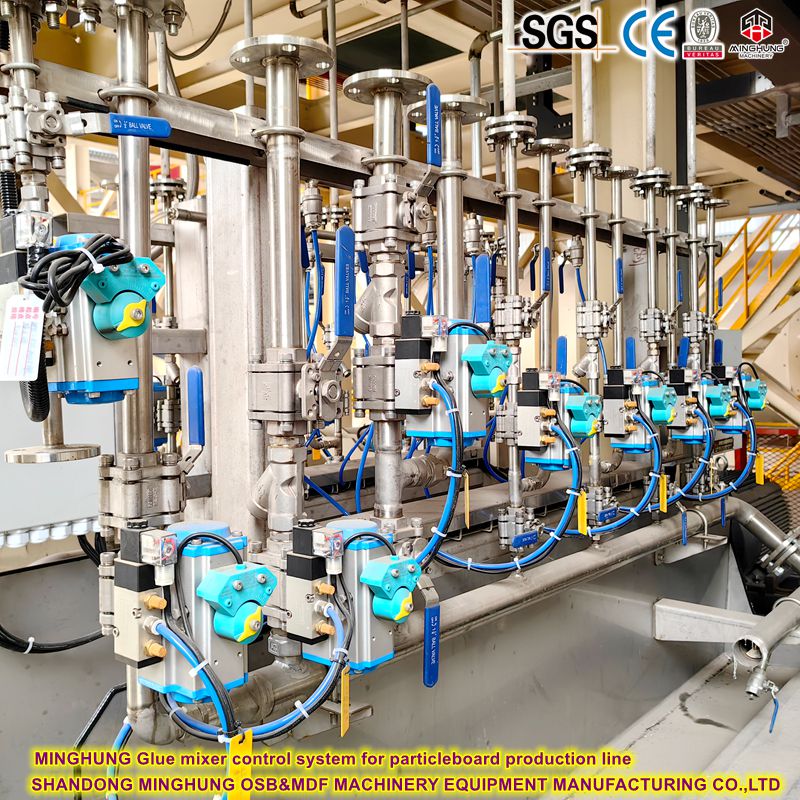

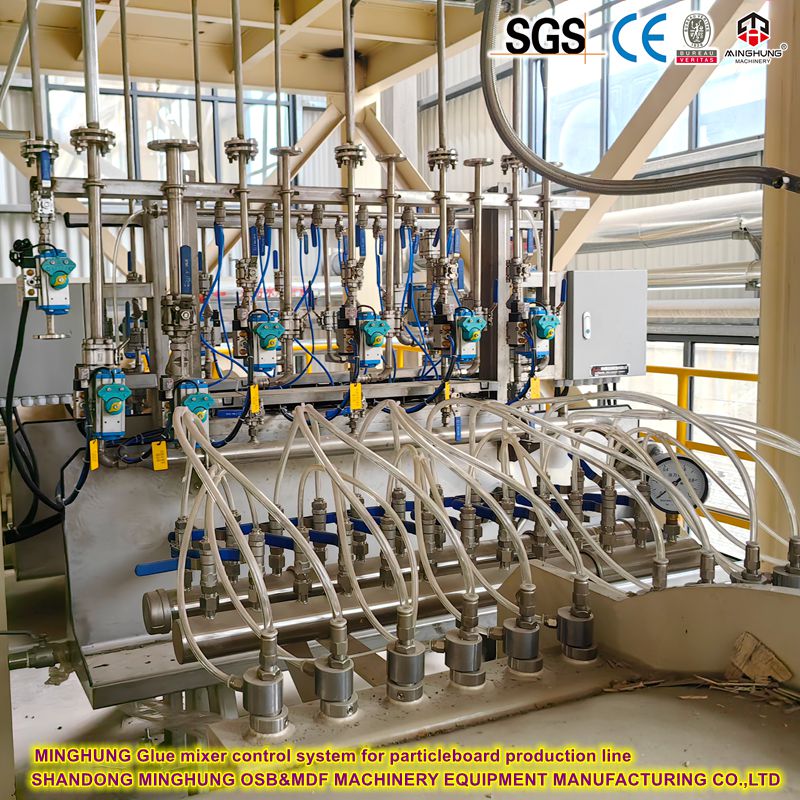

Liquid Metering System: Supply tanks (Resin, Water), pumps, control valves, and high-precision flow meters (e g , mass flow meters) feeding into the mixer PLC controls valves based on meter feedback
Solid Metering System: Silos or hoppers for hardener, fillers, etc , feeding via screw feeders, vibratory feeders, or pneumatic conveyors onto load cells mounted under the mixer or on dedicated weigh hoppers PLC controls feeders based on weight feedback
Temperature Sensors: RTDs or thermocouples mounted in the mixer and potentially resin supply lines

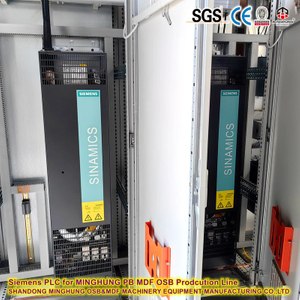

Programmable Logic Controller (PLC): The central control unit with I/O modules connecting to all sensors and actuators Housed in a control panel

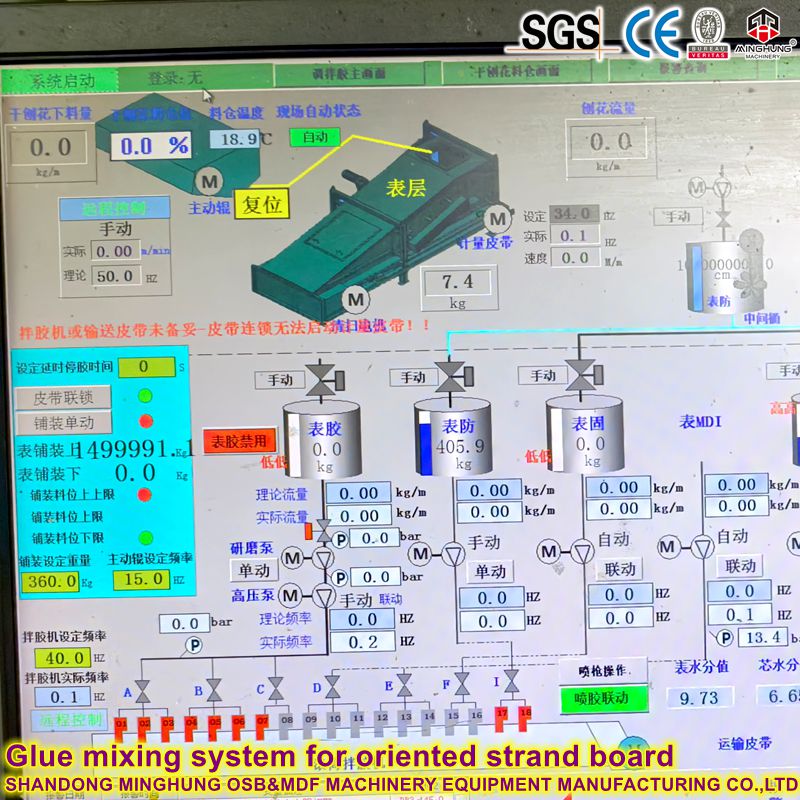

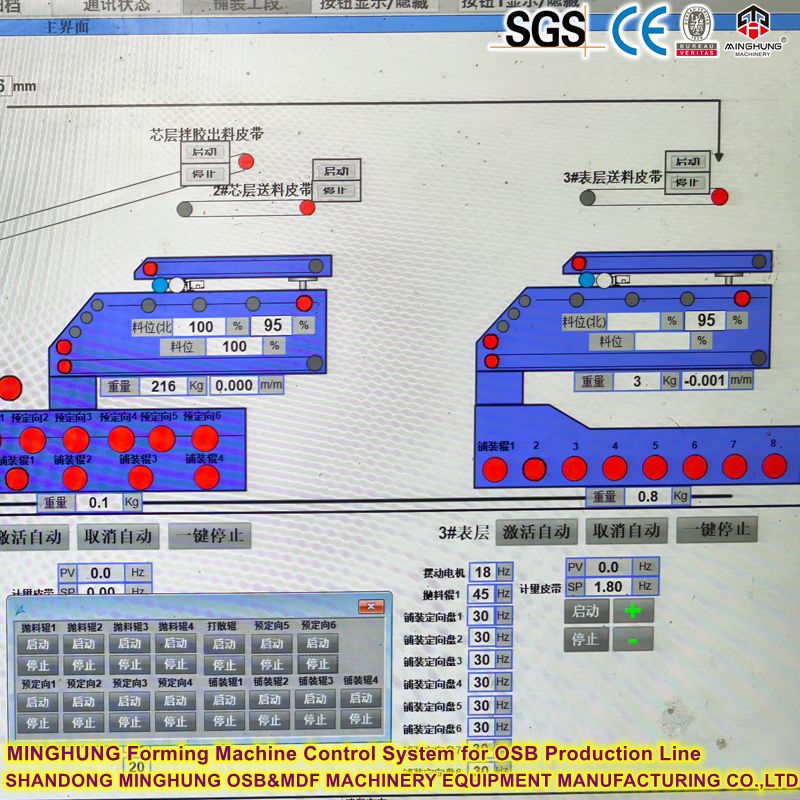

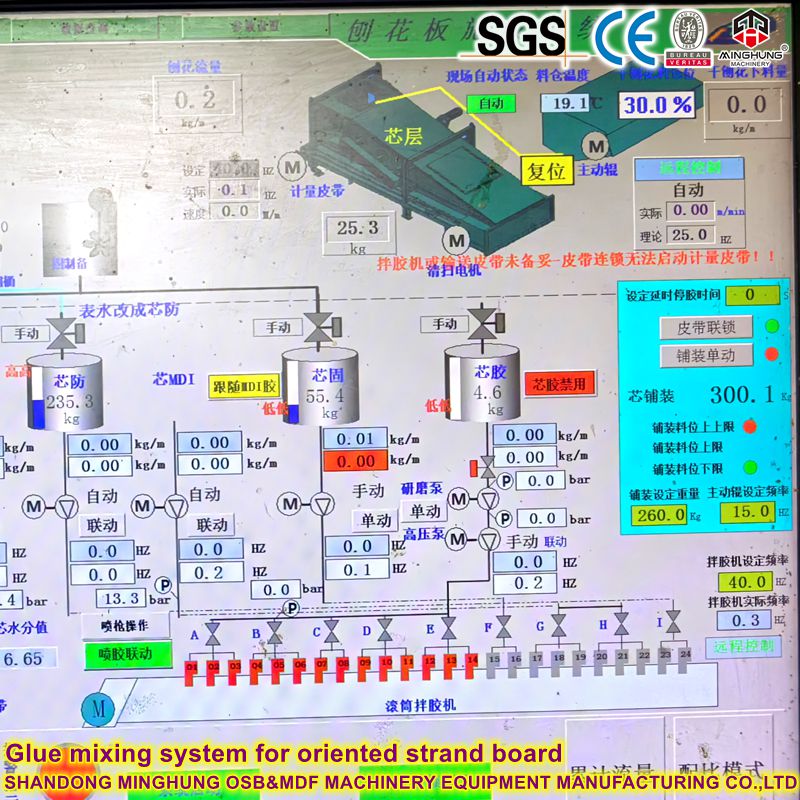

Human-Machine Interface (HMI): Touchscreen display mounted on the control panel or remotely Allows operators to select recipes, start/stop batches, view real-time process data (weights, temps, timers), acknowledge alarms, and access historical data
Control Panel: Houses the PLC, HMI, motor starters, VFDs, relays, and terminal blocks Provides power and signal distribution
Piping & Valves: Network connecting supply tanks to the mixer, including drain valves (often automated) and sample points

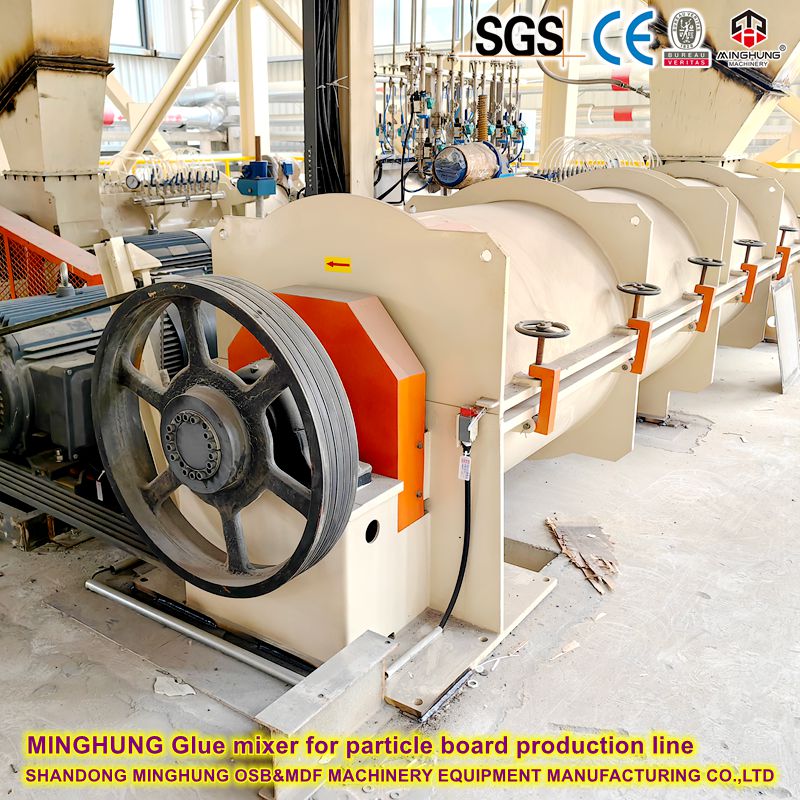

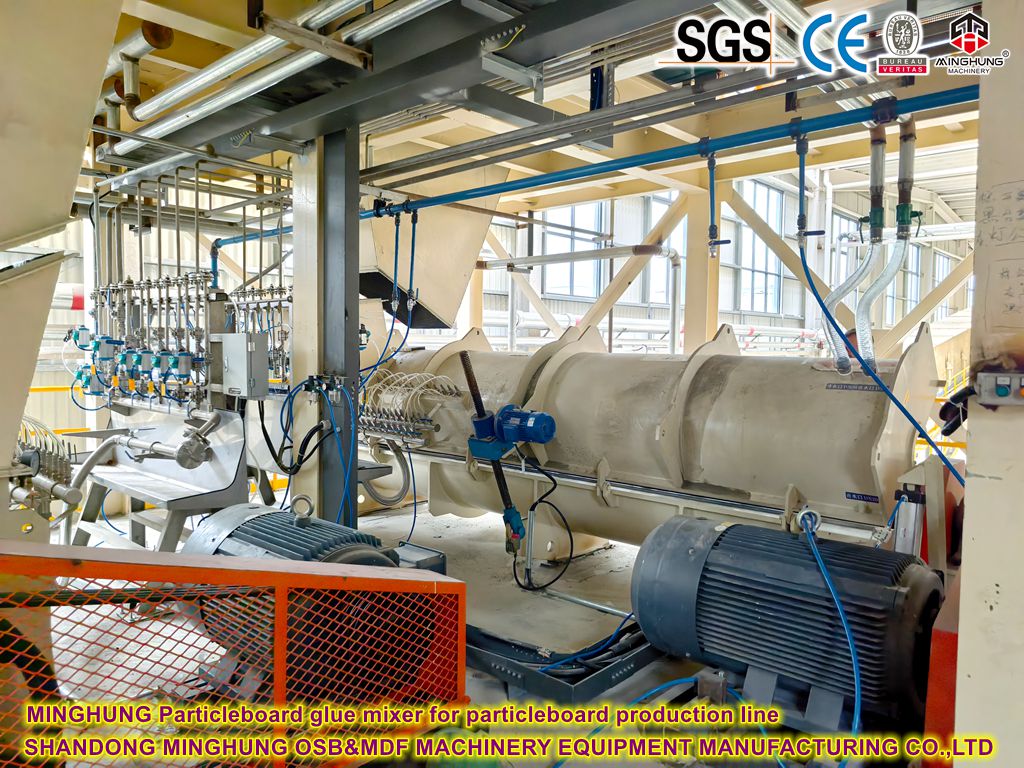

Particleboard is essentially wood particles bound together by synthetic resin adhesives, primarily urea-formaldehyde (UF) or melamine-urea-formaldehyde (MUF). The mixer's role is deceptively complex:
1. Homogeneous Blending: Achieving a perfectly even distribution of adhesive droplets over every wood particle surface is paramount. Uneven mixing leads to weak spots (under-glued areas) or resin-rich zones (waste, potential curing issues, and surface defects).
2. Controlled Application: The exact amount of adhesive (resin solids) applied per unit weight of wood particles – the resin application rate – must be precisely controlled and consistent. Too little compromises strength; too much increases cost, emissions, and curing problems.
3. Gentle Handling: While thorough mixing is essential, excessive mechanical action can damage wood particles (creating fines that hinder board formation and properties) or cause premature resin thickening.
4. Resistance to Aggression: Adhesives, catalysts, release agents, and moisture are inherently corrosive. Equipment must withstand this harsh chemical environment daily.
Failure in any of these areas translates directly to subpar board quality, production line stoppages, increased raw material costs, and potential customer rejections. This is where advanced engineering transforms the mixer from a simple blending vessel into a precision instrument.

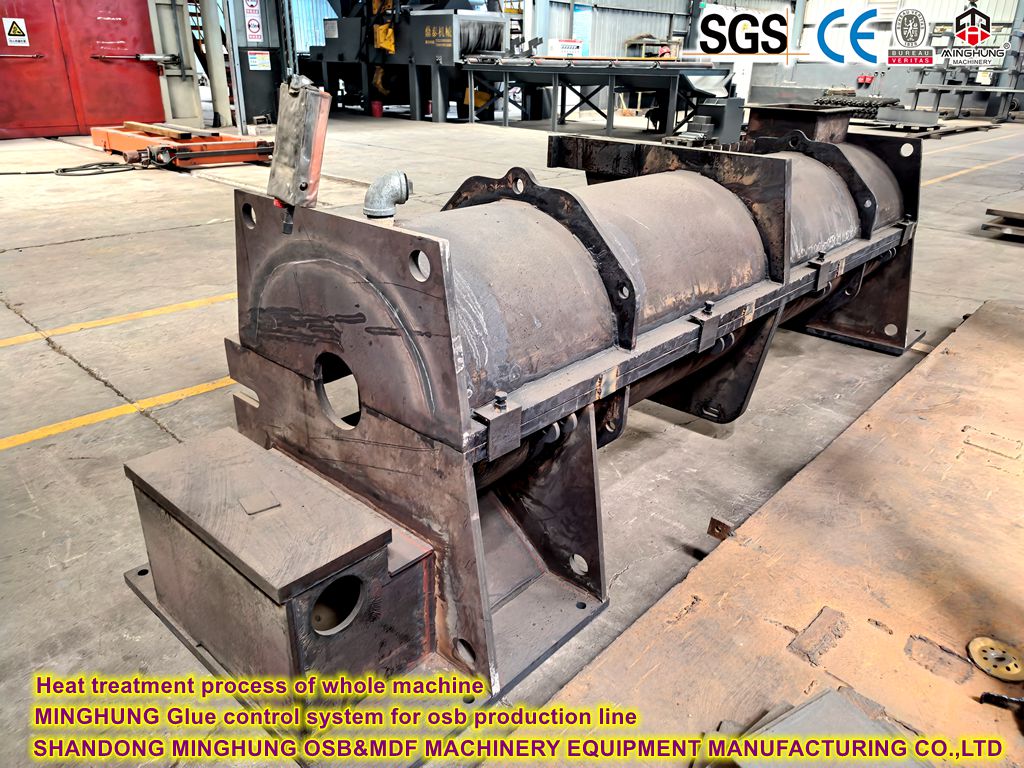

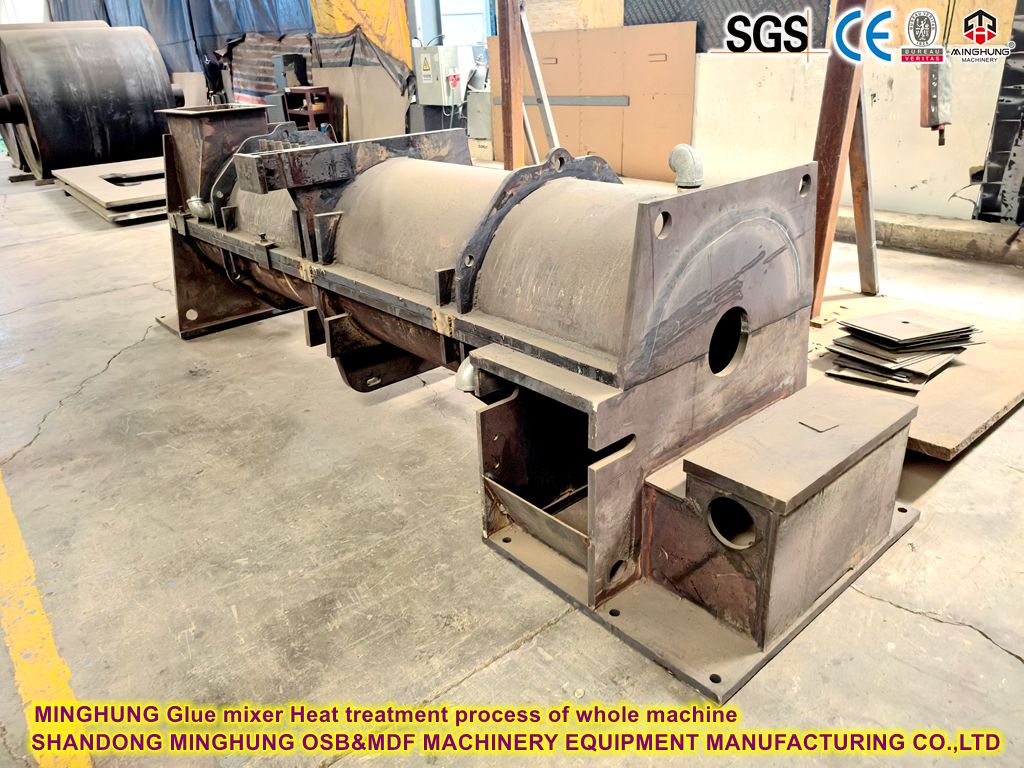

Heat Treatment:
Stress Relief: After intensive welding, residual stresses can build up in the metal structure. Controlled heat treatment (like annealing or stress relieving) is applied.
Why it Matters: This process stabilizes the metal, significantly reducing the risk of warping, distortion, or stress corrosion cracking over time. A mixer that remains dimensionally stable ensures consistent internal clearances for mixing elements and sensors, directly contributing to long-term stable operation and preventing premature failure, especially under thermal cycling common in production environments.

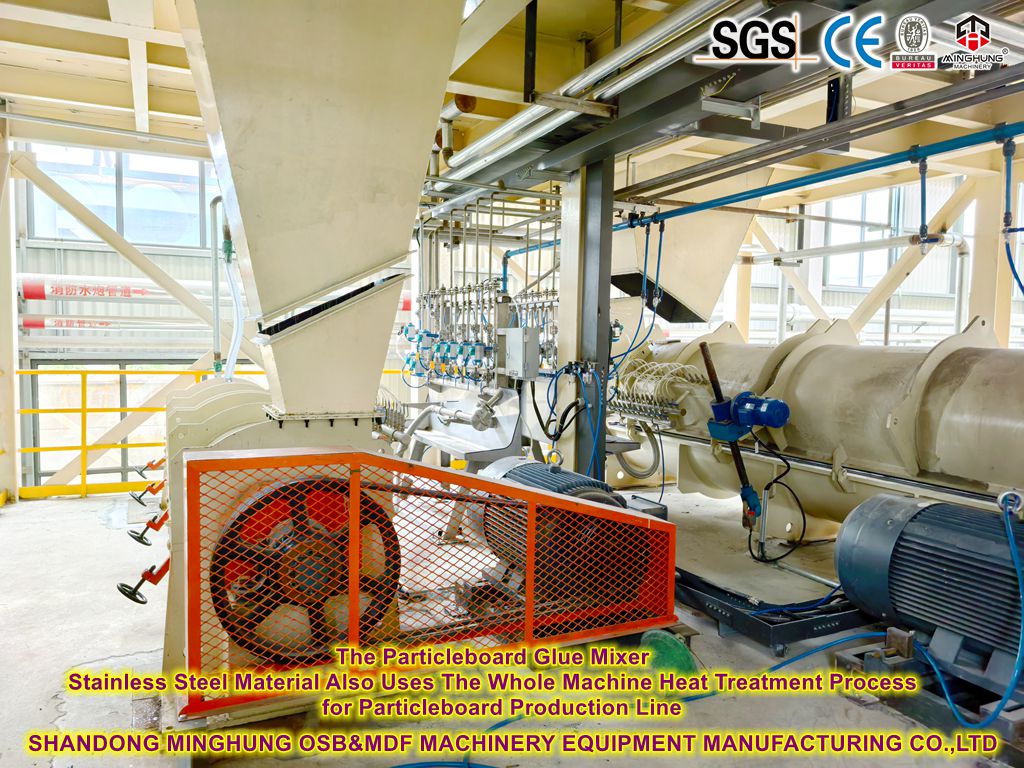

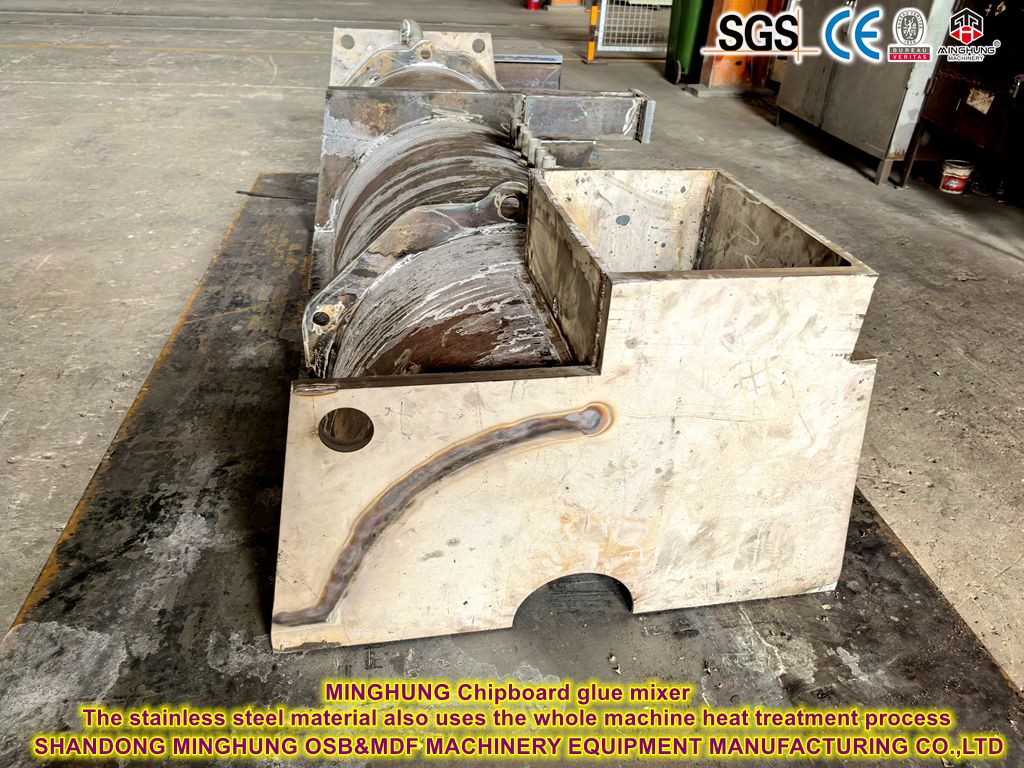

Stainless Steel Material:
The Gold Standard: High-grade austenitic stainless steel (such as 304L or 316L) is the preferred material for critical components, especially the mixing chamber, rotor, spray nozzles, and internal ducting.
Why it Matters: Stainless steel offers exceptional corrosion resistance against the acidic resins, catalysts, and humid conditions. Its inherent smoothness resists adhesion buildup better than carbon steel. Crucially, it is non-reactive, preventing contamination of the adhesive blend that could alter curing kinetics or board properties. This material choice is fundamental to achieving consistent, uncontaminated mixing batches and ensuring long equipment life with minimal corrosion-related failures.
