Laser cutting MDF is a thermal fabrication process that uses a high-powered CO2 laser to vaporize material along a programmed path, resulting in high-precision edges, intricate interior cutouts, and detailed surface engravings. To achieve professional results, operators must balance laser power, travel speed, and air assist pressure to manage the carbonization of the urea-formaldehyde resins found in the board.
Understanding the interaction between laser technology and engineered wood is the first step toward optimizing your production workflow. This guide provides a comprehensive technical breakdown of how to handle MDF during laser operations, focusing on safety protocols, machine settings, and industry applications. By following these professional standards, manufacturers can ensure clean cuts and structural integrity for every project.
Section | Summary |
What is MDF and Why Use It for Laser Cutting? | This section explores the composition of MDF as an engineered wood product and explains why its homogeneous structure makes it superior for laser processing compared to natural timber or plywood. |
Laser Cutting Fundamentals for MDF | We detail the technical parameters required for success, including the critical balance of power, speed, and frequency to achieve clean edges and reduce charring. |
Safety: Ventilation and Fumes | This part addresses the environmental and health considerations of laser cutting MDF, specifically focusing on the management of formaldehyde-based resins and particulate matter. |
Common Applications | An overview of how laser-cut MDF is utilized across various B2B sectors, highlighting its role in prototypes, signage, and industrial components. |
MDF, or Medium-Density Fiberboard, is an engineered wood product made by breaking down hardwood or softwood residuals into wood fibers, combining them with wax and a resin binder, and forming panels by applying high temperature and pressure. It is preferred for laser cutting because its lack of grain and knots ensures a consistent thermal reaction across the entire surface of the sheet.
The structural integrity of MDF begins at the manufacturing stage. In a high-capacity MDF Production Line, wood fibers are refined to a specific consistency before being bonded. This industrial process creates a material that is isotropic, meaning it has the same properties in all directions. Unlike natural wood, which has varying densities due to growth rings and knots, MDF allows the laser to move at a constant speed without hitting "hard spots" that could cause incomplete cuts or flare-ups.
When choosing materials for precision projects, it is vital to understand the technical differences between various engineered boards. For instance, knowing what are MDF and particleboard and how are they different can help a production manager decide which substrate will yield the cleanest edge. While particleboard is made of larger wood chips and can be prone to crumbling under a laser, the fine fibers in MDF result in a polished, dark brown edge that often requires no secondary sanding.
Furthermore, the affordability and availability of MDF make it an ideal candidate for large-scale industrial output. Modern manufacturing facilities that utilize a sophisticated MDF Production Line can produce boards with varying thicknesses, ranging from 2mm for delicate architectural models to 18mm or more for heavy-duty furniture components. This scalability, combined with the laser’s ability to execute complex geometries, provides a significant competitive advantage in the B2B market.
1、Consistency: No grain patterns or knots mean the laser power remains effective throughout the entire cut path.
2、Edge Quality: The resin content in the board reacts to the heat by slightly sealing the edge, providing a smooth finish.
3、Cost-Effectiveness: MDF is generally less expensive than plywood or solid wood, lowering the overall cost per unit in mass production.
4、Surface Prep: The exceptionally smooth surface is ready for painting or veneering immediately after the cutting process is complete.
Successful laser cutting of MDF relies on the precise orchestration of laser power, travel speed, and focal height to minimize the Heat Affected Zone (HAZ) and prevent excessive charring. Because MDF contains organic binders, the goal is to vaporize the material quickly enough to create a clean kerf without allowing heat to soak into the surrounding fibers.
The primary challenge when cutting MDF is managing the "char." Since the material is essentially compressed wood fiber and glue, the laser works by burning through these layers. To achieve a "golden brown" edge rather than a "black charred" edge, operators often use a high-frequency pulse setting. This allows the laser to deliver intense energy in short bursts, which clears the material while giving the surrounding area micro-seconds to cool down between pulses.
Air assist is another fundamental component of the process. By blowing a constant stream of compressed air through the laser nozzle, smoke and debris are pushed away from the focal point. This not only protects the expensive laser lens from contamination but also prevents the combustible gases released by the MDF from igniting. For thicker boards produced by an industrial MDF Production Line, high-pressure air assist is mandatory to ensure the laser beam can penetrate the full depth of the material.
Material Thickness | Laser Power (Watts) | Cutting Speed (mm/s) | Air Assist Pressure |
3mm MDF | 40-60W | 15-25 mm/s | Medium |
6mm MDF | 60-80W | 8-12 mm/s | High |
9mm MDF | 80-100W | 3-6 mm/s | Very High |
Beyond the basic settings, the choice of the lens is critical. A shorter focal length lens (e.g., 1.5 or 2.0 inches) is excellent for fine engraving and thin cuts because it creates a smaller spot size. However, for thicker industrial panels, a 2.5-inch or 4-inch lens is preferred. The longer focal depth ensures that the laser beam remains narrow and powerful as it passes through the thickness of the board, resulting in vertical edges rather than tapered ones. It is also important to recognize the quality of the board itself; high-quality panels from a professional wood-based panel machinery source will have fewer impurities that could cause sparks or inconsistent cutting.
Safety in laser cutting MDF is primarily concerned with the extraction and filtration of toxic fumes and fine particulate matter generated during the thermal decomposition of wood fibers and urea-formaldehyde resins. These fumes can be hazardous to the respiratory system and can also damage the mechanical components of the laser machine if not properly managed.
When the laser vaporizes MDF, it releases a cocktail of gases, including carbon monoxide and formaldehyde. Formaldehyde is a known irritant and carcinogen, which is why industrial-grade ventilation systems are non-negotiable. A high-volume exhaust fan must be used to create a vacuum within the laser cabinet, pulling smoke away from the work area and exhausting it through a filtration system or to the outside environment. Failure to do so will result in a buildup of "smoke residue" on the surface of the MDF, which can be difficult to remove and ruins the aesthetic of the final product.
In addition to respiratory safety, fire prevention is a critical protocol. MDF is a combustible material, and the laser is an ignition source. The accumulation of fine dust inside the laser bed can act as tinder. Regular maintenance, including vacuuming the "honeycomb" or "slat" bed and cleaning the exhaust ducting, is essential for a safe working environment. Operators should never leave a laser unattended while cutting MDF, as "flame-ups" can occur if the air assist fails or if the laser dwells too long in one spot.
1、High-Capacity Extraction: Use an exhaust system that can cycle the air in the laser cabinet at least 20 times per minute.
2、Multi-Stage Filtration: For indoor environments, use HEPA and activated carbon filters to trap particulates and neutralize chemical odors.
3、Fire Suppression: Keep a CO2 fire extinguisher near the machine, as water-based extinguishers can damage electronic components.
4、Material Sourcing: Whenever possible, use "Low-Formaldehyde" or "NAF" (No Added Formaldehyde) MDF to reduce the chemical load of the fumes. Choosing the right type of engineered wood board can significantly impact the safety profile of your workshop.
The applications for laser-cut MDF span a wide range of industries, from architectural modeling and interior design to the manufacturing of specialized industrial templates and consumer products. Its ability to be cut with extreme precision while remaining structurally stable makes it an ideal substrate for items that require both aesthetic appeal and functional accuracy.
In the B2B sector, laser-cut MDF is frequently used to create high-fidelity architectural models. The precision of the laser allows for the creation of intricate window frames, scaled structural supports, and detailed facade textures that would be impossible to produce by hand. Because MDF is easy to glue and paint, these components can be assembled into complex 3D structures rapidly, facilitating faster design iterations for engineering firms.
Another major application is in the creation of jigs and fixtures for other manufacturing processes. For example, a factory might use laser-cut MDF to create custom cradles for an assembly line or templates for manual routing. The stability of the boards produced on a modern MDF Production Line ensures that these tools remain accurate over time, even in environments with fluctuating humidity.
1、Signage and Branding: Creating 3D letters, logos, and decorative wall panels with clean, paint-ready edges.
2、Custom Packaging: Designing high-end inserts for luxury goods or protective crates for fragile industrial parts.

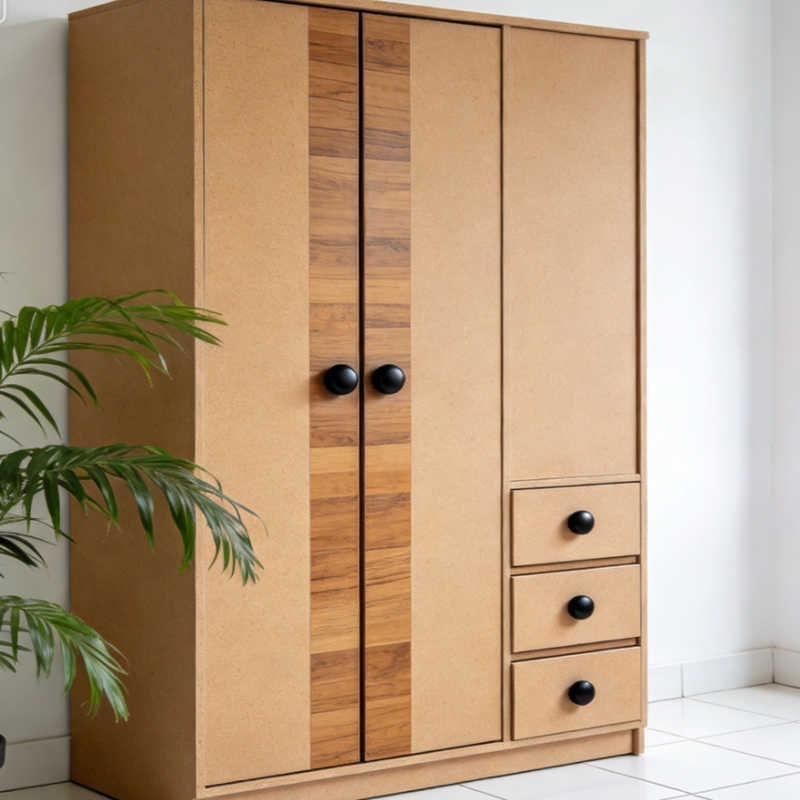

3、Furniture Components: Cutting intricate fretwork for cabinet doors or decorative inlays for tables.
4、Educational Kits: Manufacturing "flat-pack" STEM kits and puzzles that require tight tolerances for interlocking parts.
The versatility of this material is further enhanced by its compatibility with other finishing techniques. Laser-cut MDF can be easily veneered, laminated, or spray-painted to mimic more expensive materials. This flexibility allows businesses to offer premium-looking products at a fraction of the cost of solid timber. By understanding the manufacturing background and the composition of various wood-based panels, designers can push the boundaries of what is possible with laser technology.
Mastering laser cutting for MDF is a balance of technical knowledge and practical experience. By selecting high-quality materials, optimizing machine parameters, and adhering to strict safety standards, manufacturers can produce high-precision components that meet the demands of the modern B2B marketplace. As industrial technology continues to evolve, the synergy between advanced laser systems and engineered wood products like MDF will remain a vital driver of innovation and efficiency in production. Whether you are creating intricate architectural models or robust industrial templates, the consistency and versatility of MDF ensure that your results are limited only by your design imagination.
