The wood-based panel industry has undergone a significant transformation, with Medium Density Fiberboard (MDF) emerging as a cornerstone for furniture manufacturing, interior design, and construction. Unlike natural timber, MDF offers a uniform density and a smooth surface that allows for intricate machining and high-quality finishing. To achieve these characteristics, the MDF Production Line must integrate complex mechanical engineering with precise chemical application. Understanding the lifecycle of a wood log as it transforms into a high-density board is essential for manufacturers aiming for cost-efficiency and product excellence.

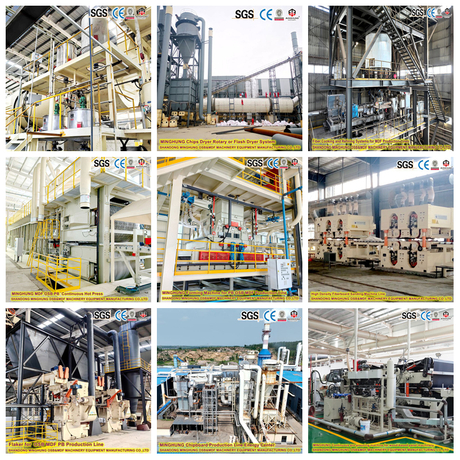

The main components of an MDF Production Line include the wood preparation section (chippers and screens), the fiber preparation unit (refiners and dryers), the glue dosing system, the forming station, and the continuous or multi-opening hot press. These elements work in a synchronized sequence to convert raw wood materials into engineered panels with specific mechanical properties and density profiles.
This comprehensive guide delves into the technical specifications and operational workflows of a modern manufacturing plant. By examining each stage—from the initial debarking to the final sanding and cooling—you will gain a professional perspective on how high-performance panels are engineered. Whether you are looking to optimize an existing facility or understand the capital equipment involved in a new project, this analysis covers the essential machinery and strategic SEO-driven insights for the B2B industrial sector.
Section | Summary |
Wood Preparation and Chipping | The initial phase where raw timber or wood waste is cleaned, debarked, and reduced into uniform chips to ensure consistent fiber quality. |
Fiber Refining and Defibrator System | A critical thermo-mechanical process that breaks down wood chips into soft, high-quality fibers using steam and pressurized refining discs. |
Resin Dosing and Drying Operations | The application of adhesive binders to the fibers followed by high-speed flash drying to achieve the precise moisture content required for pressing. |
Mat Forming and Pre-Pressing | Specialized machinery spreads the dried fibers into a continuous, even mat, which is then mechanically compressed to remove air. |
The Hot Pressing System | The heart of the line where heat and high pressure trigger chemical bonding, solidifying the mat into a durable, high-density MDF panel. |
Finishing, Cooling, and Sanding | Post-press operations including star cooling, edge trimming, and wide-belt sanding to achieve the final thickness and surface smoothness. |
Technical Advantages of Modern Lines | An analysis of the efficiency, automation, and sustainability benefits provided by advanced MDF manufacturing technologies. |
Wood preparation is the foundational stage of the MDF Production Line, responsible for converting raw wood logs, sawmill residues, or forest thinnings into high-quality, uniform wood chips.
The process begins with the debarking drum or rotor debarker, which removes the outer bark. Bark contains high levels of silica and tannins that can damage refining discs and discolor the final board. Once debarked, the logs are fed into a heavy-duty drum chipper. The goal here is to produce chips of a specific size—typically 20mm to 30mm in length—to ensure even steam penetration during the subsequent cooking phase.
After chipping, the material passes through a screening system. Large "overs" are sent back for re-chipping, while "fines" (dust) are diverted to the biomass boiler to provide thermal energy for the plant. Consistent chip geometry is vital because it directly impacts the aspect ratio of the resulting fibers. To understand how this feedstock compares to other wood-based materials, many professionals often research how MDF and particleboard differ in raw material needs.
Finally, the chips are cleaned in a chip washer to remove stones, sand, and metal fragments. This step is non-negotiable for high-end lines, as mineral contaminants significantly reduce the lifespan of the refiner segments. The cleaned chips are then stored in a silo, ready for the thermo-mechanical digestion process.
The refining system is the "heart" of fiber preparation, utilizing heat and mechanical force to separate wood chips into individual lignocellulosic fibers.
In this stage, chips are fed into a pressurized vessel known as a digester. Here, they are steamed at high temperatures (typically 160°C to 180°C) for several minutes. This softens the lignin—the natural glue that holds wood cells together. Once the wood is sufficiently "cooked," it is forced through the narrow gap of a pressurized refiner (defibrator). The refiner consists of one stationary and one rapidly rotating disc equipped with specialized segments.
The mechanical shearing action of the discs produces the fluffy, high-volume fiber that gives MDF its characteristic uniform density. The quality of this fiber determines the internal bond strength and surface quality of the board. Modern MDF production line equipment utilizes advanced sensor technology to monitor the refiner gap in real-time, ensuring that fiber morphology remains consistent even as the disc segments wear down.
The refined fiber is then discharged through a "blowline." This is a high-velocity pipe where the transition from the pressurized refiner to the atmospheric dryer begins. The turbulence within the blowline is often leveraged for the initial stage of resin application, ensuring that each fiber is coated with adhesive before it hits the dryer.
The drying and dosing section ensures that the wet fibers are treated with the correct amount of adhesive and dried to a specific moisture content, usually between 8% and 12%.
As the fibers travel through the blowline, a resin mixture—typically Urea-Formaldehyde (UF) or Melamine-Urea-Formaldehyde (MUF)—is injected. Wax is also added at this stage to improve the water resistance of the finished panel. Because the fibers are moving at high speeds in a turbulent air stream, the resin is distributed very efficiently. This "blowline blending" is preferred over mechanical blenders because it prevents the formation of "glue spots" which can ruin the surface of the board.
From the blowline, the fibers enter a flash dryer. This is a massive, multi-stage tube system where hot air (generated by a gas burner or a thermal oil heat exchanger) rapidly evaporates the moisture. The drying process must be carefully controlled; if the fibers are too dry, they become a fire hazard and won't bond well; if they are too wet, "blowouts" or steam blisters will occur during the hot pressing stage.
Once dried, the fiber is separated from the moist air in a series of high-efficiency cyclones. The "dry fiber" is then pneumatically conveyed to the forming station. Large-scale MDF production line facilities often include sophisticated fire detection and suppression systems in this area, as dry wood fiber is highly combustible.
The forming station is responsible for creating a continuous, uniform "carpet" of fiber, known as a mat, which must have a consistent weight-per-square-meter across its entire width.
Modern formers use a combination of vacuum systems and mechanical spreading rollers. The fiber is dropped onto a moving perforated belt, while a vacuum box underneath pulls air through the belt to stabilize the fibers. Sophisticated "leveling" rollers or scalpers then remove excess material to ensure the mat is perfectly flat. Any deviation in the mat density at this stage will result in a defective panel with uneven thickness or strength.
After the mat is formed, it passes through a pre-press. This is usually a heavy belt-type press that applies cold pressure to the mat. The primary function of the pre-press is to squeeze out the air trapped between the fibers. This reduces the height of the mat (sometimes by as much as 70%), making it much easier to feed into the main hot press without damaging the edges or causing "avalanches" of fiber.
The pre-pressed mat is then trimmed at the edges, and the scrap material is vacuumed back into the forming bin to eliminate waste. Integrated sensors, such as Gamma-ray or X-ray density gauges, monitor the mat at this point. If you are comparing this process to other panels, it is helpful to note how particleboard and MDF production processes diverge significantly in the forming and airflow requirements.
The hot press is the most critical component of the manufacturing process, applying both heat and extreme pressure to cure the resin and compress the fiber mat into a solid board.
There are two primary types of hot presses used in the industry:
1、Multi-Opening (Daylight) Presses: These consist of several heated platens that press multiple boards simultaneously. They are robust and suitable for smaller to medium capacities.
2、Continuous Presses: These use two massive, continuous steel belts that apply pressure and heat as the mat moves through the machine. This allows for higher speeds and the ability to produce boards of any length.
The temperature of the press usually ranges from 180°C to 220°C, provided by circulating thermal oil. Under this heat, the thermosetting resin undergoes a chemical reaction called polymerization, creating permanent bonds between the fibers. The pressure profile is carefully managed: high initial pressure to achieve the desired density on the surface, followed by a lower pressure to allow steam to escape and to cure the core.
The precision of the hot press determines the final thickness tolerance of the board. High-end systems utilize hydraulic cylinders with micron-level control. Achieving a high-density skin and a stable core is the hallmark of a well-calibrated MDF Production Line.
The finishing section transforms the raw, hot panels into a marketable product through cooling, trimming, and precision sanding.
Immediately after exiting the hot press, the boards are extremely hot and the resin is still reaching its final state of stability. To prevent warping and "post-cure" issues, the boards are placed in a star cooler. This large, rotating wheel allows the boards to cool down gradually while exposed to ambient air on both sides.
Once cooled, the panels are moved to the sawing line. Here, high-speed longitudinal and transverse saws trim the rough edges and cut the continuous ribbon of board into standard commercial sizes (e.g., 4x8 feet). Because the pressing process leaves a "precure" layer—a thin, slightly charred or uneven skin on the surface—the boards must be sanded.
A wide-belt sanding machine, often with 4 to 8 sanding heads, removes about 0.5mm to 1.0mm from each surface. This results in the ultra-smooth finish that MDF is famous for, making it ready for painting, veneering, or laminating. For those interested in the differences in finishing requirements, understanding how MDF differs from other engineered woods in terms of surface porosity is essential.
Investing in a modern, automated manufacturing system provides significant competitive advantages in terms of material yield, energy consumption, and product versatility.
Advanced production technology is designed to maximize "uptime" while minimizing the "cost per cubic meter." By integrating PLC (Programmable Logic Controller) systems and SCADA (Supervisory Control and Data Acquisition), operators can manage the entire line from a single control room.
1、High Material Efficiency: Modern screening and recycling systems ensure that almost 98% of the incoming wood raw material ends up in the finished product or is used as fuel.
2、Energy Recovery: Heat from the press and dryer exhausts can be recovered to pre-heat the chip wash water or the incoming air, significantly lowering operational costs.
3、Thickness Flexibility: Continuous presses allow for rapid changes in board thickness (from 2mm to 40mm) without stopping the line, allowing manufacturers to respond quickly to market demands.
4、Environmental Compliance: Modern lines are equipped with wet electrostatic precipitators (WESP) and scrubbers to ensure that emissions meet strict global environmental standards.
