A complete, high-quality plywood production line focused on anti-warping consists of a series of precision equipment, each playing a critical role in ensuring the stability and quality of the final product.
1. Log Handling Section
6. Automation & Control System
PLC Central Control System: Integrated throughout the production line, it monitors and adjusts the operating parameters (e.g., speed, temperature, pressure) of each machine in real-time, ensuring a continuous, stable, and efficient production process. It is the "brain" for achieving high quality and anti-warping goals.
The production of anti-warping plywood is a precise and systematic process. It does not rely on a single step but is achieved through a series of critical control points throughout the entire production chain, from raw material to finished product.
The core principle is: To balance the inherent internal stresses of wood by employing a symmetrical structure, uniform moisture content control, precise gluing and pressing, and sufficient stress relief, thereby minimizing the risk of warping.
 | Step 1: Raw Material Preparation & Veneer Processing - Laying the Foundation |
1. Log Selection & Processing: Uniform quality logs are selected. They are debarked, cut to length, and then softened in a steaming pond/vat. This evens out the wood texture for peeling and reduces hidden internal stresses.

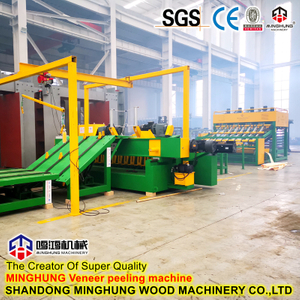

2. Precision Peeling: A high-precision peeling lathe is used to peel the softened log sections into continuous veneer sheets of uniform thickness. Consistent veneer thickness is the foundation for subsequent structural symmetry.

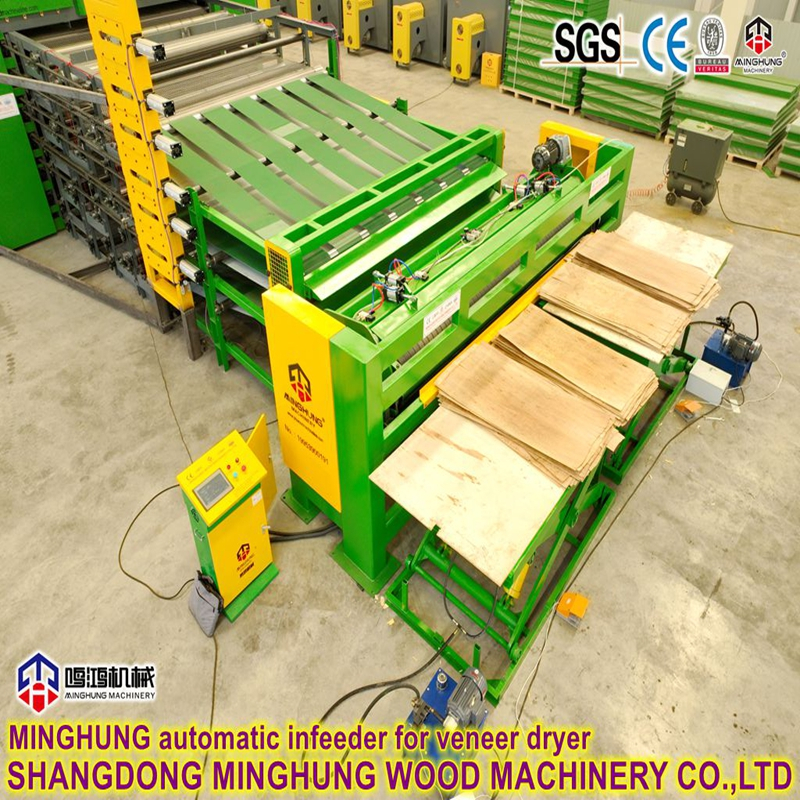

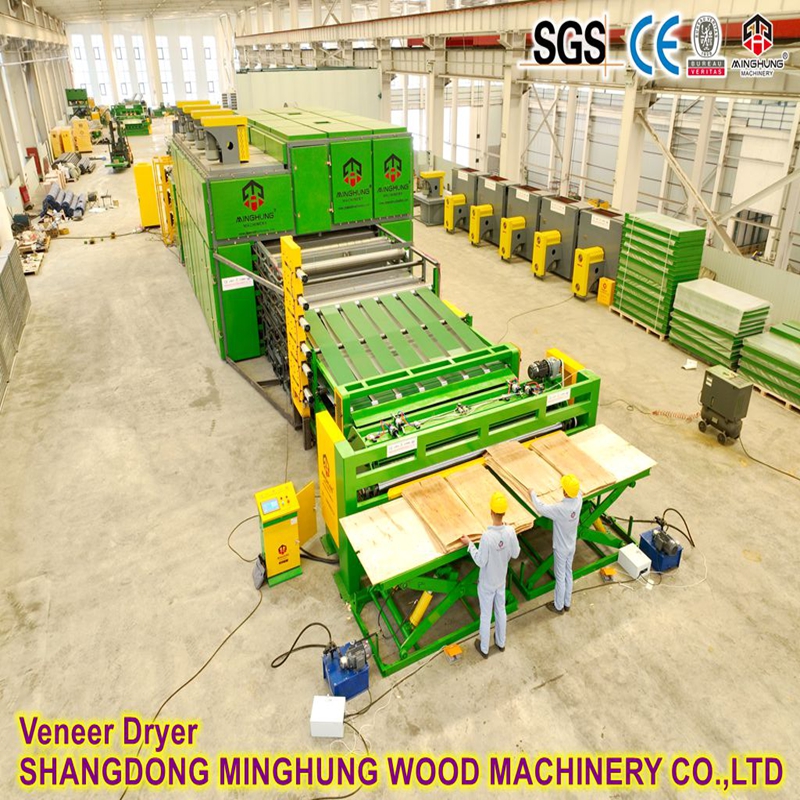

3. Veneer Drying (Key Anti-Warping Step): The wet veneer is passed through a roller dryer to be uniformly dried to a standard moisture content (typically 8%-12%). This is the first critical point: All veneers must be dried evenly. Uneven drying will cause uneven shrinkage later, inevitably leading to warping.
| Step 2: Gluing & Layup - Creating a Balanced Structure |
4. Clipping & Patching: The dried veneer is clipped to size, and any defective sections are repaired to ensure the quality of each layer.

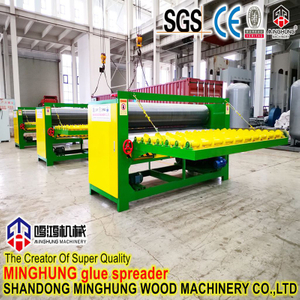

5. Quantitative Gluing: A four-roll glue spreader is used to apply adhesive (e.g., UF, PF resin) evenly and quantitatively onto the veneer surface. Uneven glue application creates uneven bonding stress, which can cause warping.
6. Symmetrical Layup (Core Anti-Warping Step): This is the most fundamental anti-warping principle. The glued veneers are laid up in an odd number of layers following the symmetry principle, with the grain direction of adjacent layers perpendicular to each other (cross-grain). This structure allows the shrinkage and expansion stresses of the wood in different directions to counteract each other, achieving internal balance. Automatic layup machines ensure precision and high efficiency.
| Step 3: Hot Pressing - Curing & Setting the Shape |
7. Pre-pressing: Before entering the hot press, the assembled mat is cold-pressed to achieve initial bonding, making it easier to handle and preventing it from collapsing when loaded into the hot press.
8. Hot Pressing (Key Shaping Step): The mat is loaded into a multi-opening hot press. Under high temperature (e.g., 140-180°C) and high pressure (e.g., 100-200 kg/cm²), the adhesive is fully cured in a short time, firmly bonding the multiple veneer layers into a solid panel. Precise control of the temperature, pressure, and time curve is crucial. Insufficient pressure or uneven heating can lead to poor bonding or stress concentration, sowing the seeds for future warping.
| Step 4: Post-Processing & Curing - Releasing Stress |
9. Cooling & Curing (Crucial Anti-Warping Step): Panels exiting the hot press are very hot, with uneven internal stress and moisture distribution. They must be immediately sent through a cooling and turning rack for even heat dissipation, and then must be stacked and cured in a climate-controlled warehouse for 24-72 hours. This process allows the residual internal stresses to fully release and the moisture content to rebalance. Skipping or shortening the curing time is a primary cause of later product warping.
10. Calibration Sanding & Trimming: The cured panels are passed through a calibrating sander to eliminate minor thickness variations, achieving a smooth, flat surface and consistent thickness, further ensuring uniform physical properties across the panel. Finally, they are trimmed to final size by a saw.
In summary, a high-quality anti-warping plywood panel is the result of the combination of precision equipment and scientific process:
Structurally: It relies on a cross-grained, odd-numbered symmetrical structure to balance stress.
Technologically: It minimizes manufacturing stress through uniform drying, quantitative gluing, and precise hot pressing.
Procedurally: It must undergo sufficient cooling and curing to release and balance residual internal stresses.
Warping in plywood production is fundamentally caused by internal stress imbalance, moisture content variation, and asymmetric structure. Therefore, the core of anti-warping lies in balance.
1. Core Principle: Symmetrical Structure
This is the most fundamental and critical rule. Plywood always has an odd number of layers (e.g., 3-ply, 5-ply, 7-ply), and the grain direction of adjacent veneers is perpendicular to each other. This cross-grain structure causes the wood's shrinkage and expansion stresses to counteract each other in all directions, significantly preventing bending and warping.
2. Strict Moisture Content Control
Warping is largely caused by the "shrinkage and swelling" of wood due to changes in moisture content.
Uniform Veneer Drying: Roller dryers are used to dry the peeled veneers to a uniform and suitable moisture content (typically 8%-12%). If veneers have uneven moisture, the subsequent stress during gluing will inevitably cause warping.
Stable Production Environment: The gluing and layup workshops must maintain constant temperature and humidity to prevent veneers from absorbing or losing moisture during production.
3. Precise Gluing and Layup
Even Glue Spread: High-precision glue spreaders ensure adhesive is applied uniformly across the veneer surface, avoiding localized areas of too much or too little glue which lead to uneven bonding strength and stress concentration.
Automated Layup: Automatic layup machines ensure each veneer layer is accurately aligned and assembled symmetrically. Any misalignment of any layer can disrupt the structural balance and become a potential cause for warping.
4. Scientific Hot Pressing Process
Hot pressing is the key step where the plywood is set into its final form.
Reasonable Pressure Curve: Pressure must be high enough to ensure tight contact and good bonding between layers, but not so high as to crush wood cells and cause internal damage.
Precise Temperature and Time: Sufficient heat must be provided for the glue to fully cure, forming a strong bond. Uneven temperature or insufficient time leads to poor bonding, making the panel prone to delamination and warping.
Simultaneous Closing Press: For multi-opening hot presses, simultaneous closing technology ensures all parts of the mat are pressed at the same time, resulting in more uniform heating and effectively reducing "thickness variation" and subsequent warping.
5. Essential Post-Processing
Adequate Cooling and Curing: Panels coming out of the hot press are very hot, and internal stresses are not yet stable. They must be cooled evenly and slowly using cooling and turning racks, and then "cured" in a warehouse for more than 24 hours. This process allows for stress relief and moisture rebalancing, which is a crucial step in preventing later warping.
Calibration Sanding: Sanding is not only for a smooth surface but also to eliminate slight thickness variations, ensuring more consistent density and stress throughout the panel.
In summary, preventing warping is not achieved by a single machine or process. It is guaranteed by a rigorous complete process system: "Symmetrical Structure + Moisture Control + Even Gluing/Layup + Scientific Pressing + Adequate Curing". Negligence in any step can lead to warping in the final product.
Anti-warping plywood is primarily used in fields that demand exceptional dimensional stability, high load-bearing capacity, and durability in challenging environments due to its superior performance.
1. Construction and Concrete Formwork
This is the largest and most demanding market for anti-warping plywood.
Concrete Formwork for High-Rise Buildings & Bridges: Used for casting walls, columns, floors, beams, and piers. It can withstand the immense pressure of wet concrete and humidity changes, offers high reusability, resists warping, and ensures a smooth concrete surface and construction quality.
Permanent Formwork: In some construction methods, the plywood is left as a permanent part of the structure, where its stability is critical.
2. Container Manufacturing
Container Flooring: This is a core application. Container floors must withstand heavy concentrated loads (e.g., machinery), resist extreme temperature and humidity fluctuations during sea transport, and remain stable without cracking under long-term use. Anti-warping plywood (often made from tropical hardwoods) is the standard material for container flooring.
3. Transportation and Logistics
Truck, Trailer, and Lorry Bodies: Used for side panels, floors, front walls, and doors. Its lightweight, high strength, and anti-warping properties help withstand cargo loads and road vibrations.
Railway Wagon Interiors: Similarly used for lining and flooring, meeting heavy-duty and durability requirements.
Aircraft Interior Panels & Cargo Pallets: High-grade anti-warping plywood can be used for non-structural aircraft components like partitions and cabinets, requiring extreme lightness and stability.
4. High-End Furniture and Interior Decoration
Kitchen Furniture and Cabinets: Especially in humid environments like kitchens and bathrooms, it effectively resists moisture, preventing doors and cabinets from warping and extending their service life.
Office Furniture: Used for manufacturing high-quality desktops, partitions, and storage cabinets, ensuring they remain flat over time.
Shop Display Counters and Shelving: Offers good load-bearing capacity and stable appearance, suitable for retail environments.
Core Material for High-Quality Doors, Wall Paneling, and Ceilings: As a substrate, its stability ensures that surface materials (e.g., veneers, laminates) do not crack due to substrate movement.
5. Shipbuilding
Hull Structures, Interior Panels, Furniture, and Decking: Marine-grade plywood is one of the highest grades of anti-warping plywood. It uses waterproof phenolic glue and resists rot, delamination, and warping caused by seawater immersion, moisture, and salt spray, even in harsh conditions.
6. Industrial and Packaging Applications
Heavy-D Equipment Packaging Crates: Used for exporting large machinery and precision instruments. These crates need to be robust and stable to withstand impacts and climate changes during transit, protecting the internal equipment.
Industrial Pallet Tops, Warehouse Decking: Used as a replacement for solid wood, offering high strength and resistance to bending, protecting goods and floors.
In summary, anti-warping plywood is not a common building material but a high-performance engineered product. Its applications are driven by core needs for:High load-bearing capacity,Durability for repeated use,Adaptability to damp, variable climates,Stringent requirements for dimensional accuracy and surface flatness.

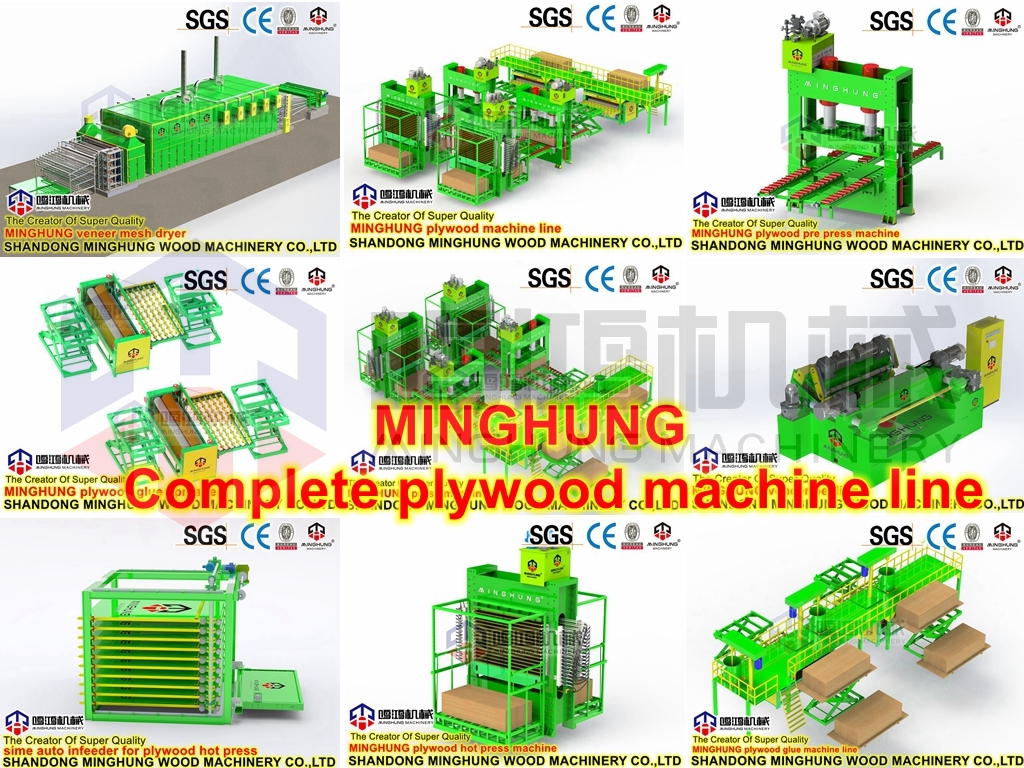

The entire production facilities
