I. Introduction to Plywood
Plywood is an engineered wood panel made by bonding multiple layers of wood veneers (rotary-cut or sliced thin wood) with adhesives under heat and pressure. The grain direction of adjacent veneers is perpendicular to each other, which effectively counteracts the anisotropy of wood, significantly enhancing the board’s strength, stability, and deformation resistance. Plywood offers advantages such as flexible dimensions, high strength, and easy processing, making it widely used in furniture manufacturing, architectural decoration, packaging cases, and vehicle/ship interiors. Based on water resistance, it is categorized into interior-grade (urea-formaldehyde glue) and exterior-grade (phenol-formaldehyde glue) plywood.
 | II. Plywood Production Process |
1. Log Processing: Logs are cut into sections, softened by steaming, and debarked.
2. Veneer Peeling: A rotary lathe peels logs into continuous thin veneers (0.3-4mm thick).
3. Veneer Drying: Dryers reduce veneer moisture content to 8%-12%.
4. Veneer Patching: Defects are repaired, and veneers are graded.
5. Gluing & Layup: Adhesive is evenly applied, and veneers are stacked with alternating grain directions.
6. Cold Pre-pressing & Hot Pressing: Cold pressing initially shapes the mat, followed by hot pressing (100-140°C, 5-20MPa) for curing.
7. Post-processing: Trimming, surface sanding (critical step), grading, and packaging.
| Ⅲ. Core Equipment |
A complete plywood production line is a complex system that transforms raw logs into high-quality finished panels. Below are the detailed functions of each key equipment:
1. Log Processing Equipment
Debarker:
Function: Removes the bark from the outer layer of the log. Bark contains no fibers, adversely affects bonding quality, and its impurities can damage subsequent machinery.
Types: Commonly drum debarkers or ring debarkers. Drum debarkers remove bark by tumbling logs inside a rotating drum; ring debarkers use hydraulically powered rotating rings with cutting tools for higher efficiency.
Importance: The first critical process to ensure veneer quality and reduce equipment wear.
2. Veneer Preparation Equipment

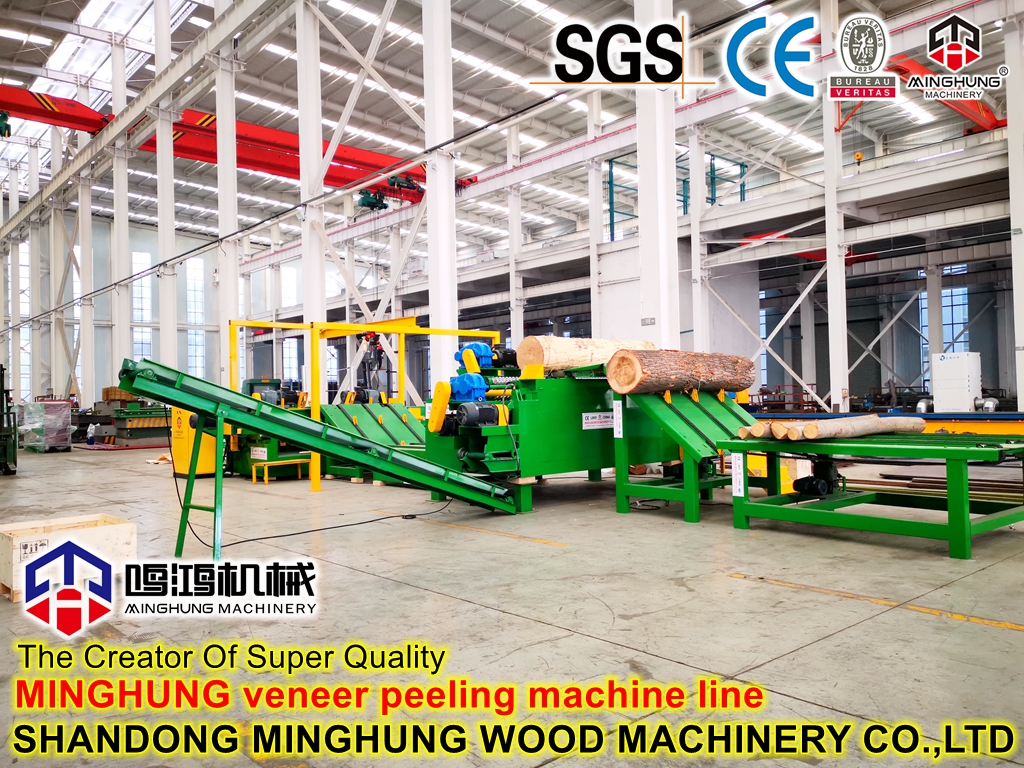

Rotary Lathe / Veneer Peeler:
Function: This is one of the core machines of the line. It peels the debarked log segments while they are rotated at high speed against a giant blade, producing continuous, uniformly thin wood veneer sheets.
Key Technology: Dual spindle drive ensures smooth rotation; CNC systems precisely control veneer thickness (typically 0.3mm - 4.0mm); laser scanners monitor log diameter in real-time to optimize peeling efficiency.
Output: The continuous veneer ribbon is clipped by subsequent equipment to the required dimensions.
3. Veneer Drying & Processing Equipment

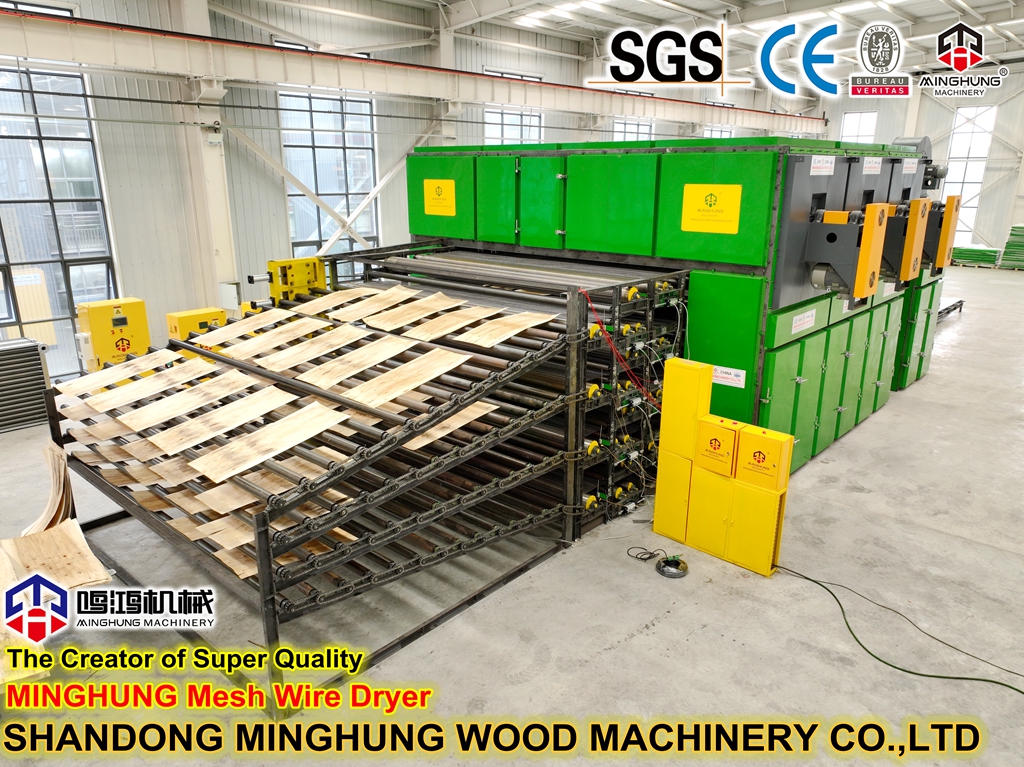

Veneer Dryer:
Function: Rapidly dries the peeled veneer with high moisture content (approx. 30%-60%) down to a suitable 8%-12% level using hot air. Proper moisture content is crucial for bonding strength and product quality.
Types: Mainly roller dryers and mesh belt dryers. Mesh belt dryers transport veneer through multiple tiers with hot air penetrating the veneer layers from above and below, ensuring more uniform drying and higher efficiency, making them the mainstream choice.
Veneer Clipper & Splicer:
Function: Dried veneer needs to be cut (clipped) according to size and quality, and smaller pieces are then joined edge-to-edge with glue threads (spliced) into full-size sheets to improve material yield.
4. Gluing & Layup Equipment
Gluing Machine:
Function: Applies adhesive (e.g., UF resin, PF resin) evenly to one or both sides of the veneer.
Types: Common types include four-roller gluers, which precisely control the amount of adhesive spread via the gap between the rollers. Automated gluers can be integrated with the layup line for continuous operation.
5. Forming & Pressing Equipment
Lay-up Line:
Function: Assembles the glued veneers into a mat according to the preset number of piles and grain direction (adjacent layers perpendicular). Automated layup lines use robots and conveyors to greatly improve speed and accuracy.
Pre-press:
Function: Applies cold pressure to the mat before hot pressing to achieve initial bonding, remove air, prevent shifting and blistering during hot pressing, and facilitate transportation.

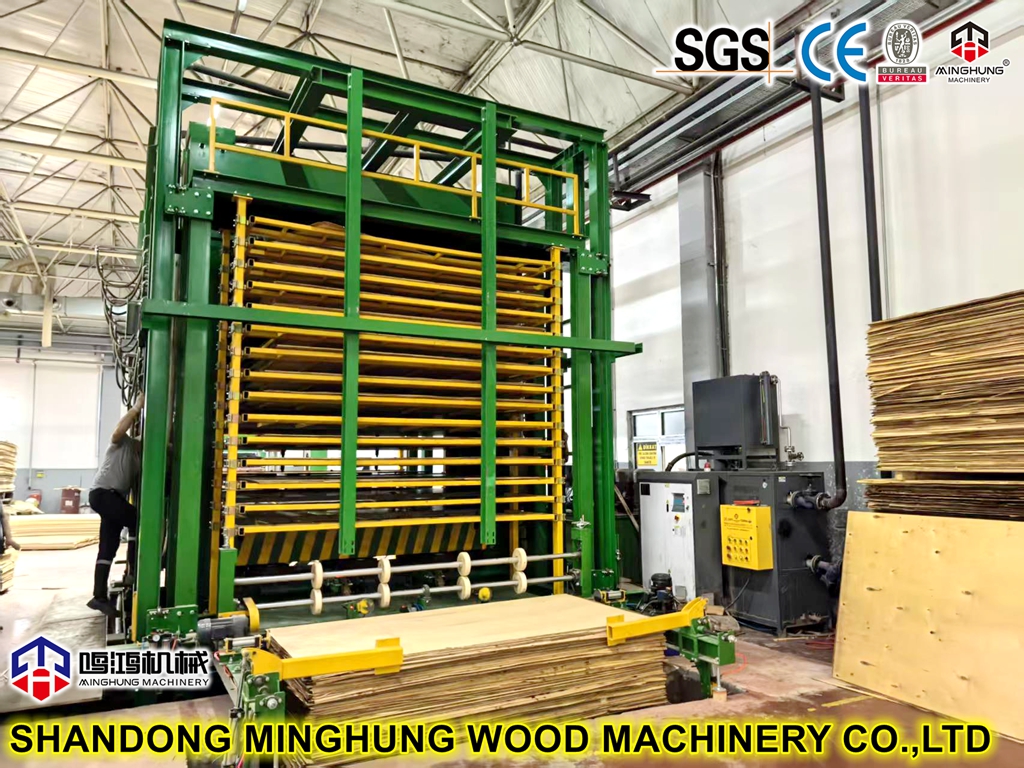

Hot Press:
Function: This is the most critical core equipment in plywood production. It uses high temperature (120-150°C) and high pressure (5-20 MPa) to rapidly cure the adhesive in the mat, firmly bonding the multiple veneer layers into a solid panel.
Types: Multi-opening hot presses (press multiple panels simultaneously) and continuous flat presses (for large-scale continuous production).
6. Finishing Equipment

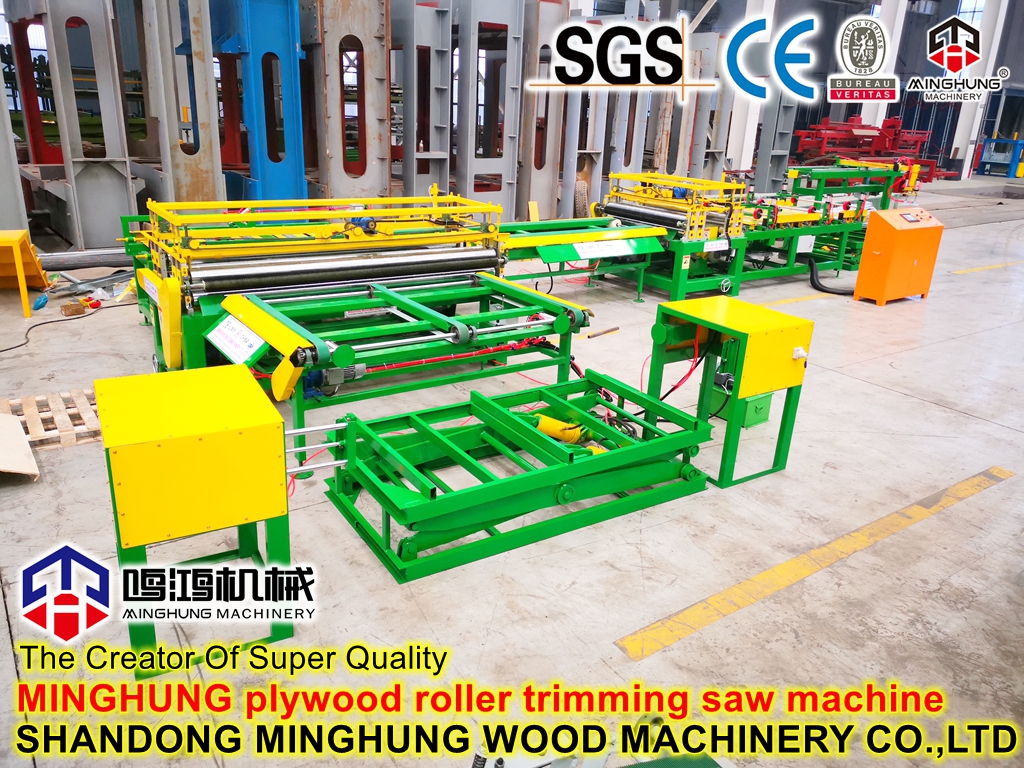

Trimming Saw:
Function: Saws off the irregular edges of the pressed rough panel to form regular rectangles and required dimensions.
Sander:
Function: This is the key equipment determining the final surface quality. It eliminates thickness variation, pre-cured layers, wave marks, etc., resulting in a smooth, flat, and uniformly thick surface, providing a perfect substrate for further processing (e.g., laminating, printing, painting).
Dual-Side Simultaneous Sander:
Working Principle: The panel is fed through the machine by a conveyor belt, and two sets of symmetrical upper and lower sanding units (typically including coarse and fine sanding modules) act simultaneously on both top and bottom surfaces, completing dual-side calibration and fine sanding in one pass.
Core Advantages:
High Efficiency: Processes both sides in a single pass, more than doubling efficiency compared to single-side sanders.
Superior Flatness: Simultaneous sanding eliminates stress deformation caused by sanding sides sequentially, ensuring excellent panel flatness and parallelism.
High Precision: Equipped with PLC, servo motors, and laser thickness gauges for real-time monitoring and automatic adjustment of sanding head height, achieving accuracy up to ±0.05mm.
High Automation: Integrates automatic belt changing, centralized dust extraction, and fault diagnosis, minimizing manual intervention.
High-Efficiency Simultaneous Processing: Dual-side sanding completed in one pass, increasing efficiency by over 60% compared to single-side sanding, eliminating repositioning errors.
Wide Adaptability: Processes plywood, MDF, and particleboard (2-40mm thick, max width 1350mm). Quick sandbelt change (40-240 grit) for thicknessing and fine polishing.
7. Sorting & Packaging Equipment
Automatic Sorting Line: Sorts panels automatically based on thickness, grade, size, etc.
Packaging Machine: Automatically stacks, wraps, bundles, and labels finished panels for storage and shipping.
| Core Value |
Investing in this production line provides multi-dimensional strategic advantages and value enhancement for businesses:
1. Ultimate Enhancement of Production Efficiency and Capacity:
Dual-side simultaneous sanding technology processes both the top and bottom surfaces in a single pass, increasing efficiency by over 60% compared to traditional single-side or sequential sanding. The highly automated and continuous flow design of the entire line significantly reduces inter-process waiting time and manual intervention, markedly boosting overall output to meet large-scale order demands.
2. Superior Guarantee of Product Quality and Consistency:
High-precision sanding eliminates defects such as thickness variation, wave marks, and press marks, achieving extremely high levels of surface flatness, smoothness, and thickness uniformity. This not only improves product grade and selling price but also provides reliable assurance for customers' downstream processing, reducing rejection rates and customer complaints.
3. Significant Reduction of Comprehensive Operating Costs:
Labor Costs: High automation requires only 1-2 operators per line, drastically reducing dependence on skilled labor and associated costs.
Consumable & Energy Costs: The compact design of the simultaneous sander is relatively energy-efficient; advanced automatic belt tensioning and wear compensation systems extend sanding belt life, lowering consumable costs.
Maintenance Costs: The use of internationally renowned core components (e.g., motors, PLCs, bearings) ensures stable and reliable operation with low failure rates, effectively controlling long-term maintenance costs.
4. Enhanced Market Competitiveness and Flexibility:
The production line offers strong adaptability. It can easily process panels from different wood species (poplar, pine, eucalyptus, etc.), specifications (thickness, size), and types (plywood, MDF, particleboard) by adjusting parameters. This enables companies to respond quickly to market changes, accept diverse, high-value-added orders, and capture market share in the premium segment.
5. Improved Working Environment and Sustainable Development:
The integrated central dust extraction system efficiently collects wood dust generated during sanding, creating a clean and safe production environment, protecting employee health, and ensuring compliance with environmental regulations. The collected dust can be compressed into biomass fuel or used in other recycling industries, enabling green circular production.
| Application Scenarios |
This high-performance automated production line is designed for high-volume, high-quality wood-based panel manufacturing, primarily serving the following sectors:
1. High-End Furniture Manufacturing:
Producing substrates for panel furniture (e.g., wardrobes, cabinets, desks), back panels and side panels for solid wood furniture, and core materials for table tops. The high-precision, ultra-flat sanded panels ensure a perfect base for subsequent processes like PVC laminating, wood veneering, melamine paper overlaying, or direct painting, with no defects showing through.
2. Architectural Decoration and Interior Fit-out:
Used for producing substrates for interior partition walls, ceilings, floor underlayments, wall panels, and various decorative moldings. The high-quality sanded surface can be directly varnished or painted to showcase the natural beauty of the wood grain, or provides an excellent base for decorative overlays.
3. Transportation Interiors and Packaging Industry:
Manufacturing interior panels for RVs, container flooring, interior wall panels for trains and automobiles, and high-end industrial packaging cases. The line's consistency in panel thickness and improved surface strength meet the stringent requirements for structural stability and durability in these fields.
4. Door Manufacturing and Home Accessories:
Producing core layers for interior doors and molded door skins, as well as raw materials for various home accessories (e.g., photo frames, display shelves). Dual-side simultaneous sanding ensures consistent quality on both surfaces, preventing warping caused by uneven stress, making it ideal for components where both sides are visible.
Customize Your Plywood Solution Now! Plant layout design, on-site training & global logistics support – Build your competitive plywood brand today!
