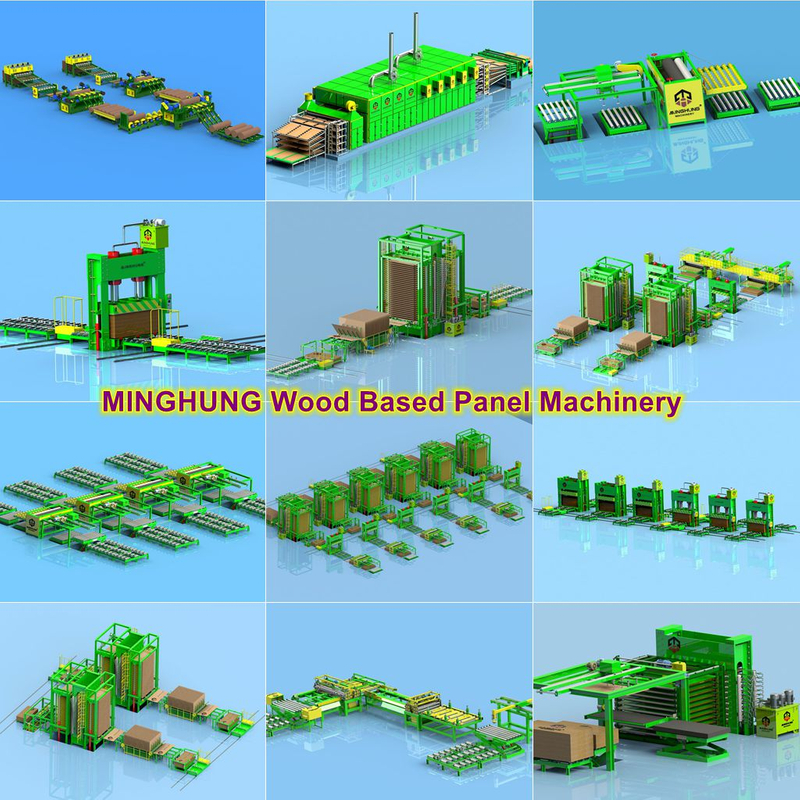

Plywood production line
Plywood production line for making plywood through many production step. mainly include glue mixer, glue spreader, cold press, hot press, edge cutting machine, sanding machine
Except for standard plywood size 1220*2440mm /1250*2500mm, we also can design plywood machine as your plywood size.

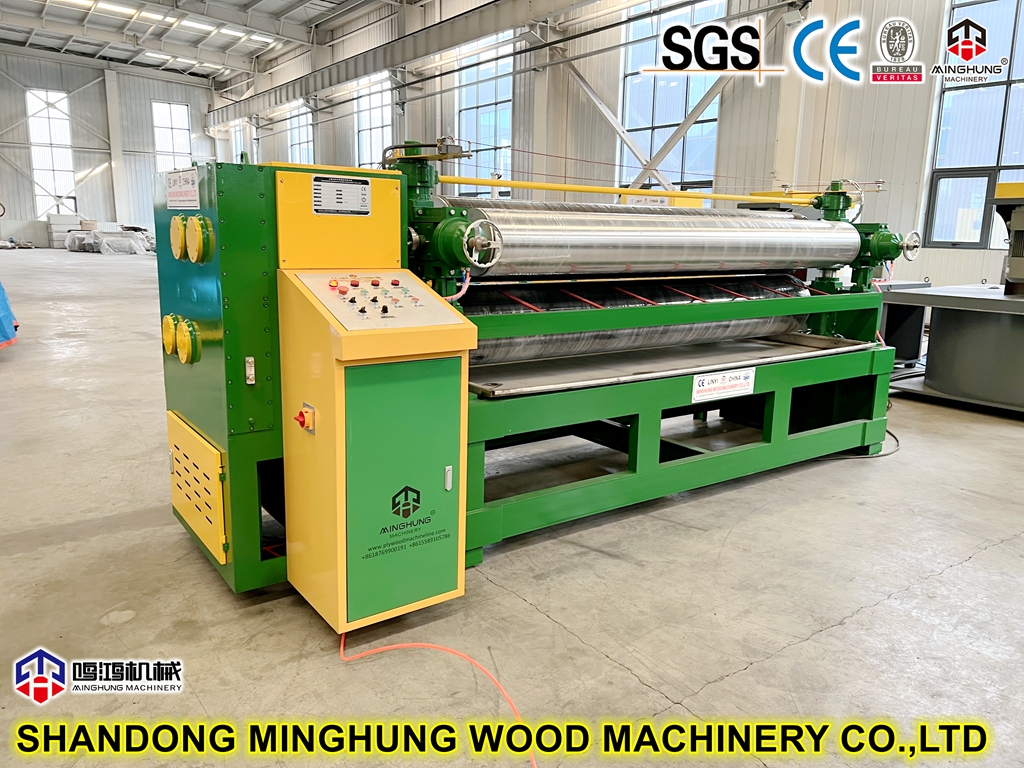

![8feet pneumatic glue spreader]( "8feet pneumatic glue spreader")

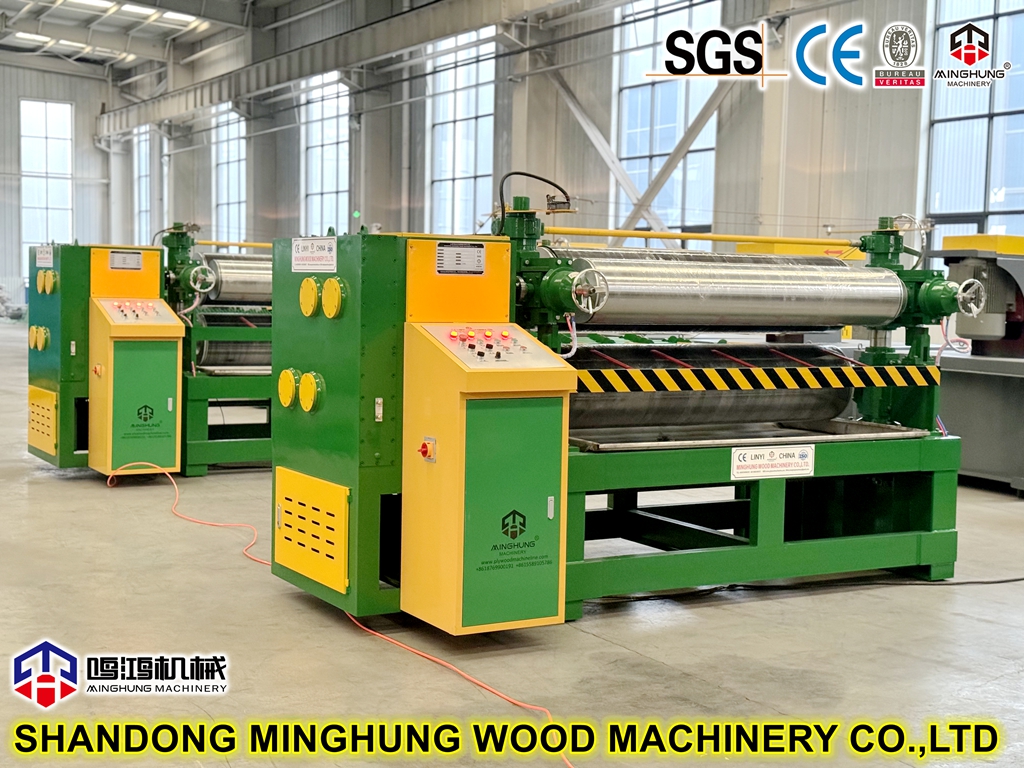

Glue spreader

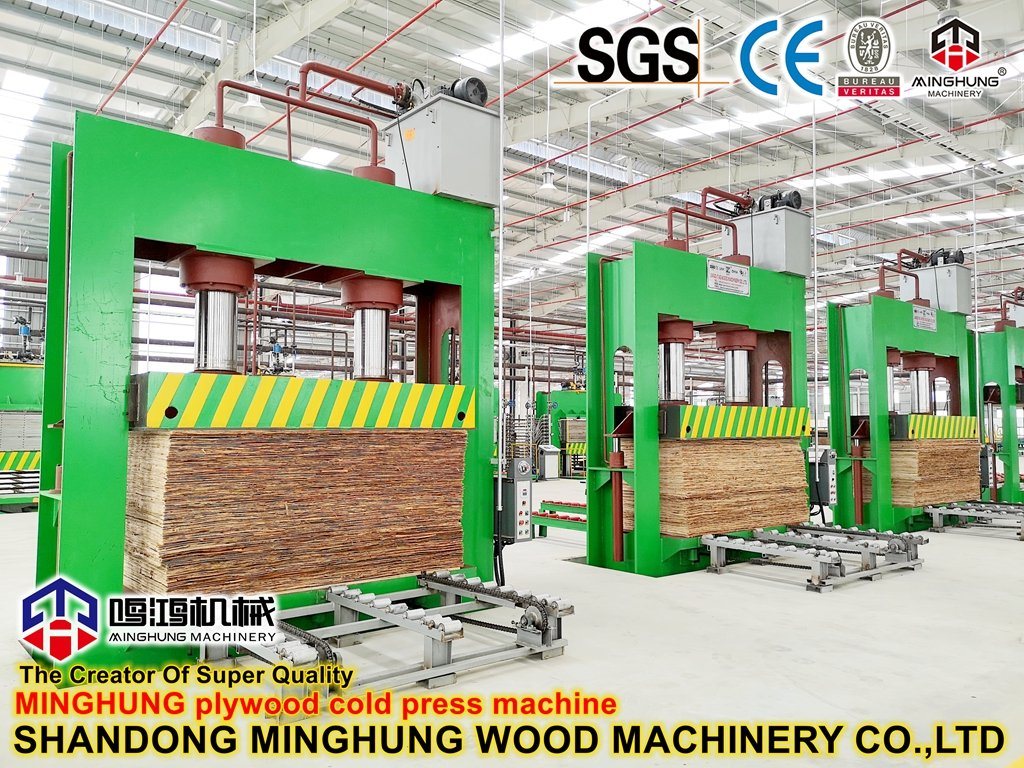

![Cold press]( "Cold press")
Cold press

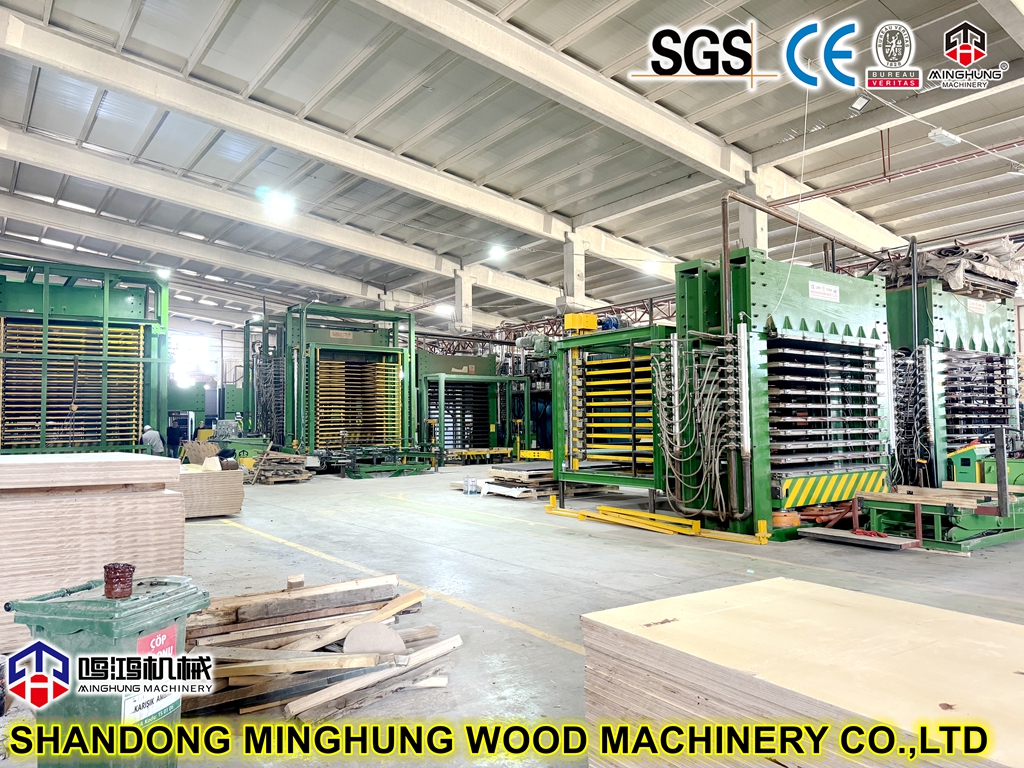

![film faced plywood hot press]( "film faced plywood hot press")
Hot press

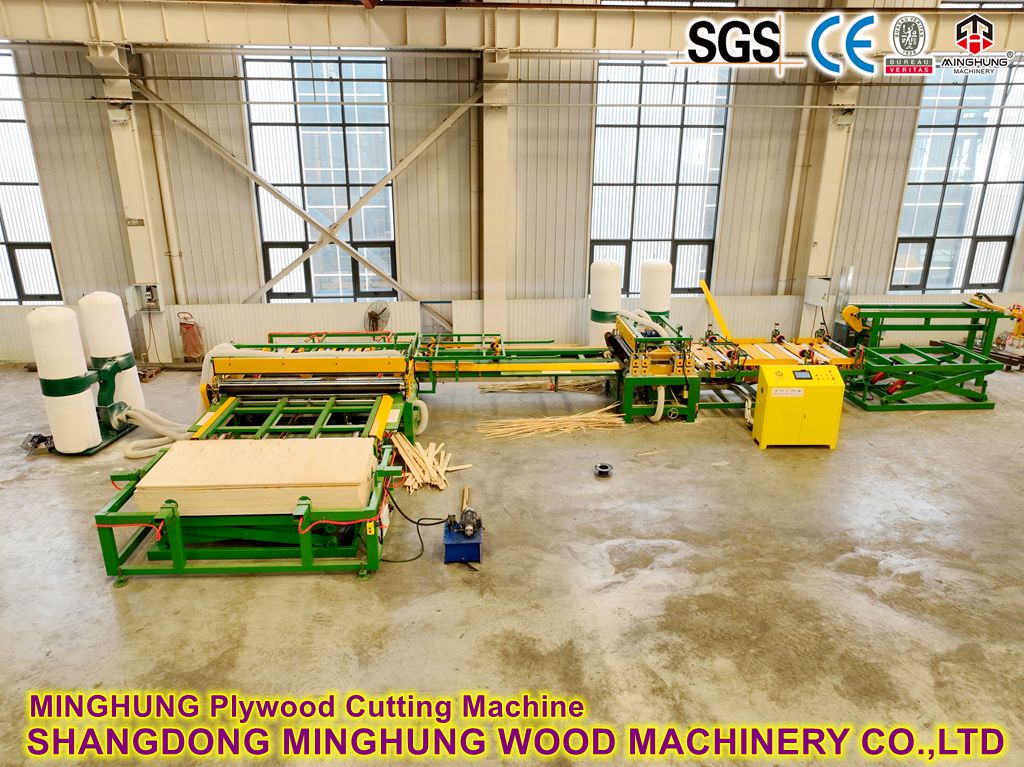

![48feet edge cutting trimming machine line]( "48feet edge cutting trimming machine line")
Edge cutting

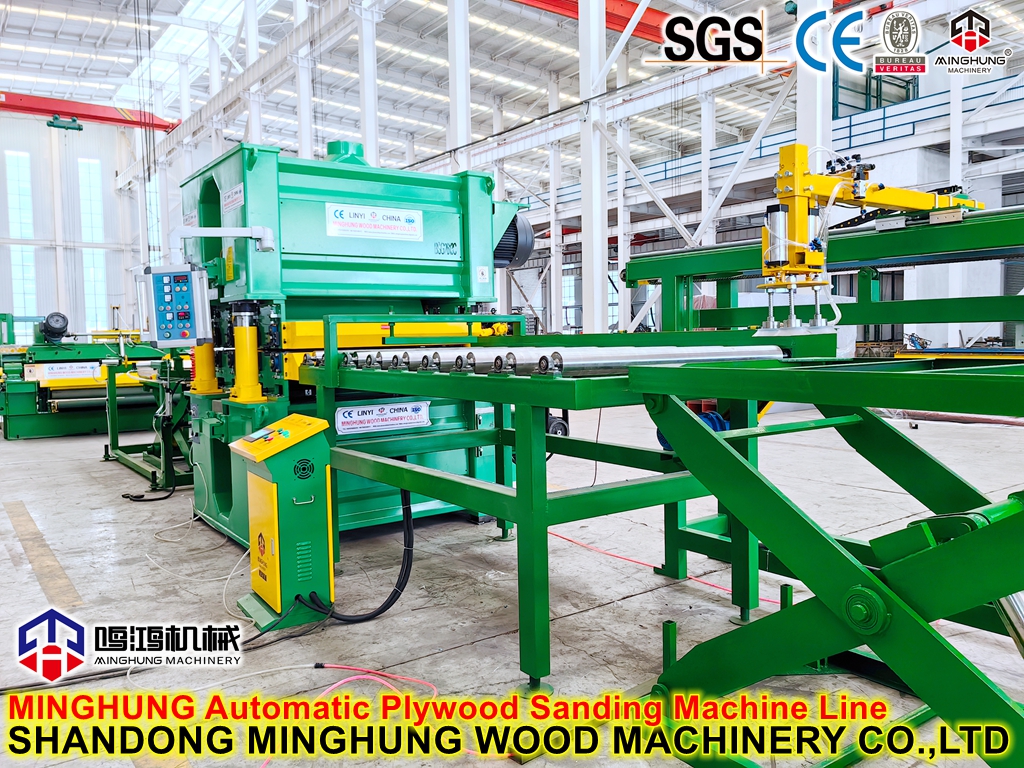

![plywood sanding machine with auto loader and unloader]( "plywood sanding machine with auto loader and unloader")
Sanding machine
MINGHUNG MACHINE is one good and famous brand in China, for manufacture and provide High quality plywood making machine, from raw materials wood to the final plywood board, our factory can offer all necessary machinery and service for you.
![]() | Specification of Plywood machine |
- Veneer Peeling Machine
| Max log length | 1400mm /2600mm /customized |
| Max log diameter | 500mm /600mm |
| Thickness | 1-4mm |
| Speed | 30-120m/min |
| Power | 44.6kw /51.4kw /81.3kw |
| Weight | 6500kgs /7500kgs /8500kgs /10000kgs /12500 kgs |

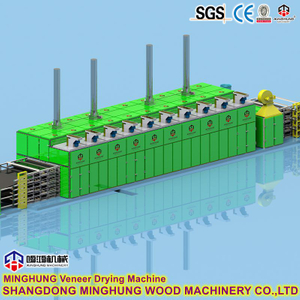

- Veneer Dryer
| Drying capacity | 1-5m3/h |
| Dryer type | Roller or Mesh or Press type |
| Veneer thickness | 0.5-3mm or 1-4mm |
Dryer layers
| 1-4 |
| Drying length | 10-30 meter |
- Cold press
| Table size | 1450*2800mm |
| Max opening | 1200mm /1500mm /1800mm or customized |
| Min opening | 0 /200mm /500mm /800mm or customized |
| Pressure | 400Ton /500Ton /600Ton /800Ton |
- Hot press
| Hot plate size | 1450*2800*42mm/52mm/60mm or customized |
| Machine layers | 5 /10 /12 /15 /20 /25 /30 /32 /35 /40 |
| Pressure | 400Ton /500Ton /600Ton /800Ton |
| Distance between plates | 70mm /100mm /120mm /130mm /150mm |
| Closing time | 25s |
- Edge cutting machine
| Working way | Semi-automatic or Fully automatic |
| Plywood size | 1220*2440mm /1250*2500mm |
| Capacity | 5-7pcs/min or 9-11pcs/min |
| Power | 51.4kw |
| WEIGHT | 5500KGS /12000KGS |
- Sanding machine
| Sanding width | Max 1300mm |
| Sanding length | More than 700mm |
| Sanding sides | SIngle or Double |
| Power | 35kw /45kw /75kw /90kw |
| Sanding error | more or less 0.1mm |
| Weight | 5000kgs /8000kgs /12000kgs /14000kgs |
![]() | MINGHUNG Customers |
![China MINGHUNG clients]( "China MINGHUNG clients")
We have provide our plywood making machine to many countries such as Mexico, America, Brazil, Chile, Egypt, Turkiye, Ethiopia, Morocco, Vietnam, Indonesia and so on. Until now, we can say that almost all our customers are satisfied of our plywood production line. This is the meaning that we insist make our machine good and strong and powerful.
![]() | MINGHUNG Machinery CE |
![MINGHUNG MACHINERY CERTIFICATE]( "MINGHUNG MACHINERY CERTIFICATE")
For All of our plywood machine, with the CE certificate.
