MH-CHP
MINGHUNG

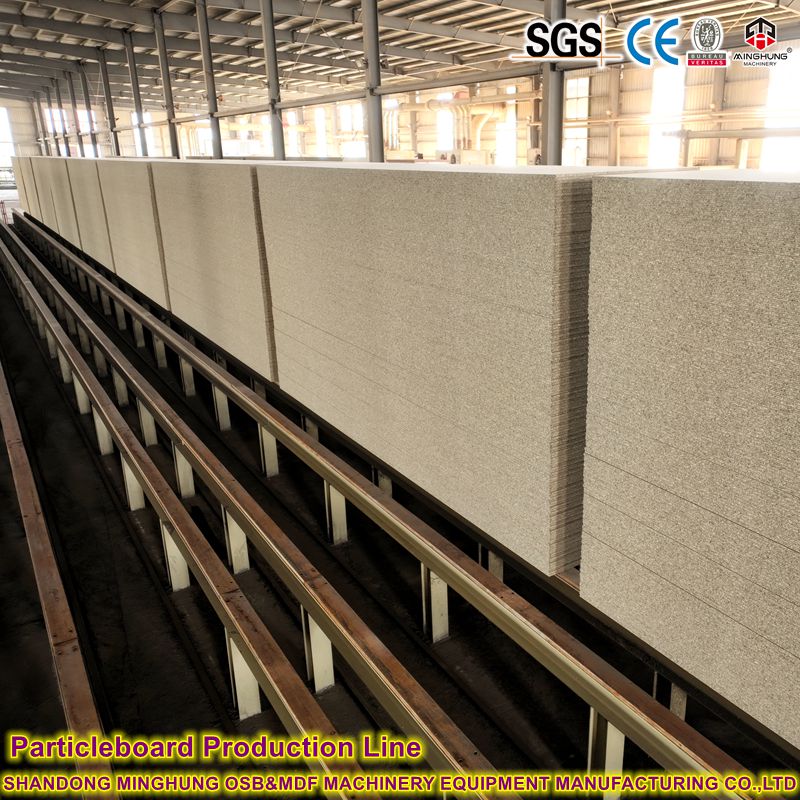

1.Definition: An engineered wood panel manufactured by compressing wood particles or non-wood plant fibers (e.g., branches, sawdust, recycled wood) with synthetic resin adhesives (typically urea-formaldehyde UF or melamine-modified UF resin) under high temperature and pressure.
2.Key Characteristics:
Low cost, raw material utilization >90%
Uniform density (typically 550-750 kg/m³)
Smooth surface suitable for veneering/painting
High transverse bending strength but weak water resistance (improved with additives)
3. Particleboard Classification and Specifications
3.1 Density Grading (EN 312 Standard)
Type | Density Range (kg/m³) | Application Scenarios |
Lightweight | <550 | Non-load-bearing partitions, decorative backings |
Standard | 550-750 | Furniture structural panels, flooring substrates |
High-Density (HDF) | >750 | Laminate flooring, door cores |
3.2 Functional Classification
Type | Key Properties | Standard |
Standard | For indoor dry environments | GB/T 4897.1 |
Moisture-Resistant | Wax/waterproof additives (≤85% RH) | GB/T 4897.2 |
Fire-Retardant | Al(OH)₃/P-N flame retardants | GB 8624 Class B1 |
Low-Formaldehyde | Formaldehyde emission ≤0.5mg/L (E0) | GB 18580 |
3. 3 Layered Structure
Structure Type | Cross-Section Feature | Performance Advantage |
Single-Layer | Homogeneous particle distribution | Lowest cost |
Three-Layer | Fine surface + coarse core particles | Superior surface quality |
Graduated | Particle size gradient from surface to core | High bending strength |
3.4 Specifications
Parameter | Typical Range |
Thickness | 3mm-40mm (1mm increments) |
Panel Dimensions | 1220×2440mm, 1830×3660mm, etc. |
Emission Class | E1 (≤0.124mg/m³), E0 (≤0.05mg/m³) |
1. System Components
Component | Function Description |
Temperature Sensors | Thermocouples/IR sensors monitor surface & core temp |
Heat Medium Unit | Thermal oil/steam for zoned control (±1℃) |
PLC Controller | Processes data and outputs commands |
Actuators | Control valves regulate heat medium flow |
2. Working Principle
Temp Sensor Monitoring --> Data → PLC --> PID Calculates Deviation --> Output Adjustment Signal --> Actuator Modulates Valve --> Dynamic Temp Balance
1. Physical Zone Design

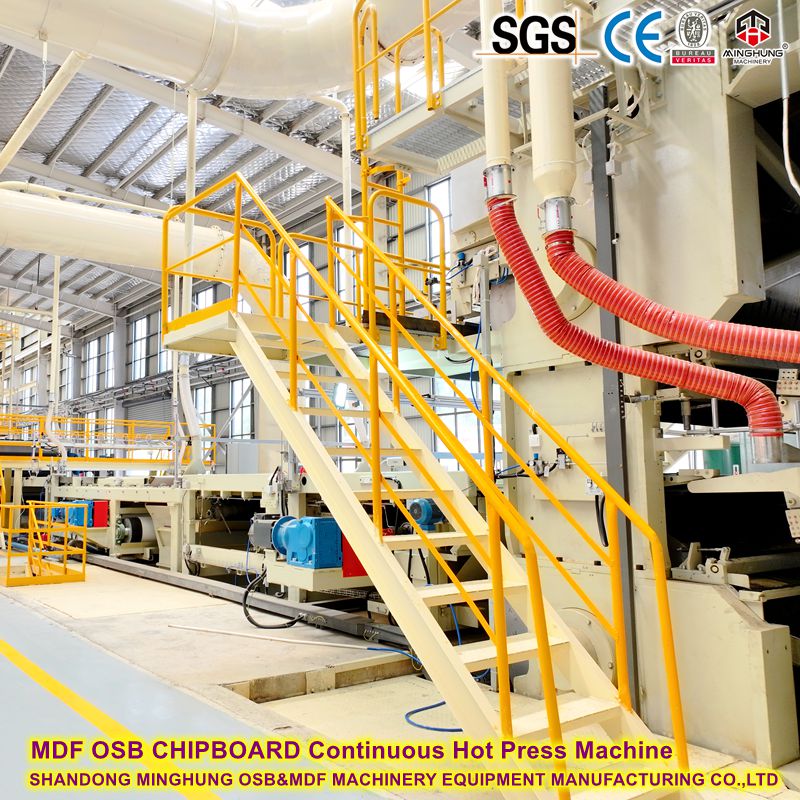

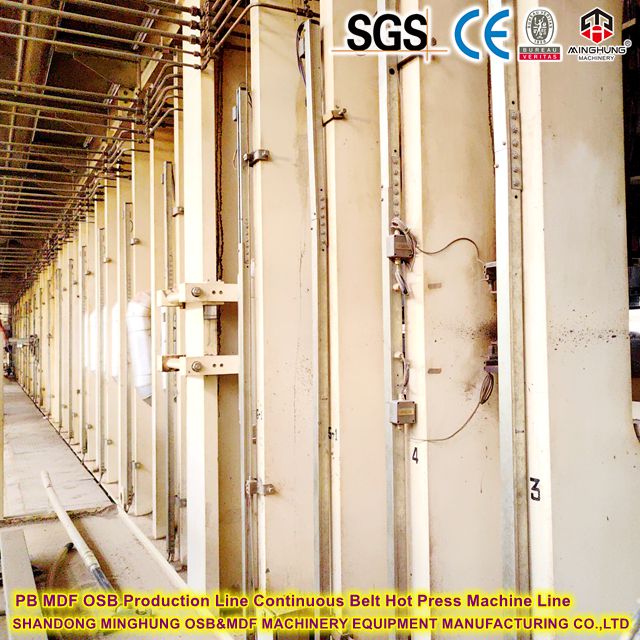

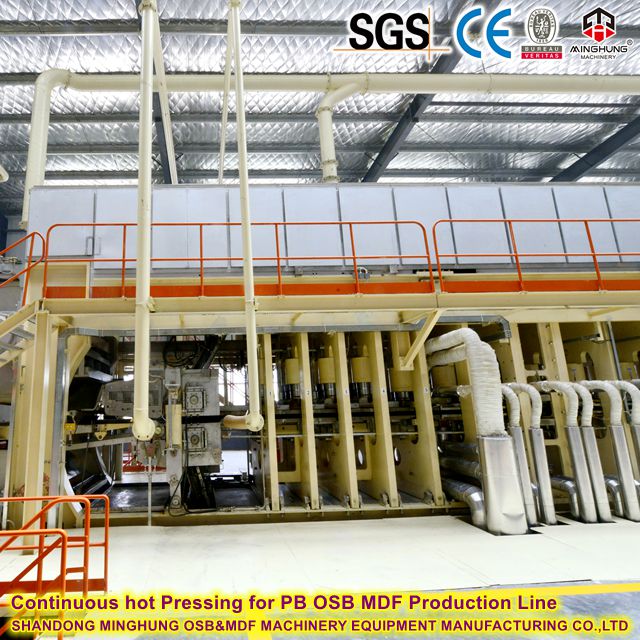

The press is divided along its length into 16 independent temperature control zones (typically 1-3 meters per zone), each equipped with:
Independent heating unit (thermal oil/steam circulation pipelines).
High-sensitivity temperature sensors (real-time monitoring of surface/core layer temperature).
Dynamic pressure compensation device (ensures synergy between pressure and temperature in each zone).
Zoning Logic:
Inlet Zone (Zones 1-4): High temperature (200-230°C) for rapid heating to activate resin flow.
Middle Zone (Zones 5-12): Constant temperature (180-200°C) for thorough core-layer cross-linking.
Outlet Zone (Zones 13-16): Gradient cooling (160-180°C) to reduce warping caused by internal stress.
2. Control Logic in Hot Presses
Control Action | Mechanism | Practical Example |
P Action | +20% heat flow if temp drops 5°C | Rapidly suppresses fluctuations |
I Action | Compensates for moisture-induced heat loss | Prevents under-curing from sustained low temp |
D Action | Preemptively boosts heat before predicted drop | Stabilizes temp during feed acceleration |
3. Technical Advantages
3× faster response vs. ON/OFF control
Overshoot < ±1.5°C (vs. ±5°C conventional)
Improved curing uniformity → IB strength variation ≤5%
Quality Enhancement: Thickness tolerance reduced from ±0.3mm to ±0.1mm
Energy Savings: 15-20% steam waste reduction via precise control
Flexible Production: Auto-adjusts temperature profiles during thickness changes (e.g., extends dwell time for 18mm boards)
> Technology Trend: Next-gen systems integrate Fuzzy-PID and neural network prediction for real-time curing control (e.g., closed-loop regulation via dielectric constant monitoring).
Founded in 1983, Shandong MINGHUNG OSB&MDF Machinery Equipment Manufacturing Co.,Ltd., specializes in continuous press solutions for over 40 years.
MINGHUNG is a leading company in the industry of OSB&MDF making machine. With a strongfocus on producing high-quality machinery, we specialize in manufacturing thecomplete production line of Medium density fiberboard (MDF), High densityfiberboard (HDF),Particle board (PB), Oriented strand board (OSB), andVeneerable super strong particle board (LSB).
2007-2010
2007 -Our factory started to manufacture the full sets of OSB、PB、MDF Production line.
2013
Shandong Hungyou intelligent Equipment Industry ResearchCo..Ltd established, for plywood machinery and OSB、PB、MDF machinery research and development.The main research direction is to realize the automation of Plywood machinery.
2015
Linyi Ming Hung Trade Co.,Ltd established, the development focus has began to Foreignmarket, to service more foreign customers.
2017
Our High-end brand -ShandongMinghung OSB&MDF Machinery Equipment Manufacturing Co..Ltd established, mainly for foreign customers make the whole plant planning and design,achieve comprehensive high-end automation.
2018
Our High-end brand -Shandong MingHung Wood Machinery Co..Ltd established, mainly for foreign customers make the whole plant planning and design,achieve comprehensive high-end automation.
2022
Our factory's overseas business achieved significant growth,shipped machines to many different countriesl,ike America,Mexico,Columbia,Russia,Indonesia,Vietnam,Malaysia,Thailand,Egypt, TurkishUkraine, Romania, Portugal, Africaand others.
2024
We continue to adhere to the strategy of going global,to become one World brand.
We maintain a long-term cooperation with a well-known freight forwarding company, and adhere to the customer-first philosophy. We strictly implement the quality inspection process before shipment to ensure that each batch of products meets international quality standards, We deeply understand that high-quality service is the cornerstone of winning customer trust, and we always create value for customers with professional and efficient supply chain management. We sincerely invite you to join hands and work together to createa win-win future.
Upgrade your production line now!
We provide global installation support and technical training, 2-year machine warranty, and 24-hour online response - let your Particleboard production enter a new era of intelligence and low carbonization.
Our contacts:
Whatsapp: +8618769900191 +8615589105786 +8618954906501
Email: osbmdfmachinery@gmail.com
1.Definition: An engineered wood panel manufactured by compressing wood particles or non-wood plant fibers (e.g., branches, sawdust, recycled wood) with synthetic resin adhesives (typically urea-formaldehyde UF or melamine-modified UF resin) under high temperature and pressure.
2.Key Characteristics:
Low cost, raw material utilization >90%
Uniform density (typically 550-750 kg/m³)
Smooth surface suitable for veneering/painting
High transverse bending strength but weak water resistance (improved with additives)
3. Particleboard Classification and Specifications
3.1 Density Grading (EN 312 Standard)
Type | Density Range (kg/m³) | Application Scenarios |
Lightweight | <550 | Non-load-bearing partitions, decorative backings |
Standard | 550-750 | Furniture structural panels, flooring substrates |
High-Density (HDF) | >750 | Laminate flooring, door cores |
3.2 Functional Classification
Type | Key Properties | Standard |
Standard | For indoor dry environments | GB/T 4897.1 |
Moisture-Resistant | Wax/waterproof additives (≤85% RH) | GB/T 4897.2 |
Fire-Retardant | Al(OH)₃/P-N flame retardants | GB 8624 Class B1 |
Low-Formaldehyde | Formaldehyde emission ≤0.5mg/L (E0) | GB 18580 |
3. 3 Layered Structure
Structure Type | Cross-Section Feature | Performance Advantage |
Single-Layer | Homogeneous particle distribution | Lowest cost |
Three-Layer | Fine surface + coarse core particles | Superior surface quality |
Graduated | Particle size gradient from surface to core | High bending strength |
3.4 Specifications
Parameter | Typical Range |
Thickness | 3mm-40mm (1mm increments) |
Panel Dimensions | 1220×2440mm, 1830×3660mm, etc. |
Emission Class | E1 (≤0.124mg/m³), E0 (≤0.05mg/m³) |
1. System Components
Component | Function Description |
Temperature Sensors | Thermocouples/IR sensors monitor surface & core temp |
Heat Medium Unit | Thermal oil/steam for zoned control (±1℃) |
PLC Controller | Processes data and outputs commands |
Actuators | Control valves regulate heat medium flow |
2. Working Principle
Temp Sensor Monitoring --> Data → PLC --> PID Calculates Deviation --> Output Adjustment Signal --> Actuator Modulates Valve --> Dynamic Temp Balance
1. Physical Zone Design
The press is divided along its length into 16 independent temperature control zones (typically 1-3 meters per zone), each equipped with:

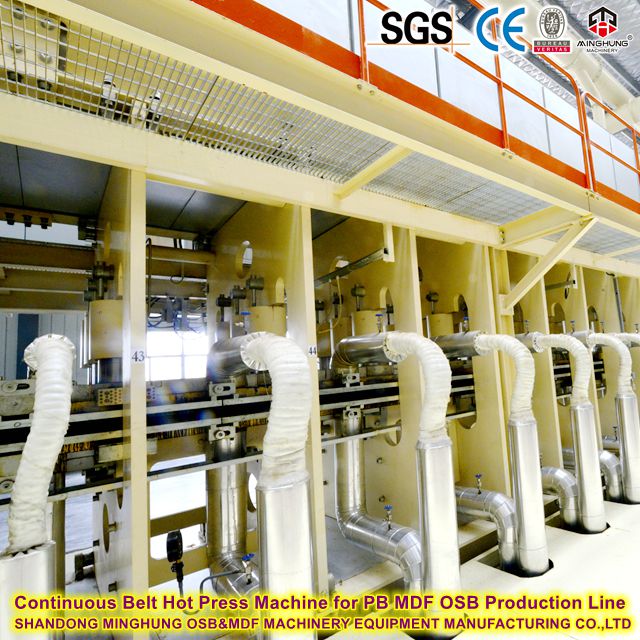

Independent heating unit (thermal oil/steam circulation pipelines).
