MINGHUNG
Product Introduction

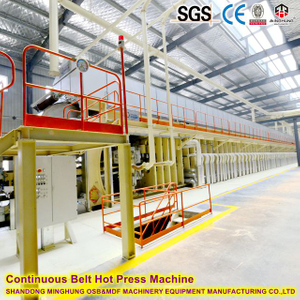

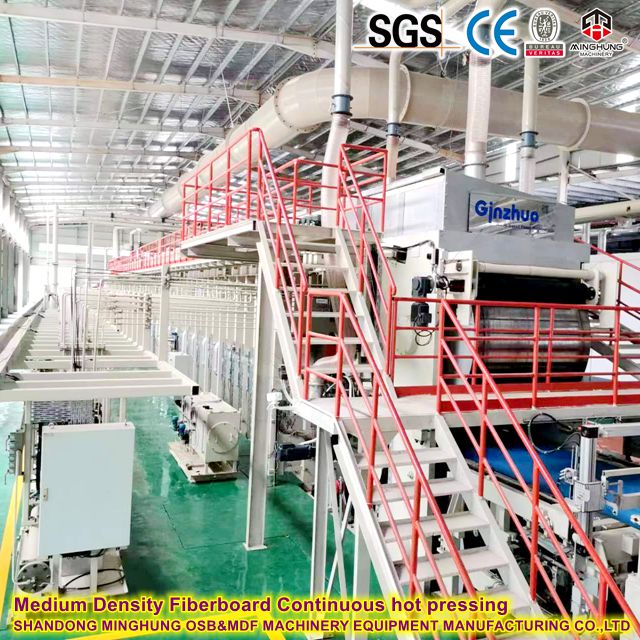

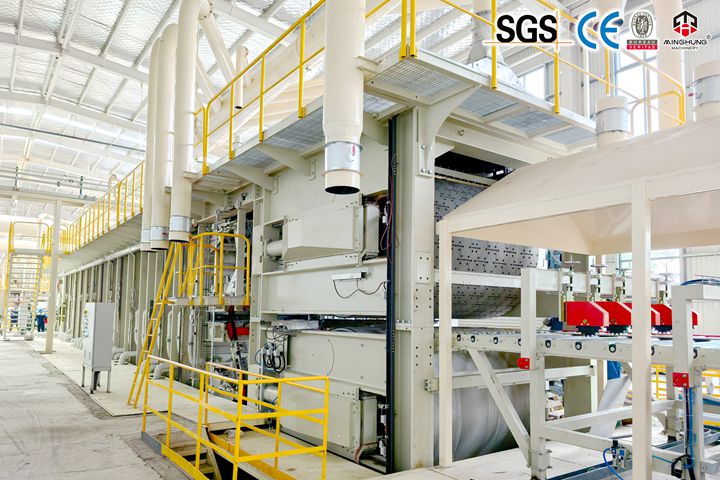

The automatic continuous flat press is specially designed for medium and high density fiberboard (MDF/HDF) production line. It has passed the EU CE safety certification and integrates intelligent temperature control, hydraulic synchronization and energy-saving systems to achieve efficient, stable and environmentally friendly continuous production. It is suitable for large and medium-sized artificial board factories with an annual output of 50,000-300,000 cubic meters.
CE-certified continuous presses not only have their inherent advantages of high efficiency, high quality and low energy consumption, but must also strictly comply with the EU Machinery Directive (Machinery Directive 2006/42/EC) and related coordinated standards (mainly EN 691-1:2012 requirements for woodworking machinery safety, and other standards such as electrical safety, pressure equipment, noise, electromagnetic compatibility, etc.). This makes it significantly different from non-CE-certified equipment or equipment from other regions in terms of design, manufacturing and safety protection.
Core Concepts
Meaning of "continuous"
Meaning of "continuous": Unlike traditional multi-layer hot presses (which can only press one or several sheets at a time and need to be opened and closed repeatedly), the pressing plate of the continuous flat hot press is always in a closed state. The laid fiber sheet (usually a loose, continuous sheet strip) is continuously fed into the press entrance.
Meaning of "flat pressing"
The sheet is subjected to pressure and heat from two huge, parallel hot pressing plates (or steel strips) on the upper and lower sides of the press. The pressure is perpendicular to the sheet surface, ensuring uniform sheet thickness and smooth surface (different from continuous roller pressing).
Product parameter table
category | Parameter details |
maximum pressure | 30,000 kN |
working width | 2500 mm / 3000 mm (standard) |
platen temperature | 200-250°C (intelligent PID precise temperature control) |
production speed | 800-1500 mm/s (stepless speed regulation) |
Applicable board | MDF/HDF (thickness 2-40 mm) |
Heating method | Thermal oil/steam dual mode heating |
control system | Siemens PLC + 10-inch HMI touch screen |
Security certification | CE（EN 12100, EN 60204-1） |
Energy consumption | ≤85 kWh/㎥ (20% lower than traditional compressor) |
Installed power | 1250 kW |
Hydraulic system | Closed loop servo hydraulics, pressure fluctuation <±1% |
annual production capacity | 80,000-300,000 m³(depending on configuration) |
special design | Segmented cooling system / Anti-stick coating / Automatic lubrication |
The core highlights of the CE-certified continuous flat-press hot-press machine
1. Safety First: Prioritize the safety of operators and maintenance personnel. Through systematic risk assessment and multi-level protective measures (basic design, protective devices, safety control), reduce risks comprehensively.
2. High Reliability Safety System: The core safety functions (emergency stop, interlock) rely on independent safety circuits (safety relays/Safety PLC) to achieve high-level (such as SIL 2/PLe) functional safety, ensuring fail-safe.
3. Strengthened Protection for Core Risks: Specialized and enhanced safety designs are implemented for steel belt operation, high-temperature and high-pressure areas, and squeeze-in points.
4. Comprehensive Compliance: Strictly meet a series of specific EU harmonized standards (EN standards), covering mechanical, electrical, control, noise, ergonomics, etc.
5. Complete Technical Documentation: Providing detailed technical documents (risk analysis reports, conformity declarations, multilingual instructions) is an important part of the CE certification and also serves as the basis for users to safely use and maintain.
Product Description
The continuous flat-pressing hot-pressing machine with CE certification is based on its own advanced technology and high performance, and is further equipped with engineering designs that comply with the highest safety standards of the European Union and have been rigorously verified. This makes it a modern industrial equipment that can achieve efficient and high-quality production while also ensuring maximum personnel safety. Purchasing CE-certified equipment is an important manifestation of users fulfilling their safety responsibilities in the workplace.
Environmental compliance
Comply with EU PPE directive and EMC electromagnetic compatibility standards, equipment noise ≤80dB
Upgrade your production line now!
We provide global installation support and technical training, 2-year machine warranty, and 24-hour online response - let your fiberboard production enter a new era of intelligence and low carbonization.
Whatsapp: +8618769900191 +8615589105786 +8618954906501
Email: osbmdfmachinery@gmail.com
