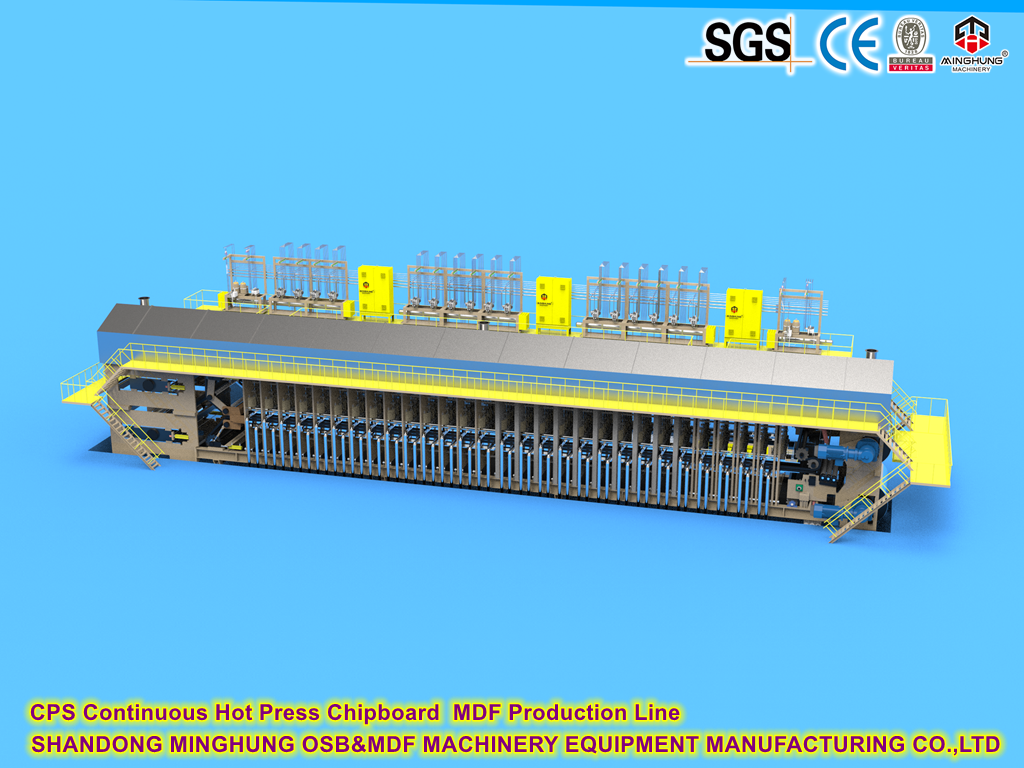

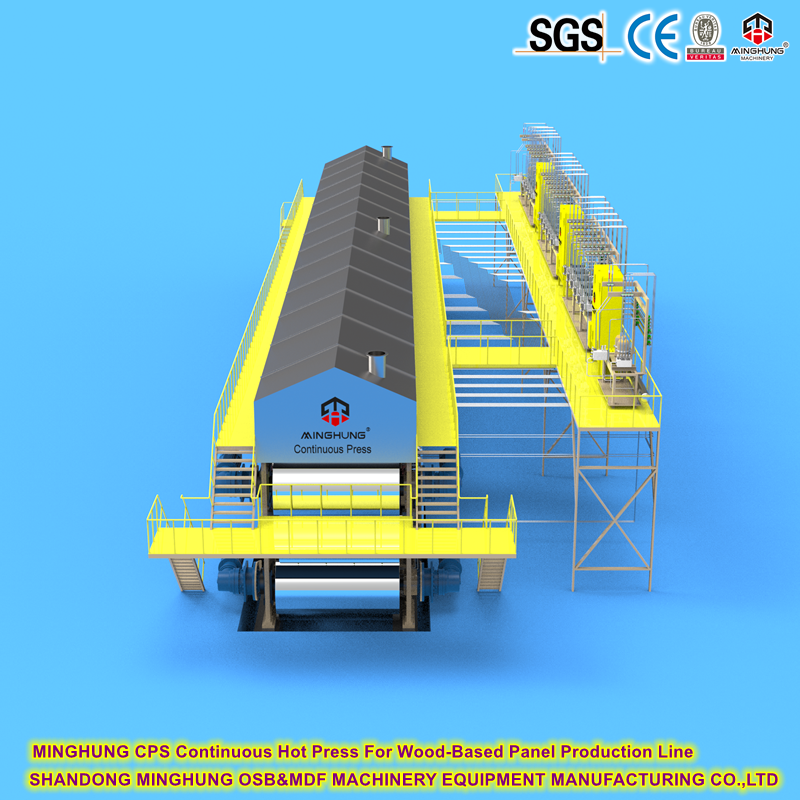

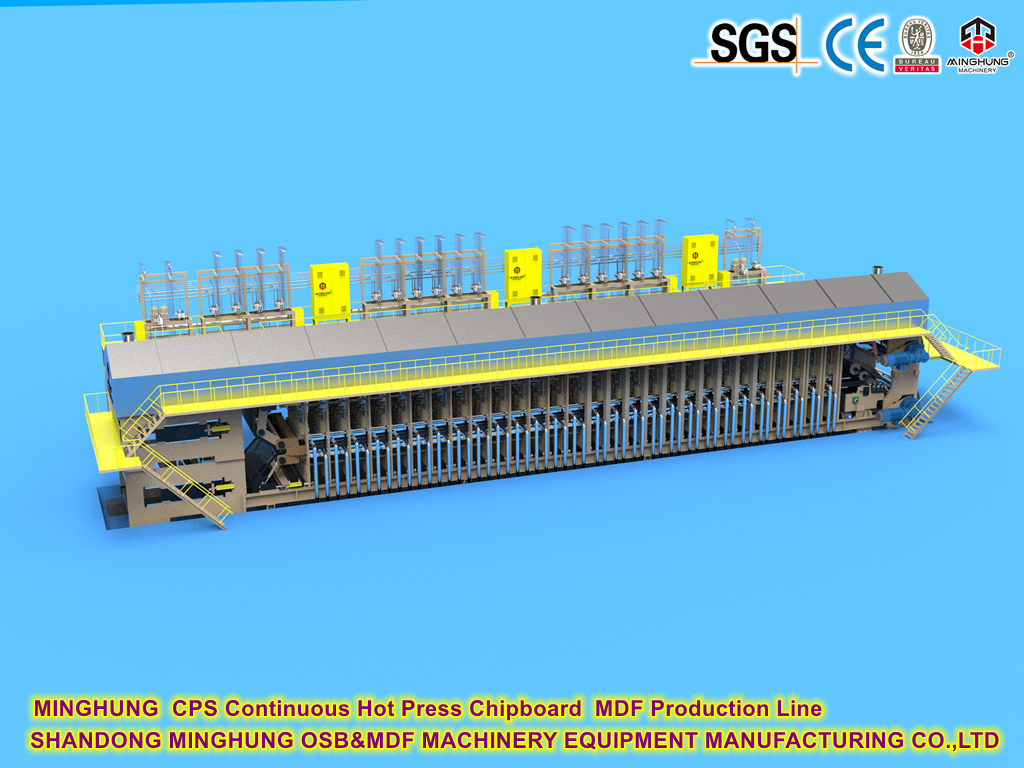

The CPS (Continuous Pressing System) Continuous Hot Press is the core technological heart of a modern particleboard (PB) production line. It replaced the older multi-daylight presses due to its superior efficiency, product quality, and automation capabilities.
Here's a breakdown of its role and key aspects within the particleboard production line:
1. Purpose: To continuously consolidate the loose particle mat (formed upstream) under controlled heat and pressure into a solid board with consistent density profile, thickness, and mechanical properties.
2. Key Components & Function:
Steel Belts: Two massive, highly polished, continuous steel belts (top and bottom) that carry the mat through the press. They transmit pressure and heat evenly.
Heating System: Typically uses high-pressure thermal oil circulating through heating platens above and below the belts. Steam systems are less common now. Provides the heat (170-220°C) needed to melt the resin (usually UF or MUF) and cure it.
Hydraulic Pressing System: A series of hydraulic cylinders along the length of the press apply immense pressure (upwards of 1000 psi / 70 bar initially, tapering off) to compress the mat. Modern CPS presses have multiple pressure zones along their length.
Roller Carriage System: Supports and guides the steel belts. Precision rollers maintain belt tension, alignment, and flatness.
Entry & Initial Compression: The loose mat enters the press infeed. High pressure is immediately applied to rapidly reduce thickness and establish surface density.
Heating & Resin Melting: Heat rapidly penetrates the compressed mat, melting the resin coating on the particles.
Main Pressing & Resin Cure: Pressure remains high, and heat continues to transfer, causing the resin to flow and begin curing (polymerization). Density profile is shaped.
Pressure Tapering & Final Cure: As the board moves through the press, pressure is gradually reduced in subsequent zones while heat continues the curing process. This prevents spring-back and sets the internal bond.
Exit & Pressure Release: The fully cured board exits the press at the outfeed nose, pressure is fully released, and the board moves to the cooling line.
Continuous Production: Eliminates the stop-start cycle, enabling much higher line speeds (e.g., 1000-2000 m/min belt speed) and production volumes (e.g., 500,000 - 1,000,000+ m³/year).
Superior Product Quality: Excellent thickness consistency, very smooth surfaces, optimized density profile (higher density surfaces, lower core), consistent mechanical properties along the length.
Better Process Control: Precise, dynamic control of temperature and pressure profiles along the press length allows optimization for different board types/thicknesses.
Reduced Labor & Automation: Highly automated, requiring fewer operators.
Improved Efficiency: Lower specific energy consumption per m³ of board compared to discontinuous presses.
Flexibility: Faster changeovers between different board thicknesses.
Extremely High Capital Investment: The CPS is the single most expensive component of the line.
High Maintenance Complexity & Cost: Steel belts, rollers, heating systems, and hydraulics require meticulous maintenance and specialized expertise. Belt replacement is a major undertaking.
Sensitivity to Upstream Process: Requires a consistently formed, homogeneous mat with good edges. Problems in forming or pre-pressing can cause significant disruptions or belt damage.
Complex Control: Requires highly skilled operators and maintenance engineers.
Thermal Uniformity: Maintaining perfectly uniform temperature across the large platen area is challenging but critical.
