Availability: | |
---|---|
MH-CHP
MINGHUNG
Particleboard
Chipboard
Technical Specifications
Paramete | Value |
Annual Output | 150,000m³ |
Working Width | 1,300~2,200 mm (Customizable) |
Production Speed | 800~1,500 mm/s |
Applicable raw materials | wood/bamboo/bagasse |
Thickness Range | 2~40 mm |
Heating Temp | 180~240℃ |
Total Power | ≈3,500 kW |
Control System | Siemens PLC + 10.1" HMI |
Key components

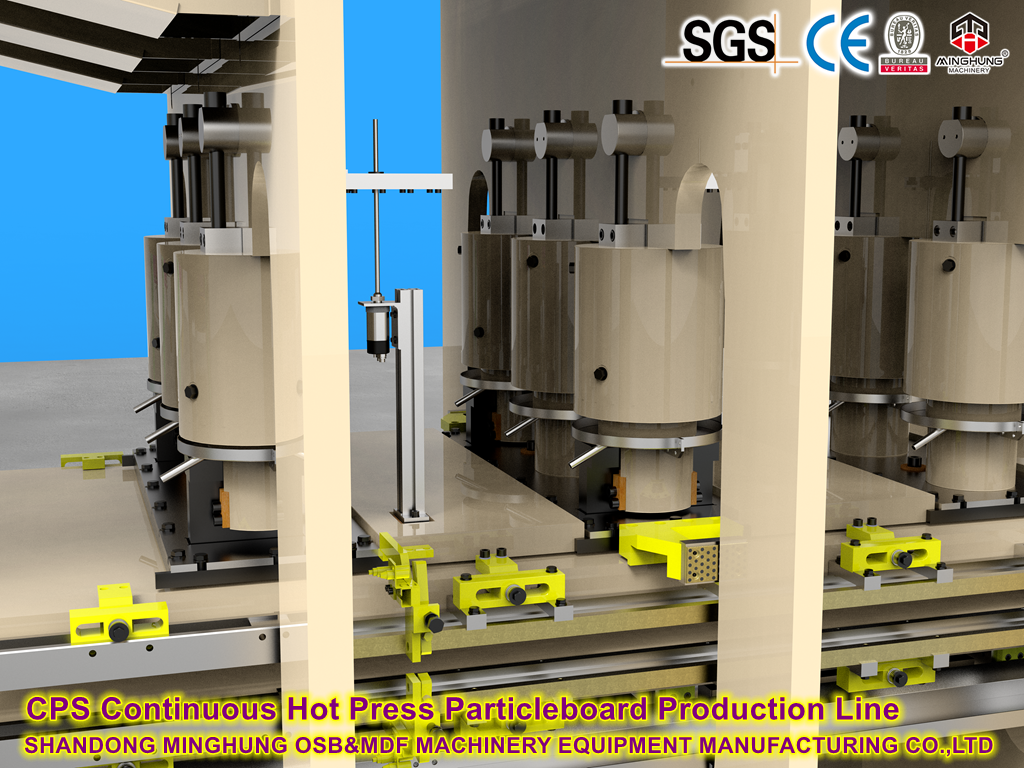

1. Continuous flat pressing system
- Dual steel belt synchronous drive technology
- Segmented pressure roller (32-zone precision pressure regulation)
2. Intelligent temperature control module
- Multi-zone independent hot press plate temperature closed-loop control
- Hot oil circulation error ±1.5℃
3. Safety protection
- Automatic deviation correction device for steel belt deviation prevention
- Overload emergency stop + fire sprinkler system

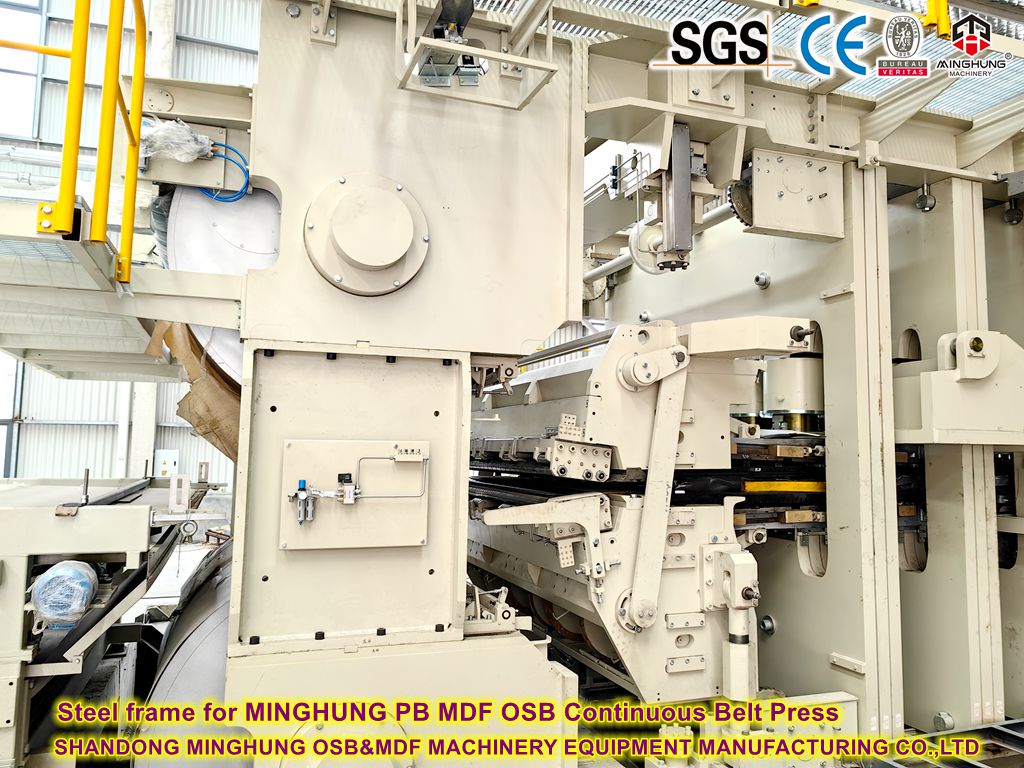

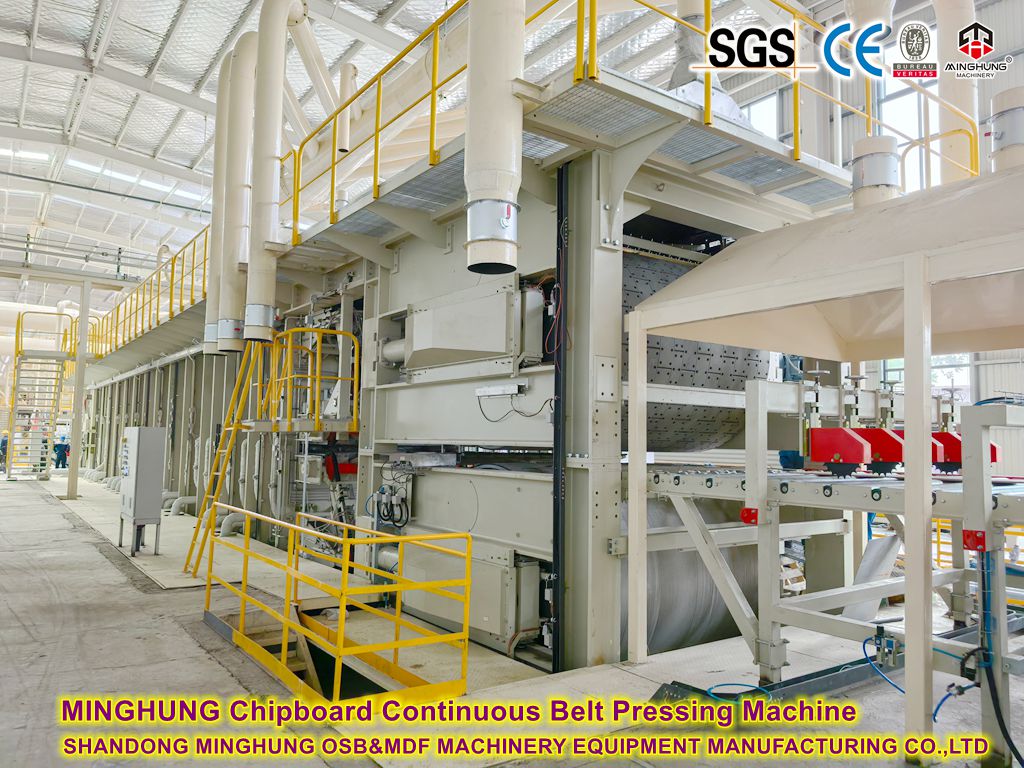

Continuous hot press details
Belt for continuous press
Working principle
1. Feeding system
Siemens Servo Motor
Siemens Invter for Feeding System
After the paved and formed particle board is inspected by the metal detector, it is fed into the press by the servo-driven conveyor belt at a speed of 18-25m/min
The pre-pressing roller initially compresses the board to an initial density of 300-450kg/m³
2. Hot Press Forming
Forming machine for particleboard production line
Forming machine
Fourth stage pressure control
Region | Pressure (MPa) | Temperature (℃) | Function |
Inlet wedge zone | 0.5-1.2 | 180-200 | Exhaust pre-compression |
Main pressure zone | 3.0-5.5 | 210-230 | Resin curing (UF/MDI |
Thickness calibration zone | 2.0-3.0 | 200-210 | Thickness tolerance ≤±0.15mm |
Decompression zone | 0.3-0.8 | 190-200 | Stress release and anti-rebound |
Dual steel belt synchronous drive: German SGL carbon fiber reinforced steel belt, life ≥ 5 years

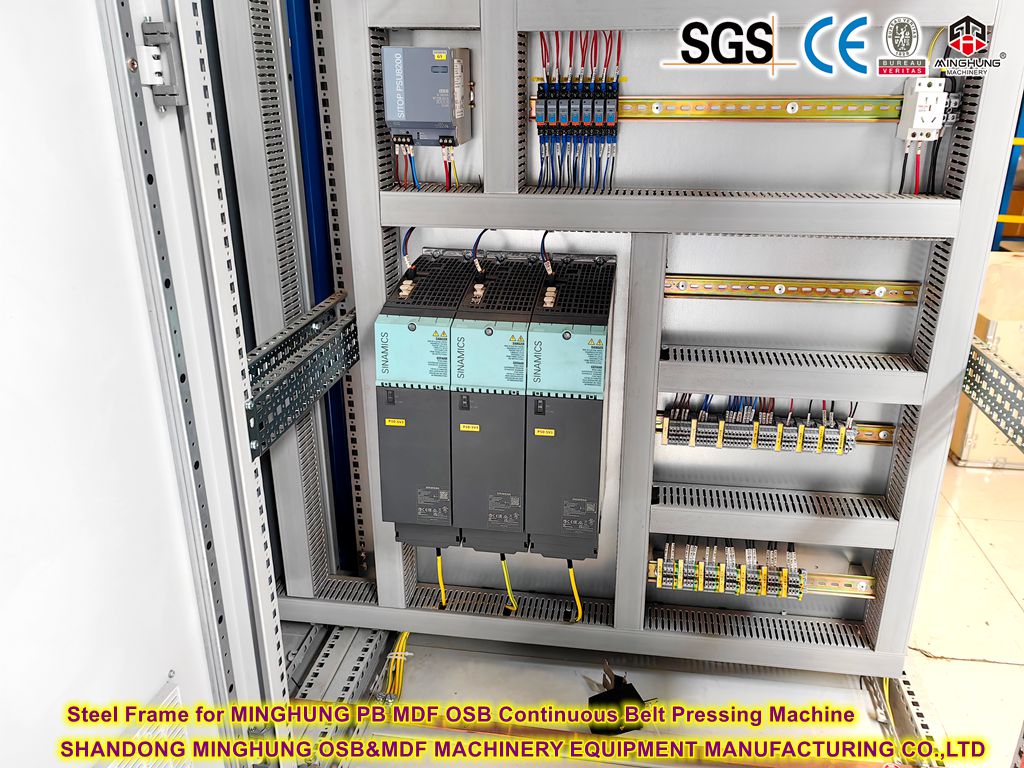

3. Intelligent control
Siemens PLC 1500
Siemens PLC 1500
Siemens S7-1500 PLC + WinCC HMI
Real-time monitoring of board density curve (online gamma ray detector)
Key Advantages
- High Efficiency: 24/7 continuous production capacity
- Energy Saving: Heat recovery system reduces consumption by ≥15%
- Smart Control: Real-time monitoring via PLC + HMI touchscreen
- Precision Pressing: Hydraulic servo system, thickness tolerance ≤±0.15mm
- Quick Changeover: Modular design for product switch in <15min
Applicable scenarios
✅ PB/OSB oriented strand board continuous press
✅ Medium and high density fiberboard (MDF/HDF) production line
✅ Moisture-proof/flame-retardant and other special board production

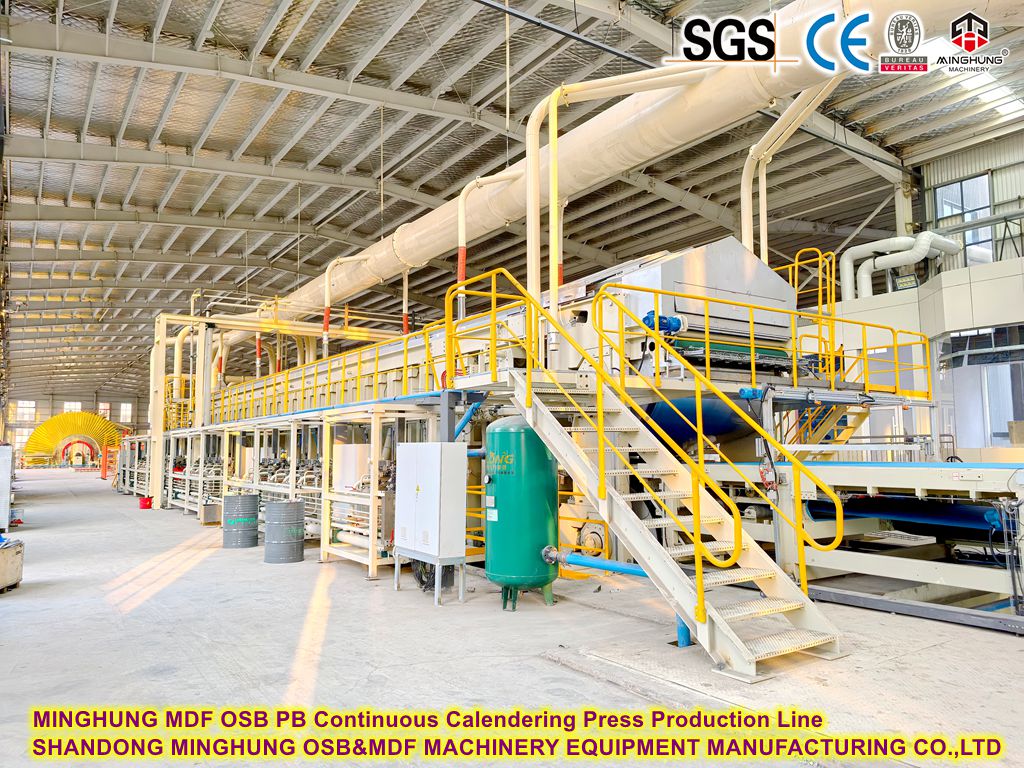

Osb Continuous Hot Press
PB Continuous Hot Press
Service Support
- Global installation: Engineers provide on-site guidance for installation and debugging
- Cloud monitoring: IoT remote diagnosis system (optional)
- Spare parts guarantee: 72-hour emergency spare parts response mechanism
- Training service: Operation/maintenance full-process training courses
FAQ
1.What can you buy from us?
Particleboard production line, Oriented Strand Board production line, Medium/High Fiberboard production line, Hot Press, Pre-press, Plywood production line, Single Hot Press Machinery production line, Single Board Machine, Hot Press, Cold Press and other woodworking production lines。
2.Can you provide on-site engineer services?
Yes, usually our engineers are experienced and provide visa, air tickets and flight services.
3.Can you customize products for customers?
Yes, we can customize products according to customer requirements or drawings. At the same time, we protect customers' business privacy with the strongest awareness.
4.What payment methods do you offer?
Usually T/T and LC. If you have other payment methods, we can also consider it.
Customize Your Particleboard Line! Full-service solution from layout design to production optimization. Request a tailored proposal now.
