1. Optimized Initial Investment Cost
Proven Technology Integration: Prioritizes mature, reliable equipment and processes with long market validation over expensive, complex cutting-edge technology, significantly reducing design and procurement costs.
Modular & Standardized Design: The line is built with modular components and utilizes a high degree of standardized, generic parts, lowering manufacturing costs and facilitating easier, more economical future maintenance and part replacement.
Cost-Effective Configuration: For core equipment (e.g., the press), a technically mature and stable Multi-Opening Hot Press might be selected over a high-cost continuous press, striking a balance between meeting capacity/quality requirements and substantially saving initial capital expenditure.
2. Excellent Operational Cost Control
Broad Raw Material Adaptability – The Foundation of Cost Control: The line is optimized for processing low-cost mixed raw materials. It efficiently utilizes various softwoods and hardwoods, forest thinnings, and wood processing residues (sawdust, sander dust), drastically reducing the primary variable cost - raw material cost.
Significant Energy-Saving Design:
Equipped with efficient thermal energy systems (e.g., thermal oil heaters) and heat recovery units that reuse waste heat from dryers and presses, directly lowering energy expenses.
Utilizes energy-efficient motors and variable frequency drives (VFDs) where applicable to reduce parasitic losses.
Low Maintenance & High Reliability: Based on robust and proven design principles, the equipment boasts low failure rates, simple routine maintenance, and requires affordable, readily available spare parts, effectively controlling long-term maintenance costs and labor dependency.
3. Stable Product Quality & Market Applicability
The produced MDF substrate boards meet key performance indicators (internal bond strength, density uniformity, thickness tolerance) required for mainstream applications like furniture core stock, drawer bottoms, door cores, and laminated floor bases. The surfaces are flat, providing a good foundation for subsequent laminating or coating.
The automated control system ensures process stability and repeatability, guaranteeing consistent batch-to-batch quality, which helps build a stable market reputation for clients.
The process revolves around "Efficiency and Cost-Saving":
1. Raw Material Handling: Low-cost mixed wood is chipped and screened to produce acceptable chips.
2. Fiber Preparation: Chips are defibrated in a refiner, blended uniformly with cost-advantageous adhesives like UF resin in a blender, and then dried.
3. Forming & Pre-pressing: Dried fibers are formed into a uniform mat by a mechanical former and compacted by a pre-press.
4. Hot Pressing & Curing: The mat is cured and formed in a Multi-Opening Hot Press. This is a key choice for the low-cost strategy, balancing investment and performance.
5. Finishing: Boards are cooled, trimmed, sanded (to ensure basic surface flatness), and finally stacked and packaged.
1. Raw Material Section:
Heavy-Duty Drum Chipper: Rugged and durable, suitable for processing mixed wood of varying sizes and quality.
Efficient Vibrating Screen: Effectively screens acceptable chips, reducing losses in subsequent processes.
2. Fiber Preparation Section:
Economic Defibration System: Provides fibers that meet quality requirements, focusing on optimized energy consumption and wear-part longevity.

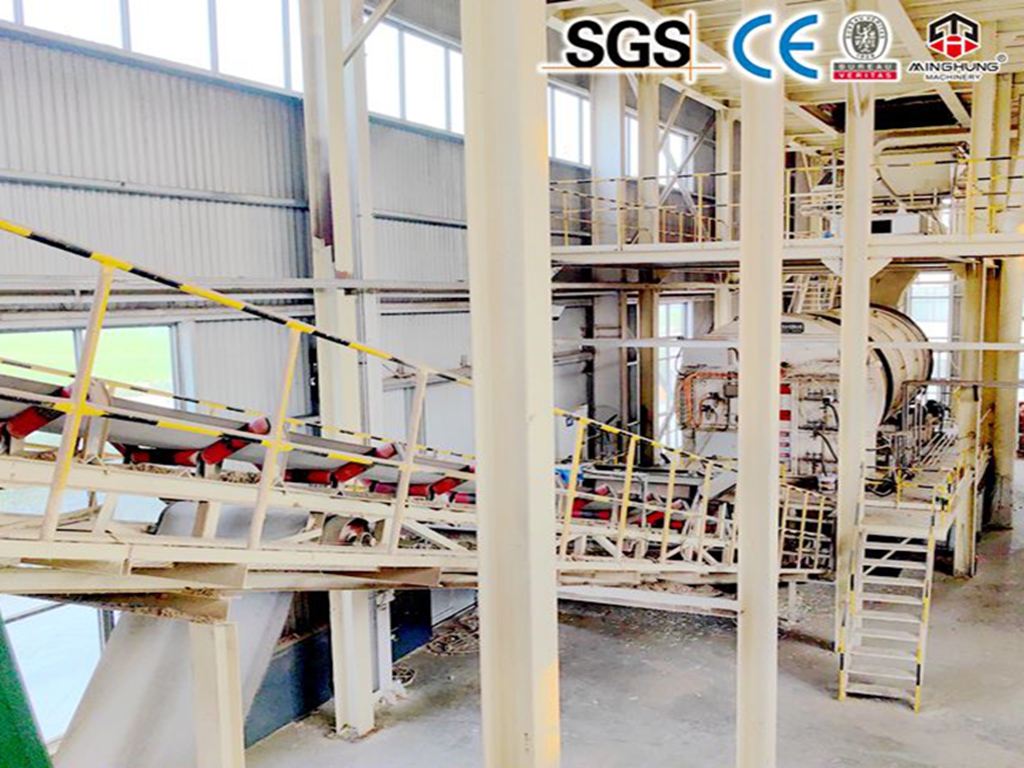

Reliable Blending System: Ensures uniform resin distribution, maximizing utilization and minimizing waste.
3. Forming & Pressing Section:
Mechanical Former: Simple structure, easy maintenance, forming quality sufficient for substrate boards.

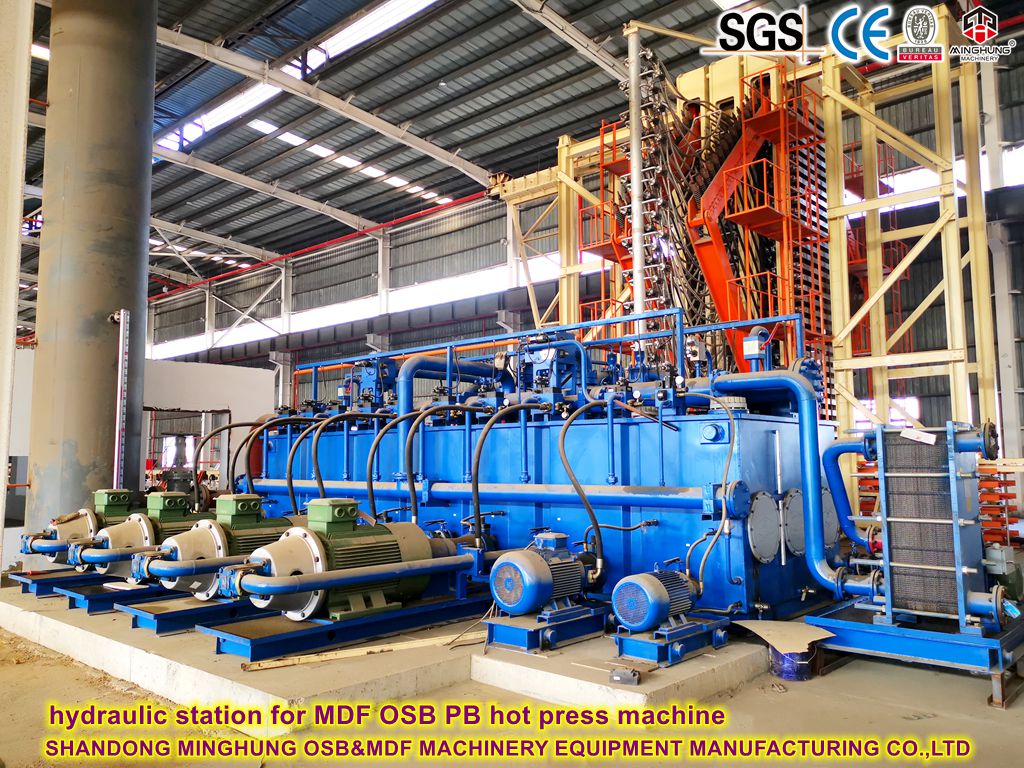

Multi-Opening Hot Press (Core Component): Offers a significantly lower initial investment compared to continuous presses, is technologically mature, and has low maintenance costs, making it the cost-effective choice for the 100,000 m³/year target.
4. Finishing Section:
Standard Sander (e.g., 4-head): Performs thickness calibration and surface finishing to ensure substrate flatness, without over-investing in top-tier surface quality for cost control.
5. Control & Energy Systems:
Automation Control System: Employs a cost-effective PLC system for stable control and interlocking protection of key process parameters, ensuring production safety and quality stability, rather than pursuing full-line unmanned operation.
Integrated Energy Plant: Configured with efficient thermal oil heaters and heat recovery systems to reduce energy costs at the source.
I. Initial Investment Cost Optimization
This is the first threshold to attract investors. The production line significantly reduces upfront investment through the following methods:
1. Core Equipment Selection: Cost-Effectiveness First

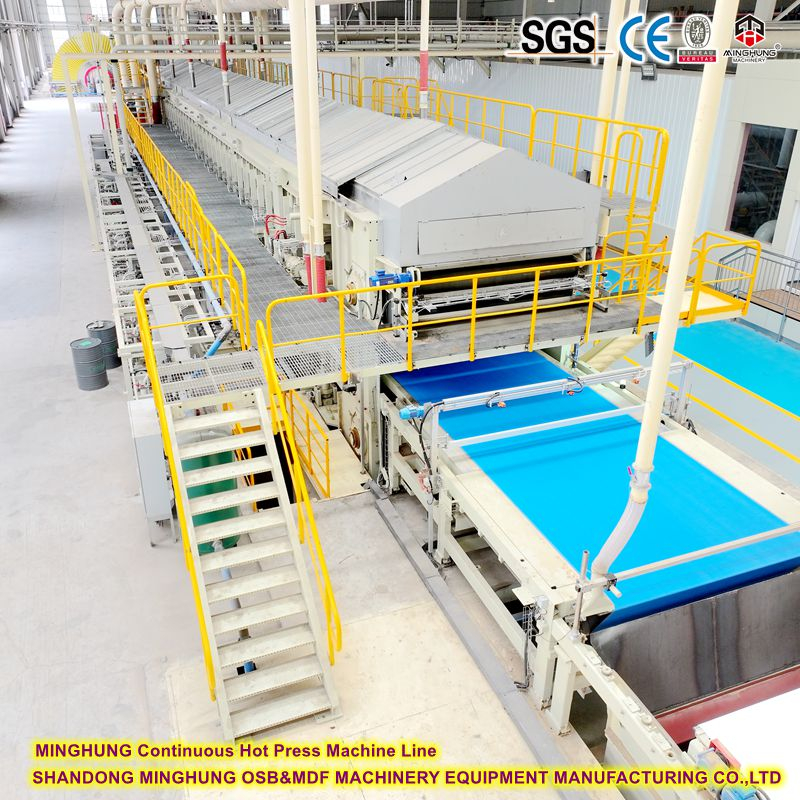

Using Multi-Opening Hot Presses Instead of Continuous Presses: This is the most critical cost-saving decision. While continuous presses are excellent, they are extremely expensive. For the 100,000 m³/year target, a technologically mature Multi-Opening Hot Press is a fully viable and reliable choice, with a procurement cost potentially 40%-50% or more lower than a continuous press.
"Fit-for-Purpose" Automation Configuration: Not every process pursues unmanned operation. It employs cost-effective PLC automation control at key quality control points (e.g., forming, hot pressing, sanding), while allowing a hybrid model of "automation + necessary manual labor" in areas like raw material feeding and finished product handling, reducing investment in expensive equipment like robots and AGVs.
2. Design and Configuration: Standardization and Modularization
Avoiding "Over-Engineering": The configuration is not based on producing top-tier surfaced MDF but is precisely designed for the "substrate" requirement. For example, the sanding system is configured to be adequate for flatness without pursuing the highest-grade mirror finish.
Using Standardized Modules and Generic Components: The equipment uses a modular design with a large number of internationally common standard parts and models. This lowers procurement costs and ensures that future maintenance parts are easier to source, with transparent pricing, avoiding the high costs and long lead times of custom-made parts.
II. Operational Cost Optimization
This is key to the production line's long-term competitiveness, involving daily recurring expenses.
1. Raw Material Cost: From "Eating Fine Grains" to "Eating Coarse Grains"
Broad Raw Material Adaptability: One of the core advantages of the production line. It is optimized specifically for processing low-cost mixed raw materials, enabling efficient use of:
Mixed Softwoods and Hardwoods: No reliance on single, expensive wood species.
Wood Processing Residues: Such as sawdust, shavings, sander dust, off-cuts. These are often waste from other factories, procured at very low cost.
Forestry Thinning Residues: Small-diameter logs, branches, etc.
Partial Use of Recycled Wood: Where the process allows, treated recycled wood can be used.
Reducing raw material cost represents the largest variable cost saving, potentially accounting for over 60% of the total cost-saving effect.
2. Energy Consumption Cost: Meticulous Energy-Saving Design
Efficient Thermal Energy System: Equipped with optimized thermal oil heaters with high combustion efficiency.
Comprehensive Heat Recovery: Systematically recovers waste heat from the drying and hot pressing stages to preheat air entering the drying system or heat process water, directly reducing fuel consumption. This technology can effectively reduce overall energy consumption by 15%-25%.
Motor System Energy Savings: Application of Variable Frequency Drives (VFDs) on equipment like fans and pumps automatically adjusts power based on actual load, avoiding electrical waste.
3. Adhesive Cost: Optimized Formulation and Precise Application
Applicability of Economical Adhesives: The process is optimized for the most common Urea-Formaldehyde (UF) resin, which is far less expensive than MDI or melamine-modified resins.
High-Precision Resin Application System: Ensures every unit of adhesive is applied evenly and effectively onto the fibers, maximizing resin utilization and minimizing waste. A 1% improvement in application accuracy translates to significant cost savings in the long run.
III. Maintenance and Labor Cost Optimization
1. Maintenance Cost: Reliable, Durable, and Easy to Maintain
High Equipment Reliability: Based on mature and stable technology, the production line has a low failure rate, reducing losses from unplanned downtime and costs of emergency repairs.
Ease of Maintenance and Low Spare Parts Cost: The use of standardized designs and generic components makes daily maintenance simpler, required spare part inventory costs lower, and procurement lead times shorter with transparent pricing.
2. Labor Cost: Balance between Automation and Manual Labor
Automation at Key Stages: Automation in stages critical to quality (forming, pressing, sanding) reduces dependence on highly skilled, higher-paid operators.
Optimized Staffing Configuration: Compared to a fully unmanned "dark factory," this line achieves efficient operation with fewer personnel through rational process design, reducing long-term labor expenses.
Specific Manifestations of Low Cost
Cost Category | Specific Manifestations | Resulting Effect |
Initial Investment | Use of multi-opening presses, standardized modules, appropriate automation | Significantly shortened payback period, potentially reduced from 5-7 years to 3-4 years. |
Raw Material Cost | Ability to use mixed species wood, processing residues, recycled materials | Raw material cost per m³of board decreased by 20%-35%, the largest cost advantage. |
Energy Cost | Heat recovery, variable frequency drives | Energy consumption per unit product reduced by 15%-25%, directly saving electricity and fuel bills. |
Maintenance & Labor | Reliable equipment, easy maintenance, optimized staffing | Lower annual maintenance and labor cost share, smoother operation. |
Quality Cost | Positioning as an economical substrate, avoiding over-quality | No wasted spending, every cost cent is directed towards meeting market needs. |
Furniture Manufacturing: For non-load-bearing or semi-structural parts in panel furniture like cabinet sides, drawer bottoms, bed slats, and sofa internal frames.
Laminated Flooring Base: Serves as the core substrate for laminate flooring.
Door Manufacturing: Used as the core filling material for interior composite doors.
Packaging Industry: For making crates and inserts requiring certain strength.
DIY & Building Material Retail: Sold directly as economical building materials.
Item | Parameter / Description |
Design Capacity | 100,000 cubic meters per year (adjustable based on operational hours) |
Board Thickness Range | 3mm - 30mm (focus on 8mm, 12mm, 15mm, 18mm) |
Raw Material | Mixed Softwood/Hardwood, Wood Processing Residues, Recycled Wood |
Finished Board Density | 680-750 kg/m³ (Standard MDF range) |
Press Type | Multi-Opening Hot Press (Cost-effective choice) |
Control System | Cost-Effective Centralized PLC Control, ensuring core process stability |
Formaldehyde Emission | Can comply with E1 / E2 standards (According to client's market requirements) |
Control System | Fully Automatic Centralized PLC Control, supports IIoT & Remote Monitoring |
