A complete waterproof plywood production system consists of the following core equipment, each playing a vital role in ensuring the final product's waterproof properties:

1. Log Processing Equipment

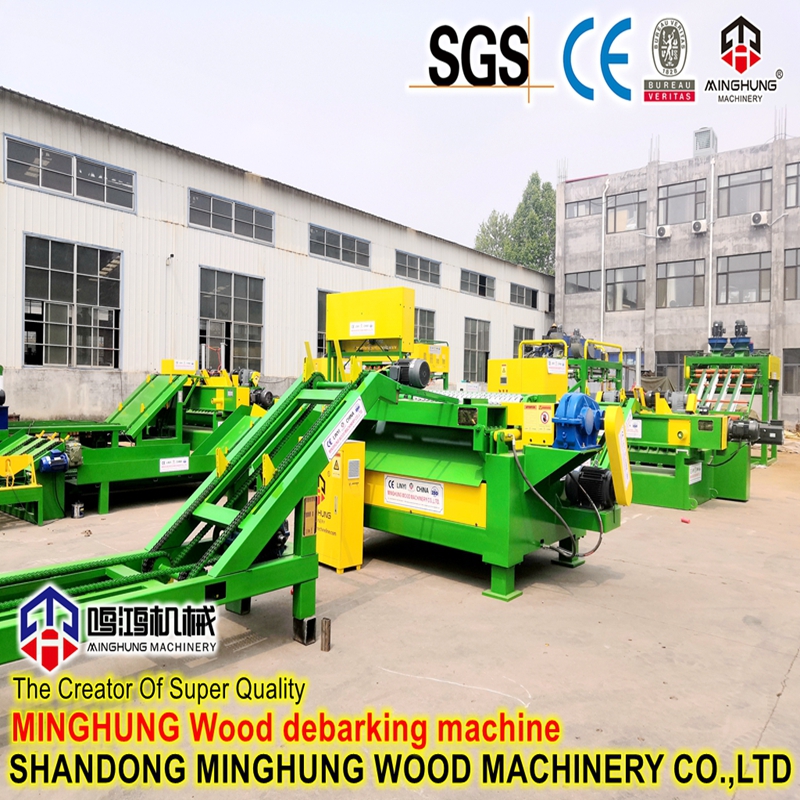

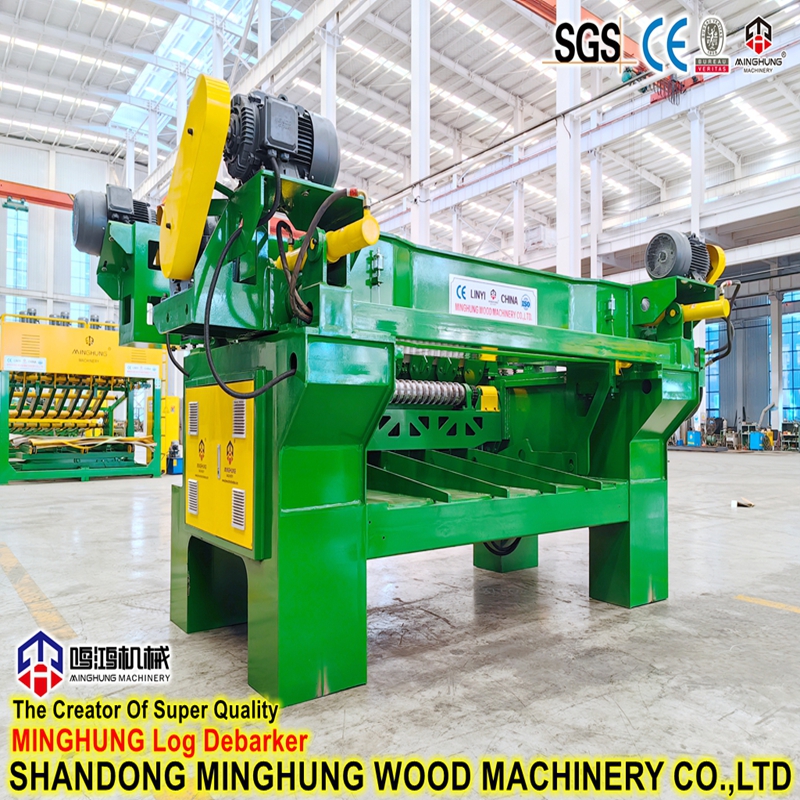

  Debarker: Used to remove the bark from logs. Bark contains impurities and organic matter that can affect bond quality and waterproof performance, so it must be thoroughly removed.

  Bucking Saw: Cuts long logs into segments according to preset production dimensions (e.g., block length). Precise length control is crucial for peeling continuous, intact veneer in the subsequent step.

2. Veneer Preparation Equipment

  Veneer Peeling Lathe: This is one of the core machines. It centers, clamps, and rapidly rotates the log block against a sharp blade, peeling it into a continuous, uniformly thin sheet of wood (veneer). The thickness uniformity of the veneer directly affects the evenness of subsequent gluing and pressing, forming the foundation for the plywood's structural stability and waterproofness.

  Veneer Conveyor: Transports the wet veneer after peeling to the next process stage.

3. Veneer Drying & Processing Equipment

  Veneer Dryer: Wet veneer has very high moisture content and must be dried. Typically, roller or mesh belt dryers are used, employing hot air to precisely reduce the veneer moisture content to the process range of 8%-12%. Uniform and adequate drying prevents veneer warping and cracking and ensures the adhesive can effectively penetrate and cure.

 Veneer Splicer/Patcher: Joins small dried veneer sheets or repairs veneer with defects (e.g., knot holes) to create full-size sheets, improving raw material utilization.

4. Gluing & Layup Equipment

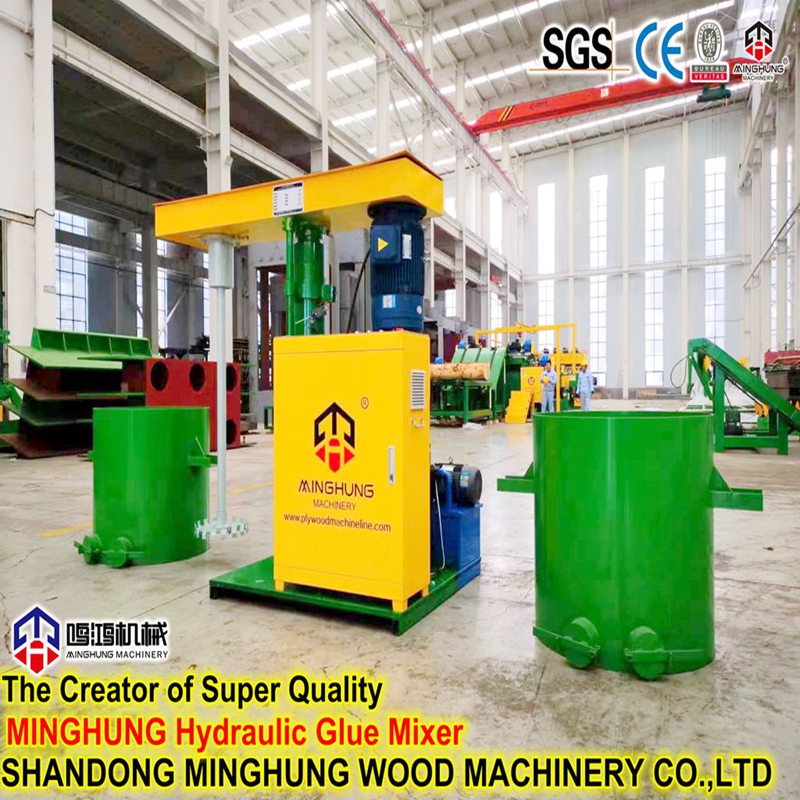

  Glue Mixer: Used for precisely preparing and mixing the waterproof adhesive, most commonly Phenolic Resin. This system ensures stable and consistent parameters like viscosity and solid content.

  Glue Spreader: Typically a four-roller or double-roller machine that applies the phenolic glue evenly and quantitatively to both sides of the veneer. Precise control of the glue spread rate is key to ensuring bond strength and forming a complete waterproof glue line. Insufficient spread causes poor bonding, while excess spread increases cost and can lead to quality issues.

  Automatic Layup Line: Automatically and precisely assembles the glued core veneers and face veneers according to a preset structure (e.g., number of piles, grain direction) to form a mat. Automated layup ensures alignment and consistency, avoiding local weak points caused by misalignment.

5. Pre-pressing & Hot Pressing Equipment

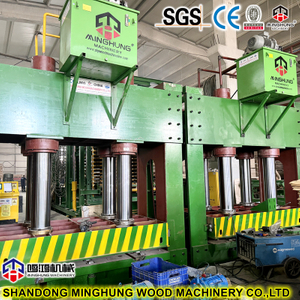

 Pre-press: Subjects the assembled mat to cold pressing before it enters the hot press. This provides initial bonding between the veneer layers, expels some air, and gives the mat initial strength for easier handling and loading into the hot press, preventing misalignment during hot pressing.

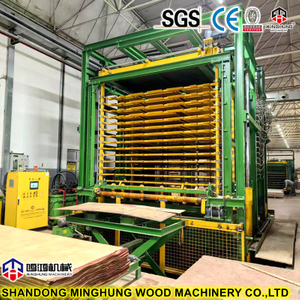

  Hot Press: This is the "heart" of the entire system and the most critical equipment for imparting waterproof properties. It provides high temperature (typically above 140°C) and high pressure, causing the phenolic resin to undergo an irreversible chemical cross-linking reaction (curing) between the veneers. This process forms a hard, insoluble, and infusible waterproof glue line that firmly bonds the wood together. The control precision of temperature, pressure, and time in the hot press directly determines the final waterproof grade and physical properties of the product.

6. Finishing & Processing Equipment

  Cooling & Turning System: The pressed panels are extremely hot and require immediate forced cooling to set the bond strength and prevent warping due to residual heat.

  Sander: Sands both surfaces of the panel to a consistent thickness, eliminating thickness deviation and achieving a smooth, flat surface. It also provides a good substrate for subsequent processing (e.g., overlaying).

  Edge Trim & Cross-Cut Saws: Precisely cut the large-format rough panels to the required final dimensions (e.g., 1220x2440mm).

  Stacker: Automatically stacks the finished panels neatly for packaging and storage.

7. Control System

  Central Control Console: Integrates PLCs and touchscreens for centralized control and monitoring of the entire production line. It stores dedicated process recipes for producing waterproof plywood, allowing precise setting and control of all key parameters like drying temperature, glue spread rate, and hot press temperature-pressure-time profiles, ensuring product quality stability and repeatability.
