MH-OSB-CHP
MINGHUNG
846599

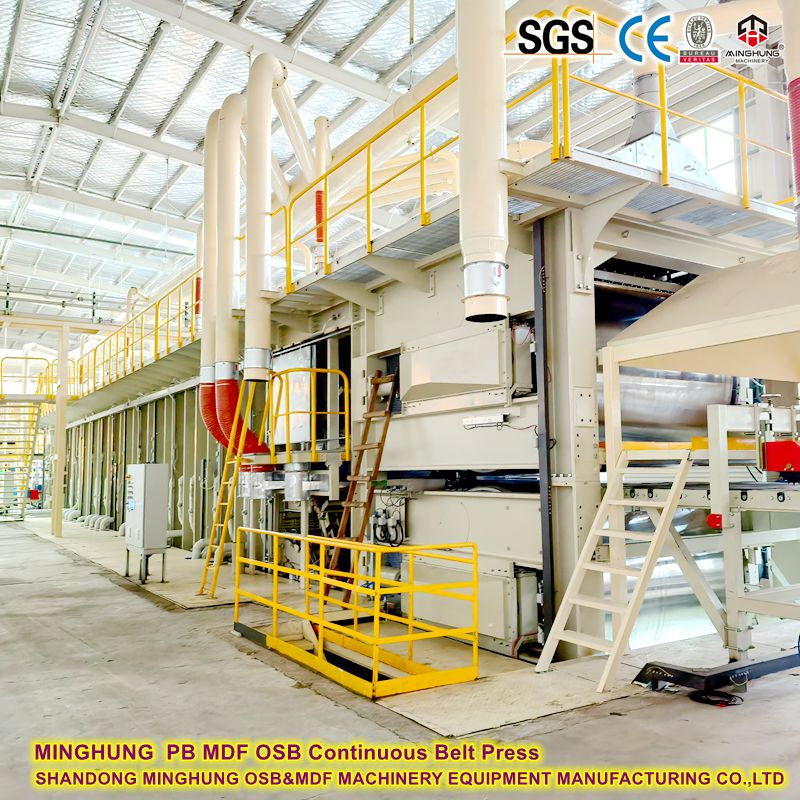

One Set Continuous Press mainly consist of steel belt, press body, Heating system, Electric system etc
Steel belt
Press frame

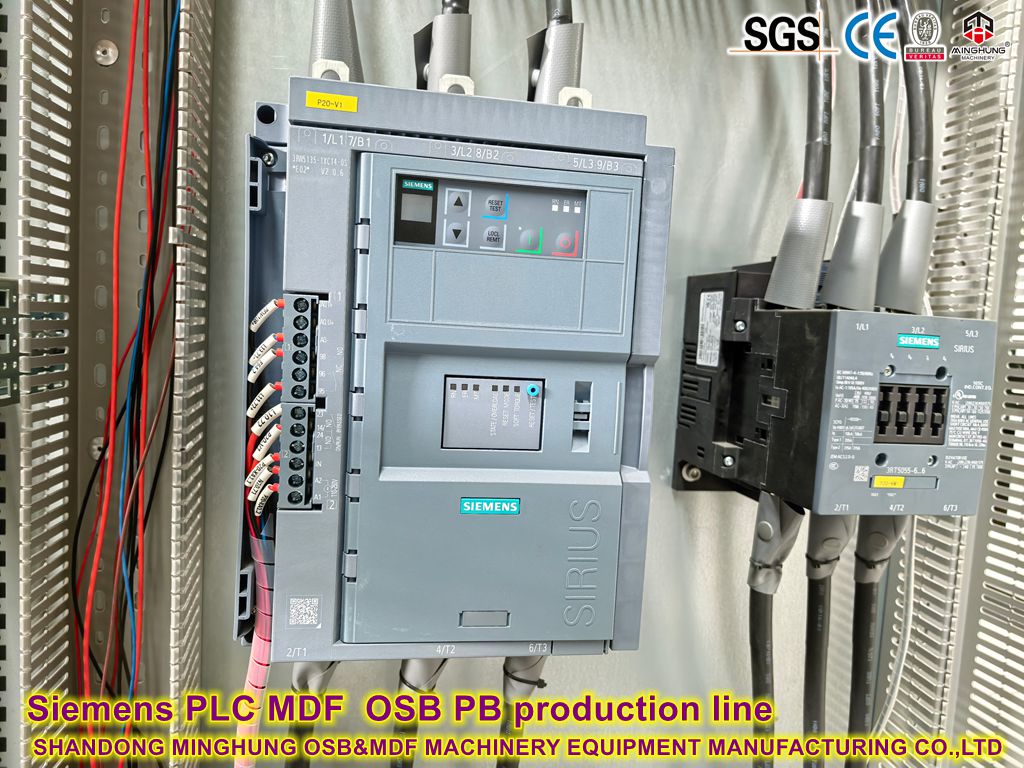

Siemens PLC
Driving system
√ Steel Belt System:
● Heat-resistant alloy steel strip (with a thickness of approximately 2.5 to 3mm) : It supports the slab and transmits pressure, and must have the ability to resist high-temperature deformation.
● Steel belt tensioning device: Hydraulic or mechanical adjustment to maintain a constant tension of the steel belt (usually 20 to 30kN/m).
● Steel belt deviation correction system: Real-time monitoring by laser or hydraulic sensors to prevent deviation (accuracy ±1mm).
● Steel belt cooling/cleaning device: Cool down after pressing and remove residual rubber particles
√ Press Body:
● Segmented pressure plate: Composed of multiple independent pressure zones (usually 10 to 20 zones), each zone separately controls temperature (200 to 250℃) and pressure (up to 5MPa).
● Hydraulic system: The servo hydraulic cylinder achieves precise pressure regulation (accuracy ±0.1MPa).
● Heat medium system: Heat transfer oil or steam circulation heating pressure plate (thermal efficiency > 85%)
√ Heating & Temperature Control System:
● Zonal heating: The surface and core layers can be independently temperature-controlled (the surface layer is usually 10 to 20 degrees Celsius higher than the core layer).
● Temperature sensor network: Real-time feedback from thermocouples, PID closed-loop control.
● Thermal energy recovery device: The waste heat from the exhaust gas is used for drying wood shavings
√ Thickness Control System:
● Laser thickness gauge: Online monitoring of slab thickness (accuracy ±0.05mm).
● Hydraulic feedback regulation: Dynamic adjustment through the spacing of the pressure plates (response time < 1 second)
√ Inlet /Outlet System:
● Slab acceleration section: Match the laying speed with the press speed (synchronization error < 0.5%).
● Plate discharge buffer section: Prevents deformation caused by sudden stress release of the hot plate
√ Safty & Auxiliary System:
● Emergency braking device: Automatically shut down when the steel belt breaks or there is a material blockage (response time < 0.5 seconds).
● Lubrication system: Automatically lubricate the chain and bearings (high-temperature grease).
● Dust removal system: Deals with volatile substances during the pressing process
| Capacity | 100,000m3/yearly |
| 350m3/day | |
| Panel | Oriented Strand Board (OSB) |
| Press length | 26 meters |
| OSB thickness | 16mm |
| OSB size | 4*8feet |
Note: we can design the Continuous press as your requires and conditions.
For making OSB boards, the whole line mainly includes Wood chipper, Strands, Drum dryer, Drum screener, Mat forming, Multi-rolls continuous pre press, Hot press, Edge cutting machine line, Silo, Belt conveyors and related parts
Different capacity, different machine specification.
OSB boards is a kind of artificial board made by gluing wood shavings arranged in a certain direction under high temperature and high pressure.
OSB is usually composed of three or more layers of structure. The arrangement directions of the wood chips in each layer are different to improve the mechanical properties of the board.
◇ Surface wood shavings: Arranged in a directional manner along the length of the board (longitudinal), providing bending strength.
◇ Core layer wood shavings: Arranged horizontally or randomly to enhance stability and shear resistance.
◇ Special structure: Some high-end OSBs adopt a 5-layer or 7-layer structure to further enhance performance
The Application of OSB can be : Construction engineering: Wall, roof, floor base (replacing plywood); Concrete formwork (reusable). Packaging industry: pallets, container floors, heavy-duty packaging boxes. Furniture manufacturing: cabinets, bookshelves, office furniture (surface treatment required). Decoration and renovation: Background wall, ceiling (surface treatment required)
Shandong MingHung OSB&MDF Machinery Equipment Co.,ltd is one professional manufacturer and supplier of OSB board equipment, MDF line, and Chipboard production line.
From A to Z, from Raw materials to the final wood based panel. our factory can offer you all necessary machinery, to help you start this business and produce good quality wooden panel.
The mainly machines include: Ring flaker, Strander, Wood chipper, Drum dryer, Dry silo, Glue dosing and applying system, Glue blender, Slab forming /laying line, Pre press, Hot press, Panel edge cutting machine, Sanding machine, and so on.
Our factory equipped with Advanced processing lathes, with Mature and Advanced Production technology, Experienced workers and engineers, Professional technicians, we can design the whole production line for you as your own conditions. and we can help design factory layout, ensure the offered machines are Good and high quality.
A:For small machines, 3-5 Months, For the full line, 8-9 Months
A:T/T, 30% as deposit, the left payment before loading.
Q: Do you offer Installation Service?
A: Yes, we can send our engineers to your factory guide installation.
Q: What is the Warranty?
A: 13 months since machine installation finish and start work
For more information, welcome contact us, we will reply you quickly and offer working videos with you
+86 18769900191, +86 15805496117, +86 18954906501
