The production process mainly consists of several steps including raw material preparation, fiber preparation, drying, laying, hot pressing, and post-processing. Each step is closely connected to ensure the quality of the board. Here is the detailed production process:
Production Process Flow
Stage | Key Process | Energy-Saving Tech |
1. Raw Material Prep | Chipping → Screening/Washing | VFD chippers (20% energy saved) |

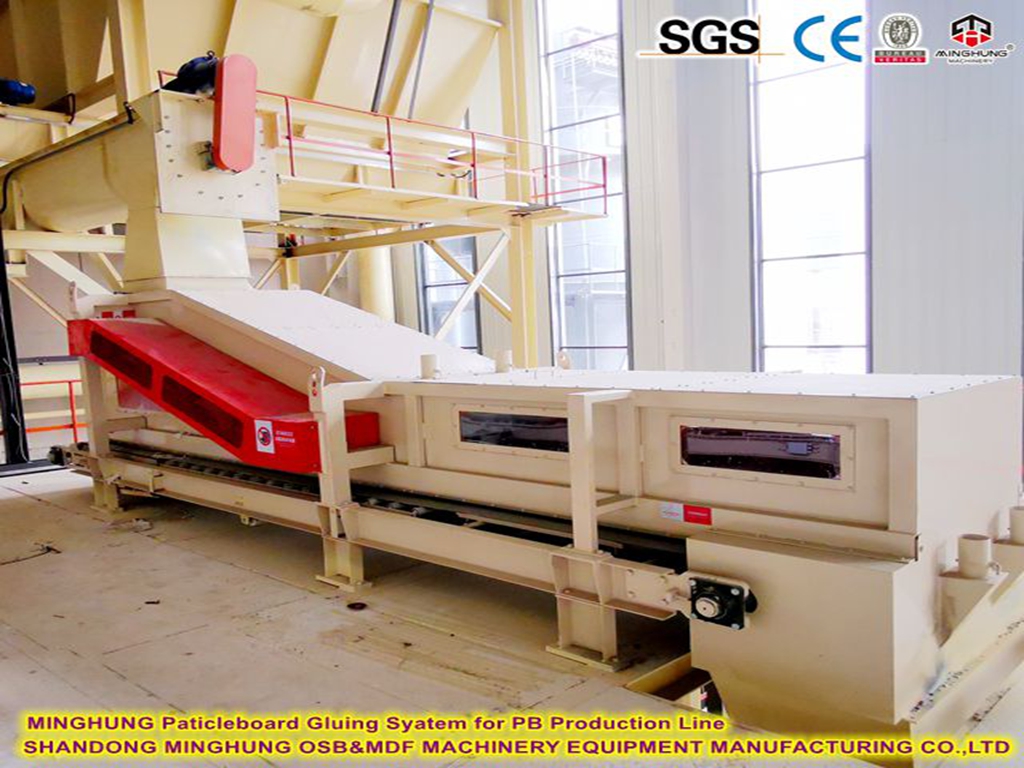

2. Fiber Preparation | Preheating → Defibration → Resin Blending | Twin-screw steaming + flash drying (≤120 kWh/t) |

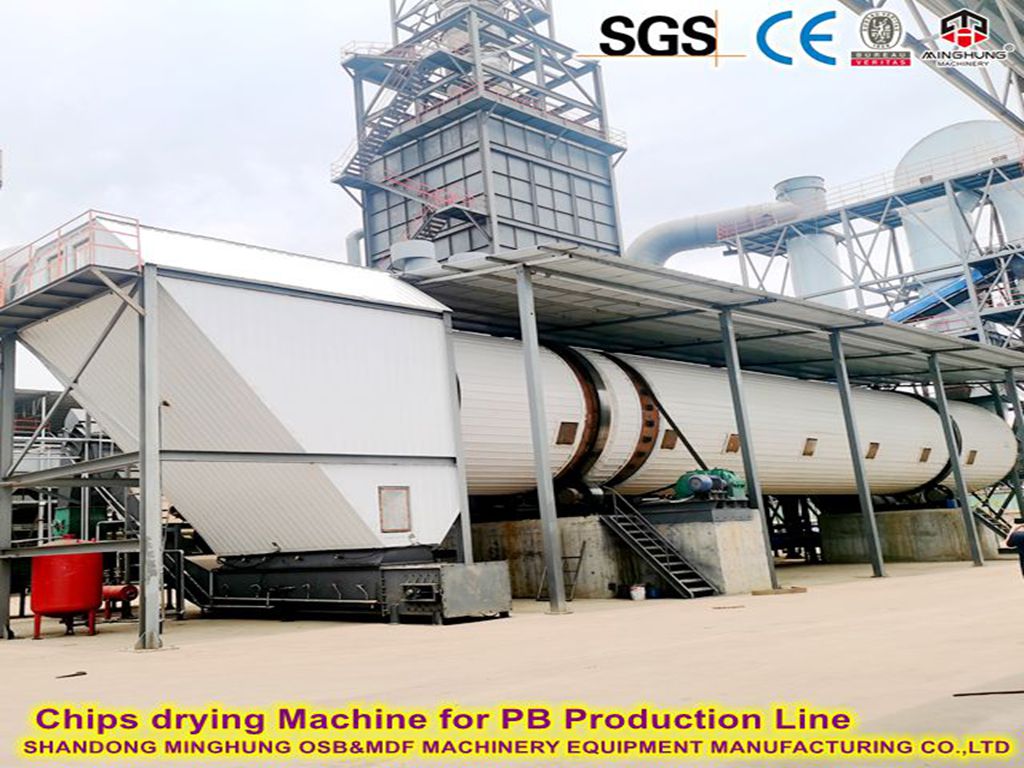

3. Fiber Drying | Pipeline pneumatic drying | Triple-pass heat recovery (>70% waste gas reuse) |

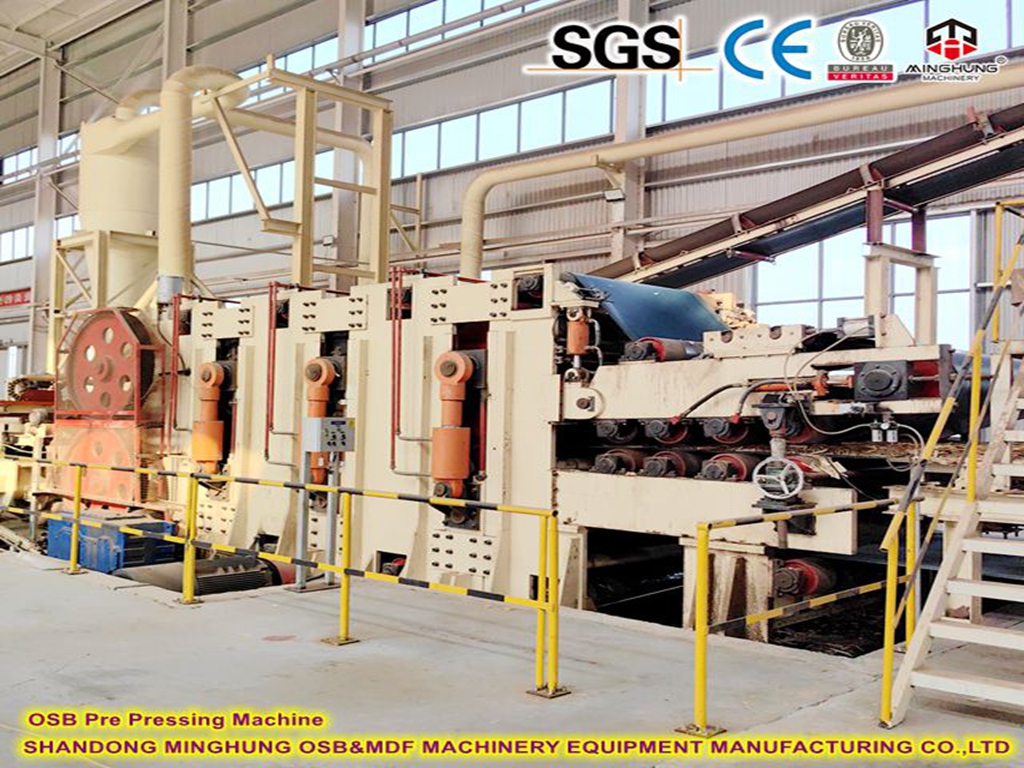

4. Mat Forming | Mechanical/air forming → Pre-pressing | Intelligent air-flow control |
5. Hot Pressing | Continuous steel belt press (200-230℃) | Belt cooling (15% energy saved) |

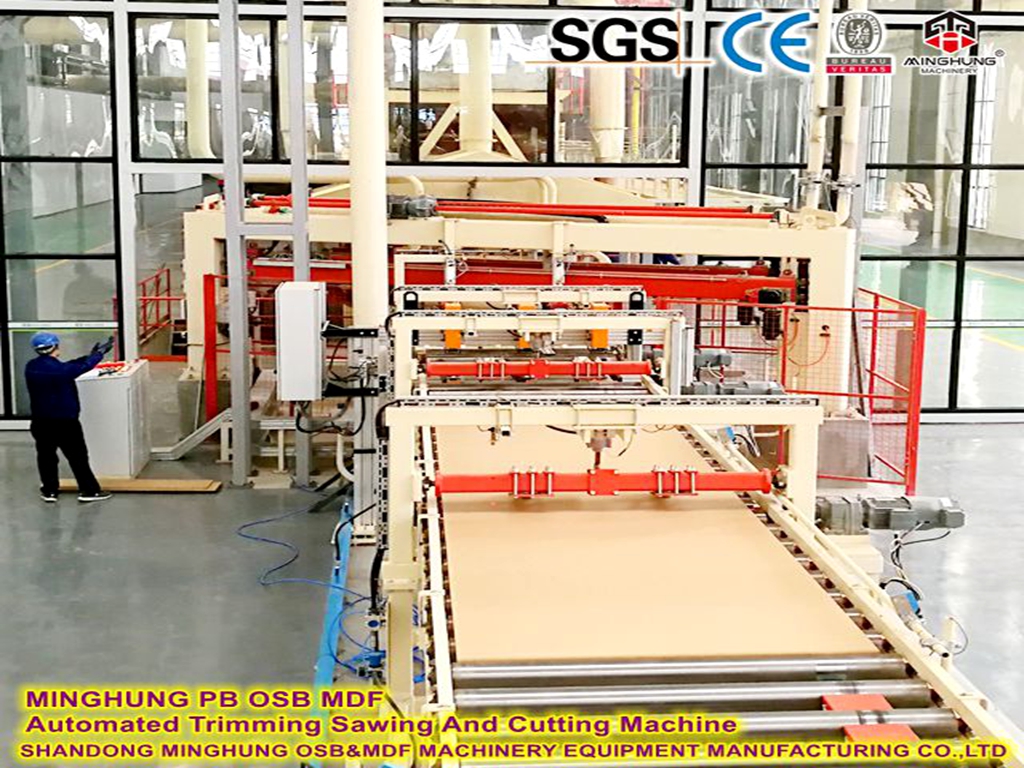

6. Finishing | Cutting → Cooling → Sanding | Waste-heat recovery cooling tower (10% energy saved) |
7. QC & Packaging | Online thickness/density/formaldehyde check | AI-based defect detection |
Key Components
Component | functional description | Energy-saving |
1. Refiner | Wood chips are separated into fibers. | Double helix preheating + low energy consumption grinding plate design, energy consumption ≤ 120 kWh/t (traditional equipment ≥ 160 kWh/t) |
2.Dryer | The moisture content of the fibers has decreased to 8-10%. | Three-channel waste heat recovery, reducing natural gas consumption by 35% |
3. Continuous Press | High-temperature and high-pressure molding | Steel belt temperature control: ±1℃. Press machine speed: 40 - 90 m/min |
4. Energy Plant | Provide steam / heat transfer oil | Biogas boiler + flue gas power generation, meeting 30% of the production line's electricity demand |

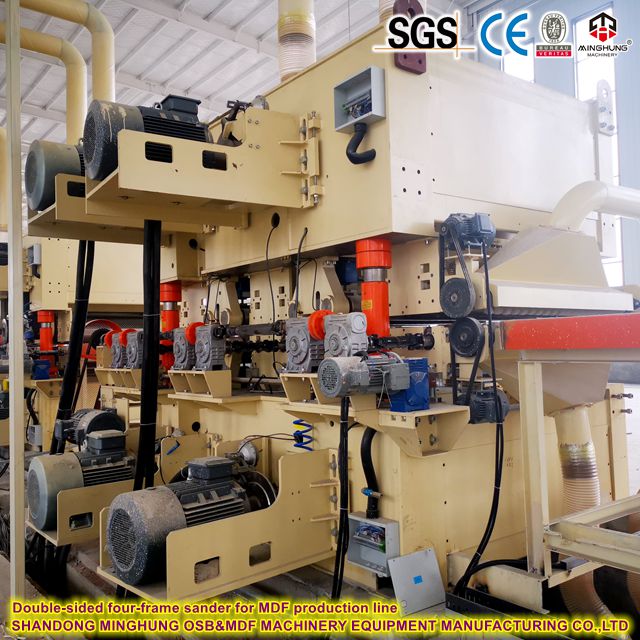

5. Sanding Line | Surface precision treatment | Adaptive sanding technology reduces sanding belt wear by 20% |

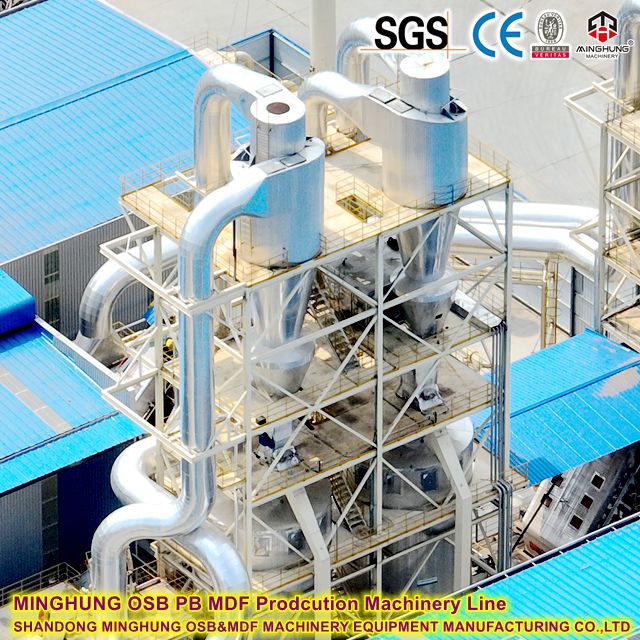

6. Dust Collection | Dust recovery | Recovery rate > 99.5% (cyclone + bag filter secondary filtration) |
7. PLC/DCS | Full-process automation | Digital twin optimization reduces manual intervention by 40% |
fiber refining
fiber drying
hot press

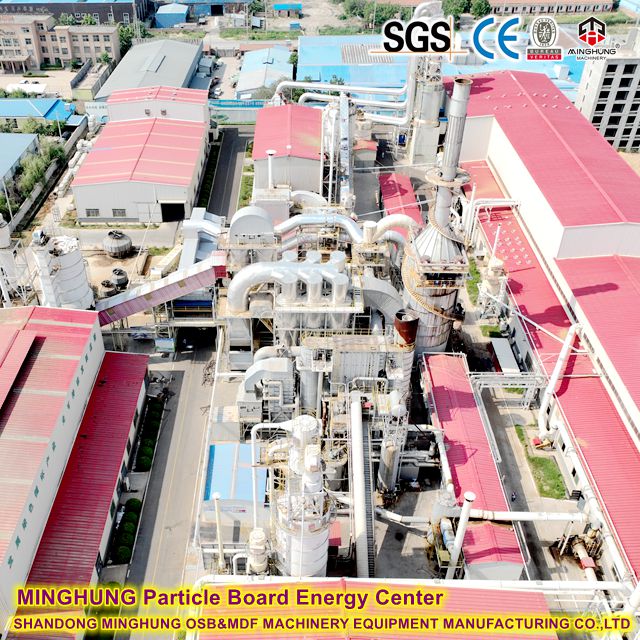

energy center

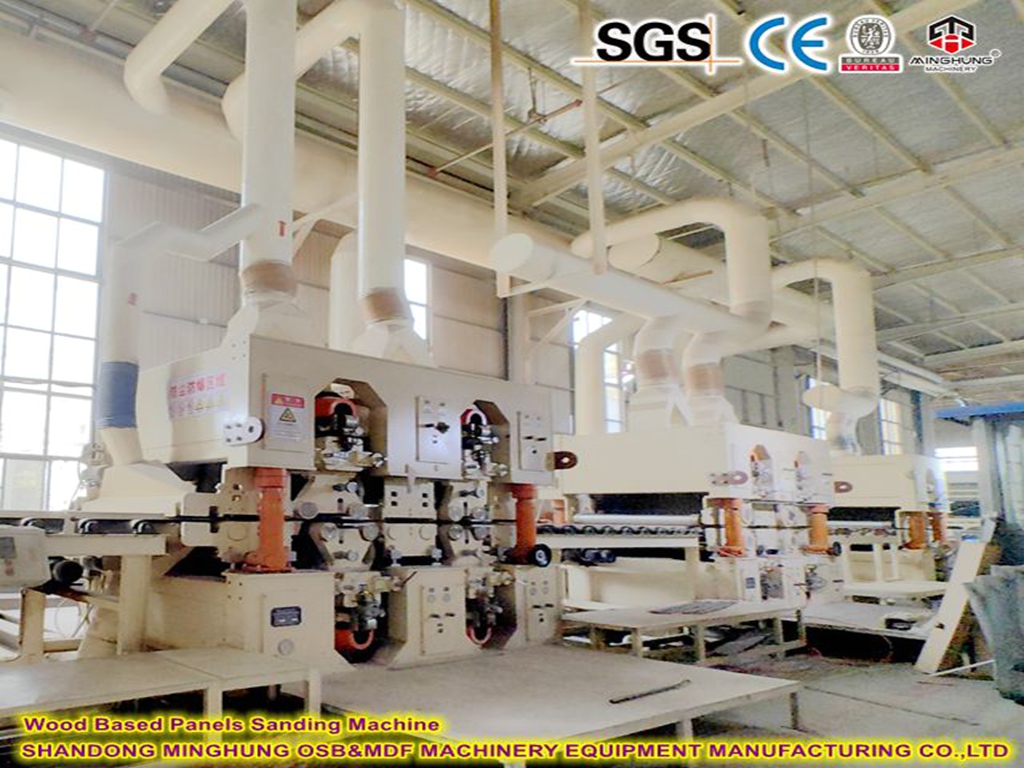

sanding
plc
Core Processes & Innovations
1. Energy-Saving Fiber Preparation
- Refiner: Twin-screw preheating + steam flash drying reduces fiber separation energy (≤120 kWh/t).
- Dryer: Triple-pass heat recovery design, waste gas heat reuse rate >70%.
2. High-Speed Continuous Press
- Speed: 40-90 m/min (for 2-40mm thickness), temperature control accuracy ±1℃.
- Steel Belt Cooling: Cuts thermal loss by 15%.
3. Smart Energy Management
- Flue gas power generation: Recovers waste heat from thermal oil furnaces, covering 20% of line’s electricity.
- Variable Frequency Drives (VFD): Reduces motor/fan energy use by 30%.
4. Eco-Friendly Technologies
- Formaldehyde control: Real-time sensors + E0-grade resins, compliant with CARB P2/EPA TSCA.
- Dust recovery rate >99.5%: Centralized cyclone filtration.
Founded in 1983, Shandong MINGHUNG OSB&MDF Machinery Equipment Manufacturing Co.,Ltd., specializes in continuous press solutions for over 40 years.
MINGHUNG is a leading company in the industry of OSB&MDF making machine. With a strongfocus on producing high-quality machinery, we specialize in manufacturing thecomplete production line of Medium density fiberboard (MDF), High densityfiberboard (HDF),Particle board (PB), Oriented strand board (OSB), andVeneerable super strong particle board (LSB).
"Customize Your Line! Full-service solution from layout design to production optimization. Request a tailored proposal now."
