MH-MDF-CHP
MINGHUNG
Key Specifications
Parameter item | Parameters |
daily capacity | 1,500 ㎡/day (18mm standard board) |
Continuous press type | Steel Belt Continuous Flat Press |
Length of the compressor | 18 meters |
Applicable raw materials | Wood waste, branches, recycled fiber |
Range of product density | 650–850 kg/m³ |
Range of product thickness | 2–40 mm |
Total power of the production line | ≈1,800 kW |
Production line dimensions (L × W × H) | 120×25×15 m |
Core Equipment Configuration
2.1 Fiber Preparation Section
- Chipping System
- Drum chipper: 12t/h capacity (log Ø≤300mm)
- Metal detector + self-cleaning magnet (Sesotec tech)
- Fiber Separation
- Refiner: Siemens 315kW motor, 42" grinding discs
- Resin application: High-pressure atomization (glue: 14-16kg/m³)
2.2 Forming & Pressing Section
- Continuous Flat Press
- Energy Recovery
- Waste heat reuse: 22% steam reduction
- Thermal oil temp: 220±5°C (Yanmar control)
2.3 Finishing Section
- Cooling: 12-level star cooler (board temp. ↓45°C)
- Cutting: Homag saw system (dimensional tolerance ±0.5mm)
- Sanding: 4-head double-side calibrator (Heesemann/IMA)
Equipment pictures
Flaker
Glue blender
Pre-press
Hot press

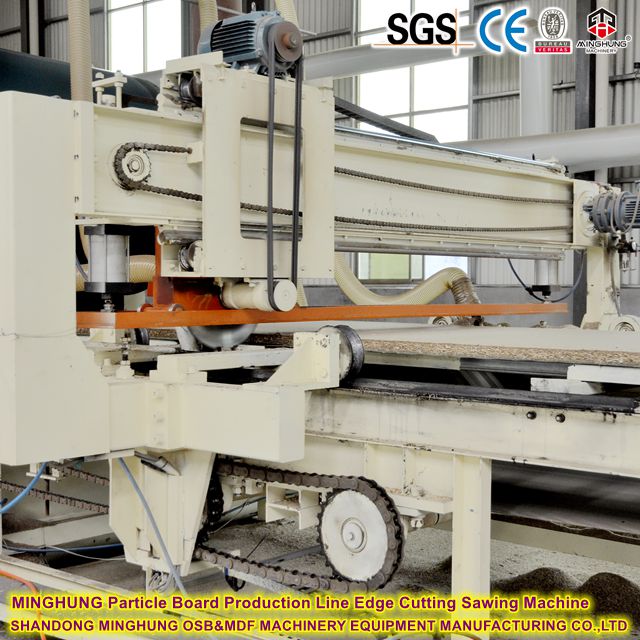

Crosscut saw

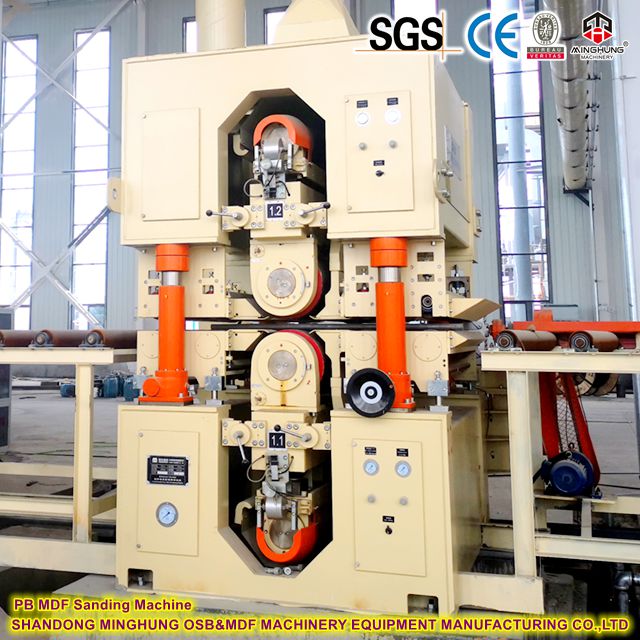

Sanding
✅ Cost-Efficient: 25% less energy & 30% lower maintenance vs. multi-opening presses
✅ Compact Layout: Space-saving factory footprint
✅ Rapid Commissioning: Modular design, installation ≤90 days
✅ Smart Control: PLC + HMI with real-time production monitoring
✅ Customizable: Optional configurations (e.g., explosion-proof systems)
Leading Wood-Based Panel Machinery Manufacturer
Founded in 1983, Shandong MINGHUNG OSB&MDF Machinery Equipment Manufacturing Co.,Ltd., specializes in continuous press solutions for over 40 years.MINGHUNG is a leading company in the industry of OSB&MDF making machine. With a strongfocus on producing high-quality machinery, we specialize in manufacturing thecomplete production line of Medium density fiberboard (MDF), High densityfiberboard (HDF),Particle board (PB), Oriented strand board (OSB), andVeneerable super strong particle board (LSB).
A:For the whole line supply, the minimum order quantity is 1 set, and installment payment is accepted.
A:Customization is supported (380V/415V/440V, 50/60Hz).
A:About $800–$1,200/day (depending on local electricity prices).
Whatsapp: +8618769900191 +8615589105786 +8618954906501
