Energy Centers in Wood-Based Panel Glue Preparation - on MDI Glue UF Glue and PF Glue

The modern wood-based panel industry – producing particleboard, MDF, OSB, and plywood – relies fundamentally on the performance and economics of adhesive systems. Behind the scenes of panel pressing lines lies a critical, often energy-intensive, and strategically vital operation: the glue preparation plant. This hub, the "Energy Center" of adhesive operations, is where raw materials are transformed into the binding resins that hold panels together. Efficient energy management within this center is paramount for cost control, product quality, environmental compliance, and overall plant competitiveness. This article delves into the intricate production processes of the three dominant adhesives –   Methylene Diphenyl Diisocyanate (MDI)  ,   Urea-Formaldehyde (UF)  , and   Phenol-Formaldehyde (PF)   – highlighting their unique energy demands and the pivotal role of the energy center in their preparation.

Methylene Diphenyl Diisocyanate (MDI Glue Machine)

Urea-Formaldehyde

(UF Glue Machine)

Phenol-Formaldehyde

(PF Glue Machine)

I. The Glue Preparation Plant: More Than Just Mixing Tanks

While often perceived as simply a collection of reactors and storage tanks, the glue preparation plant is a sophisticated energy consumer and manager. Its core functions include:

1.    Raw Material Handling:   Receiving, storing (often requiring temperature control), and conveying liquid and solid components (formaldehyde, urea, phenol, catalysts, fillers, MDI).

2.    Resin Synthesis (UF & PF):   Reacting raw materials under controlled temperature and pressure conditions in reactors (kettles). This is the most energy-intensive phase for UF and PF.

3.    Blending & Modifying:   Adding fillers (flour, nutshells), extenders, catalysts, hardeners, release agents, and water to the base resin or MDI to create the final adhesive mix suitable for application.

4.    Temperature Control:   Maintaining precise temperatures for storage (preventing pre-cure or crystallization), reaction control, viscosity management, and ensuring optimal application temperature.

5.    Pumping & Distribution:   Moving prepared adhesives to application points throughout the panel production line, often over significant distances.

6.    Cleaning & Maintenance:   Regular cleaning of reactors, tanks, and lines (using hot water, steam, or solvents).

 The Energy Center Concept:   This refers to the integrated systems supplying the thermal and electrical energy required for these functions. It typically involves:

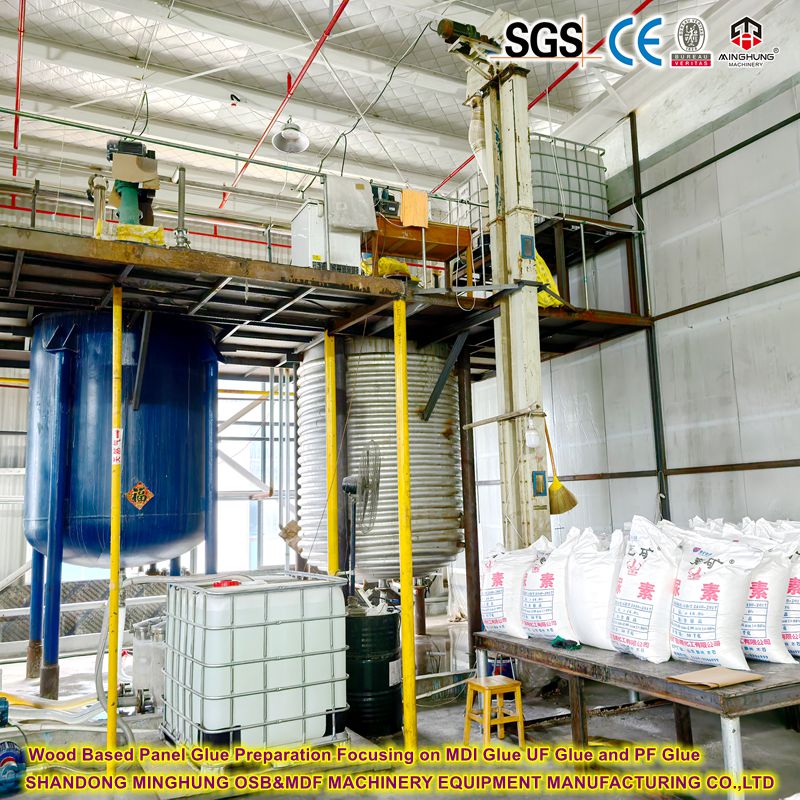

Energy Center OSB GLUE

Energy Center MDF GLUE

Steam Generation (Boilers):   The workhorse for process heating (reactor jackets, storage tank heating, cleaning).

    Hot Water Systems:   For milder heating requirements and cleaning.

    Thermal Oil Systems:   For high-temperature processes (common in PF resin cooking).

    Chilled Water Systems:   For cooling reactors post-reaction or maintaining storage temperatures (especially for UF concentrates).

    Electrical Power:   For motors (agitators, pumps, conveyors), instrumentation, control systems, lighting.

    Heat Recovery Systems:   Capturing waste heat (e.g., from reactor cooling, boiler flue gases) to improve overall efficiency.

    Thermal Storage:   Buffering energy supply and demand fluctuations.

Efficient integration and management of these systems define a high-performing energy center.

II. Deep Dive: Adhesive Production Processes & Energy Implications

A. Methylene Diphenyl Diisocyanate (MDI)

Chemistry: MDI is a highly reactive isocyanate compound. Its primary role in wood panels is bonding lignocellulosic materials. It reacts primarily with the moisture present in the wood and hydroxyl groups on the wood surface, forming strong polyurea/polyurethane bonds. Unlike UF and PF, MDI is typically not synthesized on-site at panel mills.

Off-Site Production (Energy Intensive Precursor):

1. Benzene to Aniline: Benzene is nitrated to nitrobenzene, then hydrogenated to aniline. Both steps are highly exothermic but require significant energy input for reaction initiation, compression (hydrogen), and distillation/purification. High temperatures (200-300°C+) and pressures are common.

2. Aniline to MDA (Methylene Dianiline): Aniline reacts with formaldehyde under acidic conditions. This requires careful temperature control (cooling initially, then heating for condensation) and significant energy for separation and purification of the MDA isomers.

3. MDA Phosgenation to MDI: MDA reacts with phosgene (COCl₂ - itself produced from CO and Cl₂, another energy-intensive step) in a multi-step process (cold phosgenation, then hot phosgenation at 100-200°C). This step consumes massive amounts of energy for reaction heat, phosgene production, and the complex distillation/separation of MDI isomers (monomeric MDI) from polymeric components (PMDI, commonly used in wood bonding) and solvent recovery. Safety systems (phosgene destruction) also add energy load.

On-Site Glue Preparation (Energy Center Focus - Relatively Low Thermal Demand, High Safety):

1. MDI/PMDI Storage: Tanks are typically heated (40-50°C) using hot water or low-pressure steam jackets/tracing to maintain low viscosity for pumping. Insulation is critical. Energy Center Role: Reliable low-grade heat supply.

2. Emulsification/Blending (Common Step): Pure PMDI is often emulsified in water using surfactants to form a stable emulsion (EMDI) for easier application and reduced vapor hazards. This blending requires agitation but minimal heating. Energy Center Role: Electrical power for mixers/pumps.

3. Additive Incorporation: Release agents (critical to prevent sticking to platens), fillers (sometimes), and catalysts may be blended in. This occurs at ambient or slightly elevated temperatures. Energy Center Role: Minor heating (if needed), electrical power.

4. Temperature Control during Application: EMDI is usually applied at ambient or slightly warm temperatures (30-45°C). Maintaining consistent temperature in supply lines (via tracing) ensures viscosity stability. Energy Center Role: Low-grade heat tracing.

Key Energy Center Considerations for MDI:

Low On-Site Thermal Load: Significantly less direct heating needed compared to UF/PF synthesis.

High Electrical Focus: Pumps, agitators, sophisticated control/safety systems.

Paramount Safety Systems: MDI vapor handling, spill containment, emergency showers, ventilation – all requiring energy for operation and monitoring. Phosgene detection if storing monomeric MDI (rare in panels).

Viscosity Management: Reliable low-grade heat is essential for storage and pumping.

Waste Handling: Energy for cleaning equipment (solvents or specialized detergents, potentially requiring heating) and safe disposal systems.

B. Urea-Formaldehyde (UF) Resin

Chemistry: UF resins result from the stepwise reaction of urea (NH₂CONH₂) with formaldehyde (HCHO) in water, under alkaline and acidic conditions, forming methylol ureas which then condense into methylene and methylene ether bridges, creating a 3D network upon curing with acid catalysts.

On-Site Resin Synthesis (Energy Center Focus - High Thermal Demand): This is commonly done at panel mills. The process is water-based and involves distinct stages:

1. Methylolation (Alkaline Stage - Addition):

Charging: Formaldehyde solution (typically 37-55%) and first portion of urea are charged to the reactor. pH is adjusted to alkaline (7.5-9.0) using caustic soda (NaOH).

Reaction: Heated to 80-95°C. Methylol groups (-CH₂OH) form on the urea nitrogen atoms. This is moderately exothermic but requires significant initial energy input to reach reaction temperature quickly. Energy Center Role: High-pressure steam or thermal oil to reactor jacket.

Hold: Maintained at temperature for 30-90 minutes.

2. Condensation (Acidic Stage - Polymerization):

Acidification: pH lowered to 4.5-6.0 using formic acid or sulfuric acid.

Reaction: Continued heating (85-98°C). Methylol groups react, forming methylene bridges (-CH₂-) and liberating water. Viscosity increases significantly. This stage is highly exothermic. Energy Center Role: Initial heating to start, then critical need for COOLING capacity (chilled water/cooling towers) to control the exotherm and prevent runaway reaction/gelation. Precise temperature control is vital.

Monitoring: Reaction progress tracked by viscosity, water tolerance, or refractive index.

3. Neutralization & Urea Addition:

Neutralization: Once target viscosity is reached, pH is raised back to alkaline (7.0-8.5) to stop condensation using caustic soda. This reaction is exothermic. Energy Center Role: Cooling required.

Second Urea: Additional urea is often added (scavenger urea) to react with free formaldehyde, reducing emissions. This addition causes cooling and requires brief reheating to dissolve. Energy Center Role: Brief heating application.

4. Cooling & Dilution:

Cooling: Resin is rapidly cooled to 30-40°C using the reactor jacket and sometimes internal cooling coils. Energy Center Role: High-capacity chilled water/cooling tower water.

Dilution: Water may be added to adjust solids content. Cooling continues.

5. Storage: Stored in tanks at 25-35°C, often with slow agitation and mild heating/cooling to maintain stability and prevent crystallization or premature viscosity increase. Energy Center Role: Low-grade heat or cooling as needed.

Final Glue Mix Preparation:

The base resin is transferred to blend tanks.

Filler Addition: Significant amounts of fillers (wheat flour, corn flour, nutshell flour) are added to reduce cost, improve rheology, and absorb water during pressing. This requires high-shear mixing. Energy Center Role: Significant electrical power for high-power agitators.

Catalyst/Hardener Addition: Acidic catalysts (ammonium sulfate, ammonium nitrate) and sometimes buffers are added just before application to initiate cure. Minor mixing energy.

Other Additives: Release agents, formaldehyde scavengers, wetting agents may be added. Minor mixing energy.

Temperature Control: Mix maintained at application temperature (often 25-35°C). Energy Center Role: Jacket heating/cooling.

Key Energy Center Considerations for UF:

High Steam Demand: Intensive heating required for methylolation and maintaining reaction temperatures.

Critical Cooling Demand: Managing the exothermic condensation reaction is paramount. Requires robust chilled water/cooling tower capacity and responsive control.

Cyclic Loads: Reactor cycles between significant heating and significant cooling phases. Thermal storage can help buffer this.

Electrical Load: Significant power for resin reactor agitators and especially high-power glue mix agitators handling fillers.

Storage Stability: Requires reliable temperature control systems.

Formaldehyde Handling: Ventilation and potential scrubber systems add energy load.

C. Phenol-Formaldehyde (PF) Resin

Chemistry: PF resins result from the reaction of phenol (C₆H₅OH) with formaldehyde. Resoles (alkaline-catalyzed, heat-curing) are common for plywood and OSB face layers; Novolacs (acid-catalyzed, requiring a separate hardener like hexamine) are used for some particleboard applications. Resoles are more common in panel mills.

On-Site Resin Synthesis (Energy Center Focus - Very High Thermal Demand):

1. Charging: Phenol (molten, requiring heated storage ~50-60°C), formaldehyde solution, and catalyst (usually NaOH or Ca(OH)₂) are charged to the reactor. Energy Center Role: Steam/hot oil tracing for phenol lines, heating for formaldehyde if stored cool.

2. Initial Reaction (Exothermic - Controlled): Heated to 70-85°C. Initial methylolation occurs, moderately exothermic. Energy Center Role: Steam/hot oil to reactor jacket to initiate, then cooling capacity to control exotherm.

3. Condensation (Controlled Heating - High Temp): Temperature is gradually increased to 90-98°C and held. Water is distilled off under vacuum or atmospheric conditions to drive the reaction towards higher molecular weight and increase solids content. This is the most energy-intensive phase for PF. Energy Center Role: Sustained high-temperature heat input (often requires thermal oil at >150°C for reactor jacket due to high process temps), significant energy for distillation (reboiler heat if under vacuum distillation).

4. Cooling & Dilution:

Cooling: Once target viscosity/solids is reached, cooled to 50-70°C. Energy Center Role: Cooling capacity (chilled water/oil).

Dilution: Water or solvents added. Cooling continues.

5. Storage: Stored warm (40-50°C) to maintain viscosity and prevent crystallization. Requires heating and agitation. Energy Center Role: Reliable low-medium grade heat.

Final Glue Mix Preparation (OSB/Plywood Focus):

Base resin transferred to blend tanks.

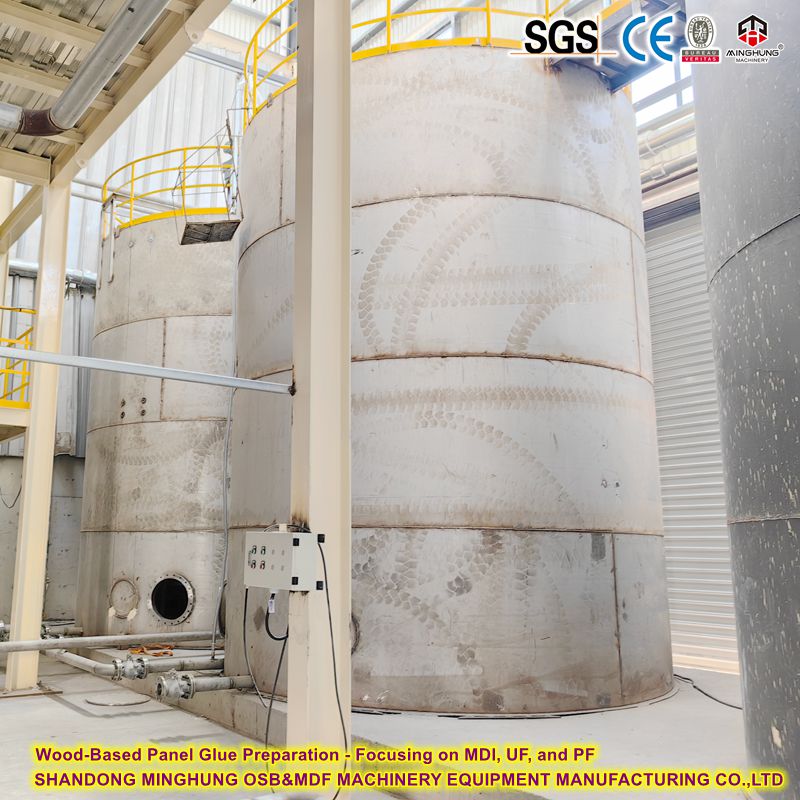

UP GLUE  TANK

UF GLUE TANK

Filler Addition: Extenders like walnut shell flour or lignin may be used, though less common than in UF. Requires mixing. Energy Center Role: Electrical power for agitators.

Water Addition: Often diluted to application solids. Mixing energy.

Additives: Release agents, wetting agents, sometimes fortifiers. Minor mixing.

Temperature Control: Critical for viscosity control during application (e.g., 30-45°C for OSB strand coating). Energy Center Role: Precise jacket heating/cooling.

Key Energy Center Considerations for PF:

Very High Steam/Thermal Oil Demand: Sustained high temperatures (90-100°C+) and distillation requirements make PF synthesis the most thermally demanding of the three adhesives.

Thermal Oil Systems: Often essential due to the high temperatures required in the reactor jacket that exceed practical steam pressures.

Distillation Energy: Removing water to increase solids consumes significant energy (latent heat of vaporization).

Phenol Handling: Requires consistent heating for storage and transfer (molten state). Insulation is critical.

High-Temperature Storage: Resins stored warm, requiring reliable heating.

Electrical Load: Agitators, pumps, vacuum systems (if used).

 III. Optimizing the Energy Center: Strategies for Glue Preparation

The glue plant's energy center is a prime target for efficiency gains:

1.    Cogeneration (Combined Heat and Power - CHP):   Generating electricity on-site using a gas turbine or engine, and capturing the waste heat (exhaust gases, jacket water) for process steam/hot water. Ideal for plants with high, consistent thermal loads like UF/PF synthesis.

2.    Advanced Boiler Control & Efficiency:   Implementing O₂ trim, economizers (preheating feedwater with flue gas), soot blower optimization, and regular maintenance to maximize boiler efficiency.

3.    Heat Recovery:

         Reactor Cooling:   Capture heat from cooling UF/PF resins post-reaction (e.g., using heat exchangers to preheat reactor feedwater or other process streams).

         Condensate Return:   Maximizing the return of hot condensate from steam traps to the boiler feedwater system.

         Flue Gas Heat Recovery:   Using economizers or condensing economizers to extract more heat from boiler exhaust.

4.    Thermal Storage:   Hot water or steam accumulators can store energy during low-demand periods (e.g., when reactors are cooling) and release it during high-demand periods (e.g., reactor heating phase start-up), smoothing peaks and allowing smaller boilers to operate more efficiently.

5.    Process Optimization & Control:

         Optimized Reaction Cycles:   Fine-tuning heating/cooling profiles using advanced process control (APC) to minimize energy use without compromising resin quality.

         Batch Sequencing:   Scheduling resin batches to balance thermal loads on the energy center.

         Insulation:   Comprehensive and well-maintained insulation on reactors, storage tanks, and distribution lines significantly reduces heat losses.

         Variable Speed Drives (VSDs):   On pumps and agitators to match power consumption to actual demand, reducing electrical losses.

6.    Technology Upgrades:

         High-Efficiency Motors & Pumps.

         Low-Temperature UF Synthesis:   Researching catalysts/processes to run condensation at lower temperatures, reducing cooling demand.

         Continuous Reactors:   For large-volume resins (more common in large chemical plants than panel mills), continuous processes can offer better heat integration and control than batch reactors.

7.    Alternative/Renewable Energy Integration:   Exploring biomass boilers (using wood waste), solar thermal for low-grade pre-heating, or biogas where feasible.

 IV. The Synergy: Energy Center, Glue Quality, and Panel Performance

The energy center isn't just about cost; it's intrinsically linked to glue and panel quality:

1.    Temperature Precision:   Consistent, controlled heating and cooling during resin synthesis (especially UF condensation, PF condensation/distillation) is critical for achieving target molecular weight, viscosity, reactivity, and shelf life. Fluctuations lead to batch inconsistencies and potential rejects.

2.    Viscosity Control:   Both storage and application temperatures directly impact adhesive viscosity. Precise temperature control in the energy center ensures optimal flow during blending, pumping, and application (e.g., spray, roll coating), crucial for uniform resin distribution on furnish.

3.    Reaction Kinetics:   The rate of resin synthesis and final cure are temperature-dependent. Consistent energy supply ensures predictable reaction times and cure profiles during pressing.

4.    Emulsion Stability (MDI):   Maintaining EMDI temperature prevents breakdown of the emulsion.

5.    Formaldehyde Management (UF):   Precise temperature control during synthesis and storage helps manage free formaldehyde levels in the resin.

 V. Future Trends: Energy Centers Driving Sustainability

Energy efficiency is a core pillar of sustainable manufacturing:

1.    Carbon Footprint Reduction:   Lowering fossil fuel consumption directly reduces CO₂ emissions from the glue plant.

2.    Resource Efficiency:   Minimizing energy waste aligns with circular economy principles.

3.    Renewable Integration:   Incorporating biomass or biogas enhances sustainability credentials.

4.    Bio-based Adhesives:   Research into lignin-PF, soy, or tannin-based adhesives may alter future energy profiles, but efficient energy centers will remain crucial for their production.

5.    Digitalization & AI:   Advanced process control, predictive maintenance for energy equipment, and AI-driven optimization will further enhance energy center performance.

 Conclusion

The glue preparation plant, powered by its dedicated energy center, is the unsung hero of wood-based panel manufacturing. Understanding the distinct and often demanding energy profiles of MDI, UF, and PF adhesive production processes reveals the critical importance of this hub. MDI relies on off-site energy intensity but demands precise low-grade heat and robust safety systems on-site. UF synthesis swings dramatically between high steam demand and critical cooling needs. PF requires sustained high-temperature heat, often via thermal oil, and significant distillation energy. Optimizing the energy center – through cogeneration, heat recovery, thermal storage, advanced control, and efficiency measures – is not merely an economic imperative but a fundamental requirement for consistent adhesive quality, reliable panel production, and achieving environmental sustainability goals. As the industry evolves, the integrated, intelligent energy center will continue to be the beating heart powering the bond that holds modern wood panels together. Investing in its efficiency is investing in the future competitiveness and sustainability of the entire panel manufacturing operation
