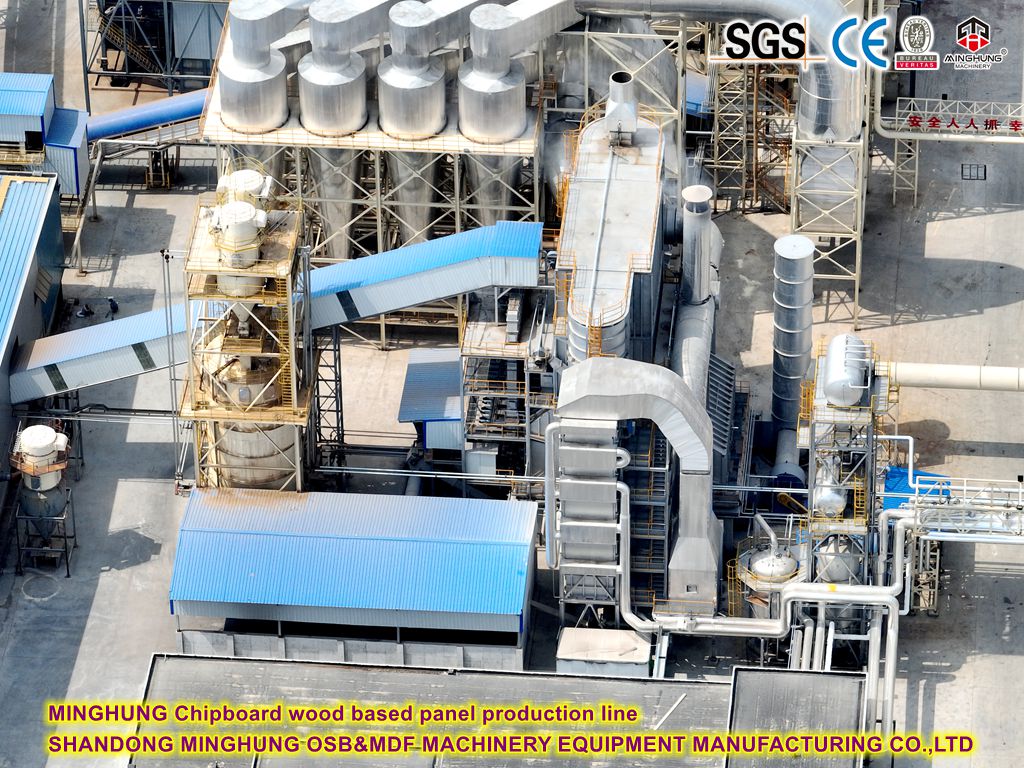

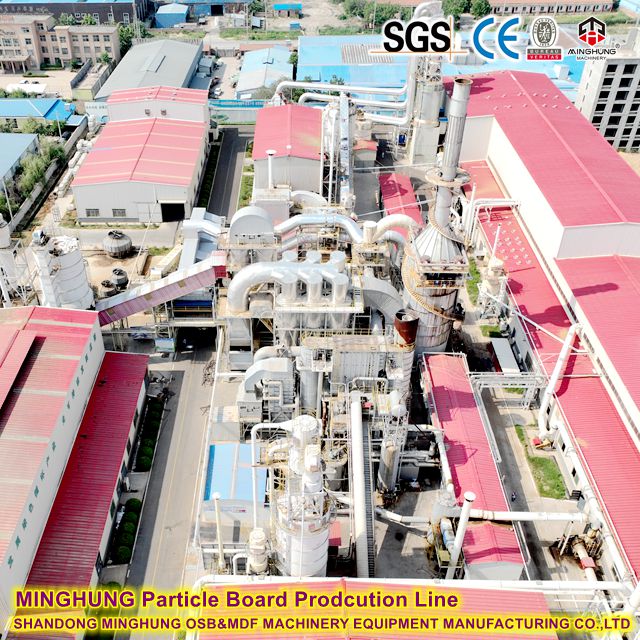

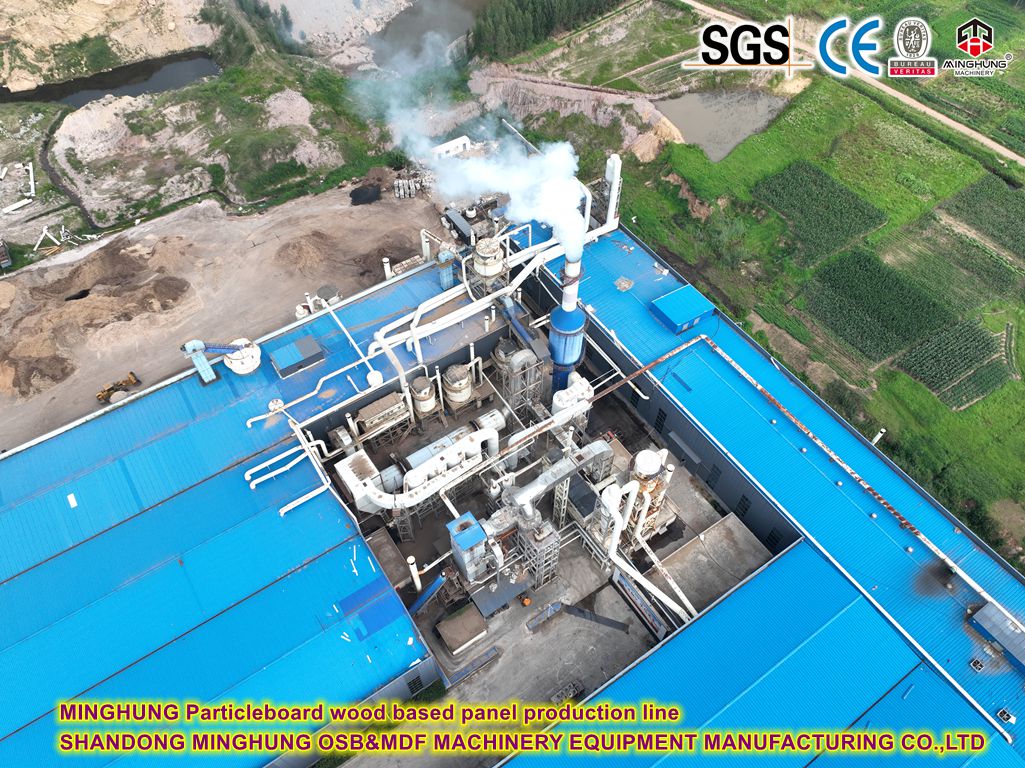

Energy Centers for Particleboard Wood Based Panel Production

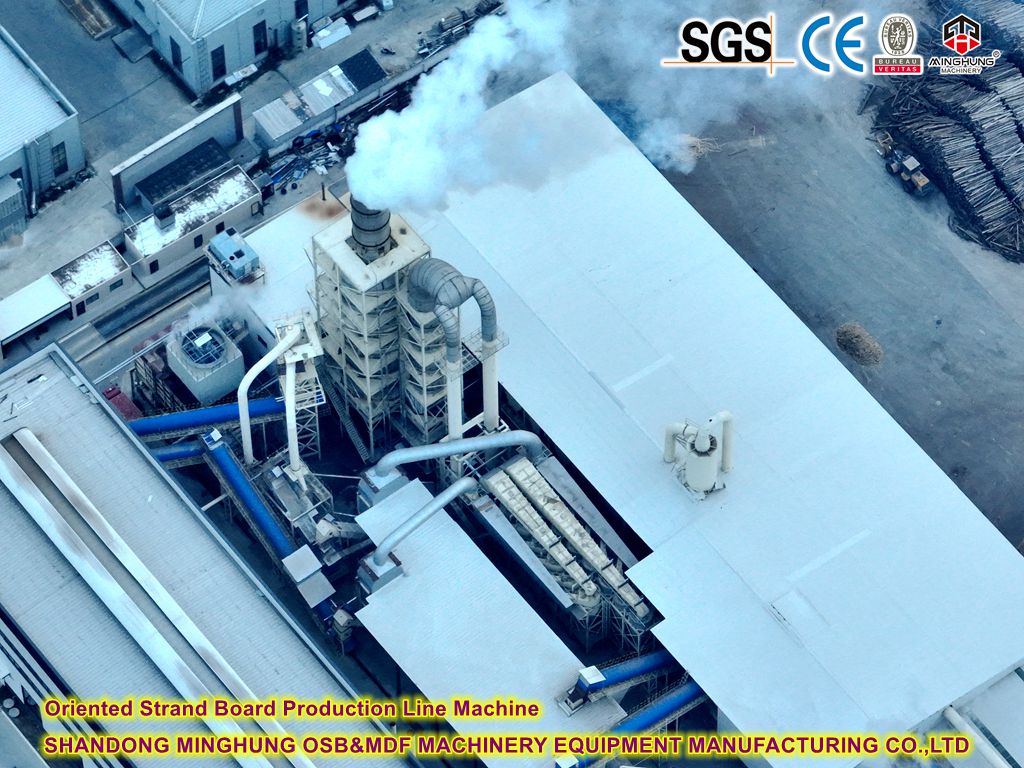

Energy Centers for OSB Wood Based Panel Production
The relentless demand for particleboard (PB), oriented strand board (OSB), and medium-density fiberboard (MDF) drives an industry constantly seeking greater efficiency, higher quality, and reduced environmental impact. At the very core of achieving these goals lies a critical, often unsung hero: the Energy Center . Far more than just a boiler room, a modern energy center is a sophisticated, integrated system designed to generate, distribute, manage, and recover thermal energy with unprecedented precision and efficiency. It is the indispensable powerhouse enabling the complex, heat-intensive processes that transform wood raw materials into high-performance engineered panels.

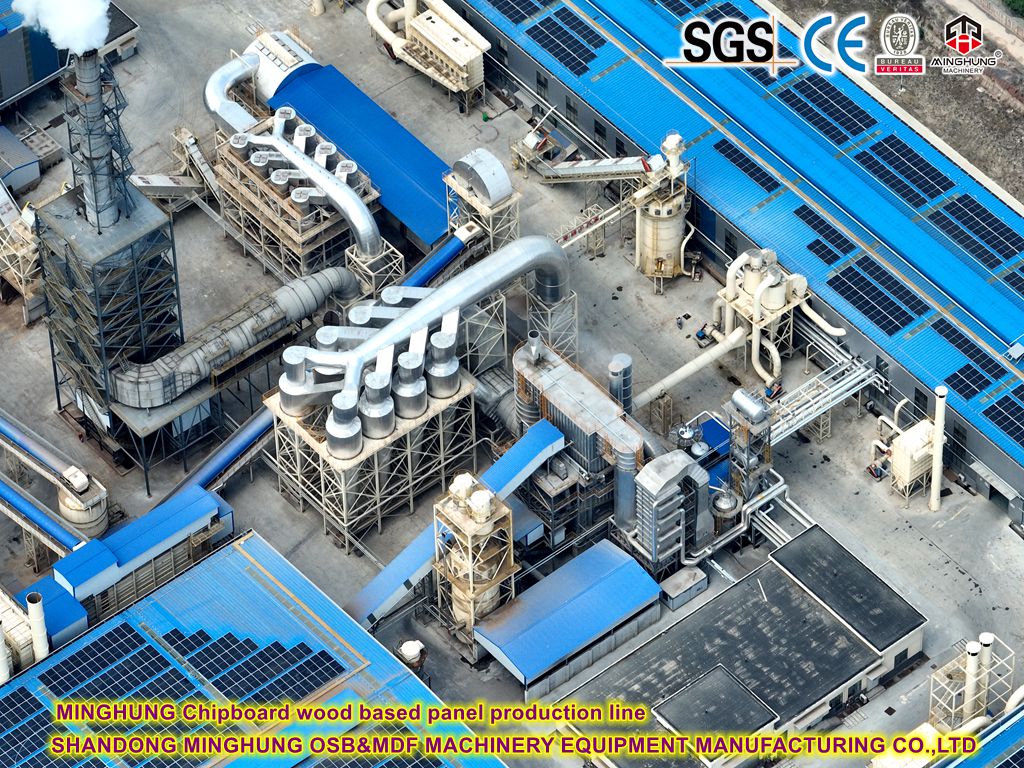

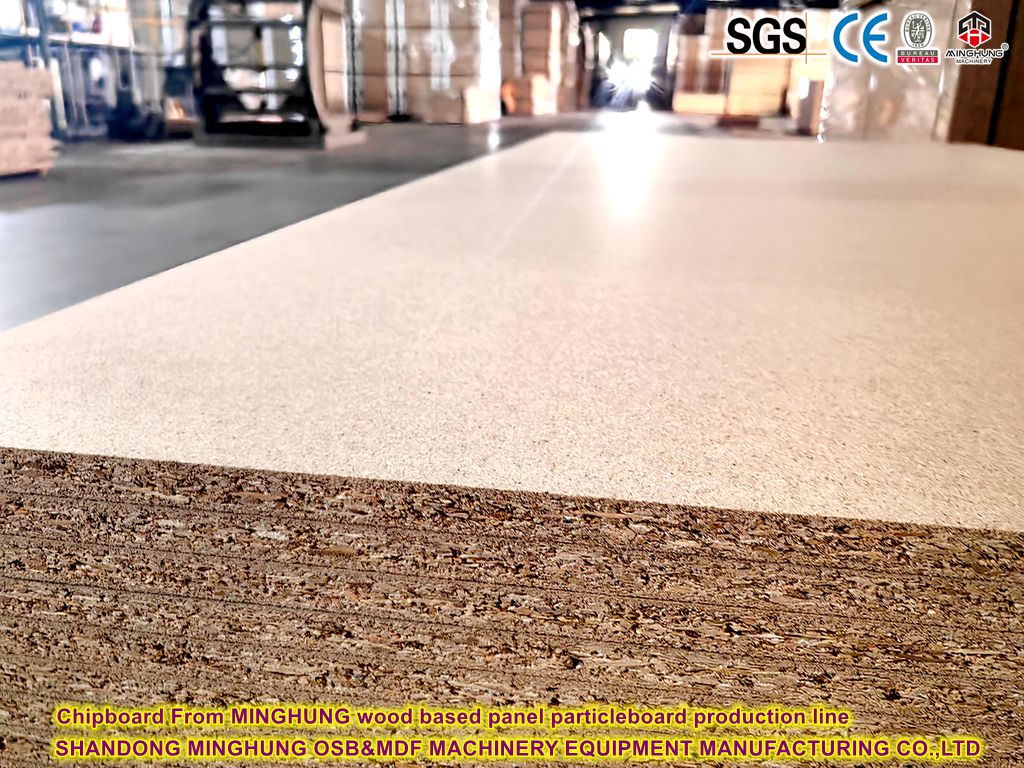

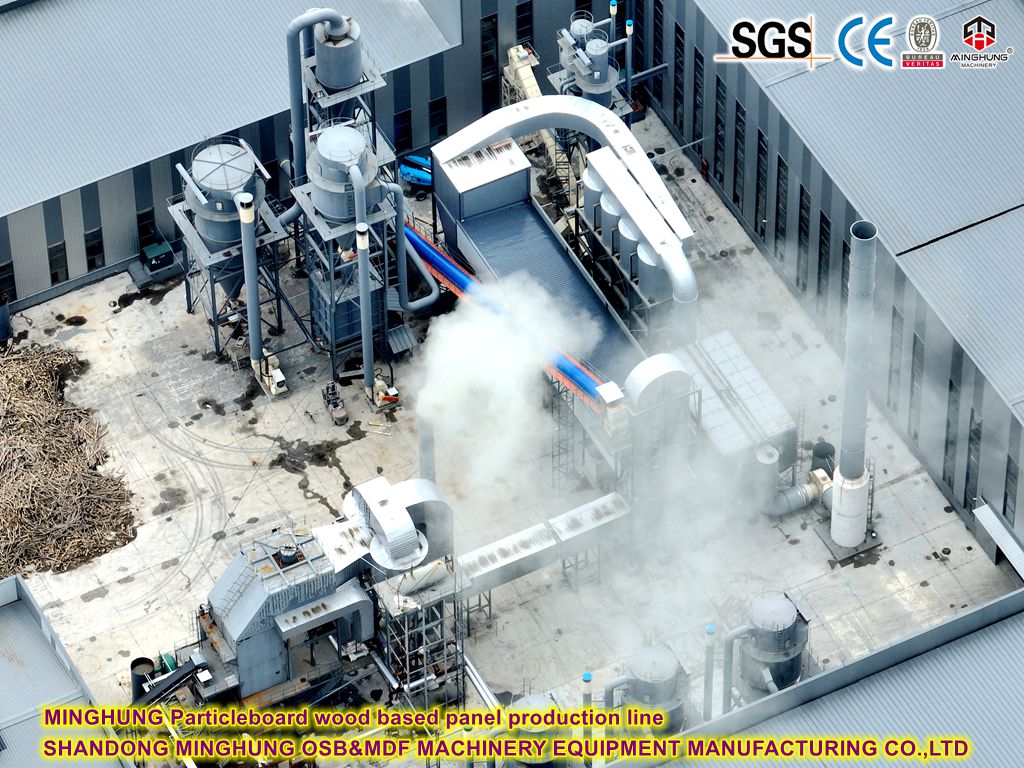

Chipboard Production Line Energy Centers
Chipboard Production Line Energy Centers
Wood-based panel manufacturing is inherently energy-intensive. Key processes demand massive amounts of precisely controlled heat:
Drying: The single largest energy consumer. Wood strands, particles, and fibers typically enter the process with high moisture content (often 50-100% or more on a dry basis). Reducing this to optimal levels (e.g., 2-12% depending on the product and process stage) requires evaporating vast quantities of water using hot air or direct contact drying. This can consume 20-40% or more of the plant's total energy input.

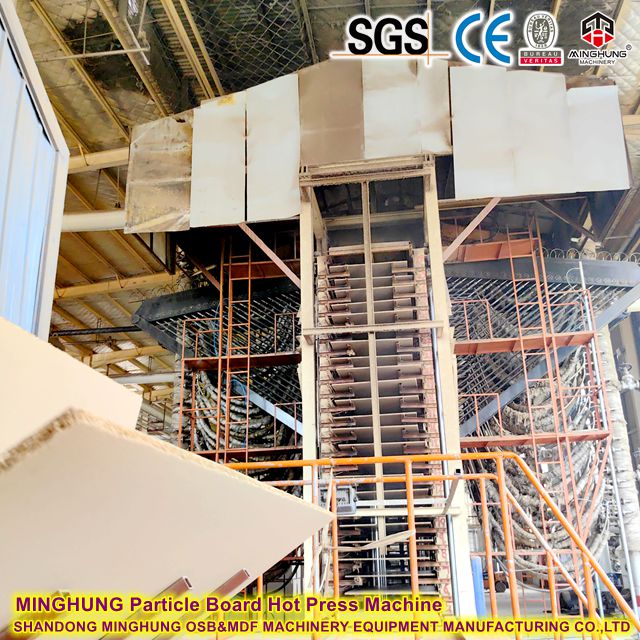

Pressing: Resin curing within the mat under high pressure and temperature (typically 180-220°C for PB/MDF, potentially higher for OSB surface layers) is fundamental to achieving board strength and properties. This requires consistent, high-temperature heat transfer.
3. Glue Preparation:

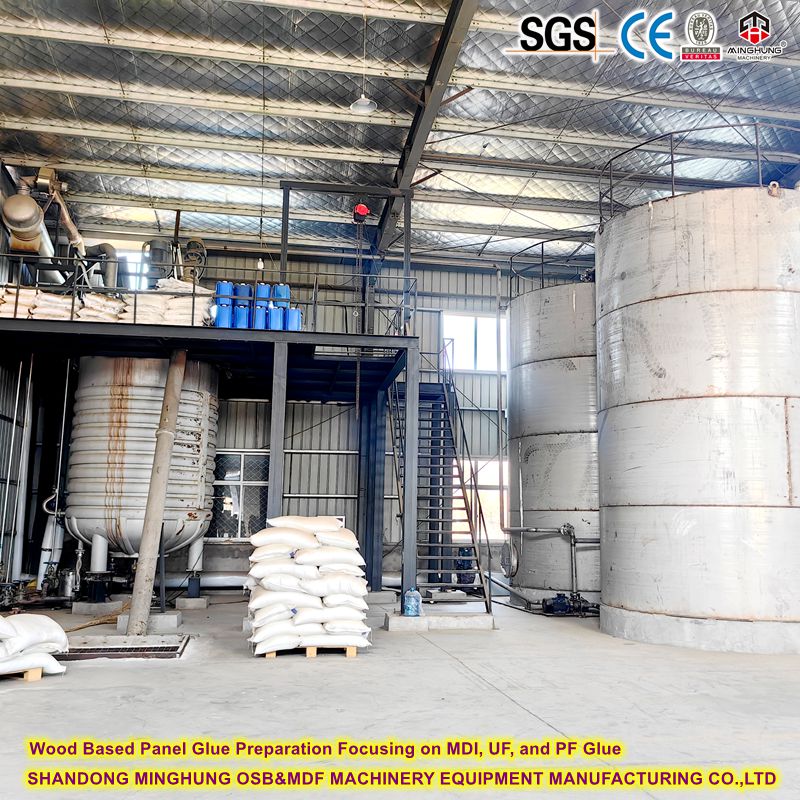

The Glue Preparation Plant: More Than Just Mixing Tanks
While often perceived as simply a collection of reactors and storage tanks, the glue preparation plant is a sophisticated energy consumer and manager. Its core functions include:
1. Raw Material Handling: Receiving, storing (often requiring temperature control), and conveying liquid and solid components (formaldehyde, urea, phenol, catalysts, fillers, MDI).
2. Resin Synthesis (UF & PF): Reacting raw materials under controlled temperature and pressure conditions in reactors (kettles). This is the most energy-intensive phase for UF and PF.
3. Blending & Modifying: Adding fillers (flour, nutshells), extenders, catalysts, hardeners, release agents, and water to the base resin or MDI to create the final adhesive mix suitable for application.
4. Temperature Control: Maintaining precise temperatures for storage (preventing pre-cure or crystallization), reaction control, viscosity management, and ensuring optimal application temperature.
5. Pumping & Distribution: Moving prepared adhesives to application points throughout the panel production line, often over significant distances.
6. Cleaning & Maintenance: Regular cleaning of reactors, tanks, and lines (using hot water, steam, or solvents).
UF Glue Machine Line
PF Glue Machine
FU Glue Machine

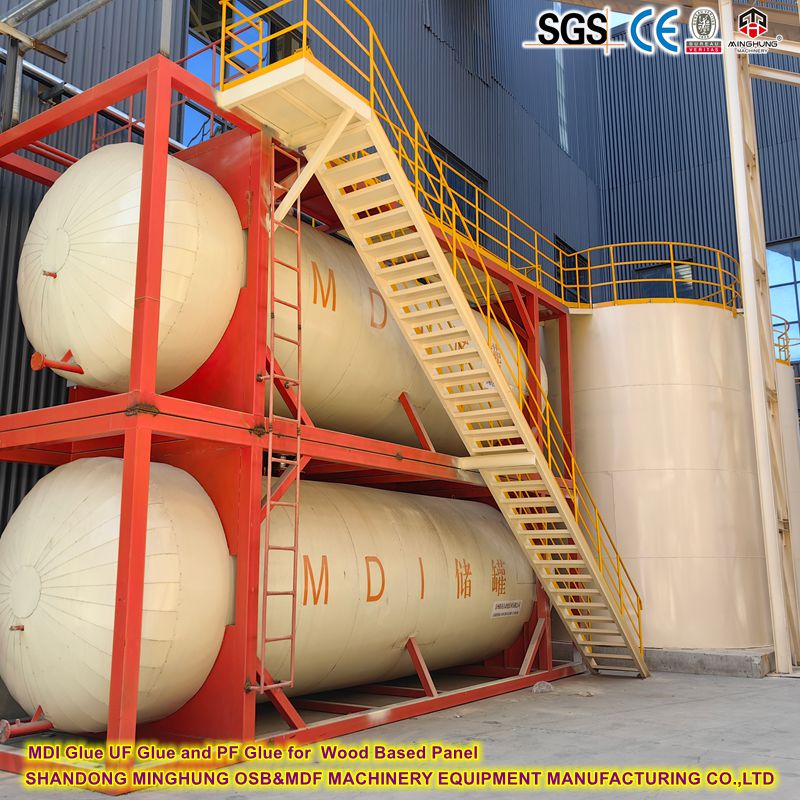

MDI Glue Machine
An inefficient or poorly controlled energy supply directly translates to:
High Operating Costs: Energy is a major cost factor.
Inconsistent Product Quality: Fluctuating temperatures lead to variations in resin cure, moisture content, and ultimately board properties (strength, thickness swell, surface quality).
Increased Emissions: Wasted fuel means unnecessary CO2, NOx, SOx, and particulate emissions.
Reduced Production Capacity: Inability to meet the thermal demands of the line limits output.
Safety Risks: Poorly managed high-temperature systems pose inherent hazards.
The modern energy center is the engineered solution to these challenges, moving far beyond simple steam generation.
Types of Energy Centers for PB, OSB, and MDF Lines
The optimal energy center configuration depends heavily on the specific processes, plant size, fuel availability, environmental regulations, and economic factors. The dominant types are:
Principle: A specialized, high-boiling-point heat transfer fluid (thermic oil) is circulated under pressure and heated in a furnace (oil or gas-fired, biomass, or multi-fuel). The hot oil (typically 250°C - 320°C) flows through a closed loop system to heat exchangers located at points of use.
Key Components: Thermic oil furnace, expansion vessel, circulation pumps, heat exchangers (for dryers, press platens, hot oil generators for steam if needed), sophisticated control system, safety systems (nitrogen blanketing, dump tanks).
Advantages for Panel Production:
High Temperature at Low Pressure: Delivers the high temperatures needed for presses (especially continuous presses) and modern high-temperature dryers without the extreme pressures required for equivalent steam temperatures. This significantly reduces system complexity, safety risks, and maintenance costs associated with high-pressure steam.
Precise Temperature Control: Excellent stability and controllability (±1°C or better) is crucial for consistent resin cure in presses and uniform drying, directly impacting product quality and minimizing rejects.
Reduced Corrosion: Eliminates the corrosion issues inherent in steam systems, leading to longer equipment life and lower maintenance
Flexibility: Can serve multiple heat users (presses, dryers, hot oil generators for steam/process needs) efficiently from a single central unit.
Efficiency: High thermal efficiency in the furnace and minimal system losses due to the closed loop.
Disadvantages: Higher initial cost for the fluid and system; requires careful fluid management (monitoring degradation, potential leaks); lower heat transfer coefficients than steam in some applications (mitigated by design).
Best Suited For: MDF and PB plants, especially those utilizing continuous presses and high-temperature drying systems. Increasingly popular in modern OSB lines for press heating.
CHIPBOARD
MDF
OSB

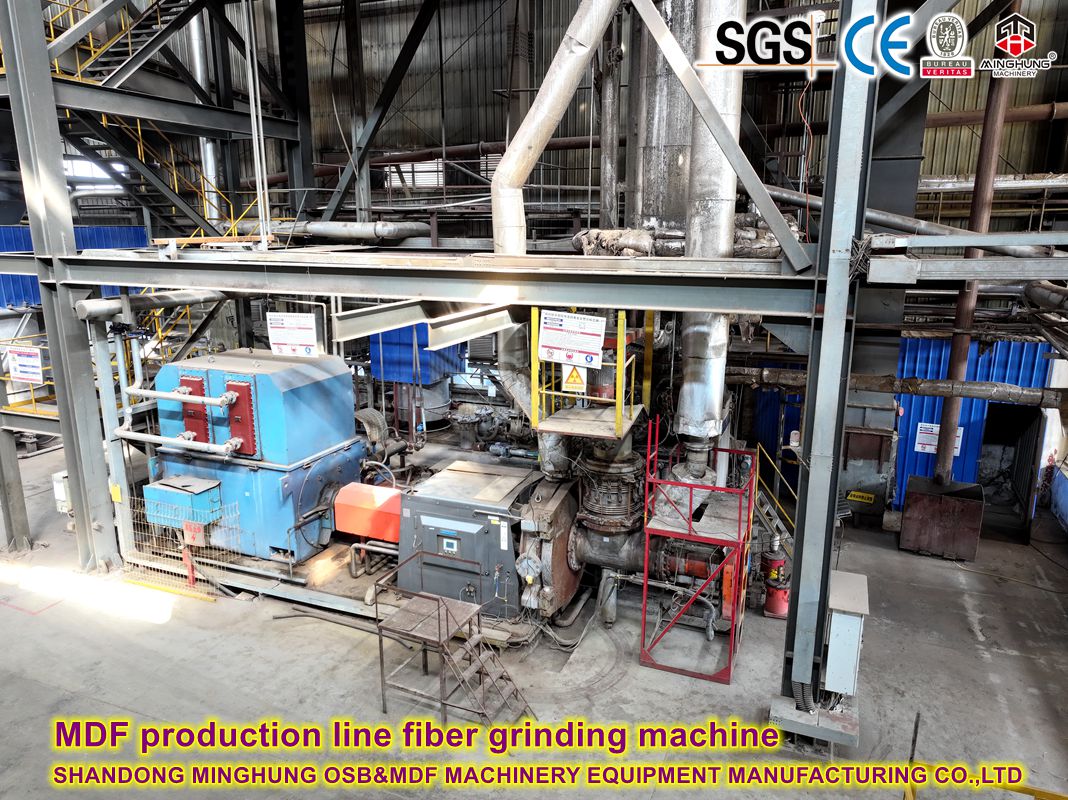

The steam from the energy center is used for the fiber cooking system in the refiner
Principle: Water is heated under pressure in a boiler (fire-tube, water-tube, or waste heat recovery type) to produce saturated or superheated steam. Steam is distributed via piping to points of use, where it condenses, releasing its latent heat.
Key Components: Boiler(s), feedwater treatment system, steam distribution piping, condensate return system, heat exchangers/traces, deaerator, blowdown system, sophisticated control and safety systems.
Advantages for Panel Production:
High Heat Transfer Coefficient: Steam condensation releases a large amount of energy efficiently in heat exchangers (e.g., for drying air, heating press platens indirectly via oil).
Mature Technology: Well-understood, widely available components and expertise.
Versatility: Steam can directly power equipment (e.g., turbines for drives), be used for humidification, sterilization, and process heating. Essential for plants requiring significant amounts of low-pressure steam.
Waste Heat Integration: Excellent for recovering heat from processes (e.g., thermal oxidizer exhaust) via waste heat boilers.
Disadvantages:
High Pressure for High Temperature: Achieving temperatures >180°C requires high-pressure systems (e.g., 10 bar for ~180°C, 40+ bar for >250°C), increasing safety risks, system complexity, regulatory requirements (pressure vessels), maintenance, and costs.
System Losses: Significant energy losses occur in steam traps, leaks, condensate non-return, and blowdown. Requires rigorous maintenance.
g waste heat boilers effectively, or older installations. Often used indirectly (via steam-heated thermal oil) for presses
Investing in a well-designed, modern energy center delivers transformative benefits across the PB, OSB, and MDF production landscape:
High Thermal Efficiency: Modern furnaces, boilers, and HGGs achieve combustion efficiencies exceeding 90-95%. Advanced burner technology and optimized combustion control minimize fuel waste.
Heat Recovery Integration: Sophisticated centers incorporate heat recovery from multiple sources:
Thermal Oxidizer (RTO/RCO) Exhaust: Capturing waste heat from emission control systems (often 300-400°C) via waste heat boilers (for steam) or thermal oil economizers is standard practice, significantly offsetting primary fuel demand.
Press Cooling Circuits: Heat recovered from press cooling can pre-heat boiler feedwater, press heating circuits, or dryer makeup air.
Dryer Exhaust: While challenging due to high humidity, latent heat recovery from dryer exhaust (e.g., using condensing economizers or heat pumps) is an emerging frontier, especially in MDF.
Flue Gas Condensation: Recovering latent heat from boiler/HGG flue gases further boosts efficiency.
Reduced Distribution Losses: Optimized, well-insulated piping/ducting and closed-loop systems (like thermal oil) minimize thermal losses during energy transport. Efficient condensate return is critical in steam systems.

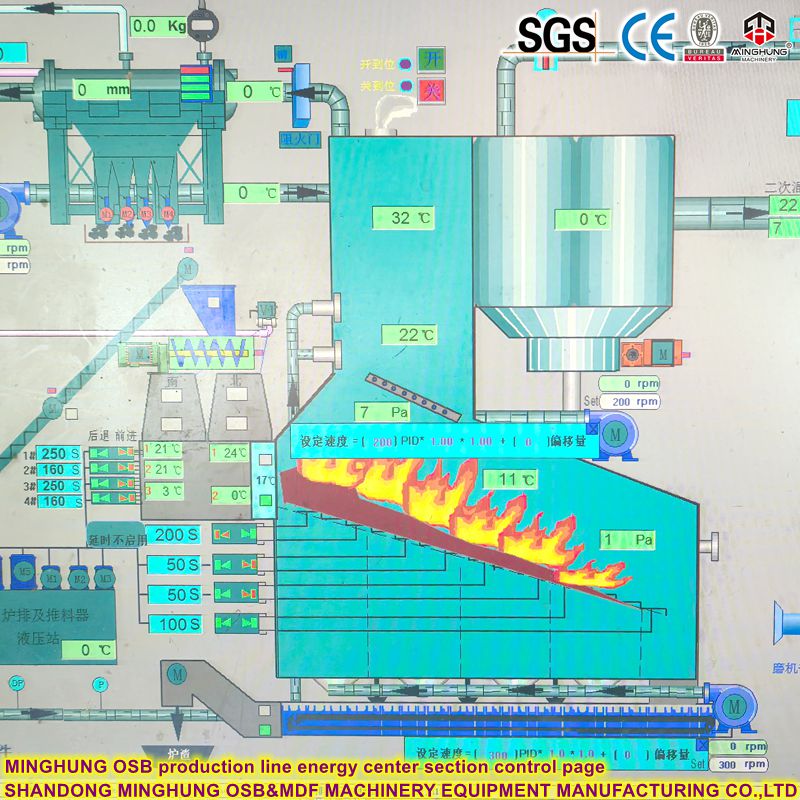

Optimal Load Management: Advanced control systems dynamically match energy generation to real-time process demands, avoiding wasteful over-production.
Unparalleled Temperature Control: Modern centers, especially thermal oil systems, provide exceptionally stable and precise temperatures (±1°C). This is paramount for:
Presses: Ensures uniform resin cure across the entire board area and throughout the production run, maximizing internal bond strength (IB), minimizing thickness variation, and reducing springback.
Dryers: Prevents over-drying (brittle strands/particles/fibers, fire risk) or under-drying (poor resin distribution/wetting, blisters in press, high moisture content). Consistent drying leads to more uniform board density and properties.
Process Stability: Reliable, consistent heat supply minimizes process upsets and variations, directly reducing product rejects and improving overall yield.

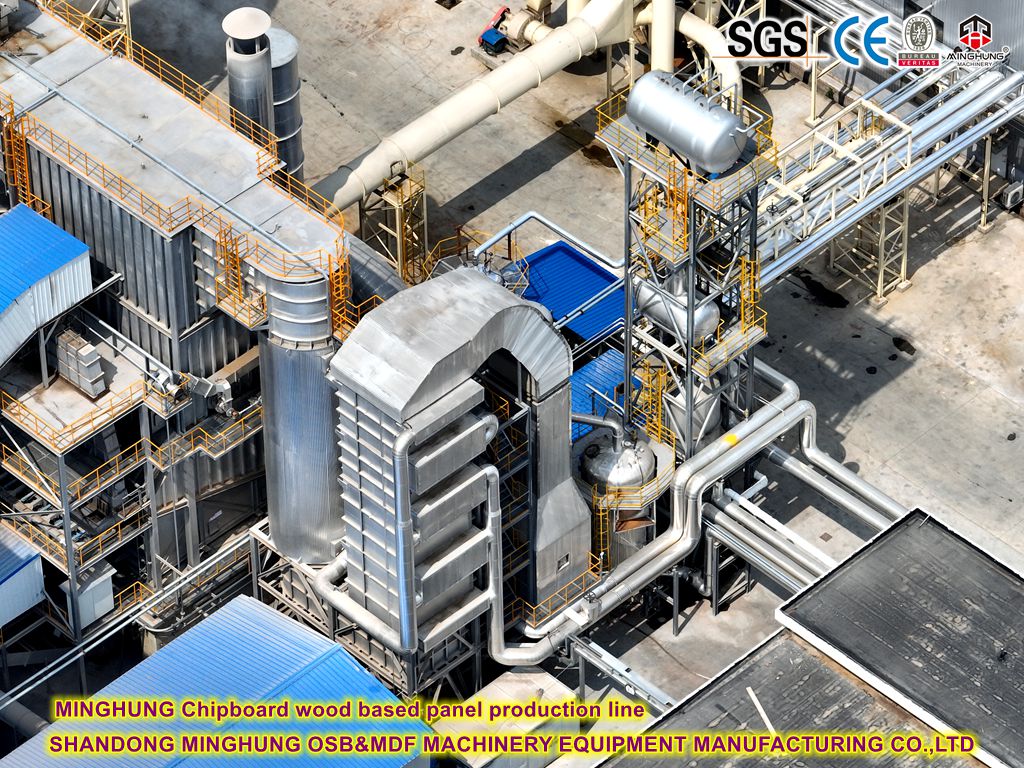

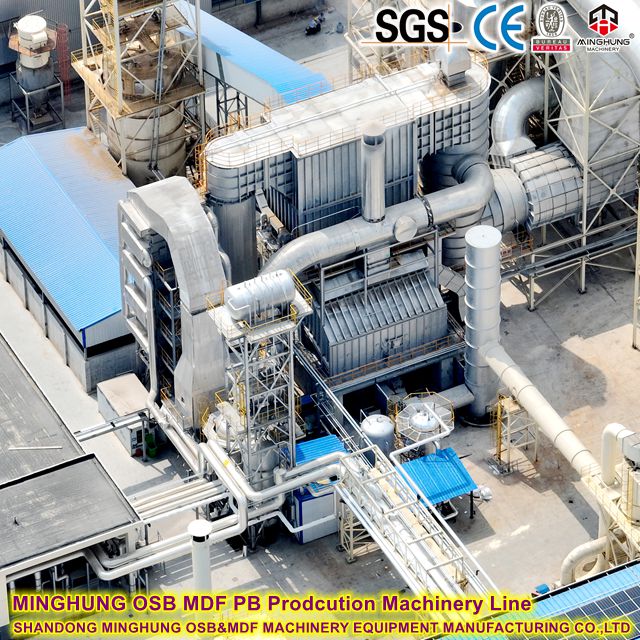

Energy Centers for Wood Based Panel Production
Energy Centers for Wood Based Panel Production
Energy Centers for Wood Based Panel Production
Conclusion: The Strategic Imperative
The energy center is no longer a mere utility provider; it is a strategic asset for any competitive particleboard, OSB, or MDF production line. Moving beyond simple steam generation, modern energy centers – whether based on highly efficient thermal oil, optimized steam, direct-fired hot gas, or intelligent hybrids – deliver the precise, reliable, and efficient thermal energy required for high-quality, cost-effective, and sustainable manufacturing.
The advantages are compelling: dramatic reductions in energy consumption and operating costs, superior product quality through unmatched process control, increased production capacity and flexibility, a significantly reduced environmental footprint, and enhanced operational safety. In an industry facing intense pressure on costs, quality expectations, and environmental responsibility, investing in a state-of-the-art, energy-saving, and highly efficient energy center is not just an operational upgrade; it is a fundamental requirement for long-term success and resilience. It is the intelligent powerhouse that truly drives the modern wood-based panel plant forward.
About Factory Details MINGHUNG Wood Based Panel Factory：

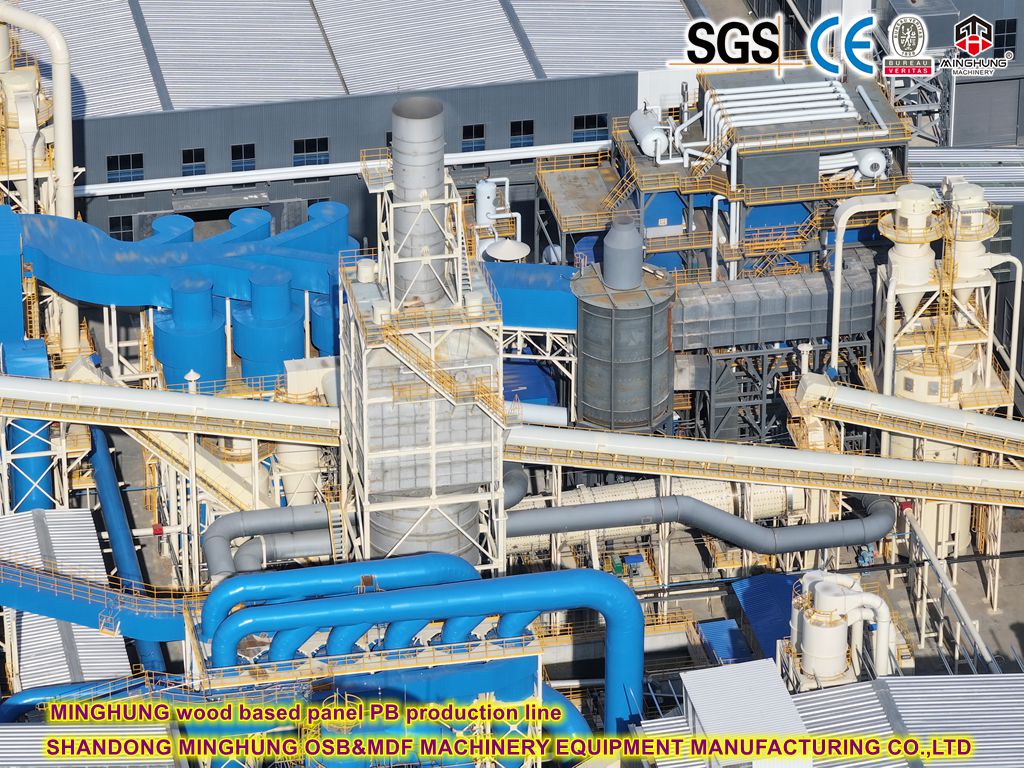

Factory Details MINGHUNG Wood Based Panel Factory
