MH-CHP
MINGHUNG
HDF (High-Density Fiberboard) is an engineered wood product made from lignocellulosic fibers. Fibers are refined, mixed with resin, dried, formed into a mat, and consolidated under high temperature and pressure. Density ≥800 kg/m³.
Classification:
Standard HDF (800-900 kg/m³)
Ultra-Hard HDF (>900 kg/m³)
Moisture-Resistant HDF (with water repellents)
Core Manufacturing Process
1.Raw Material Processing: Wood → Chipping → Thermally Ground Fiber → Resin Blending (UF/Melamine) → Drying
wood
chipping

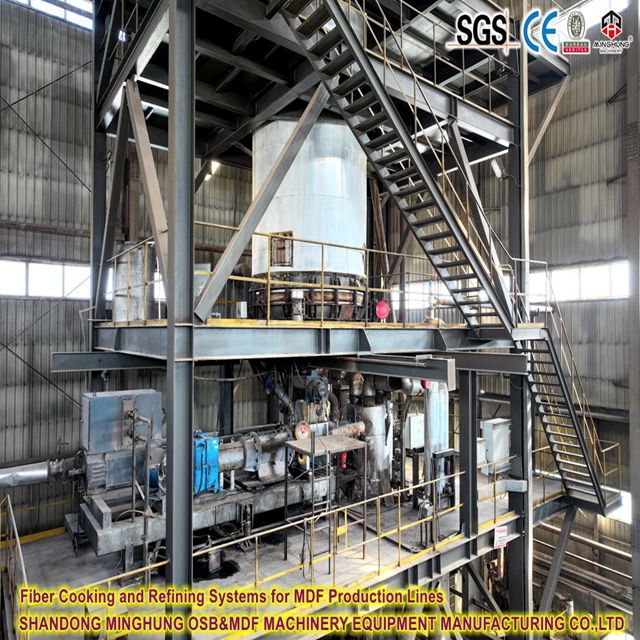

thermally ground fiber
glue system
dryer
2.Forming & Hot Pressing: Air-Flow Forming → Pre-Pressing → Continuous Hot Pressing (180-220℃, 20-40MPa) → Cooling & Sanding
forming
pre press

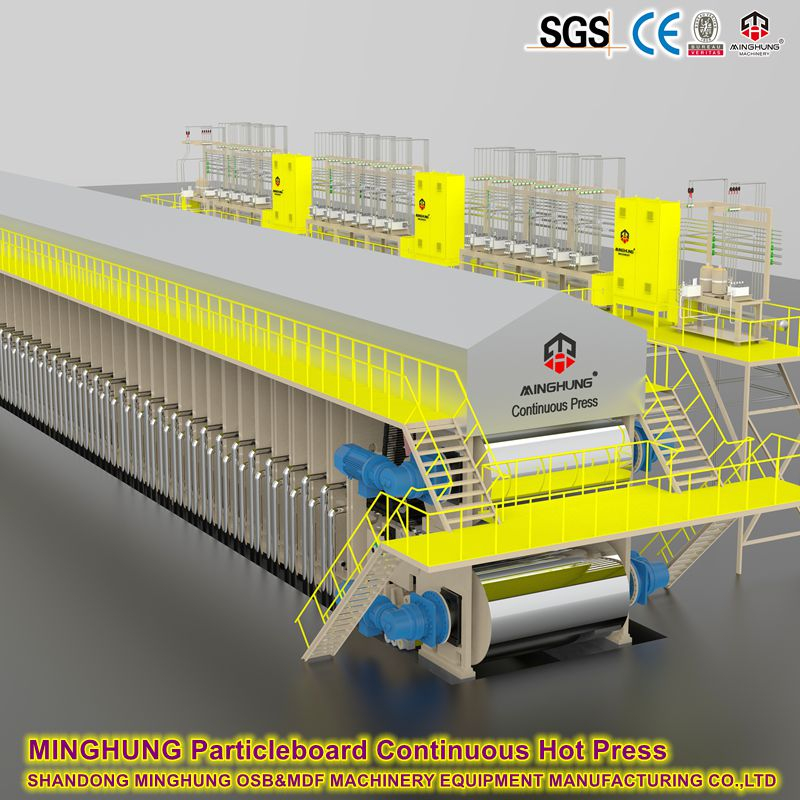

continuous press
3.Surface Treatment: Laminating with Decorative Films (Finished HDF) or Direct Coating (Unfinished)
Comparison with Similar Panels
Parameter | HDF | MDF | Plywood |
Densitykg/m³ | 800-1000 | 600-800 | 500-700 |
Surface Smoothness | Best – mirror polish achievable | Good | Moderate – wood grain texture |
Moisture Resistance | Requires treatment | Requires treatment | Inherent resistance |
Eco-Rating | E0/E1 | E1/E2 | E1 – low adhesive content |
Applications
Flooring Substrate: Core layer of laminate flooring
Furniture: Cabinet doors, countertops, back panels
Interior Decoration: Wall panels, acoustic boards
ndustrial Use: Packaging cases, mold base plates
Key Technologies for Achieving ±3% Density Deviation
1. Multi-Zone Pressure Control System
Zone Design: The press is divided into 20-30 independent pressure zones along its length and 5-10 zones across its width (totaling 200+ controllable zones).
Dynamic Pressure Adjustment:
Each zone is equipped with high-precision pressure sensors (accuracy ±0.5%) for real-time pressure monitoring.
Proportional servo valves dynamically adjust hydraulic cylinder force based on the set pressure profile, with response time <50 ms.
Example Profile:
Infeed Zone: High pressure (>5 MPa) for rapid mat compression.
Middle Zone: Reduced pressure (2-3 MPa) to allow steam escape.
Outfeed Zone: Gradual pressure reduction to prevent springback.
2. Online Thickness Monitoring & Closed-Loop Control
Thickness Scanners (Laser/X-ray): Scan panel thickness at 100+ points per second, resolution ±0.01 mm.
Real-Time Feedback: Thickness data is compared to target values → automatically adjusts zoned pressure or press speed to compensate for density fluctuations.
3. Mat Preconditioning Technologies
Pre-press: Pre-compacts the mat to ~70% of target density, eliminating initial density gradients.
Microwave Preheating (Optional): Uniformly heats the core layer, reducing core/surface density differences during hot pressing.
Application of Servo Control Systems in the Hot Press
1. Servo-Driven Main Press System
Component | Traditional Hydraulic | Servo Hydraulic |
Drive Method | Asynchronous motor + Fixed pump | Servo motor + Variable pump |
Response Time | 200-500 ms | 10-50 ms |
Energy Consumption | High (Constant flow) | >40% Savings (Demand-based flow) |
Pressure Control Accuracy | ±5% | ±1% |
2. Servo-Synchronized Steel Belt/Chain Mat Control
Dual Servo Motor Drive:
Independent servo motors drive upper/lower steel belts, with encoder feedback.
Real-time synchronization accuracy ≤ ±0.1 mm, preventing belt slip or tension imbalance causing surface marks.
Chain Mat Support System:
Servo motors control chain mat height by zone, compensating for belt deflection to ensure uniform pressure transfer.
3. Servo Temperature Control
Hot Oil Circulation System:
Zoned temperature control (±1°C), avoiding local hot/cold spots.
Servo valves modulate oil flow rate, responding to press speed changes (e.g., automatic temperature increase during acceleration).
Auxiliary Systems Supporting ±3% Density Precision
1. Intelligent Forming System
Airflow Formers: Layered fiber forming – coarse fibers in the core, fine fibers on surfaces.
Online Density Gauges (X-ray): Detect forming density in real-time → feedback to adjust forming head parameters.
2. Press Frame & Heating Platen Design
FEA-Optimized Frame: Stiffness >1×10⁶ N/mm, deflection <0.1 mm/m.
Slightly Convex Platen Design: Compensates for thermal deformation during operation, ensuring uniform pressure distribution.
3. Big Data Process Optimization
Digital Twin Model:
Collects real-time pressure/temperature/speed data → Predicts density distribution → Automatically optimizes process profiles.
Learns from historical data to continuously improve control precision.
Technical Advantages & Industry Comparison
| Parameter | Standard HDF Press | High-Precision Servo Press |
| Density Deviation | ±8%~10% | ±2%~3% |
| Panel Warpage Rate | 15%~25% | <5% |
| Energy per ton | 120~150 kWh | 70~90 kWh |
| Thickness Tolerance | ±0.15 mm | ±0.05 mm |
Shandong MingHung OSB&MDF Machinery Equipment is a China professional factory who specilize in manufacturering and offering Wood based panel machine, including OSB making machine, MDF making machine, and Chipboard /PB making machine.
Our factory with the advanced processing lathes, Mature production technology, and Professional engineers and technicians, and independent ability of reasearch and development, and quickly service, ensure that we have the ability to offer you the suitable and good woodworking machinery as different conditions and requires.
Customize Your Line! Full-service solution from layout design to production optimization. Request a tailored proposal now.
