Engineered for Large-Scale Industrial Production
The "200 Cubic Meters Per Day Plywood Production Line" is a high-efficiency, highly automated complete solution designed for large-scale industrial production. It is not a single machine but a complete factory system that transforms logs into high-quality plywood. This capacity level (equivalent to an annual output of approximately 60,000-70,000 m³) is specifically engineered to meet the growing global demand for large-volume plywood supply, aiming to help investors build core competitiveness, achieve economies of scale, and maximize return on investment.
Design Philosophy & Core Objectives
The line is designed around three core objectives:
1. Maximum Efficiency: Through process optimization, high-speed equipment, and a high degree of automation to achieve and stably maintain the designed daily capacity of 200 m³.
2. Consistent Quality: Utilizing high-precision, stable equipment and intelligent control systems to ensure quality control at every stage from raw material to finished product, resulting in an exceptionally high product qualification rate.
3. Optimal Cost: Significantly reducing comprehensive production costs by lowering energy consumption per unit, minimizing labor dependency, and improving material utilization, thereby enhancing market competitiveness.
Working principle and key technologies
The essence of this production line is a continuous operation system that transforms logs into standard plywood. Its working principle can be summarized as: Through a series of dedicated machines, it sequentially completes the processes of debarking logs, peeling them into veneers, drying, gluing, layering, hot pressing, and final processing. Each machine is an indispensable part of this assembly line.

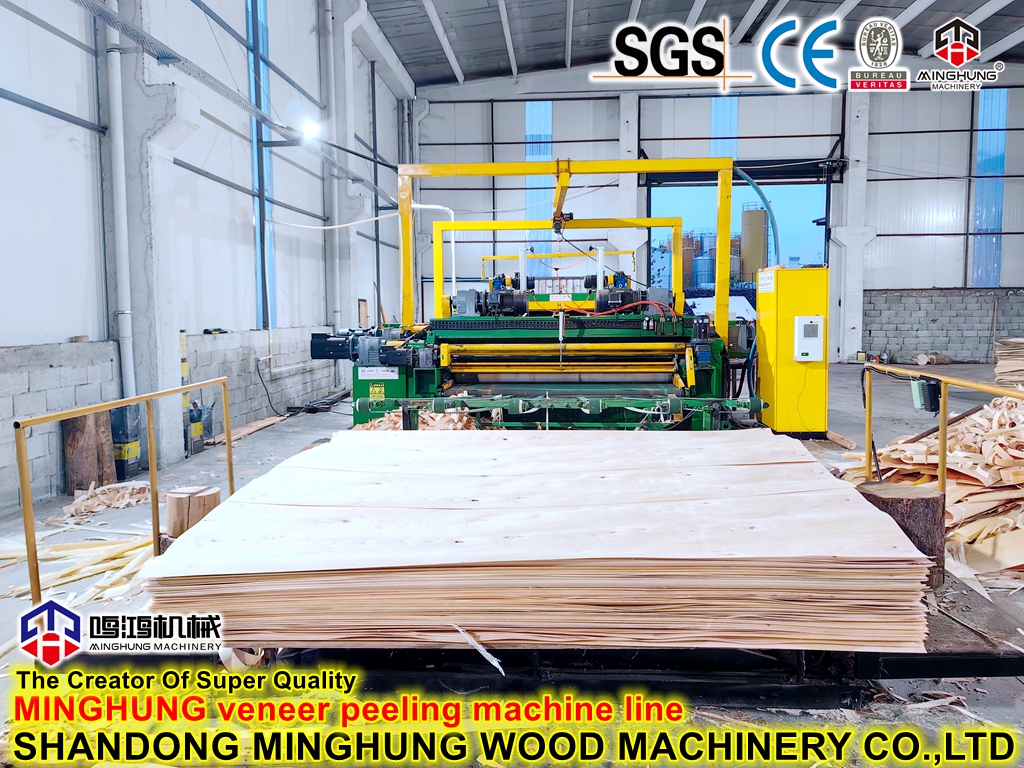

1. Large Veneer Lathe - The "Starting Point" of the Production Line
Core Function: To continuously peel a cylindrical log like a "pencil sharpener" into a whole sheet of uniform thin wood (veneer).
Detailed Working Principle:
1. Clamping and Rotating: The debarked log is fed into the machine. Spindles at both ends clamp it tightly, and a high-power motor drives it to rotate at high speed.
2. Knife Feeding and Cutting: Simultaneously, an extremely sharp peeling knife, as long as the log, is set at a precise pre-determined angle against the log.
3. Constant Feed: As the log rotates, the knife carriage moves forward steadily and continuously along the log's axis. This feed rate determines the veneer thickness (e.g., a feed of 1.5mm per revolution yields a 1.5mm thick veneer).
4. Continuous Output: The blade continuously cuts layers from the log's surface, forming a continuous ribbon of veneer, which is then conveyed to the clipper.
key technologies：Features a rigid structure and powerful drive system for high-speed peeling. Veneer peeling speed can reach dozens of meters per minute while ensuring uniform veneer thickness, laying the foundation for high output.

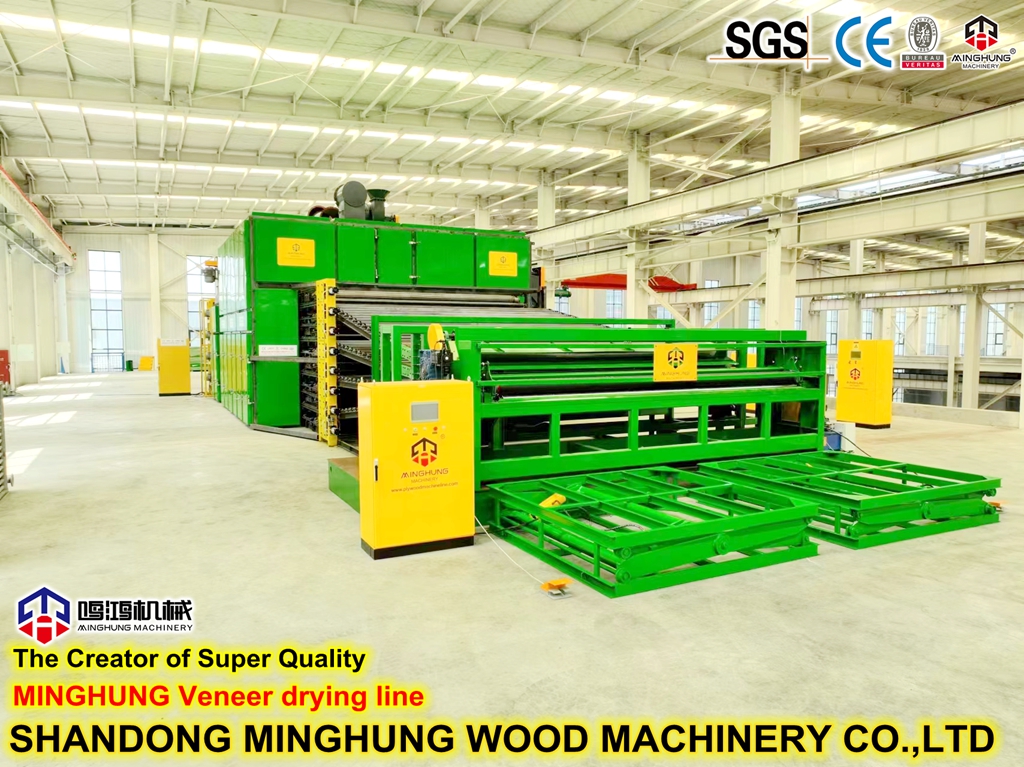

2. Multi-Layer/Mesh Belt or Roller Dryer - The Veneer's "Dehydration Station"
Core Function: To rapidly and uniformly dry the wet veneer (with high moisture content of ~60% or more after peeling) to a moisture content suitable for gluing (8%-12%).
Detailed Working Principle (Using a Multi-Layer Mesh Belt Dryer as an example):
1. Loading and Conveying: Wet veneer is fed into the dryer on conveyor belts and moves slowly forward on reciprocating multi-layer mesh belts.
2. Hot Air Circulation: Inside the drying chamber, a heat source (provided by a thermal oil heater or steam boiler) generates high-velocity, uniform hot air flow via large fans.
3. Heat and Mass Transfer: Hot air passes through the veneer layers from both above and below. It transfers heat to the veneer via convection, causing moisture within the veneer to evaporate and be carried away by the air.
4. Temperature and Airflow Control: The dryer is divided into multiple temperature zones (e.g., heating zone, constant rate drying zone, cooling zone). By precisely controlling temperature and airflow in each zone, drying efficiency is ensured while preventing veneer from cracking or warping due to overly rapid drying.
key technologies：A critical bottleneck for capacity. The dryer must have a massive heat exchange area and an efficient hot air circulation system to reduce the moisture content of wet veneer from over 60% to 8%-12% in a very short time (a few minutes). The heat source is typically a high-efficiency thermal oil heater or gas hot air furnace.
3. Fully Automatic Layup Line - The Production Line's "Assembly Center"
Core Function: To automatically and accurately assemble the dried veneers (face, core, and back veneers) with glue into a mat ready for pressing.
Detailed Working Principle:
3.1 Veneer Distribution: Dried and graded veneers are sent via multiple conveyor lines to storage bins or pick-up points for robotic arms for face, core, and back veneers.
3.2 Automatic Gluing: Core veneers pass through a Glue Spreader. The spreader uses one or more pairs of counter-rotating rollers to apply glue evenly from a glue bath onto both sides of the core veneers.
key technologies：The glue roller width matches the production line (e.g., 1.3m, 1.5m, or wider), with fast application speed and precise glue amount control.
3. 3 Robotic Layup: The glued core veneers and unglued face/back veneers are picked up and stacked by program-controlled robotic arms or automatic spreading equipment according to a preset layer structure and grain direction (adjacent layers perpendicular).
key technologies：Key to achieving high output. Utilizes multiple robotic arms or automated spreading equipment for automatic veneer picking, laying, pre-pressing, and panel closing. A PLC controls the entire process, with speed and rhythm tightly synchronized with the hot press cycle to ensure a continuous flow of mats into the press.
3.4 Pre-pressing: The assembled mat passes through a pre-press, which applies lower pressure to initially bond the layers, facilitating transport and preventing the mat from collapsing before entering the hot press.

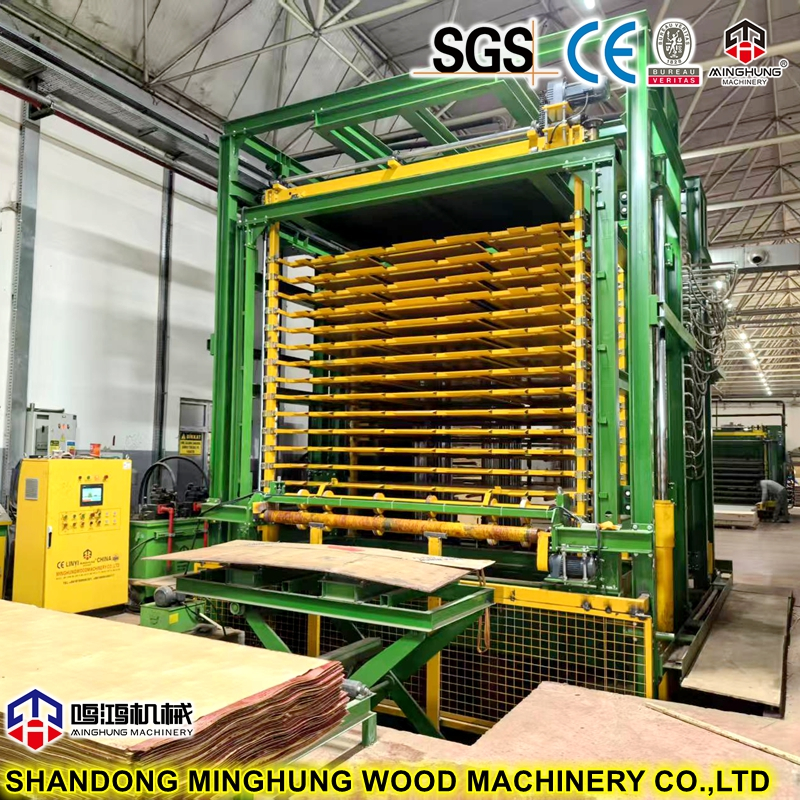

4. Multi-Opening Hot Press - The "Heart" of the Production Line
Core Function: To apply high temperature and high pressure to the mat, causing the adhesive between the layers to cure rapidly, forming a strong plywood board.
Detailed Working Principle:
1. Loading and Closing: The mat is loaded into the spaces between the press's platens. Then, powerful hydraulic cylinders drive all platens to close simultaneously, applying very high specific pressure (e.g., 2.5-5.0 MPa) to the mat.
2. Heating and Curing: The hot platens have internal channels where high-temperature thermal oil (or steam) circulates, continuously and evenly transferring heat to the mat. Under the combined action of "heat" and "pressure," the adhesive undergoes a chemical reaction (curing), firmly bonding the multiple veneer layers together.
3. Pressure Holding and Decompression: After maintaining pressure for the set time and temperature, the press opens, and the pressed rough-edged panel is unloaded. The press cycle time (from close to open) is the most critical factor determining the entire production line's capacity.
key technologies：Typically requires a hot press with 20, 30, or more openings.
The press must feature:
Rapid Opening/Closing & Pressurization: A powerful hydraulic system for short opening/closing times to reduce each pressing cycle.
Efficient Heating System: A thermal oil circulation system ensures uniform and rapid heating of the press platens.
High Total Pressure: Reaching thousands of tons to ensure bonding quality.
The speed (cycle time) of the press directly determines the maximum capacity of the entire line.

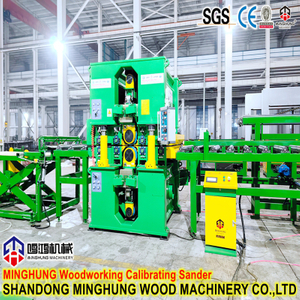

5. Calibrating Sander - The "Finishing Master" of the Product
Core Function: To sand the surface of the pressed panels to achieve precise, consistent thickness and a smooth, flat surface.
Detailed Working Principle:
1. Feeding: Panels are fed evenly into the sander by feed rollers.
2. Coarse and Fine Sanding: Panels first pass under coarse sanding heads to remove major thickness variations and unevenness; then they pass under fine sanding heads (or belts) for finishing to achieve the desired surface smoothness.
3. Calibrating Principle: The height between the sander's bed and the sanding heads is fixed or minimally adjustable. When a panel of uneven thickness passes through, the protruding parts are ground down, ultimately making the entire panel uniformly thick, achieving the "calibrating" effect.
key technologies：Designed with multiple sanding heads (e.g., 6 or more) to ensure required thickness tolerance and surface smoothness at high throughput speeds.
6. Intelligent Control System (PLC) - The "Brain" of the Production Line
Core Function: To coordinate and direct the orderly and efficient operation of all equipment.
Detailed Working Principle:
Signal Acquisition: Sensors installations throughout the entire line (temperature, pressure, speed, position sensors) continuously collect real-time operational data from the equipment.
Program Processing: The PLC controller receives this data and compares it with preset process parameters stored internally.
Outputting Commands: Based on the comparison, the PLC sends commands to actuators (e.g., motors, valves, robotic arms) to automatically adjust equipment operation (e.g., increasing conveyor speed, adjusting hot press temperature), ensuring a smooth process and stable craft , thereby achieving the goals of high output and quality.
key technologies：Monitors, collects data from, and sets parameters for the entire production process, enabling intelligent production management and quick problem identification.
The working principle of this production line is a precise, interlinked process. From log to finished product, each plywood sheet undergoes precise processing by these core machines. Their highly efficient synergy is the fundamental guarantee for achieving the "200 Cubic Meters Per Day" target.
Production Line Key Advantages
Significant Economies of Scale: The massive daily output brings unparalleled scale advantages, drastically reducing unit production costs.
High Automation Level: Minimal manual intervention from log feeding to product stacking, resulting in low labor intensity, reduced reliance on skilled labor, and stable production efficiency.
Stable and Consistent Product Quality: Automated equipment eliminates human operational variations, and intelligent controls ensure precise execution of process parameters, leading to highly uniform product quality.
Strong Market Supply Capability: Enables the fulfillment of large orders with guaranteed stable supply, enhancing customer confidence and supply chain leverage.
Modern Factory Image: Represents the advanced level of plywood manufacturing, boosting the corporate brand image.
The 200 Cubic Meters Per Day Plywood Production Line embodies the "heavy industry" of modern wood processing. It is a powerful tool for investors aiming to enter the high-end market and establish industry leadership. It is not merely a collection of equipment but a meticulously calculated production system guaranteed for high output and profitability.
