6-25mm Particle Board Continuous Press Production Line

Standard Thickness Particle Board Continuous Press

Particle Board Continuous Press Production Line

Particle Board Production Line with Continuous Press

6-25mm Standard Thickness Particle Board Continuous Press Production Line

Name: 6-25mm Standard Thickness Particle Board Continuous Press Production Line
Brand: MINGHUNG
Rating: 5.0 (77 reviews)

This production line is a Standard Thickness Particleboard Continuous Flat Press Line, specially designed for large-scale, continuous production of particleboard with thickness ranging from 6 to 25mm. Adopting double steel belt continuous flat pressing technology, it enables continuous pressing and heating curing of the mat, eliminating auxiliary time such as loading and unloading, and achieving 24/7 uninterrupted production.


Availability:



Inquire Add to Basket

Model:
MH-CHP
Brand:
MINGHUNG

Product Description

6-25mm Standard Thickness Particle Board Continuous Press Production Line

MINGHUNG CPS Continuous Hot Press For OSB MDF Production Line

The equipment integrates multi-zone independent hydraulic control systems, high-precision thermal oil circulation temperature control systems, and intelligent speed synchronization control technology, ensuring uniform density, high thickness accuracy, and excellent surface quality across the full length and width of the board. The line width is customizable (covering 4 to 9 feet), with an annual capacity ranging from 100,000 to 1,000,000 cubic meters, making it an ideal choice for large-scale particleboard manufacturers.

Key Advantages

Production thickness range: 6-25mm

Maximum line speed: over 180 m/min

Thickness tolerance: ±0.15mm

Production capacity per unit area: over twice that of multi-opening presses

Equipment Composition & Structure

he continuous flat press consists of the following core systems:

System Module	Function Description
Longitudinal Beam & Frame	Provides structural support and ensures rigidity
Press Rollers & Protection	Supports steel belt operation and protects key components
Head & Tail Roller System	Steel belt steering and tensioning
Double Steel Belt System	Direct contact with mat, transmits pressure and heat
Drive System	Servo-controlled, precise speed synchronization
Platen System	Made of special materials with high surface hardness and finish
Infeed/Outfeed Mechanism	Flexible infeed adapts to various board types and thicknesses
Hydraulic System	Multi-zone, multi-cylinder independent servo control
Heating System	Thermal oil circulation, zonal temperature control
Constant Pressure System	Uniform pressure distribution across the entire pressing area

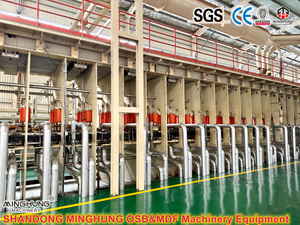

Details of minghung continuous flat pressing lines

Technical Specifications

Parameter	Specification
Product Thickness	6 - 25 mm
Press Width	2 - 9 feet (customizable)
Press Length	12 - 60 meters (customizable)
Line Speed	Up to 180 m/min+
Thickness Tolerance	±0.15 mm
Working Pressure	3 - 6 MPa
Pressing Temperature	180 - 240℃
Annual Capacity	100,000 - 4,000,000 m³

OSB MDF Particle board continuous hot press

Continuous press line for making OSB MDF Chipboard

Particleboard MDF Continuous Calendering Press Production Line

Application Advantages

Advantages over Multi-Opening Press:

Comparison	Continuous Flat Press	Multi-Opening Press
Effective Press Time	≥95%	≤45%
Capacity per Area	2x+	Baseline
Thickness Precision	±0.15mm	±0.3mm
Specific Energy	≤180 kWh/m³	270-320 kWh/m³
Thermal Efficiency	High (continuous, no cyclic heat loss)	Low (batch heating/cooling cycles)
