MH-CHP
MINGHUNG
1. Continuous Operation
The entire production line can run 24/7, greatly increasing output and reducing downtime.
2. High-Precision Thickness Control
Equipped with hydraulic servo systems and thickness feedback control, ensuring uniform panel thickness with tolerances within ±0.1 mm.
3. High Hot Pressing Efficiency
Heating platens use thermal oil or steam, providing uniform temperature distribution and high thermal conductivity, shortening the pressing cycle.
4. Energy-Saving Design
Advanced insulation technology and optimized oil pipe routing reduce heat loss and lower energy consumption per unit of product.
5. Intelligent Control System
Fully automated PLC control with real-time monitoring of temperature, pressure, speed, thickness, etc., plus fault diagnosis and alarm functions.
6. Suitable for Multiple Raw Materials
Not only wood chips, but also bamboo, straw, and other biomass materials.

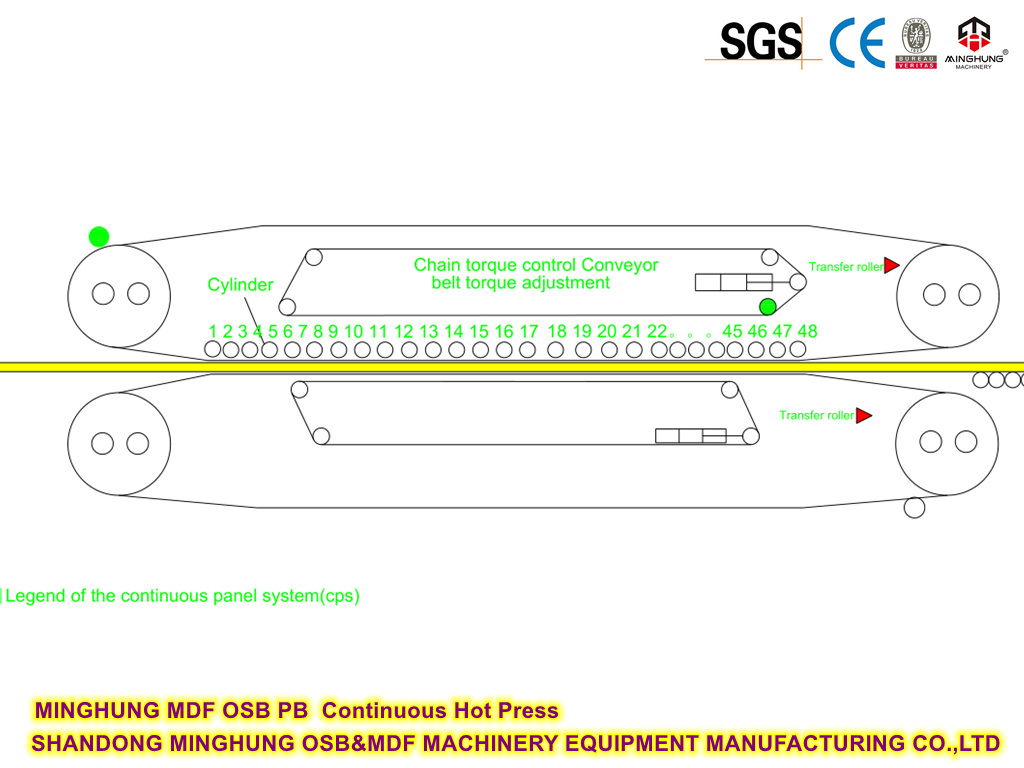

1. Hot Pressing System
Upper and lower heating platens with thermal oil or steam heating to cure the adhesive.
2. Steel Belt & Chain System
High-strength alloy steel belts and drive chains for continuous mat transport and pressure transmission.
3. Hydraulic System
Main cylinders provide pressing force; gap adjustment cylinders control panel thickness; hydraulic power unit supplies energy.
4. Feeding & Guiding System
Guides the mat smoothly into the press, including a pre-compression section and inlet sealing.
5. Drive & Transmission System
Variable-frequency motor and gearbox drive the belts; synchronization control ensures equal speed of upper and lower belts.
6. Lubrication & Cooling System
Belt lubrication reduces wear; cooling section at the outlet stabilizes the panel.
7. Electrical Control System
Fully automatic PLC control with HMI touchscreen, thickness closed-loop feedback, and safety protection.
8. Auxiliary Components
Including tracking rollers, scrapers, temperature and vibration sensors, etc.
Smooth panel surface with good quality even without secondary sanding.
Ability to produce thickness-graded or profiled panels (optional).
Compact structure, small footprint.
Easy maintenance; key components made of wear-resistant materials for long service life.
Furniture manufacturing, concrete formwork, decorative panels, packaging materials, truck floorings, etc.
