1. Why Choose a Customized MDF Turnkey Plant?
Designed on demand : Flexible equipment configuration according to annual output, raw material characteristics, budget, and plant area.
Lower operating cost : Optimized energy center, drying duct, and gluing system reduce energy consumption per ton by 15–20% below industry average.
High yield rate : Precise control of moisture content, density profile, and mat thickness achieves ≥96% qualified finished boards.
Eco-friendly compliance : Equipped with wet/dry dust removal, biomass energy center, and exhaust gas treatment to meet EU and local environmental standards.
2. Equipment Composition (Typical Configuration)
Section | Core Equipment |

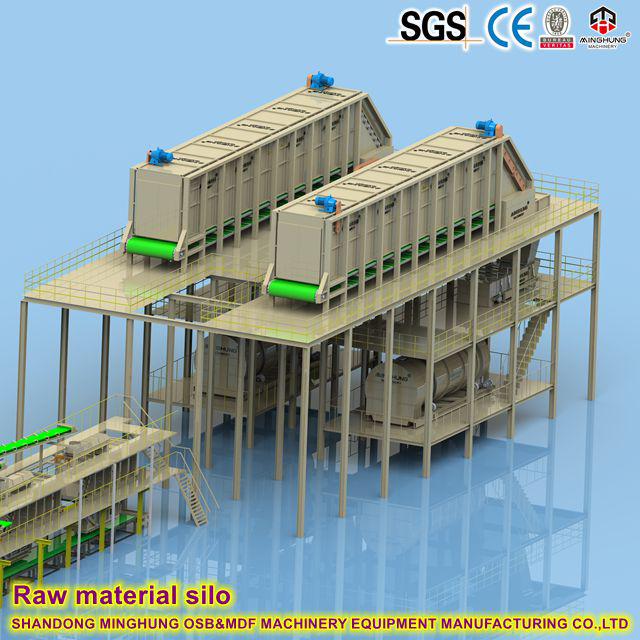

Raw material preparation | Chipper, screener, magnetic separator, rechipper |
Fiber preparation | Refiner, preheating bin, fiber classifier |
Gluing & drying | Glue mixing system, flash tube dryer, adhesive preparation station |
Mat forming | Metering bin, mechanical/pneumatic former, pre-compressor |
Hot pressing | Continuous press (or multi-opening batch press), oil/steam heating system |
Raw board handling | Cooling star turner, intermediate storage, side & cross-cut saws |
Sanding & cutting | Wide belt sander, diagonal panel saw, stacker |
Automation control | PLC/DCS central control system with remote diagnostic interface |
3. Customizable Parameters
Annual capacity: 5,000 m³ – 300,000 m³
Board thickness: 2 – 40 mm
Max board size: up to 5,100 mm in length, 2,600 mm in width
Raw materials: Wood processing residues, branches, waste formwork, agricultural straw (with optional pre-treatment)
Press type: Continuous press system (CPS/CPS+) or multi-opening press
Adhesive type: Urea-formaldehyde, melamine-modified glue, MDI, bio-based adhesive
4. Technical Advantages
Energy-saving design : Flue gas heat recovery reduces dry fiber drying energy by 25%.
Intelligent control : Online density & thickness meters provide automatic feedback adjustment, density deviation ≤±3%.
Quick product changeover : Produces 2–40 mm thickness on the same line, changeover time ≤30 minutes.
Long-life components : Refiner plates, press steel belts, and screens use high-wear-resistant alloys, extending replacement interval by 40%.
5. Engineering Services (Turnkey Delivery)
Phase 1: Site survey & capacity simulation
Phase 2: Process design & 3D layout
Phase 3: Equipment manufacturing & third-party inspection
Phase 4: Sea/land logistics & customs clearance assistance
Phase 5: On-site civil work guidance & installation
Phase 6: Single-machine test & integrated dry run
Phase 7: Customer team training (operation, maintenance, electrical)
Phase 8: One-year warranty &
lifetime spare parts supply
About us
MINGHUNG OSB&MDF Machinery Equipment Manufacture Co., Ltd. Located in Xiaogezhuang Industrial Zone, Yitang Town, Lanshan District, Linyi City.

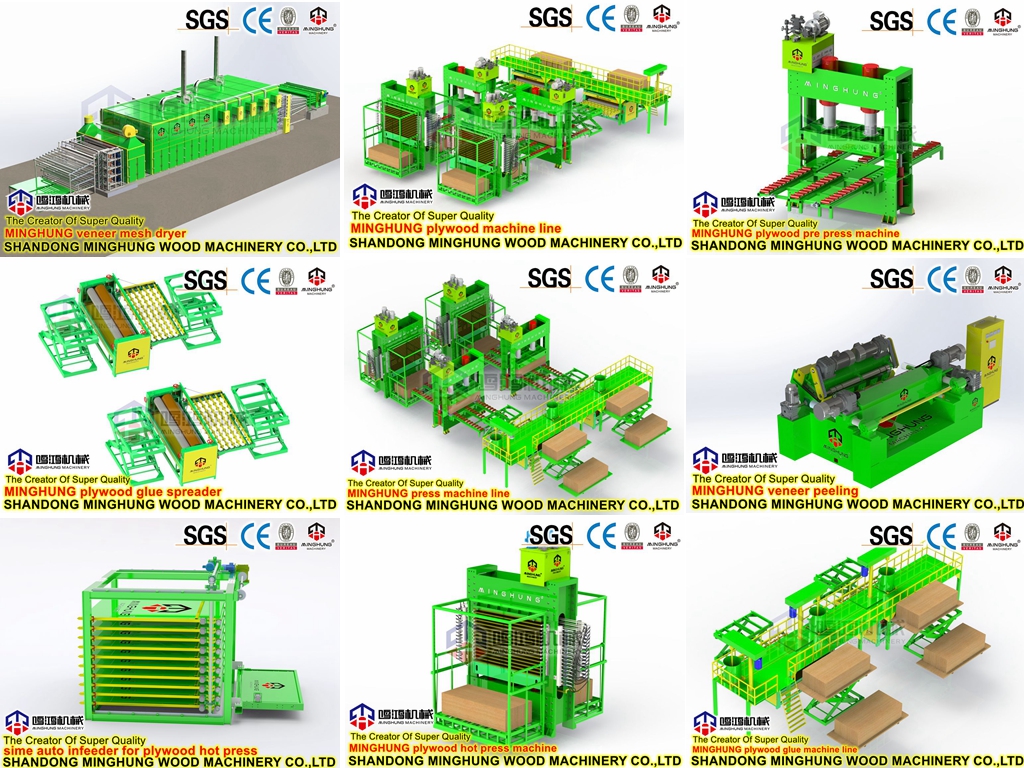

MINGHUNG Company provides a complete set of process design, electrical design and manufacturing, We can provide one-stop complete factory solutions for wood-based panel customers. MINGHUNG product series include medium density fiberboard (MDF), high density fiberboard (HDF), particle board (PB), oriented strand board (OSB), veneerable super strong particle board (LSB) multi-layer heat press production line, double-sided fixed thickness broadband Sanding machine, gauge saw, mechanical paving machine, air flow paving machine, channel dryer, super screen, post-processing system artificial panel cooling system, turning machine, stacker, storage and transportation trolley. etc. For artificial panel equipment mainly involved in particleboard, medium density fiberboard, oriented strand board, multilayer plywood machinery.
Contact Us
Send us your target capacity, raw material photos, and factory dimensions. We will provide a preliminary process proposal and price range within 24 hours.
