The core principle of a continuous flat press for particleboard is to achieve continuous, uninterrupted hot pressing, which significantly enhances production efficiency compared to traditional intermittent single-opening or multi-opening presses.

1.  Forming and Pre-pressing: Dried and resin-blended wood particles are formed into an even mat on a moving steel belt by a forming station. This mat then passes through a pre-press for initial compaction to remove air and gain initial strength, facilitating transportation.

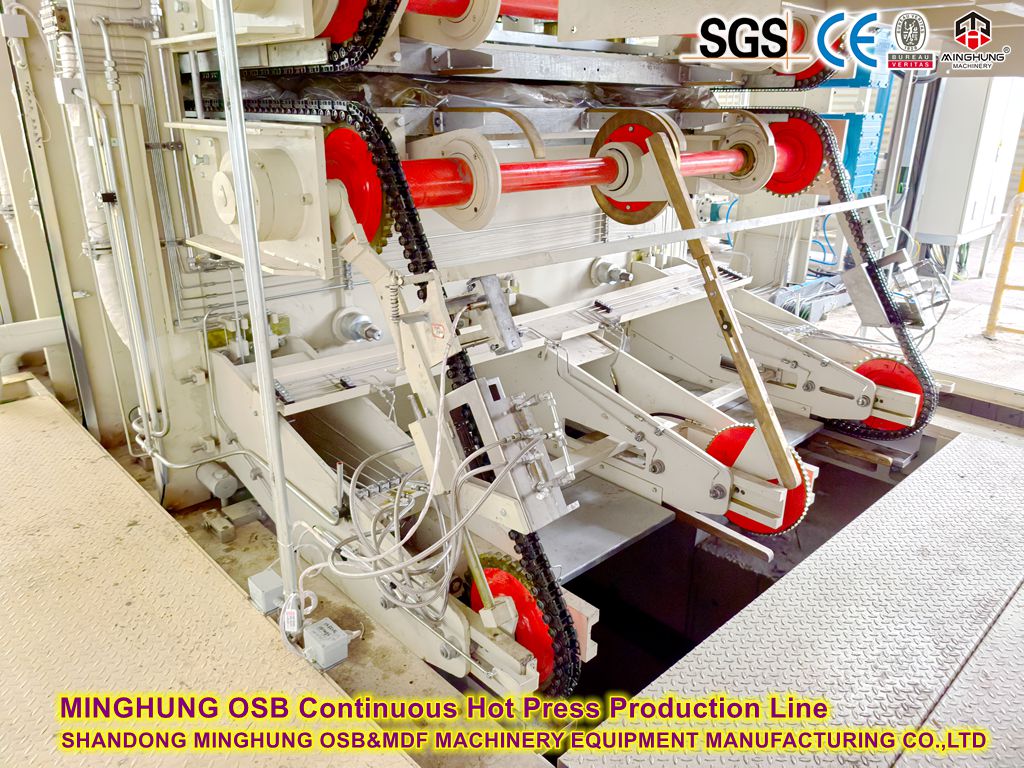

2.  Press Entry: The pre-pressed mat enters the continuous press via the steel belt. The press inlet features an adjustable opening where powerful pressure rapidly reduces the mat thickness towards the target range.

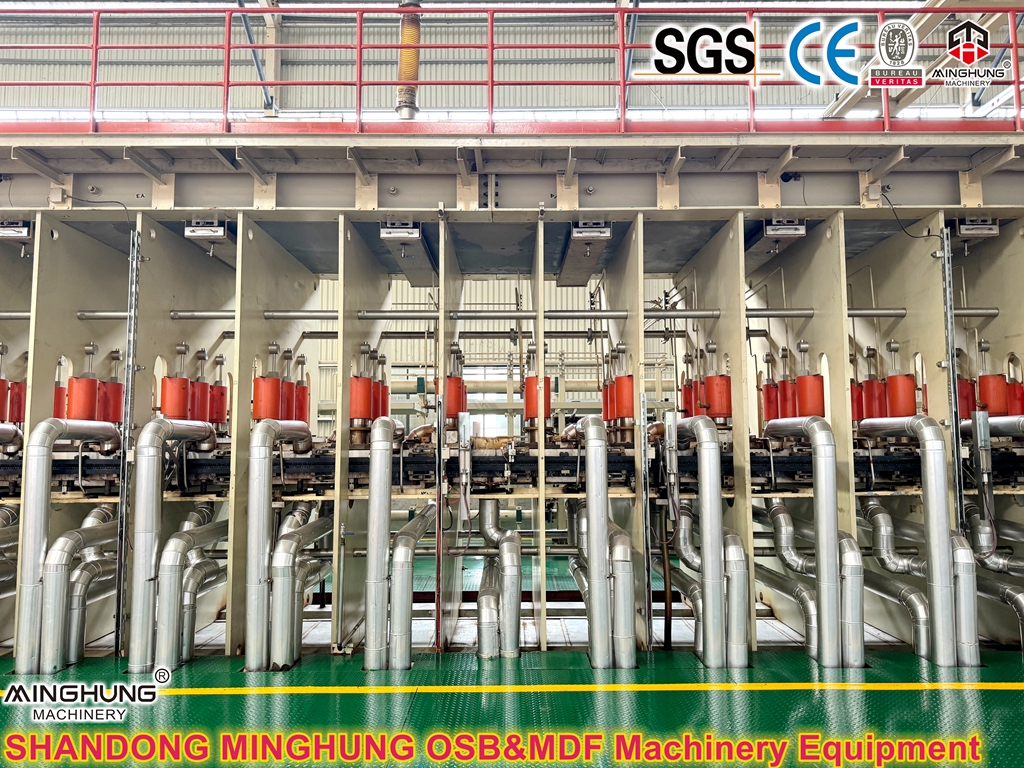

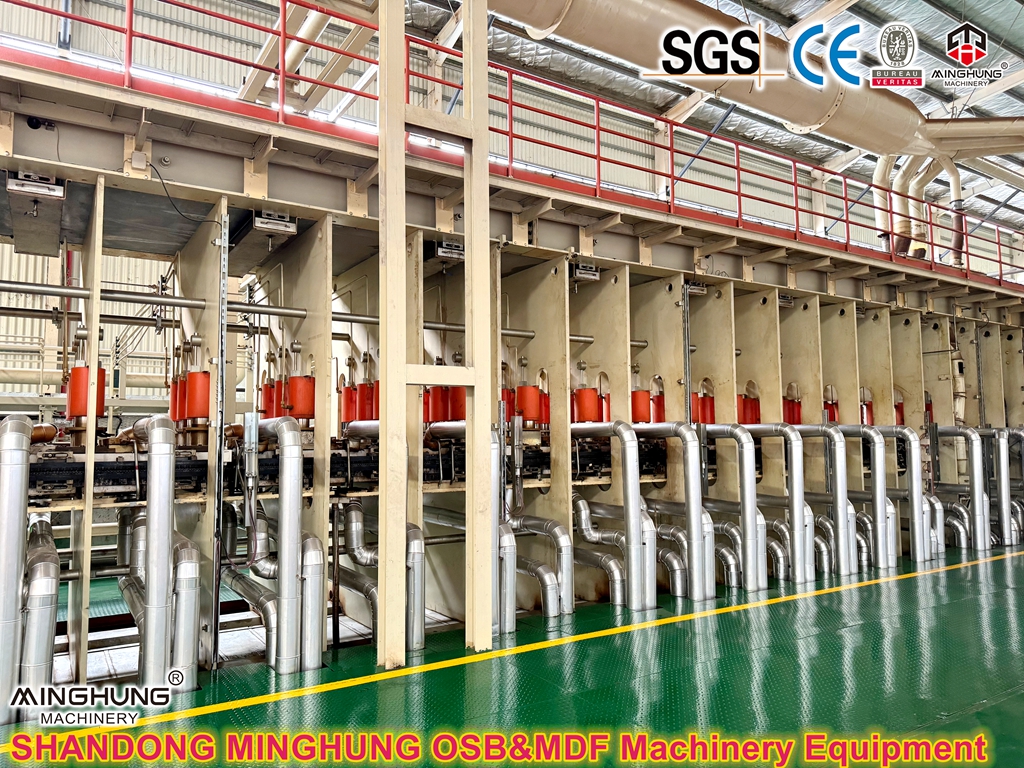

3.  Hot Pressing and Curing: The mat is carried by an endless steel belt through a long pressing line (dozens of meters) consisting of multiple heated platens. These platens, heated by thermal oil or steam, apply the required pressure and temperature simultaneously to both surfaces of the mat. As the mat travels, the internal resin cures rapidly under heat and pressure, bonding the wood particles firmly together.

4.  Pressure Zoning and Thickness Control: The press is divided into multiple pressure zones along its length (e.g., high-pressure zone, maintaining zone, pressure-relief zone). The pressure in each zone can be controlled independently and precisely to suit the characteristics of the mat at different curing stages. The final board thickness is guaranteed by precisely controlling the opening between the upper and lower heated platens.

5.  Cooling and Cutting: The fully cured particleboard exits the press continuously and proceeds to a cooling star for cooling and stabilization. Finally, it is cut to the required sheet sizes by cross-cutting and trimming saws.

A continuous flat press is a complex system primarily composed of the following core components:

1.  Frame: A massive steel structure providing rigid support for the entire press, withstanding the total pressing force.

2.  Steel Belts: Two high-strength, heat-resistant, endless thin steel belts. They carry and transport the mat through the press and transfer pressure and heat from the platens to the mat.

3.  Heated Platens: Large plate assemblies with internal flow channels, typically divided into multiple heating zones. A thermal medium circulates within them, providing a uniform and stable heat source for mat curing.

4.  Hydraulic System: Provides the enormous pressure required by the press. It includes cylinders, pumps, valve stations, and piping, responsible for precise pressure control in each pressure zone.

5.  Driving System: Usually consists of motors, reducers, and sprockets, etc., driving the steel belts to run smoothly at set speeds.

6.  Roller System: Includes a large number of support rollers, tension rollers, and guide rollers used to support, guide the steel belts, and maintain their flatness and tension.

7.  Lubrication and Cleaning Systems: Automatically lubricate the steel belt surfaces to reduce friction and remove adhered debris, ensuring belt longevity and board surface quality.

8.  Control System: The automated brain based on PLC and computers, integrated with an HMI (Human-Machine Interface), used for precise control of all process parameters like pressure, temperature, speed, and thickness.

Modern energy-saving continuous flat presses achieve significant energy reduction primarily through the following technologies:

1.  Drive System Energy Saving:

      Technology: Use of servo motors / high-efficiency variable frequency motors.

     Embodiment: Compared to traditional constant-speed motors, they can adjust output power in real-time based on actual load, significantly saving electricity during low speed or light load conditions, eliminating unnecessary no-load losses.

2.  Thermal Energy Utilization Optimization:

      Technology: High-efficiency thermal oil/steam systems, optimized flow channel design in heated platens, and installation of heat recovery units.

      Embodiment: Optimized design reduces flow resistance of the thermal medium, lowering pumping power. Heat recovery units can utilize part of the waste heat exhausted from the press to preheat boiler feed water or for workshop heating, directly reducing fuel consumption.

3.  Thermal Insulation and Leakage Control:

      Technology: Application of high-performance nano-porous insulation materials for comprehensive insulation of heated platens and high-temperature pipelines.

      Embodiment: Greatly reduces heat loss to the workshop environment, allowing thermal energy to be more concentrated on heating the mat, thereby reducing the continuous heating load on the heating system with significant energy-saving effects.

4.  Low-Friction Design:

      Technology: Use of low-friction bearings, optimized roller arrangement, efficient steel belt lubrication.

      Embodiment: Reduces the running resistance of the steel belts and the load on the drive motors, thereby lowering the main motor power consumption of the drive system.

5.  Intelligent Control and Energy Management:

      Technology: Advanced intelligent control systems capable of optimizing the temperature and pressure profiles.

  Embodiment: Avoids "peak and valley" fluctuations in energy use. By using optimal process parameters, it can reduce curing time or lower curing temperature while ensuring quality, leading to an overall reduction in energy consumption.

Compared to traditional intermittent presses or older continuous presses, this energy-saving continuous flat press production line for particleboard integrates high efficiency, energy savings, and intelligent design, offering the following significant advantages:

1. Outstanding Energy Saving and Consumption Reduction, Directly Lowering Operating Costs

  Core Advantage: Achieves up to 20% reduction in overall energy consumption through integrated technologies like intelligent drives, thermal optimization, and comprehensive insulation.

   Value: This translates to substantial cuts in electricity and fuel bills, directly resulting in lower unit production costs and significantly enhancing product profit margin and market competitiveness.

2. High Production Efficiency and Output Capacity

  Continuous Operation: Eliminates the idle time required for loading, pressing, and unloading in each cycle of an intermittent press, enabling non-stop board output.

  High-Speed Operation: Production speed is much higher than that of traditional presses, especially evident when producing thin boards.

  Value: Dramatically increased output per unit of time allows for faster fulfillment of large orders and accelerates capital turnover.

3. Superior and Consistent Product Quality

  Uniform Density Profile: The continuous pressing process and zoned pressure control technology ensure highly consistent density throughout the board's length and thickness.

  Excellent Surface Quality: The steel belt pressure transfer and flat heated platens guarantee outstanding surface smoothness and finish.

  Precise Thickness Control: The advanced control system enables extremely high thickness tolerance accuracy, reducing sanding allowance and saving raw materials.

  Value: Produces particleboard with stable, consistent quality, meeting the stringent requirements of high-end furniture manufacturing, interior decoration, and other quality-sensitive applications.

4. Production Flexibility and Wide Adaptability

  Quick Product Changeover: The control system allows for rapid switching between producing boards of different thicknesses and specifications.

  Broad Raw Material Adaptability: Capable of handling various raw materials (e.g., wood particles, straw).

  Value: Enables the production line to respond flexibly to diverse market demands, facilitating small-batch, multi-variety customized production and enhancing market responsiveness.

5. High Degree of Automation and Intelligent Control

  Full-Process Monitoring: Integrated PLC and computer control systems provide fully automatic, precise control over parameters like temperature, pressure, speed, and thickness.

  Data-Driven Optimization: The intelligent energy management system monitors consumption in real-time and provides optimization suggestions through data analysis, enabling lean production.

   Value: Reduces reliance on operator experience, minimizes human error, ensures process repeatability and stability, and facilitates production management and remote diagnostics.

6. Environmental Protection and Sustainability

  Reduced Carbon Emissions: Directly lowering energy consumption means reducing CO₂ emissions during production.

  Compliance with Green Standards: Helps manufacturers meet increasingly stringent international environmental regulations and  demand for green products.

   Value: Builds a corporate image of environmental responsibility, making it easier to obtain green certifications and access high-end and international markets.

7. Excellent Comprehensive Economics

  Although the initial investment might be higher, the savings from reduced energy costs, higher product value (due to better quality), and lower maintenance costs make the Return on Investment (ROI) period for this production line highly attractive.

  Value: From a long-term operational perspective, this is a strategic investment that delivers continuous cash flow and a competitive edge.
