The heart of modern Medium Density Fiberboard (MDF) and High Density Fiberboard (HDF) manufacturing beats within the Continuous Hot Press (CHP) production line. This complex, integrated system transforms wood fibers into smooth, dense, and versatile panels through a continuous, high-efficiency process. While the hot press itself is the star, it relies on a carefully orchestrated ensemble of specialized machines working in perfect harmony. Let's explore the key machines that make this high-volume production possible.
1. The Foundation: Fiber Preparation & Forming
Chippers & Hammermills: Raw wood (logs, chips, residues) is reduced to small, uniform chips.
Screening & Cleaning: Impurities (sand, bark, metal) are removed to ensure pure fiber.
Digesters/Refiners: Chips are softened under steam and pressure, then mechanically refined into individual wood fibers.
Drying Towers: Moisture is rapidly evaporated from the refined fibers using hot air in large vertical towers, achieving precise moisture content for resin blending.
Blending Bins & Glue Application: Dried fibers enter large blenders where resins (typically UF or MUF), wax (for moisture resistance), and additives are evenly sprayed and mixed via high-pressure nozzles.
Forming Station: The resin-coated fibers are distributed by sophisticated forming heads onto a continuously moving caul plate or belt. This machine is critical for creating a uniform, consistent mat with precise cross-sectional density profile and thickness. Weight scanners constantly monitor mat density.

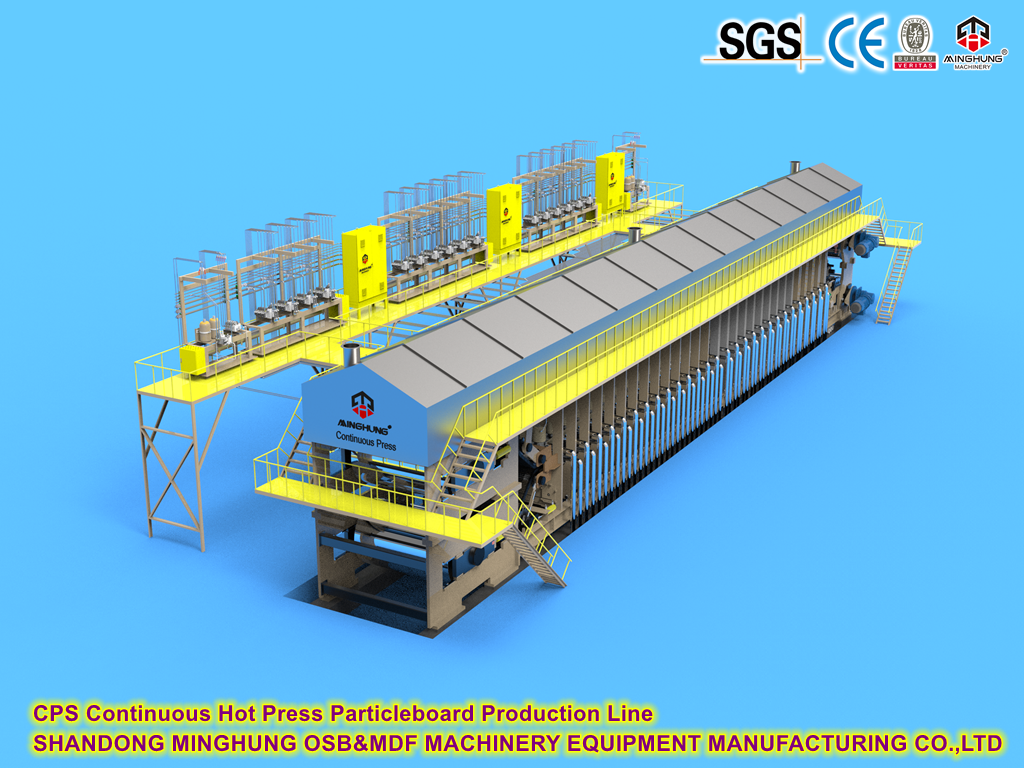

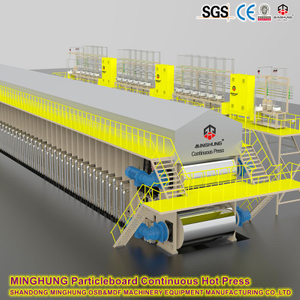

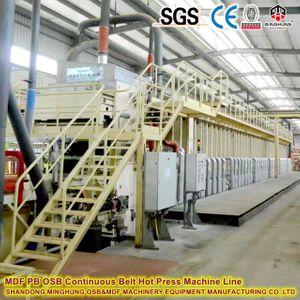

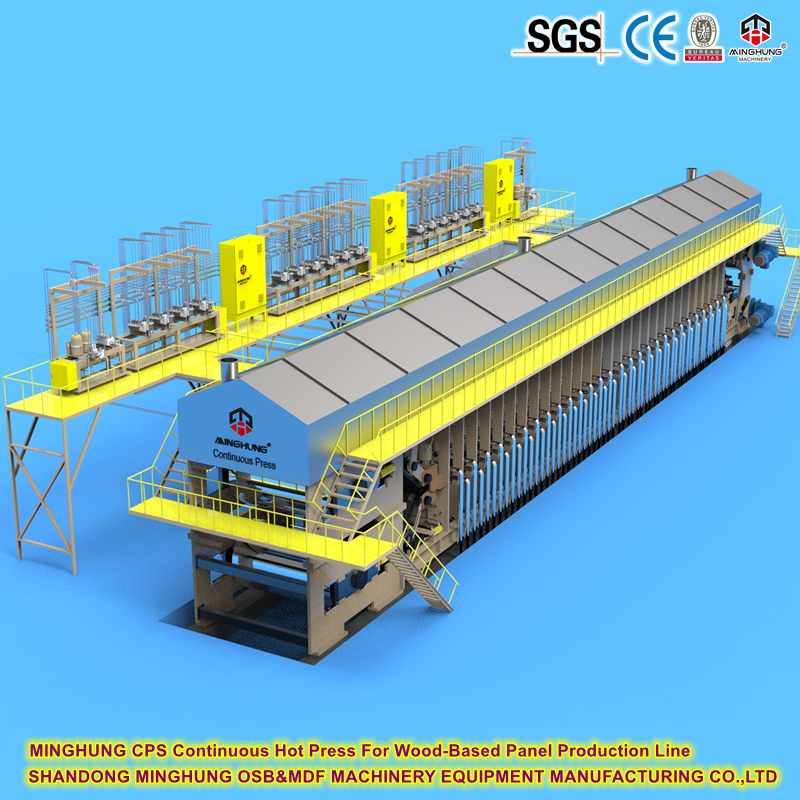

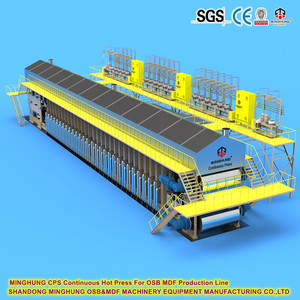

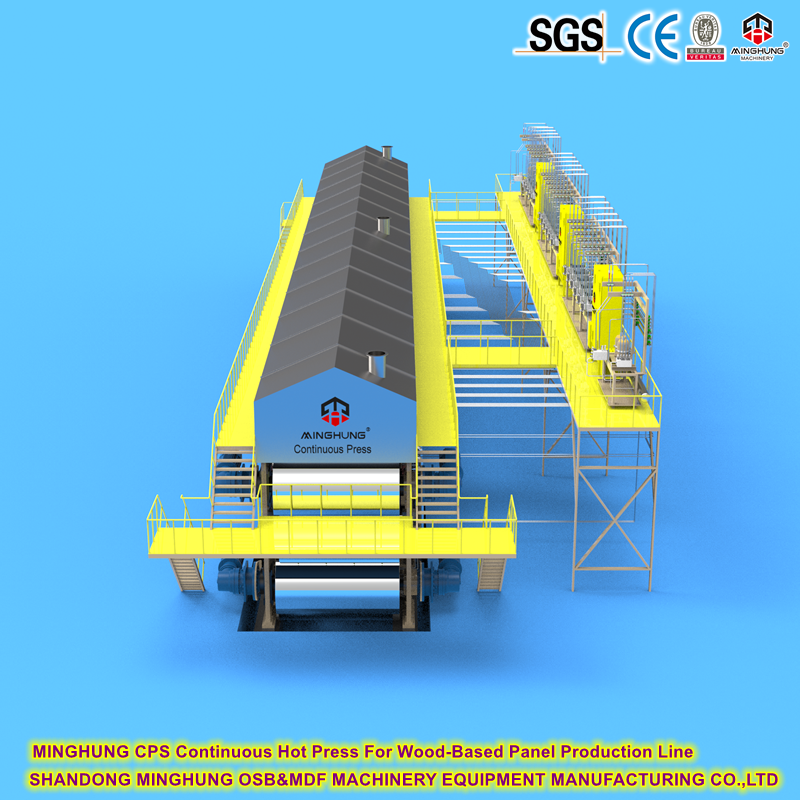

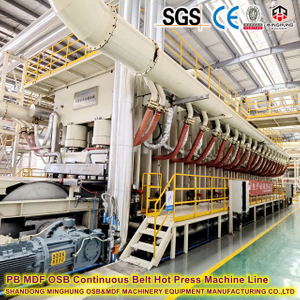

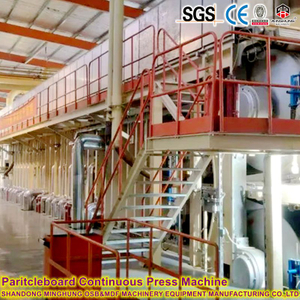

2. The Core: The Continuous Hot Press (CHP)
This is the technological marvel and most significant investment in the line.
Pre-Press (Continuous or Belt): The loose fiber mat is gently compacted (pre-densified) to reduce thickness and improve handling before entering the hot press. This often uses a continuous belt system or rollers.
The Press Entry: The pre-pressed mat is fed into the narrow, high-pressure "nip" at the press entrance. Sophisticated feeding systems ensure smooth, uninterrupted entry.
Heating Systems: The massive steel press platens (upper and lower) are heated to high temperatures (typically 180-240°C for MDF, higher for HDF). Heating is achieved via:
Thermal Oil Systems: Pressurized hot oil circulates through channels within the platens (most common).
Steam Heating: High-pressure steam flows through platen channels.
Electric Heating: Less common, but used in some designs.

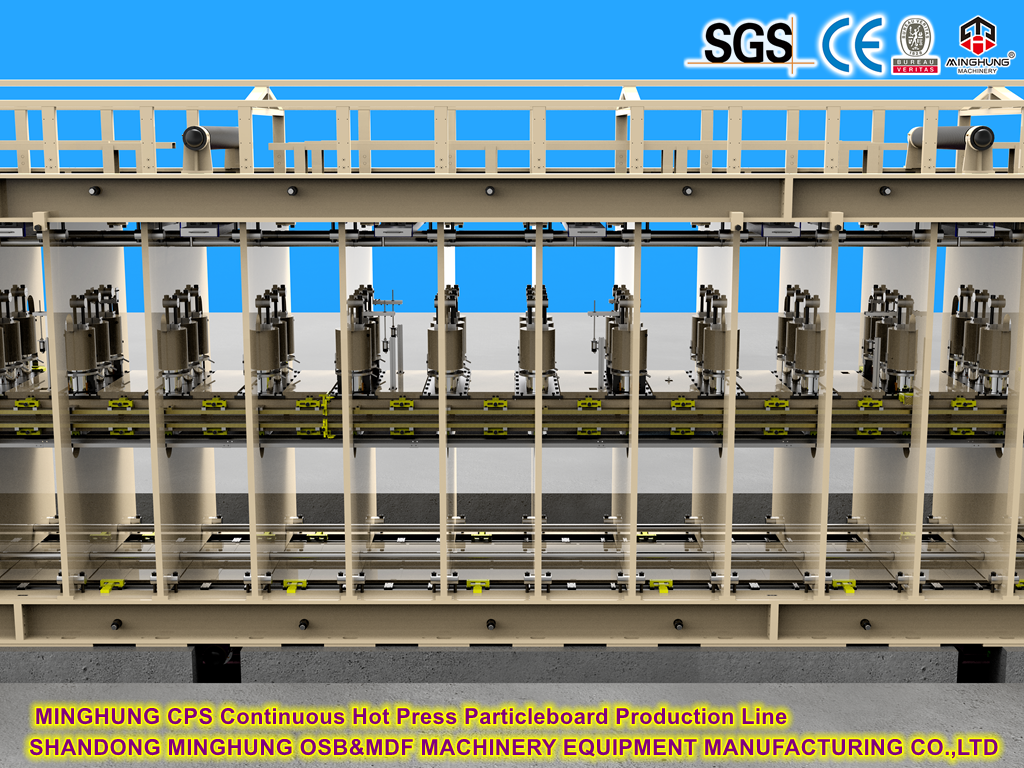

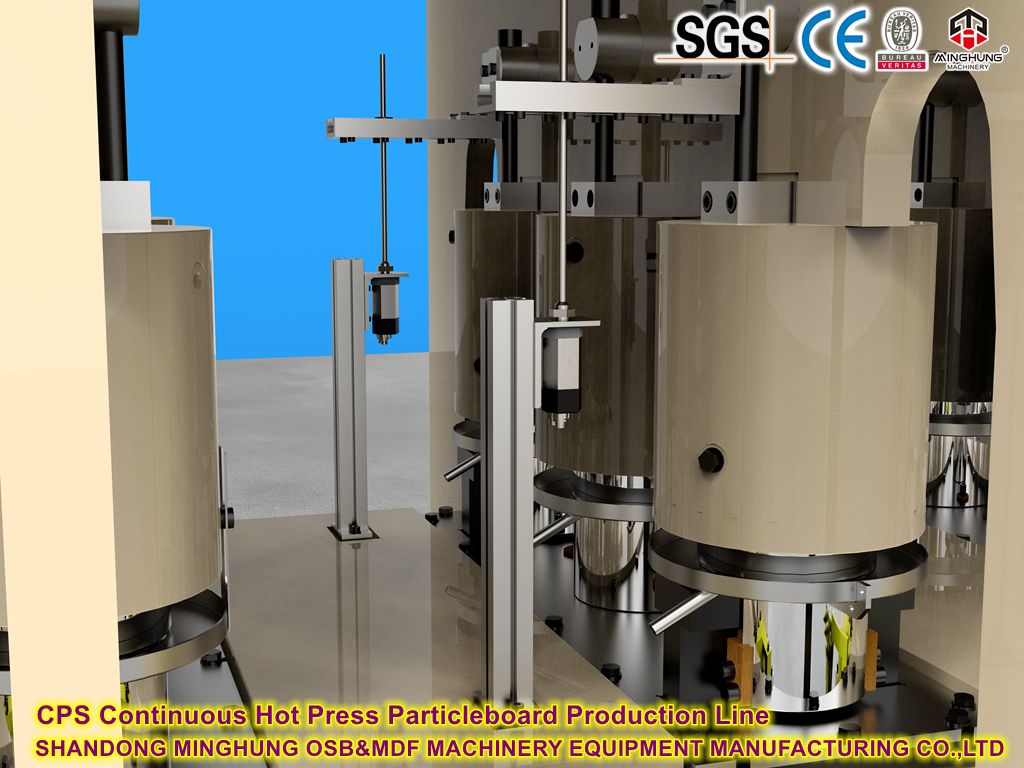

Hydraulic/Pneumatic System: Provides the immense closing pressure (often 300-500+ PSI) required to densify the mat. Hundreds of individually controlled cylinders distributed along the press length allow for precise pressure profiling.
The Press Belt/Caul Plates: Continuous, highly polished steel belts (or heavy caul plates on chains) run between the fiber mat and the hot platens. They transport the mat through the press, apply pressure, impart surface finish, and protect the platens. They require sophisticated tensioning, tracking, and cooling systems.
Press Sections & Zones: The press is divided into multiple zones (e.g., Entry, Main, Calibration, Exit). Each zone has independent control over:
Platen Gap (Thickness Control): Dictates the final panel thickness via precise positioning.
Temperature: Optimizes resin cure at different stages of densification.
Pressure Profile: Higher pressure at entry for compaction, lower pressure towards exit during curing and gas release. Profiling is crucial for density distribution and minimizing springback.
Press Exit: The now fully cured, hot panel exits the press onto transfer devices.
3. Finishing & Quality Control
Cooling Stars/Wheels: Hot panels are rapidly cooled in large rotating star coolers or on cooling conveyors with forced air to stabilize dimensions and prevent blistering.
Trimmers/Saws: Panels are trimmed to exact width and cut to final length using high-speed, multi-saw trimmers immediately after cooling.
Sandling Machines (Optional but Common): Continuous belt sanders smooth the panel surfaces to a precise thickness and perfect finish. Modern lines often feature wide-belt sanders integrated into the flow.
Stacking & Handling: Automated stackers (gantry or robotic) lift panels off the line and build uniform stacks for storage or shipment.
Quality Control Systems: Integrated throughout the line: Weight scanners (forming), thickness gauges (press exit, sanding), moisture meters, density profilers (often using X-ray or gamma technology), visual inspection systems.
The Continuous Advantage:
Compared to older multi-opening (batch) presses, the CHP line offers significant benefits:
Higher Production Rates: Continuous operation means vastly greater output (e.g., 500,000+ m³/year).
Superior Quality: Precise zone control enables excellent density profiles, consistent thickness, and better surface quality.
Reduced Labor: Highly automated from forming to stacking.
Lower Energy Consumption: Per unit volume, due to efficient heat transfer and continuous operation.
Greater Flexibility: Faster grade changes and thickness adjustments.
