A complete mixed-wood MDF production line primarily consists of the following eight sections:
1. Raw Material Preparation & Handling Section
Chipping & Screening: Mixed wood is first processed into uniformly sized wood chips by a chipper. The chips are then screened; acceptable chips proceed, oversized chips are re-chipped, and impurities/sand are removed.
Washing & Pre-heating: Chips may be washed (water/air) to remove heavy contaminants like stones and metals. They are then pre-heated to soften them for fiber separation.
2. Fiber Preparation Section
Defibration in Refiner: This is the heart of the process. Pre-heated chips are fed into a defibrator (refiner), where high-pressure steam softens the lignin, and mechanical forces separate the chips into individual wood fibers.
Resin & Additive Blending: As fibers exit the refiner, adhesives (e.g., UF, MUF resins), wax (water repellent), and other additives (e.g., hardeners) are uniformly blended into the fiber mat. Precise control of this system is critical for mixed raw materials.
3. Drying Section
The resin-coated wet fibers are pneumatically conveyed through a flash tube dryer. Hot air rapidly evaporates the moisture, resulting in dry, fluffy, resin-coated fibers.
4. Mat Forming & Pre-pressing Section
Mat Forming: The dried fibers are spread by an advanced forming machine onto a moving steel belt, creating a uniform, loose "fiber mat".
Pre-pressing: The mat is then lightly compressed in a pre-press. This increases its density and strength for handling and entry into the hot press, while also expelling some air.
5. Hot Pressing Section
Continuous Pressing: The hallmark of a modern line. The pre-pressed mat enters a continuous press, where it is subjected to precisely controlled temperature, pressure, and time. The resin cures, bonding the fibers firmly together to form a solid panel. Continuous presses offer higher output, more consistent quality, and lower energy consumption compared to traditional multi-opening presses.
6. Cooling & Trimming Section
The hot board exiting the press is immediately cooled on a cooling conveyor (often with star coolers and air jets) to stabilize internal stresses.
The cooled board is then trimmed to the required format dimensions and its ragged edges are sawn off by cross-cut and trim saws.
7. Sanding & Finishing Section
The board surface is sanded by a multi-head sander to achieve precise thickness and a perfectly smooth surface, ready for subsequent laminating, painting, or direct use.
8. Quality Control & Packaging Section
The finished panels undergo online inspection (e.g., thickness gauges, density scanners) and manual checks to ensure quality standards.
Finally, automated equipment stacks, bundles, and packages the panels for warehouse storage.
A complete mixed wood MDF production line is a complex system project composed of a series of efficient and precise equipment.
Stage 1: Raw Material Handling Section Equipment
1. Debarker
Function: Removes bark from the raw material when it contains a significant amount of branches or small-diameter logs.
Importance: Bark generally has low resin content and high impurities, which can affect bond strength and board color. Its removal is crucial for producing high-quality MDF.
Types: Common types include drum debarkers and ring debarkers.
2. Chipper
Function: Cuts various shapes and sizes of mixed wood raw material (e.g., planks, off-cuts, blocks) into uniform, process-specific wood chips.
Types: Disc chippers are the mainstream choice, known for their robust structure capable of handling mixed wood with minor impurities.
3. Chip Screening & Re-crushing System
Equipment: Mainly includes swing screens, vibrating screens, and re-crushers.
Function: The screen grades chips by size: acceptable chips proceed; oversized chips are sent to the re-crusher; undersized fines and impurities are removed.
Purpose: Ensures uniform chip size entering the defibration system, which is a prerequisite for high-quality fiber and stable production.
4. Chip Washing & Storage Equipment
Chip Washer (Water/Air): Uses water (flotation) or air (aspiration) to remove heavy contaminants (e.g., stones, metals) and light contaminants (e.g., sand, plastic) from the chips.
Chip Storage Silo/Bin: A large storage unit that buffers and stores the washed, acceptable chips. It ensures continuous feeding of the line and allows for the blending and homogenization of different raw material batches.
Stage 2: Fiber Preparation Section Equipment
5. Pre-steaming & Pre-heating Bin
Function: Pre-heats and softens the wood chips using saturated steam.
Purpose: Plasticizes the lignin in the chips, reducing energy consumption during fiber separation and minimizing fiber damage.
6. Defibrator (Refiner)
Function: This is the "heart" of the MDF plant. It separates the softened chips into individual wood fibers under high temperature and pressure through the friction and tearing action between mechanical discs.
Structure: Primarily consists of a feeding screw, a pre-heating tube, and the main refining chamber with discs.
7. Resin Blending & Drying System

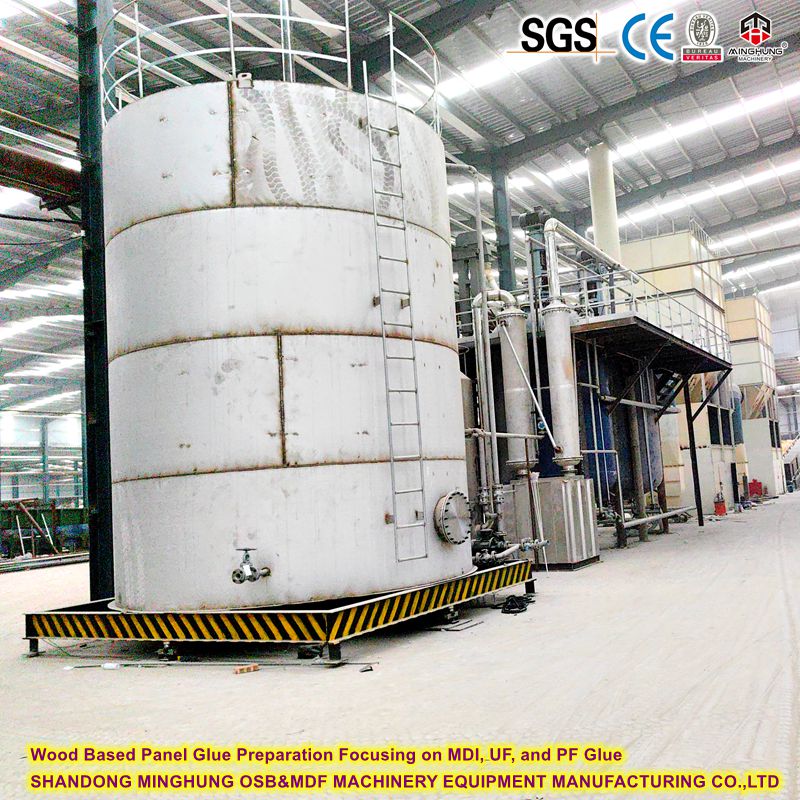

Resin Blending System: At the moment fibers are blown out of the defibrator, adhesives, wax, and other additives are uniformly applied to the surface of each fiber via a high-speed air stream and precise nozzles. The core components are the blending ring and metering pumps.
Fiber Dryer: Typically a "Pneumatic Flash Tube Dryer". Wet fibers are conveyed by a stream of hot air through a long tube, where they are rapidly dried to the required moisture content. Heat energy is often recovered from the hot press exhaust, ensuring energy efficiency.
Stage 3: Forming & Pressing Section Equipment
8. Forming Station & Pre-press
Forming Machine: Spreads the dry, resin-coated fibers via mechanical or air-forming methods onto a moving steel belt to create an extremely uniform, loose "mat". This is key to achieving consistent density in the final board.
Pre-press: Compresses the fluffy mat initially using one or multiple pairs of rollers, giving it initial strength for handling, and removing most of the air in preparation for hot pressing.
9. Continuous Press
Function: The hallmark of a modern MDF line, representing the highest level of technology. The mat enters a system where it is sandwiched between two steel belts and passes through a multi-stage heated platen press. Under precisely controlled temperature, pressure, and speed, the mat is continuously pressed into a solid board, and the resin cures rapidly.
Advantage: Compared to older "Multi-opening Presses", continuous presses produce boards with more uniform density, superior surface quality, higher production efficiency, and lower energy consumption.
Stage 4: Finishing Section Equipment
10. Cooling & Trimming System
Cooling Star/Turnover Cooler: Cools and turns the hot board exiting the press to stabilize internal stresses and prevent warping.
Cross-Cut & Trim Saws: Cuts the continuous board into required format sizes using cross-cut and longitudinal saws, also trimming off the uneven edges.
11. Sanding Machine
Function: Sands the top and bottom surfaces of the board for precise thickness calibration and surface finishing.
Importance: Eliminates thickness deviation and the pre-cured surface layer, providing a smooth and flat surface perfect for subsequent laminating, painting, or direct use. Typically a wide-belt sander with multiple heads (4-8).
12. Quality Control & Packaging System
Online Inspection Equipment: Includes continuous thickness gauges, density scanners, etc., for real-time product quality monitoring.
Automatic Stacking & Bundling Line: Uses robots or automated equipment to stack finished panels neatly, bundle them with steel or plastic straps, and apply labels before storage.
Plant-Wide Core Support Systems
Central Control System: The "brain" of the production line. Based on PLC and SCADA systems, it allows for monitoring, logging, and automatic adjustment of operational parameters for the entire plant from a central control room.
Energy Plant: The boiler house or thermal oil system that provides the necessary steam and heat for the process.
Dust Extraction & Environmental Protection System: Cyclones and baghouse filters throughout the entire factory for collecting wood dust and particles; exhaust gas treatment systems ensure emissions comply with environmental standards.
High Raw Material Flexibility: Processes various mixed wood species, reducing dependency on single-source timber and offering significant cost advantages.
Efficient Resource Utilization: Transforms wood waste into valuable products, enabling resource recycling.
Automation & Intelligence: Employs a central control system (DCS/PLC) for fully automated process control from raw material to finished product, ensuring stable operation and consistent quality.
Energy Saving & Environmental Protection: Often equipped with energy recovery systems (e.g., using press exhaust for drying), highly efficient dust removal, and emission abatement systems compliant with international standards.
Superior Product Quality: Thanks to the continuous press and precise process control, the MDF boards produced feature uniform density, high internal bond strength, and excellent surface smoothness.
Turnkey Project Service: Suppliers typically provide a one-stop service encompassing plant planning, process design, equipment manufacturing, installation & commissioning, personnel training, and after-sales support.
It refers to the practice of not relying on a single tree species or uniformly sized logs, but instead using a mixture of various sourced, different forms of wood processing residues, forest thinnings, and even recycled wood.
This is not just a cost-saving measure; it is central to efficient resource utilization and the circular economy.
1. Wood Processing Residues
This is the primary and highest-quality source for mixed wood raw materials. It consists of by-products from various wood processing mills.
Slabs and Edgings: The outer layers and edges produced when sawmills cut logs into lumber.
Shavings and Sawdust: Generated from planning, sawing, and milling operations.
Cut-offs and Trimmings: Short pieces from cutting wood to length.
Plywood Cores: The central core remaining after peeling a log for veneer.
Characteristics: This material is already processed into smaller pieces, has good fiber quality, and typically contains minimal bark or leaves, making it an ideal MDF raw material.
2. Forest Thinnings and Low-Grade Wood
This material comes from forest management processes, not from the harvesting of primary commercial trees.
Small-Diameter Logs: Trees too thin to be used for lumber or plywood.
Branches and Tops: The branches and tops left after a tree is felled.
Thinning Wood: Weak, diseased, or overcrowded trees removed to improve the growth environment of the forest.
Characteristics: Allows for efficient use of forest resources and reduces waste, but may contain more bark, requiring stricter washing and screening.
3. Recycled and Reclaimed Wood
This is an increasingly important source, especially in regions with strict environmental regulations like Europe.
Demolition Wood: Recovered wood from construction sites, old furniture, and packaging (e.g., pallets).
Urban Wood Waste: Branches from municipal tree trimming, etc.
Characteristics: Very low cost and significant environmental benefits, tapping into the "urban mine." However, the challenges are substantial: It must undergo rigorous sorting, cleaning, and processing to remove metals (nails, screws), paints, coatings, plastics, and other contaminants that could damage machinery or compromise product quality.
4. Blending of Single-Species Feedstocks
Sometimes, different wood species are intentionally blended to adjust the final board's physical properties (e.g., density, color, mechanical strength).
For Example: Blending softwood with long fibers (like Pine) with hardwood with short fibers (like Eucalyptus or Poplar) in a specific ratio can create an MDF board with tailored properties for a particular use case.
In MDF production, "mixed wood" essentially refers to a diverse, cost-effective, and often waste-based collection of lignocellulosic biomass sources.
Its use embodies the core principles of modern manufacturing:
Economic Efficiency: Drastically reduces the primary raw material cost.
Environmental Responsibility: Achieves "full value-chain utilization" of wood resources, with almost zero waste, aligning with sustainable development.
Technical Prowess: Drives advancements in MDF production technology and equipment, enabling it to adapt to more complex and flexible raw material structures.
We are committed to offering comprehensive "turnkey project" services, from planning and design, equipment manufacturing, to installation and commissioning, empowering you to establish a modern MDF plant with strong market competitiveness. Choosing us means selecting exceptional quality, sustainable profitability, and a reliable partnership.
For more information, welcome contact us, we will reply you quickly and offer working videos with you.
