The Intelligent Thickness Control System for a Fully Automatic Particleboard Continuous Press serves as the "brain" and "nerve center" of a modern particleboard production line. It is an integrated system that combines sensing technology, automatic control, intelligent algorithms, and precision mechanical actuation. Its core mission is to achieve precise, real-time, and automatic control over the finished board's thickness during high-speed, continuous production. This ensures every millimeter of the board meets the preset thickness standard, thereby guaranteeing final product quality, saving raw materials, and enhancing production efficiency.

Core Components

The complete system can be viewed as an integrated production unit, consisting of two main parts: the Host Machine (Continuous Press) and the "Intelligent Center" (Control System).

Part 1: Host Machine - Fully Automatic Particleboard Continuous Press

This is the physical entity that performs the pressing task, primarily including:

1.  Forming Station: Uniformly spreads resin-coated wood particles into a continuous, loose "mat" of specific width and preliminary thickness.

2.  Pre-press: Gently compresses the loose mat to give it initial strength, making it suitable for entering the main press.

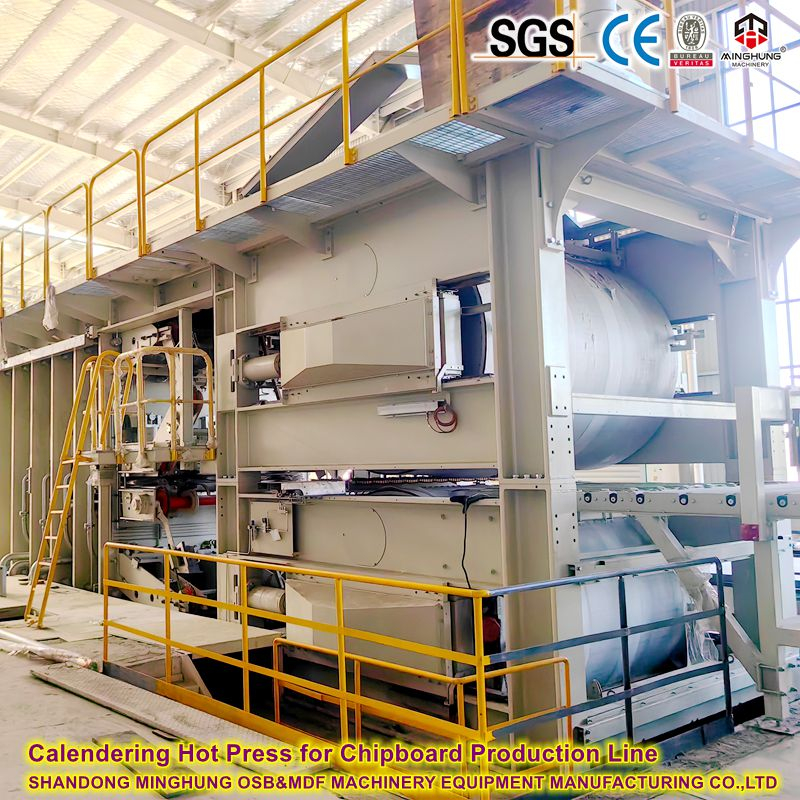

3.  Main Continuous Press:

      Steel Belt System: Two large, heat-resistant steel belts that carry and transport the mat through the entire hot-pressing zone.

      Heating Platen System: Multiple heated plates that provide the necessary heat and pressure for pressing. This is the key area where thickness control is executed.

      Hydraulic System: Provides the immense pressure required for opening and closing the press.

      Main Frame: A heavy-duty steel structure designed to withstand the total pressing force.

4.  Heating System: Provides the heat source (typically thermal oil or steam) for the heating platens.

5.  Drive System: Motors and gearboxes that drive the continuous movement of the steel belts.

6.  Cooling and Cutting System: Cools the continuous pressed board and cuts it to the required length.

Part 2: The Core - Intelligent Thickness Control System

This is the "nerve center" that enables precise thickness control, primarily comprising the following three subsystems:

1.  Detection Unit (The "Eyes" of the System):

      High-Precision Non-Contact Thickness Gauge: Typically installed at the press exit, it uses beta-ray, laser, or microwave technology to scan the board across its full width at high frequency, providing real-time, continuous thickness data.

2.  Control Unit (The "Brain" of the System):

      Industrial Computer / High-Performance PLC: Runs specialized intelligent control software.

      Control Algorithms: This is the core intelligence, often using adaptive PID control or more advanced Model Predictive Control (MPC). It processes sensor data, predicts thickness variation trends, and calculates the optimal adjustment commands.

3.  Actuation Unit (The "Hands" and "Feet" of the System):

      Servo Motors and Thickness Adjustment Mechanisms: Installed at specific locations along the press platens (usually at the inlet section and main pressing zone). The most common structure is the eccentric adjustment mechanism. The servo motors receive commands from the "brain" and drive these mechanisms to perform extremely precise lifting/lowering movements, thereby micro-adjusting the gap between the upper and lower hot platens (the nip opening).

Working Principle

The core operating principle is a dynamic, continuous intelligent closed-loop control process. The system utilizes a high-precision thickness gauge installed at the press exit to perform comprehensive, uninterrupted scanning of the fully pressed board, collecting massive amounts of thickness data in real-time. This data is instantaneously transmitted to the Central Control Unit (the "brain" of the system).

The control unit compares the real-time data with the preset target thickness and analyzes it using advanced intelligent algorithms (such as adaptive PID or Model Predictive Control). These algorithms can not only identify the current thickness deviation but also predict the trend of thickness variation. Subsequently, it calculates precise correction commands and sends them to the Thickness Adjustment Actuator (typically a servo motor-driven eccentric adjustment mechanism).

The actuator, following the commands, performs micrometer-level precise adjustments to the opening of the press's hot platens. This adjustment immediately affects the mat just entering the press's compression zone, altering its compression state and thereby correcting its formed thickness in real-time.

The pressed and corrected board is detected again by the exit thickness gauge, and the new data is fed back to the system, initiating the next control cycle. This process of "Real-time Monitoring → Intelligent Analysis → Precision Execution → Result Verification" repeats continuously, forming a self-adapting closed loop, ensuring the board thickness is consistently and stably maintained within an extremely high precision range.

Complete Workflow Elaboration

Part 1: Overall Workflow of the Fully Automatic Continuous Press (Macro Production Process)

This is the physical process of transforming raw materials into finished particleboard, akin to a highly automated assembly line.

1.  Raw Material Preparation and Forming:

      Resin-coated wood particles are fed into the Forming Station.

      The former uniformly spreads a continuous, loose "mat" with a specific width and preliminary thickness onto moving steel belts or caul plates.

2.  Pre-pressing:

      The loose mat first enters the Pre-press.

      The pre-press applies initial, lower pressure to compact the mat into a stable state, removing some air. This gives the mat sufficient strength to enter the main press intact without being damaged.

3.  Main Pressing and Thermosetting:

      The pre-pressed mat enters the core of the Main Continuous Press.

      Here, the mat is sandwiched and transported by two large Heat-Resistant Steel Belts through a hot-platen zone consisting of multiple Heating Platens.

      The press applies immense pressure via the Hydraulic System, while the Heating Platens provide high temperatures (typically 180-220°C). Under the combined action of "heat, pressure, and time," the resin in the board cures rapidly, and the wood fibers bind together, forming a dense board.

4.  Steel Belt Transport and Continuous Motion:

      Throughout this process, the steel belts move continuously, driven by the Drive System, allowing the mat to pass through the entire press at a constant speed. This enables genuine continuous production, significantly boosting efficiency compared to traditional batch presses.

5.  Cooling, Cutting, and Outfeed:

      The continuously pressed board exiting the press enters a Cooling Zone to solidify and stabilize.

      The cooled continuous board is finally cut to preset lengths by a Cut-to-Size Saw.

      The final output is individual particleboards with uniform thickness that meet the required standards.

Part 2: Workflow of the Intelligent Thickness Control System (Micro Precision Control)

This process occurs simultaneously and is deeply integrated with the macro process above, focusing solely on controlling the key quality metric: thickness.

1.  Real-Time Monitoring:

      At the press exit, the newly pressed (but not yet cooled) board immediately passes under a High-Precision Non-Contact Thickness Gauge.

      The gauge scans the board transversely at high frequency, collecting thousands of thickness data points across the full width in real-time.

2.  Data Feedback and Intelligent Analysis:

      The massive amount of thickness data is instantaneously transmitted to the Central Control Unit.

      The control unit compares the measured data with the preset Target Thickness.

      Intelligent Algorithms (e.g., Adaptive PID, Model Predictive Control) engage: they not only determine the current deviation but also analyze the trend and pattern of the deviation (e.g., whether the left side is consistently too thick or if there is a periodic fluctuation across the board).

3.  Decision-Making and Command Issuance:

      Based on the analysis, the algorithm calculates the precise value, location, and direction of the required adjustment.

      Adjustment commands are sent to the Thickness Adjustment Actuators (typically servo motor-driven eccentric mechanisms) located in the hot-platen area of the press.

4.  Precision Execution and Real-Time Correction:

      The actuators perform micrometer-level precise lifting/lowering adjustments to the press opening based on the commands.

      The crucial point is: This adjustment does not affect the part of the board that was just measured. Instead, it affects the section of the mat that is just entering or is in the middle of the press. This means the system is performing a "proactive" or "immediate" correction.

5.  Closed-Loop Feedback and Continuous Optimization:

      The corrected section of the mat, after being pressed, will have a changed thickness. This new thickness value is detected again seconds or tens of seconds later by the exit thickness gauge.

      The new data is fed back to the system, which evaluates the effect of the previous adjustment and decides if further fine-tuning is needed.

      This cycle of "Monitor → Analyze → Decide → Act → Monitor Again" continues uninterrupted, forming a dynamic, self-adapting Closed-Loop Control, ensuring thickness variations are consistently suppressed within the tightest possible range.

The Intelligent Thickness Control System is deeply embedded within the macro process of the Fully Automatic Continuous Press. The macro process is responsible for "producing the board," while the intelligent system is responsible for "making the board exceptionally precise." Together, they form an efficient, stable, and high-quality modern particleboard production line.
