MH-OSB
MINGHUNG
Poplar wood is a fast-growing soft hardwood widely used globally in panel production, with distinct characteristics:
1. Rapid Growth and High Sustainability: Poplar trees have a short rotation cycle (typically 5-8 years for thinning), are a renewable resource, and can meet the raw material demands of large-scale industrial production, offering significant environmental and economic benefits.
2. Uniform Texture and Moderate Density: Poplar fibers are of moderate length with a uniform structure and relatively soft wood. This makes it easy to cut and process, producing strands with excellent morphology and a large surface area, which facilitates even adhesive distribution and efficient bonding.
3. Light Color and High Aesthetics: The heartwood and sapwood are not distinctly separated, and the pale color provides an excellent base for subsequent finishing (e.g., varnishing, laminating).
4. Good Machinability: It is easy to dry and exhibits excellent peeling and planing properties with relatively low energy consumption.
5. Mechanical Properties: While its inherent mechanical strength is lower than hardwoods, the oriented structure of the OSB process compensates for this dramatically, creating a high-performance composite material.
 | Global Major Origins of Poplar Wood |
1. China: The world's largest grower and producer of poplar, primarily concentrated in East China (Shandong, Jiangsu), North China (Hebei, Henan), and the middle-lower Yangtze River region. Abundant resources of varieties like Italian poplar and Chinese white poplar are available.
2. Europe: Countries like France, Italy, and Spain have large-scale poplar plantations, serving as a crucial raw material source for the local European OSB industry.
3. North America: Canada and the USA (especially northern states) also grow significant amounts of poplar (e.g., Aspen) for pulp and panel production.
4. Other Regions: Countries like Turkey, Iran, India, and Pakistan also have considerable poplar cultivation.
| Advantages of Poplar as Raw Material for OSB |
Using 100% poplar as the raw material for OSB offers significant advantages over mixed hardwoods:
1. Raw Material Homogeneity: A single wood species ensures consistent color, density, and fiber characteristics of the strands, resulting in more stable physical properties of the final board, less quality fluctuation, and easier process control.
2. Excellent Strand Morphology: Poplar is easily cut into high-quality, large flakes (strands) with a superior length-to-width ratio and smooth surfaces. This is the foundation for the high-strength "oriented" structure of OSB and directly determines the board's mechanical properties.
3. Excellent Bonding Properties: The uniform texture and smooth surface allow for good wettability with waterproof adhesives like MDI, resulting in high bonding efficiency, relatively lower adhesive consumption, and enabling the production of high environmental standard (e.g., NAF-No Added Formaldehyde) products.
4. Outstanding Economic Benefits: As a fast-growing wood, poplar is relatively low-cost and has a stable supply, forming the basis for the large-scale production of cost-effective OSB products.
5. Positive Environmental Image: The "100% Poplar" and "Plantation-Grown" tags align with global sustainable development principles, facilitate obtaining green building certifications (e.g., LEED), and enhance the product's market competitiveness.
| Production Equipment |
A fully automated OSB production line with an annual capacity of 100,000 cubic meters is a large-scale, capital-intensive project. Its main equipment includes:
1. Raw Material Handling Section:
Debarker: Removes bark from poplar logs (bark adversely affects bonding and board color).
Chipper: Chips the logs into ideal flakes according to process requirements.
Screening and Rechipping System: Screens flakes by size; oversized flakes are re-chipped, and fines can be sent to the power plant as fuel.
veneer peeling

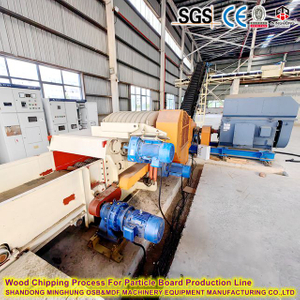

wood chipper
vibrating screen
2. Strand Preparation and Drying Section:
Stranders: Core equipment之一. Planes the washed flakes into strands of specified dimensions (thin for surface layers, thicker for the core layer).
Rotary Drum Dryers: Typically a triple-pass system for efficient and precise drying of surface fines, surface strands, and core strands separately, reducing moisture content evenly to 2-4%. This is critical for ensuring pressing quality and energy efficiency.

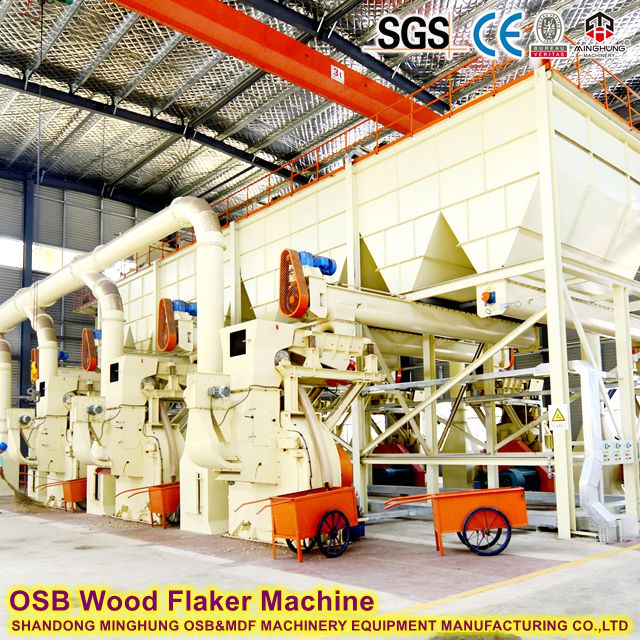

flaker machine
drying system
3. Blending and Forming Section:
Blenders: High-speed continuous blenders use precisely metered pumping systems to evenly spray waterproof MDI resin and wax onto the strands. These systems are sealed to handle viscous MDI.
Mechanical Oriented Formers: The heart and soul of OSB production. A series of fluted drums orient the long strands as they enter the forming line (longitudinally on surfaces, transversely in the core), creating the cross-oriented three-layer structure that gives OSB its high mechanical strength.

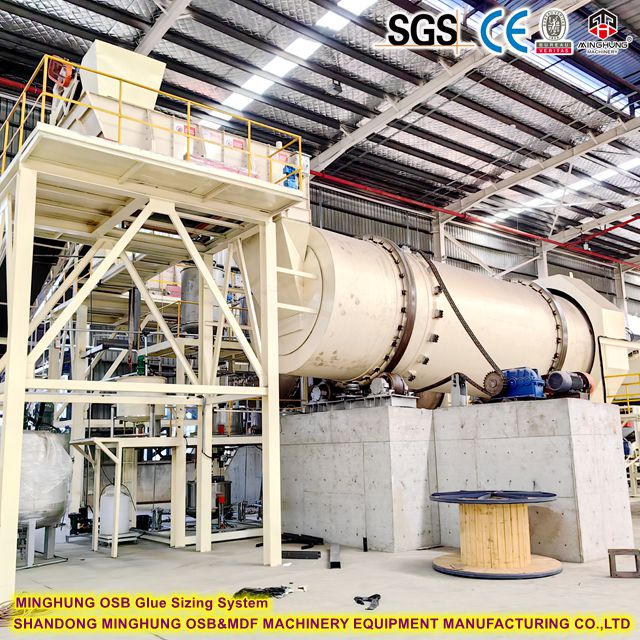

glue sizing system
osb forming machine
4. Pressing and Finishing Section:
Continuous Press: The absolute core equipment of the line. The formed mat is cured under high temperature (200-220°C) and high pressure (>60 bar) through this press, which can be dozens of meters long. Continuous presses produce boards with extremely uniform density distribution, superior surface quality, and much higher efficiency than batch presses.
Cooler and Star Cooler: Rapidly cools the hot boards exiting the press to set the resin structure, prevent deformation, and reduce internal stress.
Cross-Cut and Trim Saws: Cut the continuous board into required rough sizes.
Stackers: Automated stacking of panels.

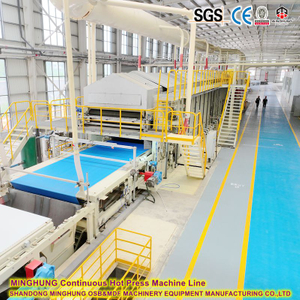

continuous hot press
dryer rack
cross-cut saw
5. Sanding and Quality Control Section:

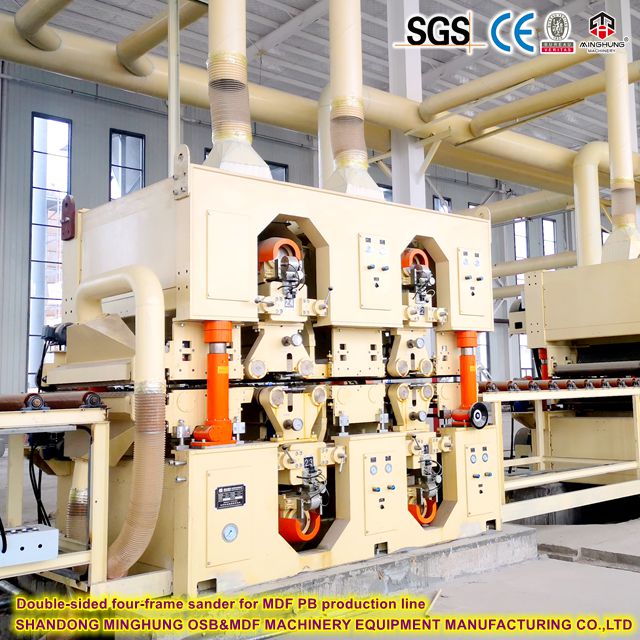

Wide-Belt Sanders: Typically heavy-duty sanders with multiple heads (e.g., 6-8) calibrate the panels to precise thickness and ensure a flat, smooth surface suitable for further processing.
Automated Quality Control Systems: Include online thickness gauges, defect scanners (X-ray or camera systems), and weight scales for real-time product quality monitoring.
| Complete Production Process |
This production line is a highly automated and integrated continuous system. The main processes are as follows:
1. Raw Material Preparation Section:
Debarking and Chipping: Poplar logs are first debarked by a drum debarker (bark affects board quality and bonding) and then chipped into uniformly sized wood strands by a large-scale disc chipper.
Screening and Re-crushing: The strands are screened.Qualified large strands are sent to the next process; oversize strands are sent to a re-crusher for refining, and fine particles can be used as fuel.
2. Strand Processing Section:
Drying: Wet strands are dried in a rotary dryer (typically powered by biomass, natural gas, or steam) to steadily reduce moisture content from ~50%-60% to a precise 2%-4%. This low moisture content is critical for effective blending and high-quality pressing.
Screening and Sorting: The dried strands are precisely sorted into fine surface layers and coarse core layers via airflow and mechanical screening.
Blending: The sorted strands are sent to separate surface and core blenders. This is the first key step for waterproofing. A water-resistant Polymeric Methylene Diphenyl Diisocyanate (PMDI) resin is used as the adhesive. Its superior water resistance and high bond strength are unmatched by ordinary Urea-Formaldehyde (UF) resin. Wax emulsion is also added to the resin mix and evenly coats the strands.
3. Forming and Pressing Section:
Oriented Forming: The resinated surface and core strands are sent through advanced orienting formers. The fine surface strands are oriented lengthwise on the top and bottom faces of the mat, while the coarse core strands are laid crosswise or randomly. This cross-oriented structure gives OSB its high internal bond strength and dimensional stability.
Pre-pressing and Mat Transport: The loose mat is lightly compressed by a continuous pre-press to gain strength for handling and is then transported at high speed into the press.
Hot Pressing: The mat enters a continuous press or a large-format multi-opening hot press. Under high temperature (200-220°C) and high pressure, the PMDI resin cures rapidly, creating a strong bond between the strands. The heat and pressure also plasticize the wood's natural lignin, further enhancing the board's strength.
4. Finishing and Processing Section:
Cooling and Trimming: The hot boards are cooled on a star cooler to stabilize their properties. They are then trimmed to standard format sizes by cross-cut and edge saws.
Sanding: The board surfaces are sanded by a wide-belt sander to ensure uniform thickness and a smooth surface, ready for further processing or direct use.
Quality Control and Packaging: Finally, boards are automatically graded by inspection systems, sprayed with waterproofing logos, grade, production date, and other information, and then automatically packaged for storage.
| Waterproof Properties |
The waterproof performance of the OSB produced by this line is not achieved through a single process but is a system engineering feat, evident in multiple stages of the production chain:
1. Adhesive Selection (Core): The use of PMDI resin instead of traditional UF resin. PMDI forms an irreversible, stable network upon curing, which is highly water-resistant and experiences minimal strength loss when wet, fundamentally solving the problem of glue-line failure upon water exposure.
2. Waterproofing Additive: The addition of wax emulsion during blending. The wax particles distribute evenly on the strand surfaces, melt during hot pressing, and fill the microscopic voids between strands, effectively blocking pathways for water penetration.
3. Raw Material characteristics: Full poplar wood has uniform texture and moderate fiber length, allowing it to be thoroughly coated by resin and wax, resulting in a uniform and dense mat structure with fewer weak points for water ingress.
4. High-Pressure Forming: The intense hot pressing significantly increases board density and internal bond strength, creating a very compact structure that greatly reduces water absorption and thickness swell.
5. Precise Process Control: Fully automated control ensures the accuracy of key parameters such as strand moisture content, resin dosage, press temperature, pressure, and time, guaranteeing stable and excellent waterproof performance in every board.
| Key Features & Advantages |
1. Premium Full Poplar Raw Material:
Made from 100% fast-growing, cultivated poplar, ensuring a stable, sustainable, and eco-friendly wood supply.
Poplar's moderate fiber length and uniform texture result in a fine board structure with high internal bond strength and excellent surface flatness, ideal for further processing and finishing.
2. Exceptional Waterproof & Moisture Resistant Performance:
Utilizes advanced waterproof resin adhesives (typically modified PMDI eco-friendly glue), whose bonding power is unaffected by moisture.
Wax or other water repellents are added during production to significantly reduce water absorption and thickness swelling.
The waterproof grade typically meets or exceeds EN300 Standard OSB/3 (Load-bearing boards for use in humid conditions) or higher, capable of withstanding short-term exposure to wet environments.
3. High Structural Strength & Durability:
Oriented Layering Technology: Mimics wood's natural grain by aligning strands longitudinally on the surface layers and transversely in the core, creating a cross-oriented structure. This provides immense internal bond strength, modulus of rupture (MOR), and resistance to warping, similar to an "I-beam" effect.
Its load-bearing capacity, impact resistance, and screw-holding power far exceed those of standard particleboard and are comparable to plywood.
4. High Capacity & Quality Consistency:
An annual output of 100,000 m³ signifies a highly automated, modern continuous press production line, guaranteeing precise control over process parameters and exceptional batch-to-batch consistency.
Large-scale production also translates to reliable supply stability and competitive pricing.
5. Eco-Friendly & Safe:
Often produced with No-Added-Formaldehyde (NAF) PMDI glue or ultra-low emitting formaldehyde resins. The product complies with stringent international emission standards such as CARB NAF, CARB EPA Phase 2 (USA), and European E1 or E0 standards.
The product is recyclable and green.
| Primary Applications |
Construction: Wall and roof sheathing, floor decking in wood-frame construction; concrete formwork (stay-in-place).
Packaging & Transport: Container flooring, cargo van linings, large crates, pallets.
Interior & Exterior Decoration: Subflooring for bathrooms/kitchens, basement lining, substrate for external insulation.
Furniture & Home Furnishings: Load-bearing structural substrate for high-end furniture, storage shelves, table cores.
Others: Substrate for advertising boards, warehouse shelving, construction staging.
Claim Your Free OSB Line Layout! Get end-to-end plant design from strand preparation to sanding. Receive 3D factory plan within 30 days.
