A production line achieving this capacity (approximately 36.4 m³ per hour based on 22 hours of effective production time) is a highly capital and technology-intensive, continuous large-scale production line. Its main core equipment includes:

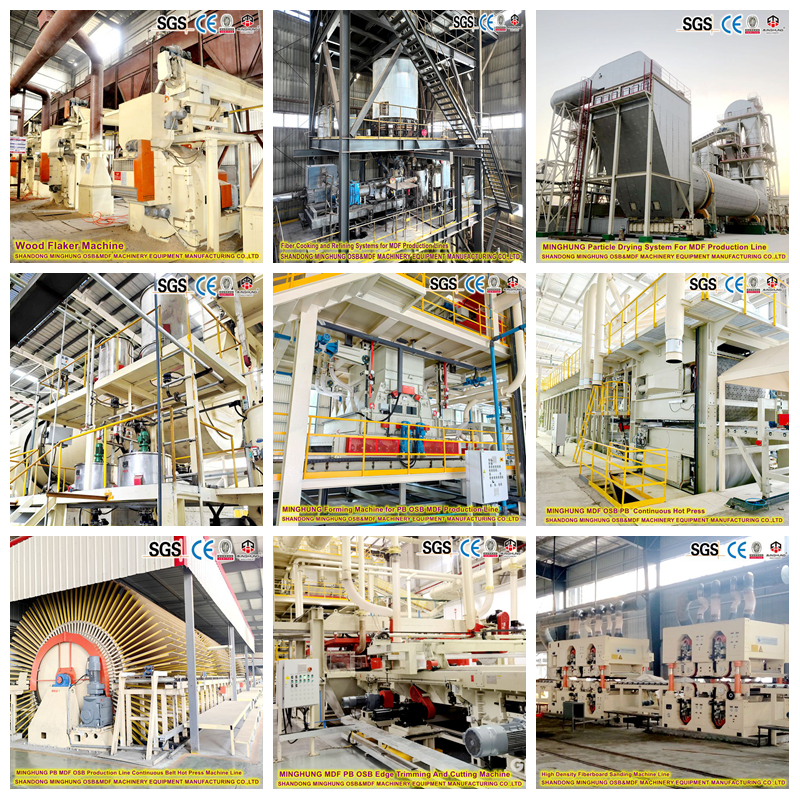

1. Raw Material Preparation Section
Chipper: Chips raw logs, branches, or wood chip raw materials into uniform process chips to provide qualified raw material for subsequent fiber separation. Typically uses large disc chippers.

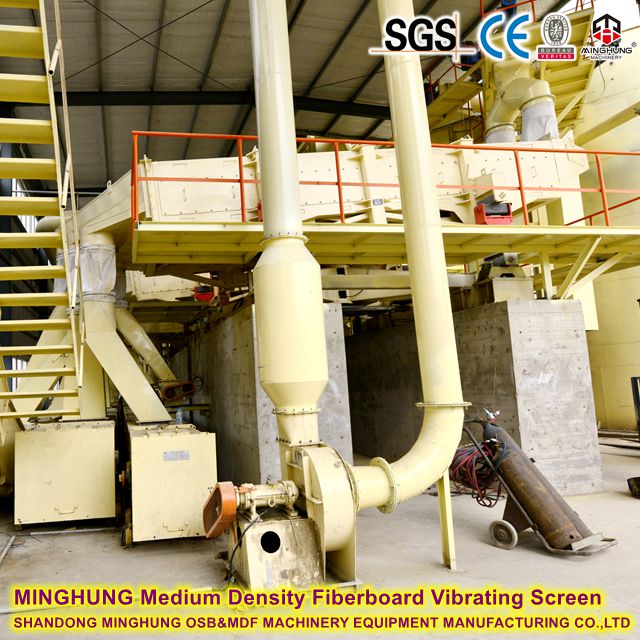

Chip Screen & Re-crusher: A vibrating screen sorts out oversized chips and sends them back to the re-crusher for re-chipping, while fines are removed (can be used as fuel), ensuring uniform chip size enters the next stage.
Chip Washing & Pre-heating Bin: Chips are washed to remove sand, metal, and other impurities, then enter a pre-heating bin for steam pre-heating and softening in preparation for fiber separation.
chipper
chip screen
2. Fiber Preparation Section (Core)
Defibrator / Refiner: This is the "heart" of MDF production. Pre-heated chips are fed into the defibrator, where they are softened under high-temperature, high-pressure steam, and then separated into wood fibers by the high-speed rotation of grinding discs. During this process, adhesives (typically urea-formaldehyde UF or melamine-urea-formaldehyde MUF resins), wax (water repellent), and other additives (e.g., anti-warping agents) are evenly injected and blended into the fibers through resin application nozzles. This is key to achieving uniform resin application on the fibers.
3. Forming and Pre-pressing Section
Fiber Drying Pipe: The resinated wet fibers are pulse-dried in a high-temperature airflow pipe, rapidly reducing the fiber moisture content to the ideal range of 8%-12%.
Pneumatic Mat Former: The dried fibers are formed into a uniform, fluffy, and consistent-thickness fiber mat on a moving caul plate via high-speed airflow and an advanced forming head. Mat uniformity is the foundation for determining board density consistency and anti-warping properties.
fiber dryer
mat forming machine
4. Pressing and Finishing Section
Pre-press: The fluffy fiber mat is first cold pre-pressed or lightly hot pre-pressed to initially compress it into a "blanket" with some strength, facilitating transportation and reducing blow-out during hot pressing.

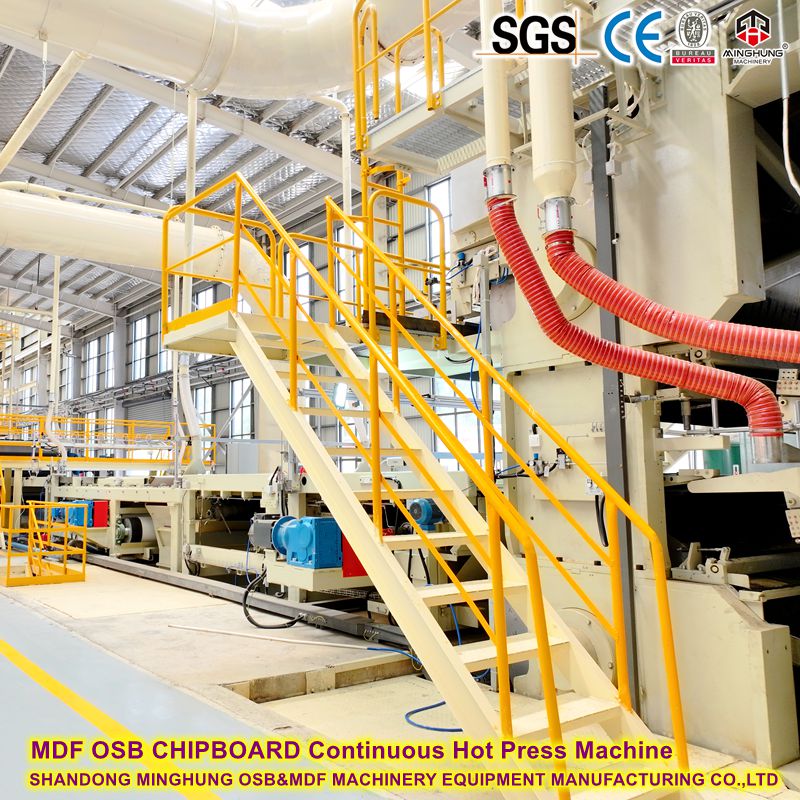

Continuous Press: This is the signature equipment of modern high-capacity MDF lines . The blanket is continuously fed via steel belts into an extremely long hot press (dozens of meters long), where the adhesive cures and the fibers are compressed into a dense board under set temperature (e.g., 180-210°C), pressure curves, and time. Boards produced by continuous presses have small density gradients, high internal bond strength, and extremely precise thickness tolerances, making this a key piece of equipment for ensuring anti-warping capability.

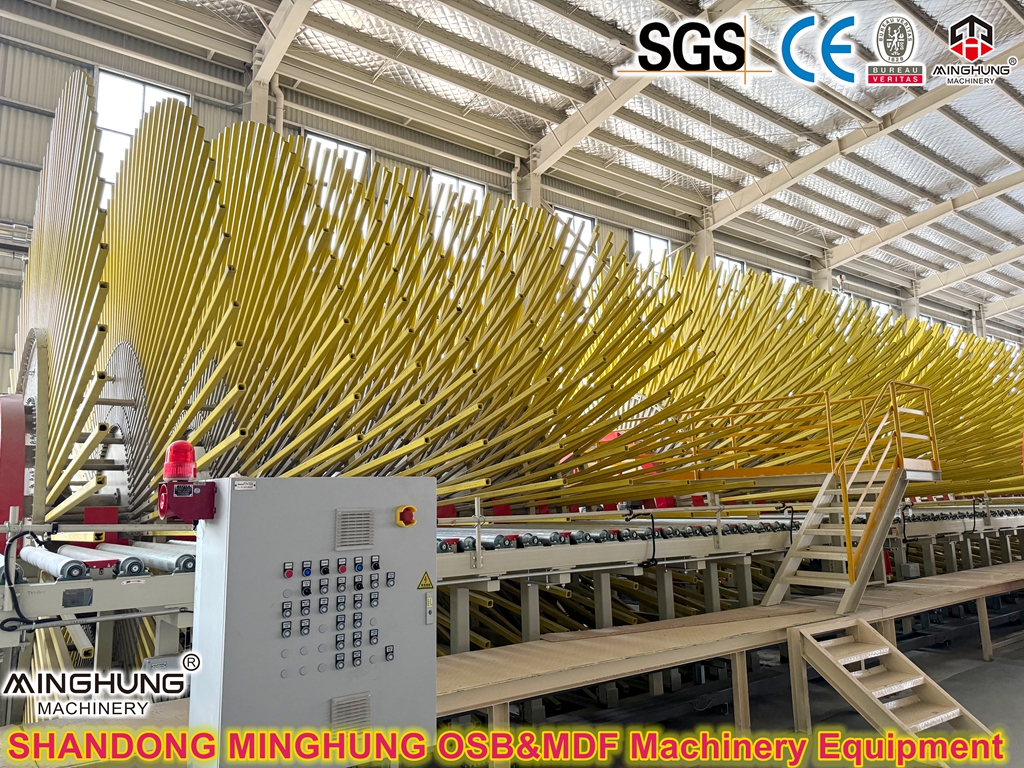

Cooling & Stacking System: Boards exiting the press are very hot (above 90°C) and must enter a star cooler or similar for forced air cooling to release internal stresses, stabilize dimensions, and prevent warping. Cooled boards are stacked by automatic stackers.

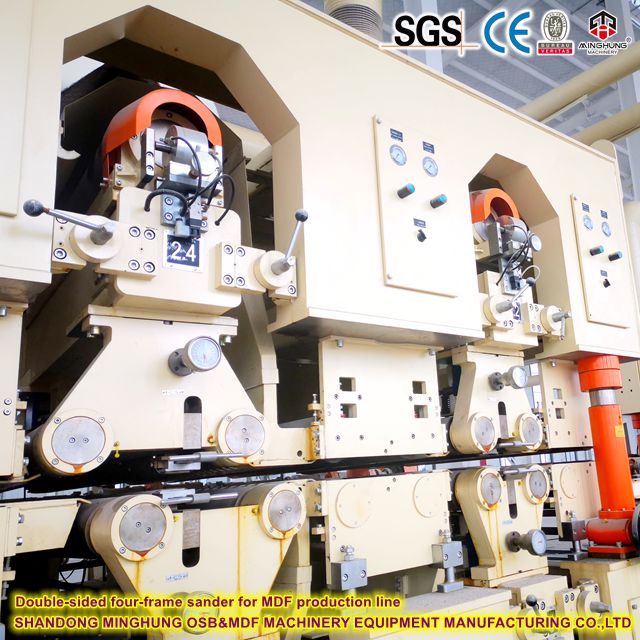

Sawing & Sanding Line: Large vertical and horizontal edge saws trim the continuous board strip to standard sizes (e.g., 1220x2440mm). Then, the boards must be precisely sanded by a multi-head calibrating sander to ensure uniform thickness across the entire board surface and a smooth, flat finish. Sanding is crucial for subsequent laminating and finishing.
5. Auxiliary Systems
Energy Plant: Provides heat for core equipment (drying pipe, hot press). Typically uses waste materials from the production process like bark, sander dust, and trim ends as biomass fuel, saving energy and being environmentally friendly.
Automation Control System: A central computer system (DCS/PLC) monitors and controls all process parameters (temperature, pressure, speed, moisture content, resin dosage, etc.) throughout, ensuring production stability and highly consistent product quality.
The production process closely corresponds to the aforementioned equipment:
1. Raw Material Preparation: Wood → Chipping → Screening → Washing → Pre-heating.
2. Fiber Preparation: Pre-heated chips → Defibrating (Fiber separation) → Simultaneous application of resin, wax, additives → Fiber drying.
3. Mat Forming & Pre-pressing: Dried fibers → Pneumatic forming → Forming uniform mat → Pre-pressing.
4. Pressing & Curing: Pre-pressed mat → Continuous hot press (adhesive cures under high temp/pressure) → Forming into rough board.
5. Finishing: Rough board → Cooling → Trimming/Sizing → Sanding → Inspection & Grading → Packaging & Warehousing.
"Anti-warping" is not a single indicator but a comprehensive reflection of the MDF's internal quality and dimensional stability, primarily referring to the ability to resist warping, bowing, and twisting.
Key Manifestations:
1. Very Low Warpage: The board remains flat over long periods of storage and use, without corners lifting (potato chipping) or overall bending.
2. Excellent Dimensional Stability: The board exhibits minimal expansion and contraction with changes in environmental temperature and humidity, maintaining stable shape and size.
3. High Rigidity: The board has a high Modulus of Elasticity (MOE), resisting bending deformation under load.
Realization in the Production Process :
1. Precise Density Control & Uniform Density Distribution:
How it's achieved: Ensure absolutely uniform fiber distribution across the entire board surface via a high-precision forming head. Use precise pressure and temperature curves in the continuous press to create a reasonable density gradient (slightly higher surface density, slightly lower but uniform core density). Uniform density distribution is the foundation of anti-warping. Uneven density inevitably leads to uneven internal stresses, causing warping.
2. Optimized Resin and Additive System:
How it's achieved: Use quality-stable adhesives (e.g., MUF resin offers better moisture resistance and bond strength than UF resin). Precisely control resin dosage, as too much or too little affects performance. Add specialized enhancers or cross-linking agents to improve the strength and moisture resistance of the fiber bonding network, thereby enhancing the board's overall rigidity and ability to withstand moisture intrusion.
3. Advanced Pressing Process:
How it's achieved: Compared to multi-opening presses, continuous presses provide a gentler, more linear pressure release curve, allowing for better relief of internal board stresses and significantly reducing residual stress (the root cause of warping). Precise control of every stage of the hot press cycle (preheating, compression, curing, pressure release) is core technology for producing high-end, stable boards.
4. Adequate Stress Relief & Conditioning:
How it's achieved: The cooling section is crucial. Hot boards must be cooled fully and uniformly on a cooling star or rack to balance internal stresses. Some high-end production lines are also equipped with special conditioning chambers, where boards are stored for a period under specific temperature and humidity conditions to equilibrate moisture content and further release stress, greatly improving dimensional stability.
5. Precise Sanding Control:
How it's achieved: A multi-head (e.g., 6-8 head) calibrating sander can accurately sand the board surface to a consistent thickness (e.g., 25mm ±0.15mm). If the board thickness is uneven, it's like a table with uneven legs,extremely prone to deformation under load or environmental changes.
In summary, "Anti-warping MDF" is achieved through precise process control across the entire workflow—from raw materials, fiber preparation, and forming to pressing and finishing. It relies on high-precision equipment (e.g., continuous presses, precision formers), quality resins and additives, and process parameters optimized based on extensive experience.
This represents a very large, world-class, technology-intensive, modern industrial production line scale, placing it within the first tier of the industry.
We can understand this scale from the following perspectives:
1. From an Absolute Production Capacity Perspective:
Daily Output: 800 cubic meters per day.
Annual Output: Production lines typically have about 330 effective production days per year (deducting planned maintenance, holidays, etc.), resulting in an annual capacity of approximately 800 m³/day × 330 days = 264,000 m³/year, or 264 thousand cubic meters per year.
2. From an Industry Comparison Perspective:
Large Modern Lines: Currently, newly built modern MDF production lines globally typically start from capacities of 600 m³/day, with mainstream large lines concentrated in the range of 800-1000 m³/day and above. The largest single-line capacities can reach 2000-3000 m³/day.
Therefore, an 800 m³/day capacity clearly indicates a large-scale production line with extremely strong market competitiveness.
3. From a Technology Perspective:
Achieving this capacity almost certainly necessitates the use of the most advanced technology: a continuous press production line. These lines feature extremely high automation levels, stable product quality, and low energy consumption, making them the exclusive choice for high-end MDF production.
4. From a Market Position Perspective:
Companies operating production lines of this scale are typically major suppliers in regional or even global markets.
The massive capacity provides strong bargaining power and economies of scale in both raw material procurement and product sales, enabling them to offer high-quality products at competitive prices and meet the demands of large-volume global purchase orders.
"800 m³ per day" is not an ordinary production scale. It represents advanced technology, large investment, high efficiency, and a significant market share, serving as a key indicator of a leading enterprise within the industry.
MDF dimensions typically include panel size (length and width) and thickness.
1. Panel Size / Dimensions:
Most Common Standard Size: 1220mm x 2440mm (4 feet x 8 feet). This is the most universal and widely accepted standard size globally, derived from the imperial unit measurement of 4x8 feet.
Other Common Sizes:
1830mm x 2440mm (6 feet x 8 feet)
1525mm x 2440mm (5 feet x 8 feet)
1220mm x 1830mm (4 feet x 6 feet)
Larger sizes such as 2100mm x 2800mm are also available (often used in construction and decoration to reduce seams).
Importance:
Logistics & Transportation: This size can be loaded very efficiently into standard shipping containers (e.g., 40-foot containers) and freight trucks, maximizing space utilization and reducing unit transportation costs.
Downstream Application: It perfectly matches the equipment (e.g., panel saws, edge banders) and design modules of industries like furniture and cabinet manufacturing, minimizing waste and improving material utilization efficiency.
2. Thickness:
MDF is available in a very wide range of thicknesses to meet different application needs.
Common Thickness Range: Typically from 2.5mm or 3mm ultra-thin boards to 30mm or even thicker ultra-thick boards.
Common Thickness Classifications:
Thin MDF: 2.5mm, 3mm, 4mm, 5mm, 6mm. Mainly used for backing panels, drawer bottoms, decorative moldings, ceiling tiles, and as the core layer for composite doors.
Standard Thickness: 9mm, 12mm, 15mm, 18mm. This is the most commonly used range for cabinet bodies, tabletops, shelves, door cores, and furniture components.
Thick MDF: 25mm, 30mm, 35mm. Used for applications requiring stronger support, such as workbench tops, large table legs, stair treads, and heavy-duty shelving.
Thickness Tolerance: For high-quality MDF, especially after calibrating sanding, thickness tolerance requirements are very strict (e.g., ±0.15mm to ±0.20mm). This ensures precision in subsequent processing, particularly when using CNC routers for milling and drilling.
