1. Metering Conveying System – ensures uniform feeding, avoids material pile-up

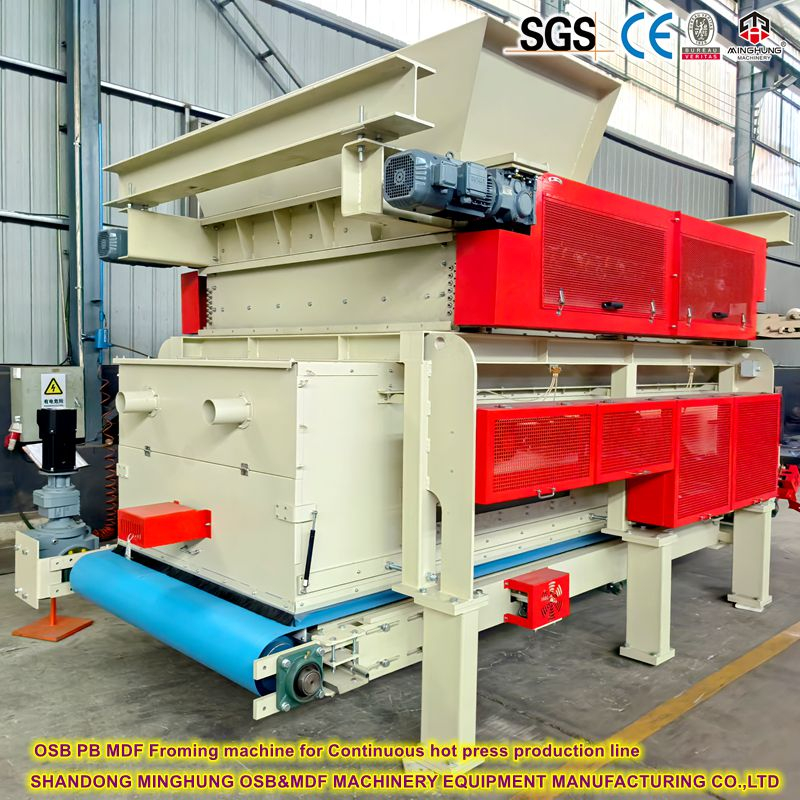

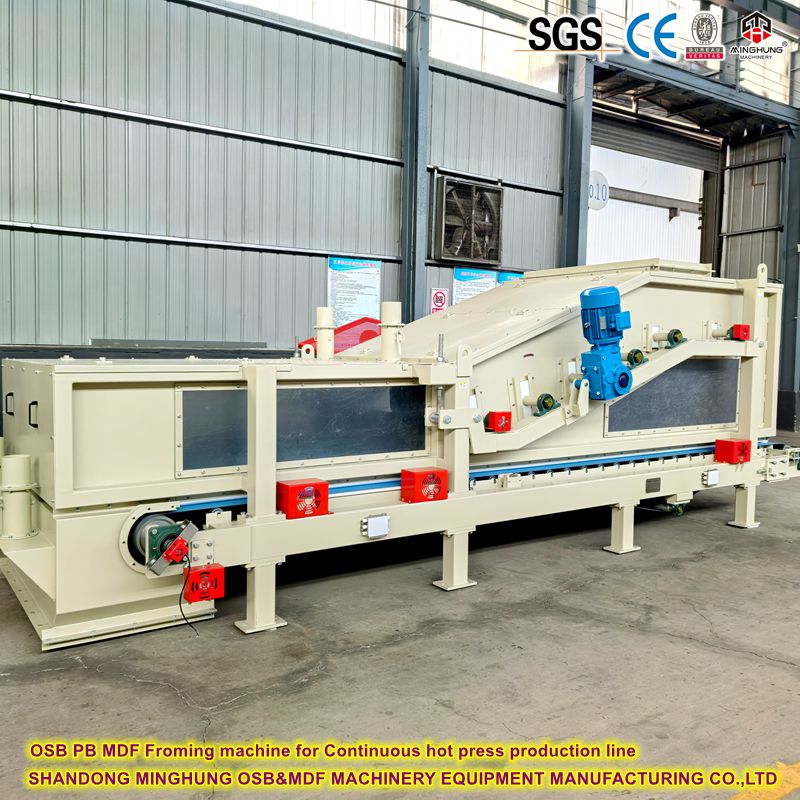

2. Forming Head Groups (separate for surface and core layers) – includes throwing rollers and variable-speed motors

3. Classification Screening Device – separates fine and coarse particles

4. Vacuum Edge Trimming System – controls mat width and edge uniformity

5. Forming Belt and Drive Unit – carries and transports the mat

6. Electrical Control System – PLC with HMI for closed-loop mat forming accuracy

7. Frame and Safety Guards – machine structural support and operator protection

Glued wet particles are fed into multiple forming heads via a metering conveyor. Inside each head, a high-speed mechanical throwing roller projects the particles onto the continuously moving forming belt below. By adjusting roller speeds, gate openings, and particle screening, fine surface particles and coarse core particles can be spread separately, forming a three-layer structured mat. The mat is then pre-compressed and conveyed to the hot press.
