The fully automatic particleboard drying line is a core component in the wood-based panel production process. Its main function is to dry the pre-treated wet particles to a specific moisture content, preparing them for the subsequent steps of gluing and hot pressing. The performance and stability of this line directly determine the final quality of the particleboard.
|
Mainstream Particle Dryer Types
In modern fully automatic production lines, the most prevalent type is the continuous dryer, often of the drum type. Based on structure, they are mainly categorized as follows:

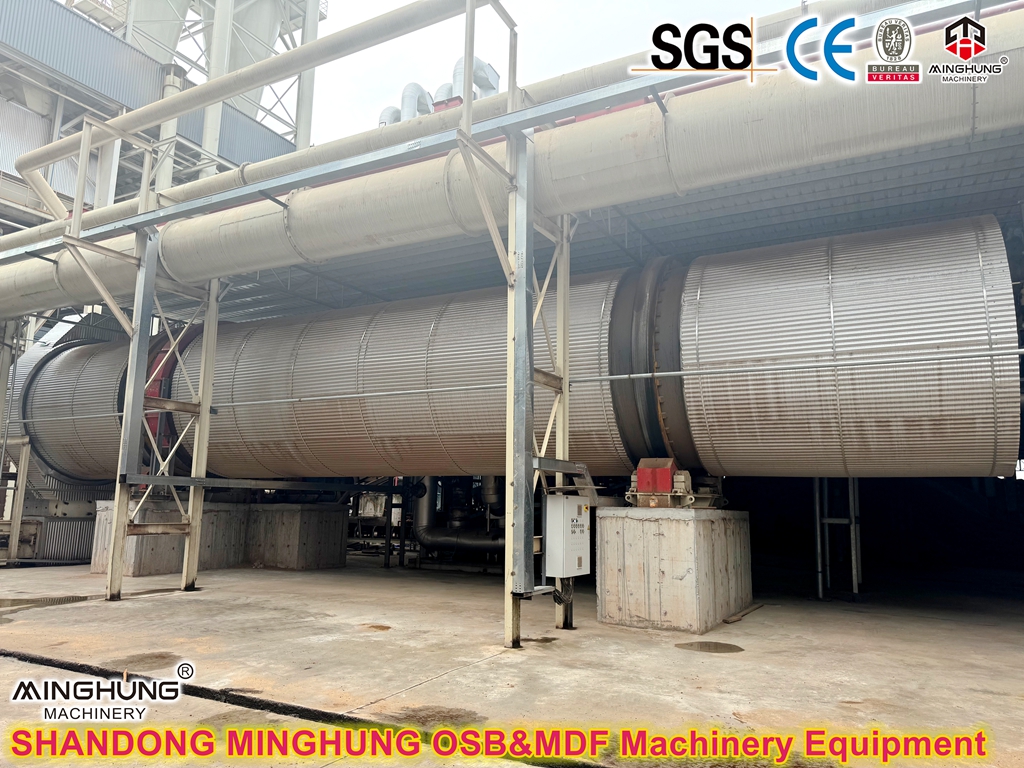

![]() | Three-Channel Dryer (Triple-Pass Drum Dryer) |
This is currently one of the most widely used models, consisting of three concentric cylinders nested inside each other.
Working Process: Wet particles and high-temperature hot air enter together into the innermost cylinder. Guided by lifting flights and the rotational force, the material travels along a path: Inner Cylinder → Middle Cylinder → Outer Cylinder. Inside the inner cylinder, the particles contact the high-temperature airflow, rapidly evaporating moisture. Upon entering the middle cylinder, the flow direction reverses, extending the drying time. Finally, in the outer cylinder, the drying process is completed, and the material is discharged from the outlet.
Core Features: Compact structure, small footprint, and high thermal efficiency. Due to the long residence time and the tortuous path, this type is highly efficient for drying large volumes of material with high initial moisture content.

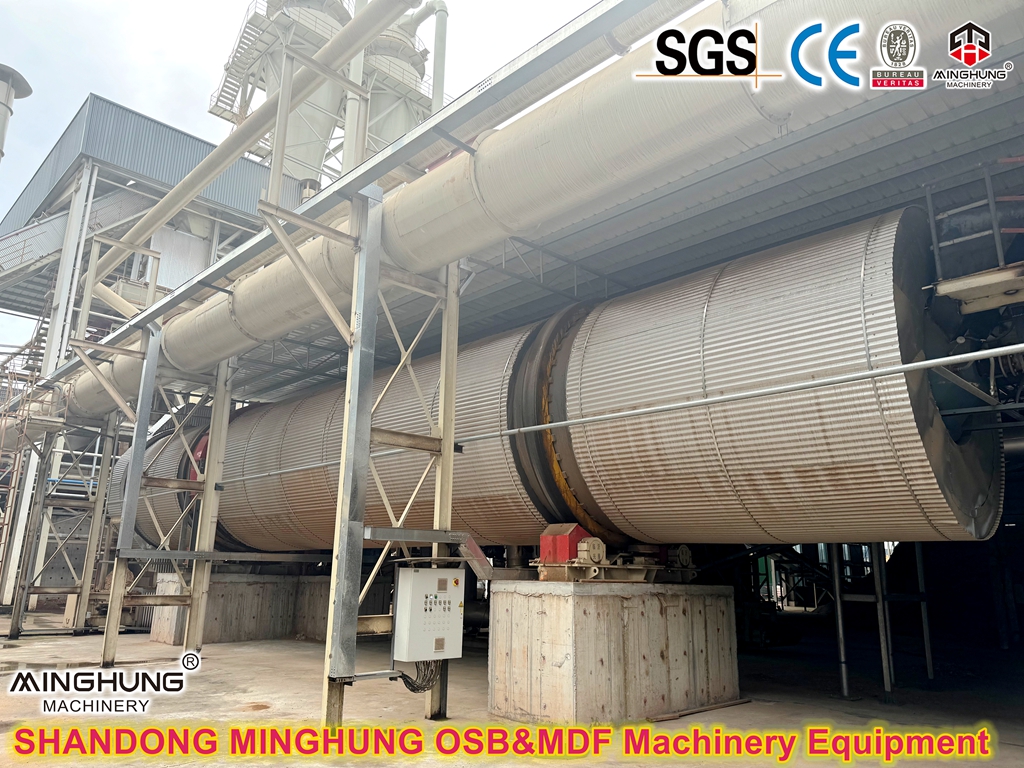

![]() | Single-Channel Dryer (Single-Pass Drum Dryer) |
This is a simpler type of rotary drum dryer, consisting of a single, large cylinder.
Working Process: Wet particles enter one end of the slowly rotating large drum. The interior of the drum is fitted with various types of "flights" or "lifters." As the drum rotates, these flights continuously lift and shower the particles, creating a uniform "curtain" of material falling through the stream of hot air, facilitating thorough heat and mass transfer for drying.
Core Features: Simple construction, lower maintenance and operational costs. Because the particles are primarily subjected to soft action from gravity and airflow, with less collision and friction among themselves, this type better preserves particle morphology. It is particularly suitable for applications where particle shape is critical, such as in the production of Oriented Strand Board (OSB).

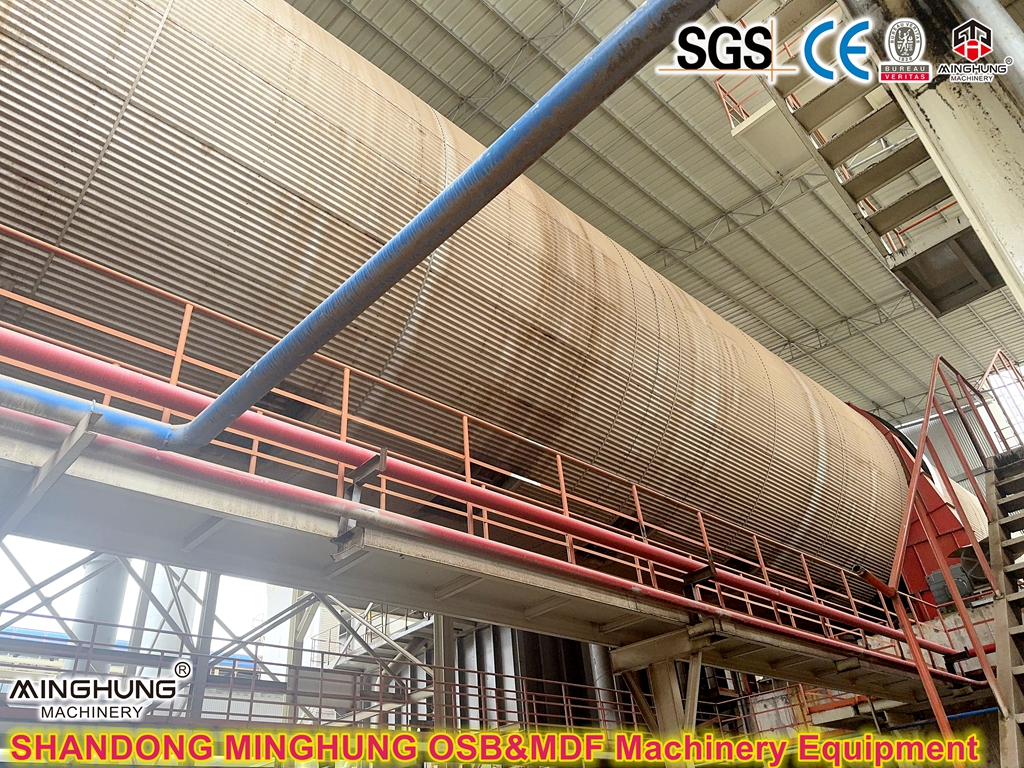

![]() | Rotor Dryer |
This is a more traditional type, gradually being replaced by continuous drum dryers in many new lines, but still found in some older plants or specific applications.
Working Process: Inside the dryer, a rotor equipped with blades spins at high speed. Incoming wet particles are struck and dispersed by the rotor blades, creating intense turbulence and contact with the hot air stream.
Core Features: Offers high drying intensity but also tends to cause significant particle size reduction, potentially generating an excessive amount of fine dust/powder.
|
Product Packaging
|
Application Video
|
Auxiliary Systems and Process Control
A complete and efficient drying line comprises more than just the main dryer; it relies on several crucial auxiliary systems and sophisticated automation:
Heat Supply System: Provides the thermal energy for drying. Based on fuel type, it can use hot gas, steam, or thermal oil as the heat transfer medium. Common heat sources include hot gas generators fired by coal, gas, oil, or biomass (such as waste wood).
Feeding and Discharge Systems: Includes equipment like screw conveyors transporting wet particles from the storage bin to the dryer, and drag chain conveyors moving dried particles to the dry particle silos. These ensure continuous and stable material flow.
Dust Collection and Environmental Protection System: The drying process generates significant amounts of dust-laden exhaust gas. Modern lines are typically equipped with cyclone separators (to recover larger particles) and baghouse filters (to capture fine dust), ensuring emissions meet environmental standards.
Automation Control System: This acts as the "brain" of the line. Using a Programmable Logic Controller (PLC) and various sensors (e.g., temperature sensors, moisture meters), it continuously monitors and automatically adjusts key parameters such as inlet temperature, feed rate, and drum speed. This ensures the final moisture content of the output particles remains consistently stable (e.g., between 2% and 5%), enabling 24/7 unattended automatic operation.
|
