MH-OSB
MINGHUNG

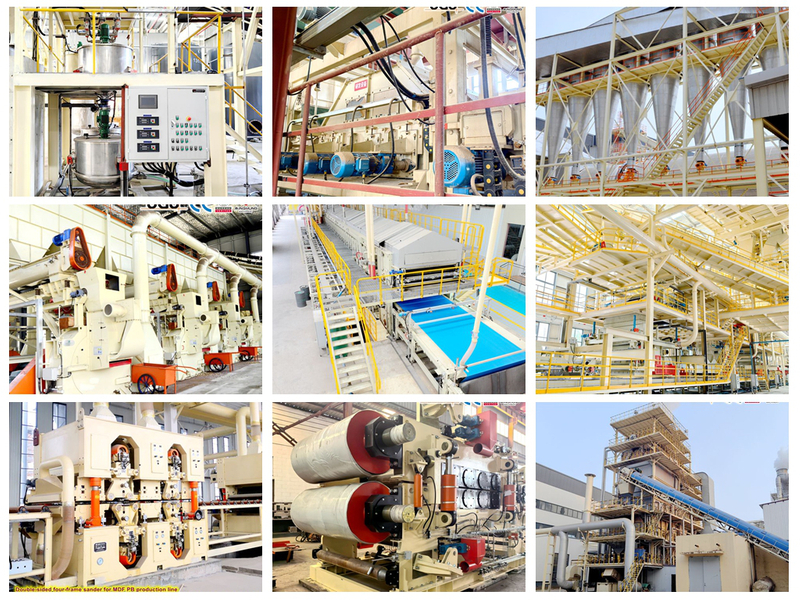

1. Raw material processing equipment: Flaker (converts logs into oriented strands), dryer (removes excess moisture), screener (classifies strand sizes).
flaker
dryer
screener
2. Bonding & mixing equipment: High-precision adhesive metering and application system, high-speed mixing blender.
3. Oriented forming equipment: Mechanical/air-flow combination forming machine with magnetic or electrostatic orientation devices.

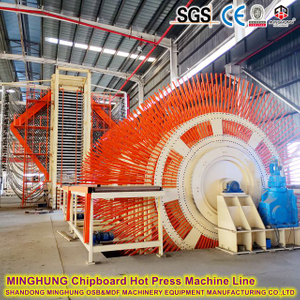

4. Continuous hot press: Zoned temperature control, high-frequency auxiliary heating, and fast-curing module.
5. Post-processing equipment: Cooling turner, edge trimmer, sander, stacking and packaging line.
cooling turner
edge trimmer
sander
6. Intelligent control system: PLC and SCADA system for the entire line, with online sensors for moisture content, glue amount, temperature, pressure.
1. Raw material preparation: Log debarking and cutting to generate uniform long strands.
2. Drying & screening: Strands are dried to optimal moisture content, and fines are removed by screening.
3. Blending: Strands are uniformly mixed with fast-curing adhesive in a high-speed blender.
4. Oriented forming: Strands are aligned by orientation devices into a three‑layer or multi‑layer structure (fine surface, coarse core) to form a mat.
5. Continuous hot pressing & curing: The mat enters the continuous hot press and is rapidly cured into a panel under high temperature and pressure.
6. Cooling & cutting: After cooling, panels are trimmed to size and sanded to thickness.
7. Inspection & packaging: Quality check, stacking, and packaging for storage or shipment.
OSB (Oriented Strand Board) is an engineered wood panel made from small-diameter logs or fast-growing plantation wood through flaking, oriented forming, and hot pressing. Its key feature is that strands are arranged in specific directions in the surface and core layers, offering high strength, excellent dimensional stability, strong screw-holding capacity, and good workability. OSB panels can be manufactured with no or low formaldehyde addition (using MDI or phenolic resins), providing superior environmental performance. They are widely used in timber-framed buildings, roof/wall sheathing, subflooring, packaging boxes, shelving, and furniture manufacturing.
1. Significantly higher output: The fast-bonding system reduces hot press curing time by over 30%, increasing production per unit time.
2. Superior panel quality: High-precision oriented forming + continuous hot pressing ensures uniform strength ratio in longitudinal/transverse directions, smooth surface, and high internal bond strength.
3. Lower energy & cost: Variable frequency drives + heat recovery units reduce electricity consumption and heat loss; rapid curing lowers energy usage.
4. Environmentally compliant: Compatible with formaldehyde-free or low-formaldehyde adhesives, together with exhaust gas treatment, meeting international standards such as E0 and CARB.
5. Flexible production: Quick changeover system for thickness 6–40 mm and width up to 2500 mm, suitable for orders in construction, packaging, and decoration.
6. Intelligent management: PLC/SCADA real-time monitoring and automatic parameter adjustment reduce human errors and ensure batch consistency.
7. Service support: Installation & commissioning, training, spare parts, and optional remote diagnostics minimize downtime.
Provides one-stop services from installation & commissioning to personnel training and spare parts supply. Optional remote diagnostic module ensures long-term high-efficiency operation of the production line.
