The custom multi-size MDF production line consists of the following main sections:
Raw material preparation: Chipping, screening, washing, and preheating
chipper
screen

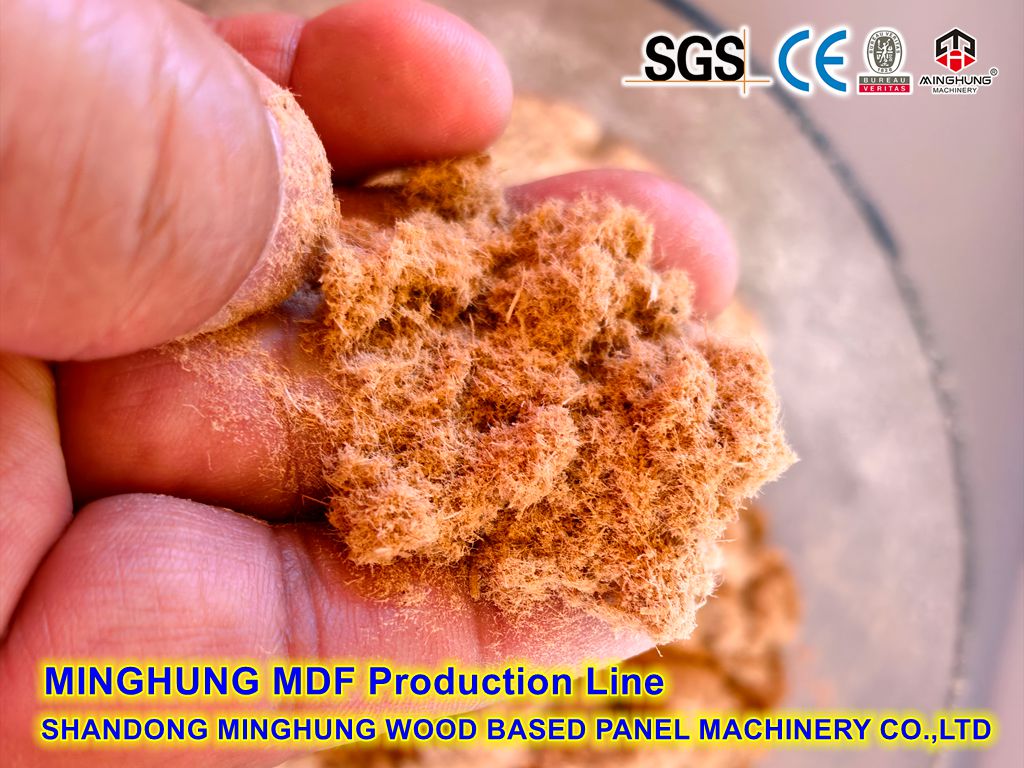

Fiber preparation: Refining system (high-pressure refiner), glue blending and metering system
refining system
glue blending
Drying: High-efficiency flash tube dryer
Forming and pre-pressing: Mechanical/pneumatic combined former, continuous pre-press
forming machine
pre-press
Hot pressing: Continuous flat-press hot press (or multi-opening press, optional)
Continuous flat-press
multi-opening press
Post-processing: Raw panel cross-cut, cooling turntable, stacking
Raw panel cross-cut

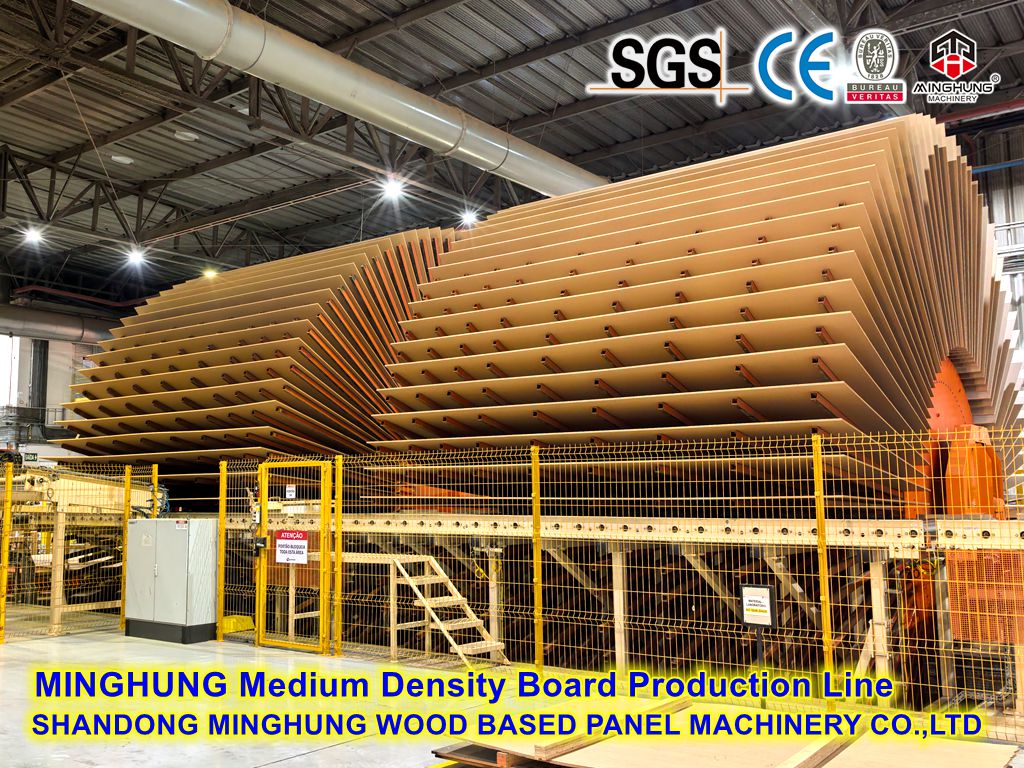

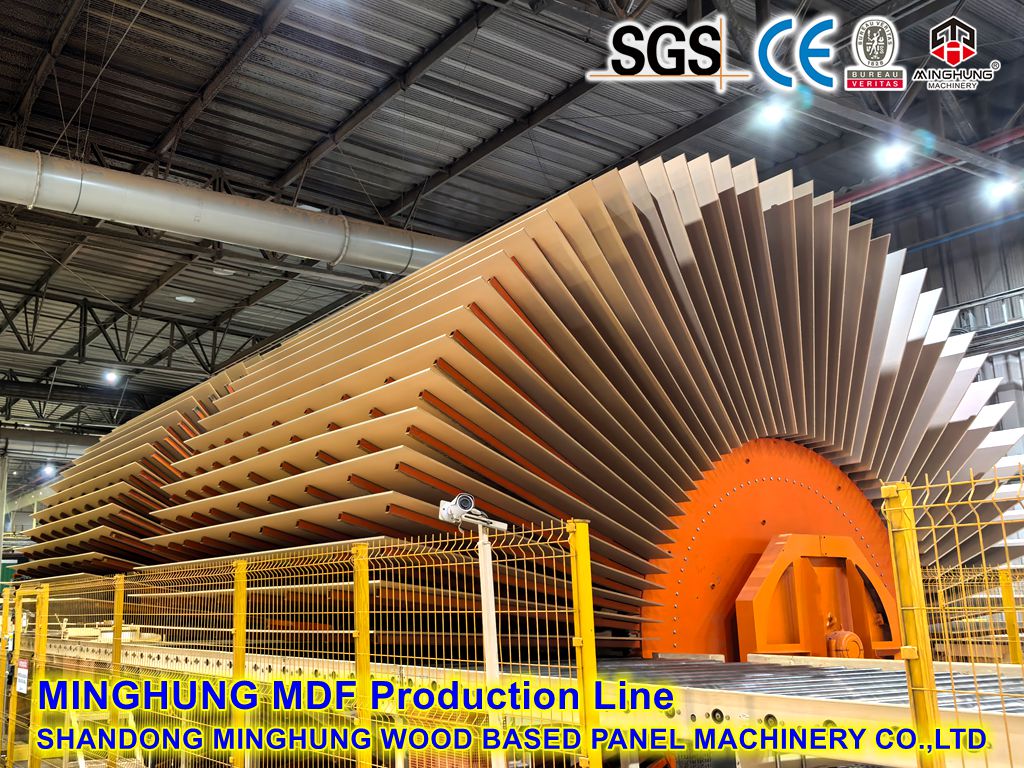

cooling turntable
Sanding and cutting: Wide-belt sander, edge trimming and cut-to-size saw
sander
cut-to-size saw
Flexible multi-size switching: Quick change of press frames and forming width adjustment allow production of various panel widths and thicknesses on the same line without prolonged downtime.
High-precision thickness control: Equipped with closed-loop thickness detection and feedback system, achieving thickness tolerance within ±0.1 mm.
Energy-saving design: Heat recovery system for hot press, insulated drying ducts, and optimized airflow reduce overall energy consumption by 15%-20% compared to conventional lines.
Intelligent management: Integrated data acquisition and MES interface support automatic production reporting, quality traceability, and predictive maintenance.
Wide raw material adaptability: Compatible with poplar, pine, eucalyptus, mixed hardwood, and certain agricultural residues.
Parameter | Specification |
Annual output | 50,000 – 300,000 m³/year |
Finished board thickness | 3 – 40 mm |
Finished board width | 1220 – 2800 mm |
Cutting length range | 1000 – 6000 mm (freely adjustable) |
Max cutting speed | Up to 120 sheets/hour (depends on length) |
Press type | Continuous flat press / Multi-opening press (optional) |
Control system | Siemens PLC + industrial touchscreen |
Furniture manufacturing (panel furniture, kitchen cabinets, wardrobes)
Architectural decoration (wall panels, ceilings, partitions)
Flooring substrates (laminate flooring, engineered flooring)
Door panels and door core materials
Packaging and pallet materials
We provide:
Free preliminary feasibility analysis and process design
Equipment manufacturing lead time: 4-10 months (depending on scale)
Overseas installation guidance and operator training
12-month warranty and lifetime technical support
Fast-track spare parts supply channel
