Complete OSB Plant Equipment Customizable Capacity Multiple sizes available

OSB Production Process

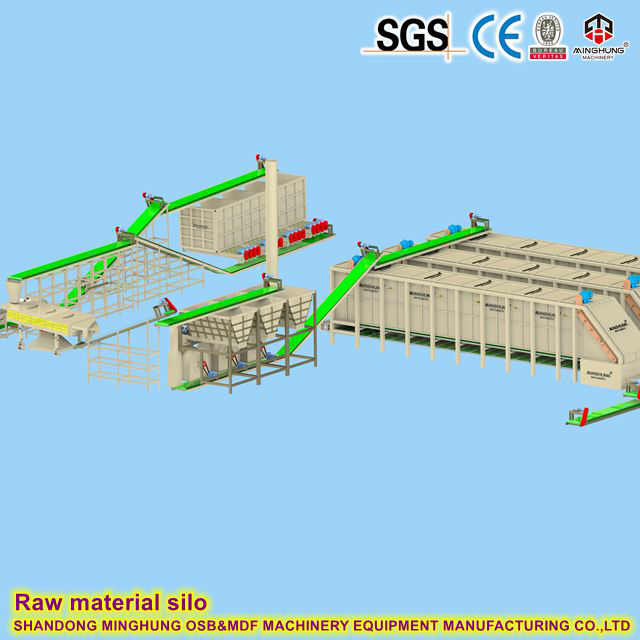

1. Raw material handling: Debarking, flaking, screening.

2. Drying: Wet flakes are dried in a rotary drum dryer.

3. Screening & storage: Separation into surface and core layers, then stored.

4. Blending & gluing: Application of phenolic or formaldehyde-free MDI adhesive.

5. Oriented forming: Mechanical/electrostatic orientation for strand alignment.

6. Continuous hot pressing: Continuous press forms the mat under high temperature and pressure.

7. Post-processing: Cooling, trimming, sanding, cut-to-size sawing.

8. Inspection & packing: Online quality check, automatic stacking, and palletizing.

Main production equipment for OSB production line

Log Debarker

Removes bark from logs to prevent impurities from entering the flakes and to improve panel surface quality.

Long-Log Strander

Converts debarked logs into long, flat strands — the key equipment for ensuring OSB orientation performance.

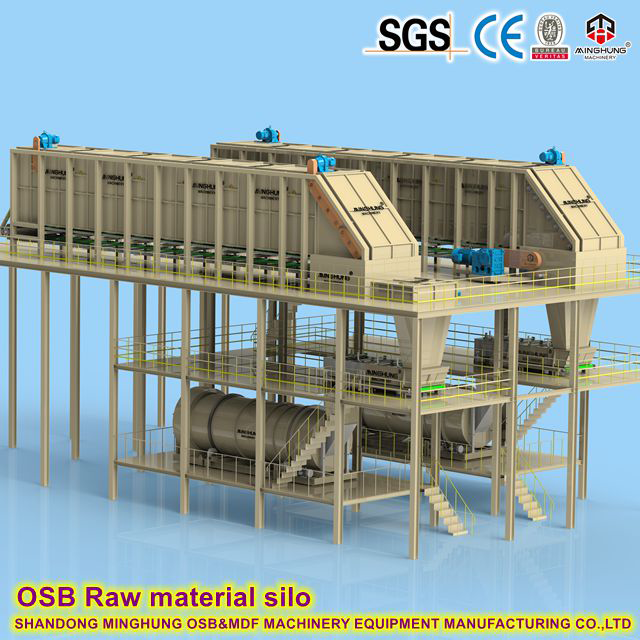

Wet Flake Silo

Temporarily stores undried flakes to balance feeding fluctuations in the drying stage.

Rotary Drum Dryer

Uses hot air to quickly reduce flake moisture content, ensuring uniform gluing later.

Screening System

Separates dried flakes into surface and core layers by size, optimizing panel structure.

High-Precision Gluing System

Applies adhesive to flakes at a preset ratio, with gluing tolerance controlled within ±1%.

Oriented Forming Station (4-Head / 6-Head)

Arranges glued flakes in a predetermined orientation to form a mat, determining panel mechanical properties.

Continuous Hot Press

Continuously presses the mat under high temperature and pressure — the core equipment for line efficiency and energy consumption.

Matt Cooling Carousel

Cools the hot panel naturally or forcibly after exiting the press to prevent warping.

Cross-Cut & Edge Trim Saws

Removes irregular edges of the rough panel to achieve standard dimensions.

Sander

Uses sanding belts to precisely control panel thickness and improve surface smoothness.

Main Technical Parameters

Advantages of the Production Line

Customizable capacity: From 50k to 300k m³/year, precisely matching market targets.

Flexible multi-spec switching: Quick adjustment of thickness, width, length, and density for diverse orders.

Complete turnkey capability: Full responsibility from design, civil work guidance, installation, commissioning, to trial production.

Highly automated operation: Centralized monitoring via control room reduces labor cost and errors.

Eco-friendly compliance: Supports MDI formaldehyde-free process; emissions exceed international standards.

Wide raw material adaptability: Process poplar, pine, eucalyptus, mixed hardwoods.

Stable and reliable: Key components from global brands .

Final Applications of OSB
