Definition and Basic Concepts

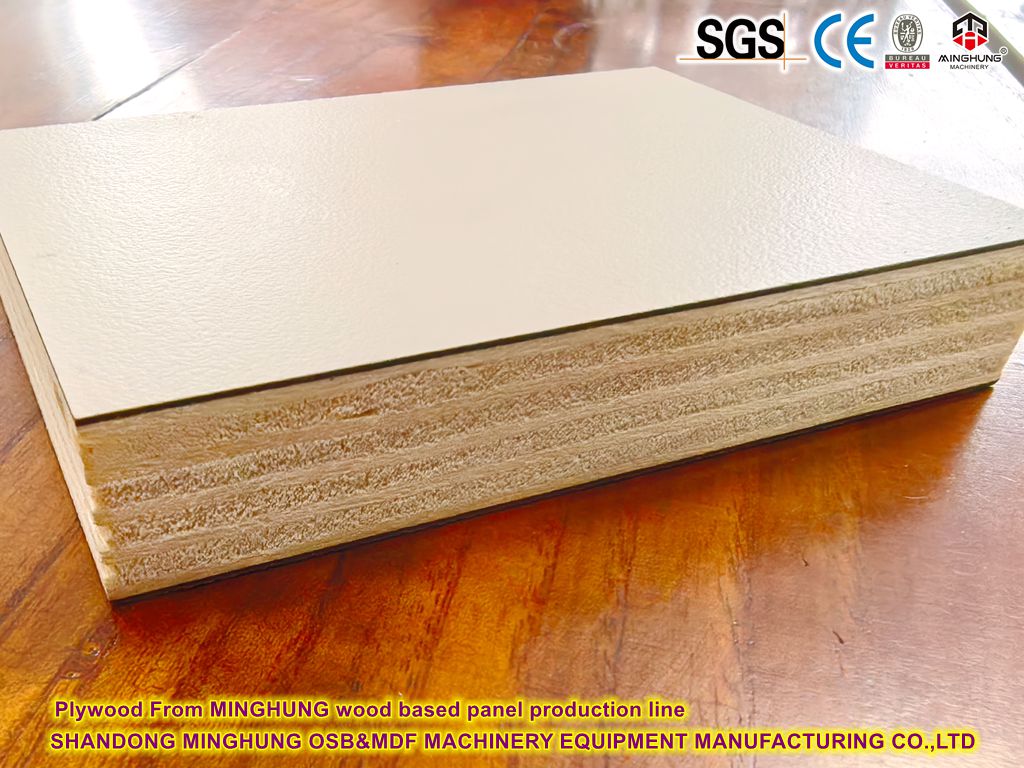

Core Definition: Plywood is a sheet material made by bonding multiple layers (typically an odd number) of thin wood sheets (called veneers) together with adhesives. The grain direction of adjacent layers is perpendicular to each other. The assembled layers are then pressed under high temperature and pressure in a hot press.

  Key Features:

      Layered Structure: Composed of multiple thin veneers stacked together.

      Cross-Grained Construction: The grain direction of adjacent veneer layers is perpendicular (90 degrees). This is the core design principle that gives plywood its exceptional stability.

      Bonded Under Pressure: Adhesives are used, and bonding is cured under heat and pressure.

      Balanced/Symmetrical Construction: Typically symmetrical around the central layer (core), with the same or similar number, thickness, and species of veneers on both sides. This minimizes warping and distortion.

Manufacturing Process

1.  Log Preparation: Selecting suitable tree species (e.g., birch, poplar, pine, basswood, beech, okoume, lauan), debarking, and bucking (cutting to length).

2.  Peeling/Rotary Cutting: Log sections (peeler blocks) are mounted on a lathe. As the block rotates, a continuous sheet of veneer of uniform thickness is peeled off, similar to sharpening a pencil. This is the primary method for producing veneer.

3.  Drying: The wet veneer sheets are fed into dryers to remove most moisture, achieving a suitable moisture content (typically 8%-12%) to prevent later warping and mold.

4.  Clipping and Repairing: Dried veneer is cut to size. Defects (like knots, splits) are patched or spliced.

5.  Gluing: Adhesive is applied evenly to the surface of the veneers (usually both sides of adjacent layers).

6.  Layup/Assembly: Glued veneers are stacked together following the principle of perpendicular grain direction between adjacent layers. The number of layers is usually odd (3, 5, 7, 9, etc.) to ensure symmetrical construction.

7.  Cold Pressing (Pre-pressing): The assembled panel (layup) undergoes initial cold pressing for temporary bonding, facilitating handling.

8.  Hot Pressing: The layup is loaded into a multi-opening hot press. It is subjected to high temperature (typically 120-150°C / 248-302°F) and high pressure (typically 1.0-1.4 MPa / 145-203 psi) for a set time. Heat cures the adhesive rapidly; pressure ensures intimate contact between veneers.

9.  Cooling and Trimming: Pressed panels are cooled to set. Rough edges are trimmed off to achieve standard sizes (e.g., 1220mm x 2440mm / 4ft x 8ft).

10. Sanding (Optional): The panel surface is sanded smooth and flat, preparing it for subsequent finishing like laminating or painting.

11. Grading: Panels are graded based on appearance (smoothness, defects) and physical properties (bond strength, moisture content).

12. Further Processing (Optional): May include overlaying (with decorative paper, wood veneer, plastic films like HPL, PVC) or edge banding to produce various decorative plywood types.

Core Advantages

High Strength and Stiffness: The cross-grained structure provides relatively uniform strength in all directions, offering excellent resistance to bending and shear forces, far superior to solid wood of equivalent thickness.

  Dimensional Stability: This is one of plywood's most outstanding advantages. Wood shrinks and swells significantly across the grain (tangentially/radially) but minimally along the grain (longitudinally). Plywood counteracts this by arranging adjacent layers perpendicularly, greatly reducing warping, shrinking, or swelling due to humidity changes.

  High Yield and Utilization: Enables the use of small-diameter logs, fast-growing species, and wood processing residues (via peeling or slicing) to produce large, high-performance panels, efficiently utilizing wood resources.

  Large Panel Size: Can be manufactured in much larger sizes than solid wood, meeting demands in construction and furniture.

  Ease of Workability: Can be sawn, planed, drilled, nailed, glued, and painted like solid wood.

  Designable Structural Properties: Strength, stiffness, weight, and water resistance can be tailored by selecting different wood species, veneer thicknesses, number of plies, and adhesive types.

  Aesthetics (When Overlaid): Surfaces can be overlaid with various precious wood veneers or decorative papers, offering rich textures and colors for excellent decorative effects.

I. Log Processing Section

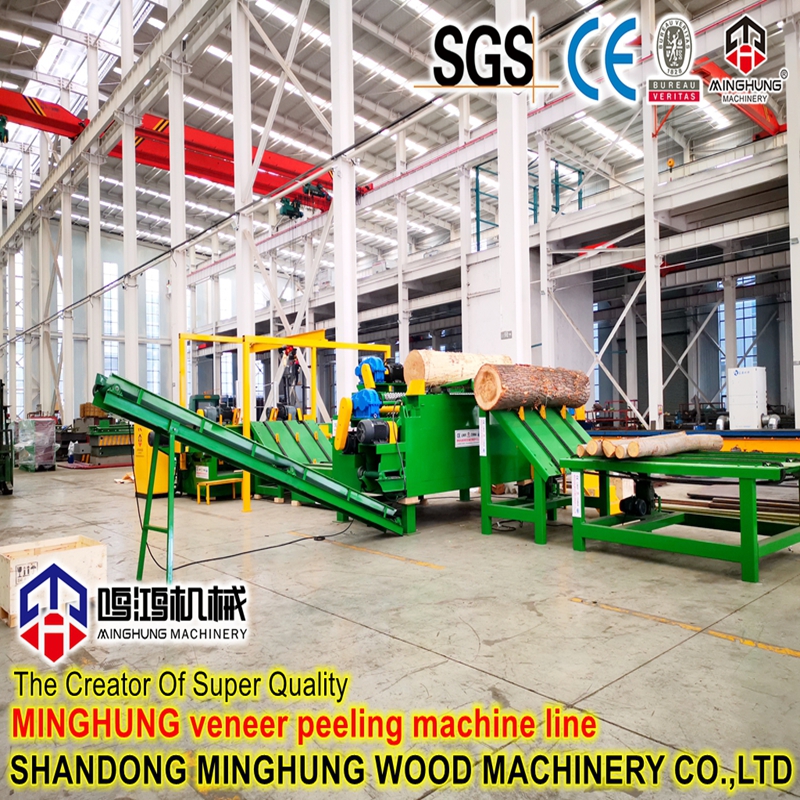

1. Debarker

   Type: Ring-type/Drum-type

   Capacity: Logs Ø150–800mm

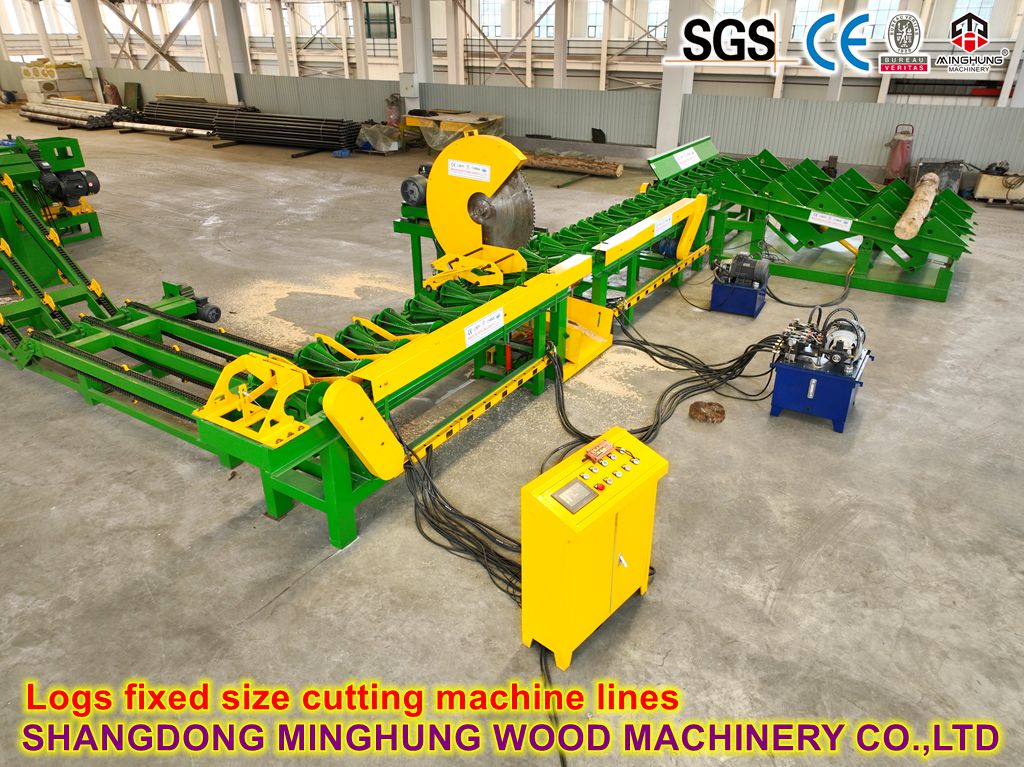

2. Bucking Saw

   Hydraulic automatic length-cutting, precision ±1mm

   Output: 60–120 logs/min

II. Veneer Preparation Section

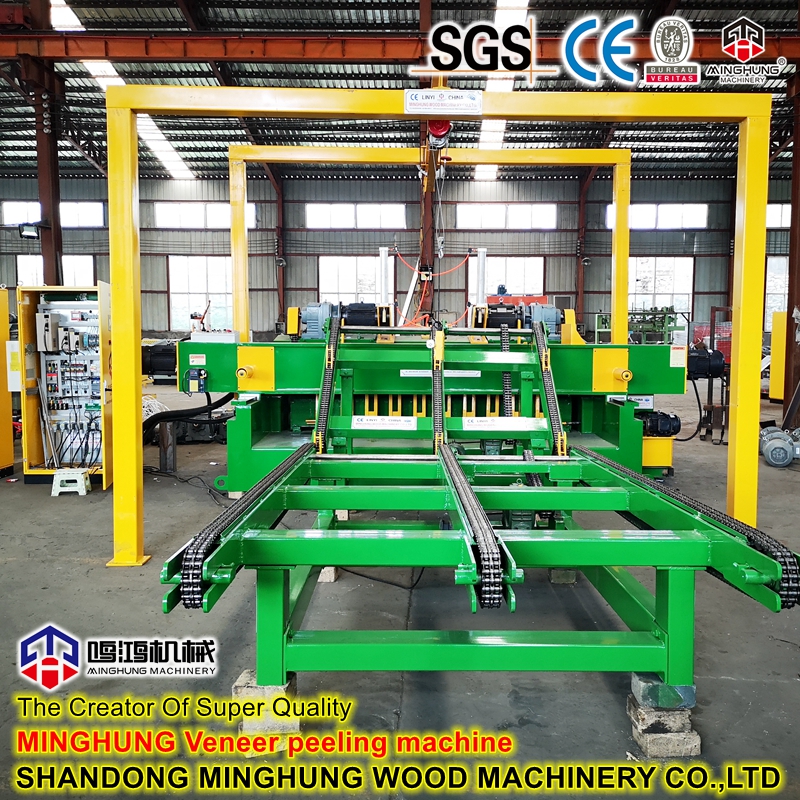

3. Peeling Lathe (Core Equipment)

   Technical Parameters:

     Log diameter: Ø130–800mm

     Veneer thickness: 0.3–4.5mm (continuously adjustable)

     Precision: ±0.05mm

   Advanced Models:

    Constant linear-speed peeling (with laser diameter sensor)

    Servo-driven (Raute intelligent control system)

4. Clipping Machine

   High-speed hydraulic shear: Cutting speed ≥30m/min

   Defect recognition system (AI vision inspection)

III. Veneer Drying Section

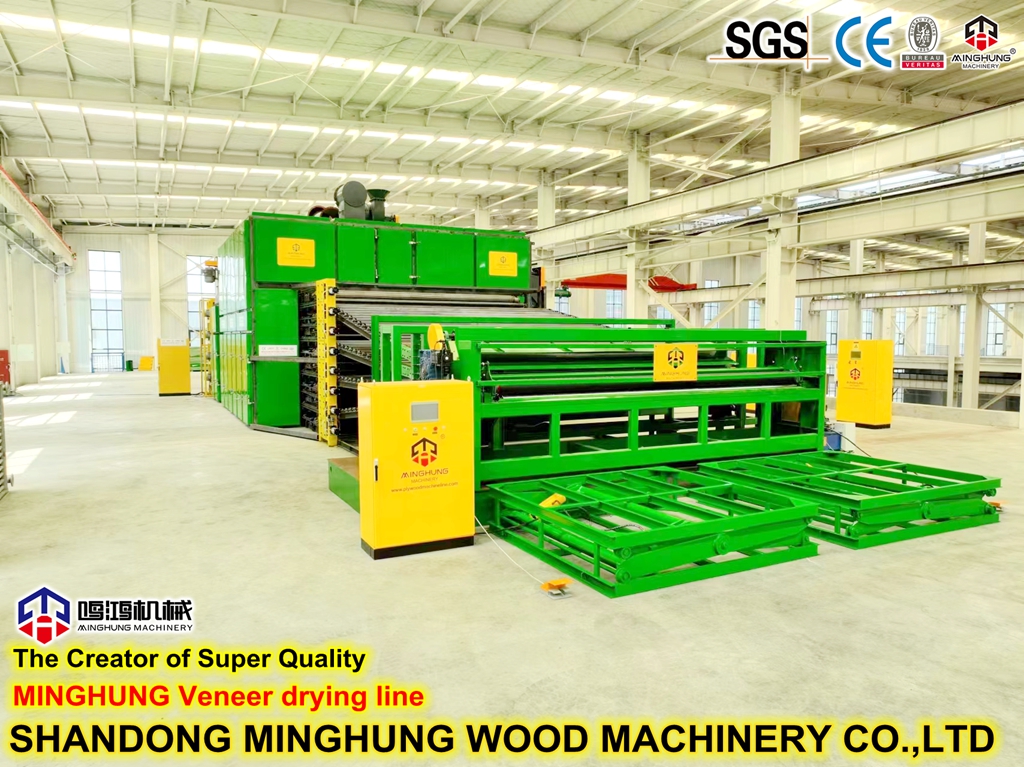

5. Dryer (Three Main Types)

Type	Application	Energy Efficiency
Roller Dryer	Thin veneer (0.5–2mm)	1.8–2.2 kW·h/m³
Mesh Belt Dryer	Thick veneer (2–4mm)	2.0–2.5 kW·h/m³
Jet Dryer	Premium decorative veneer	1.5–1.8 kW·h/m³

   Energy-Saving Tech:

     Exhaust heat recovery (saves 20–30% energy)

     Humidity zone control (moisture deviation ≤±1%)

IV. Veneer Finishing Section

6. Automatic Stitcher

   Ultrasonic/laser alignment system

   Stitching speed: 15–25m/min

7. Patching Machine

   Vision positioning + robotic patching

   Patch diameter: Ø8–80mm

V. Gluing & Layup Section

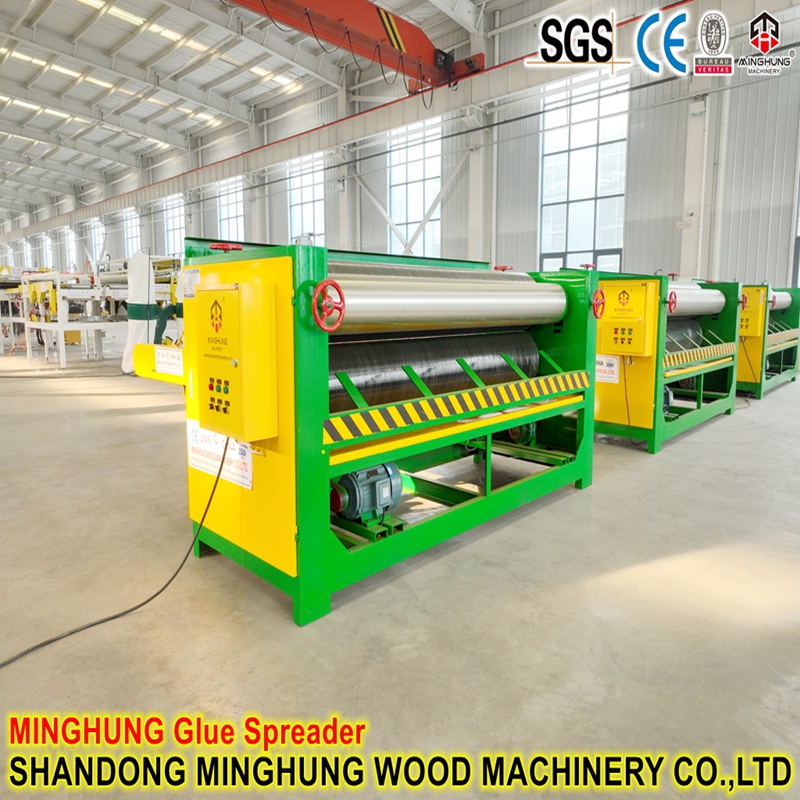

8. Four-Roller Glue Spreader

   Glue application precision: ±2g/m²

   Variable frequency drive (10–50m/min)

9. Automatic Layup Line

   Robotic layup system

   Layer alignment precision: ±0.5mm

VI. Hot Pressing Section (Core Process)

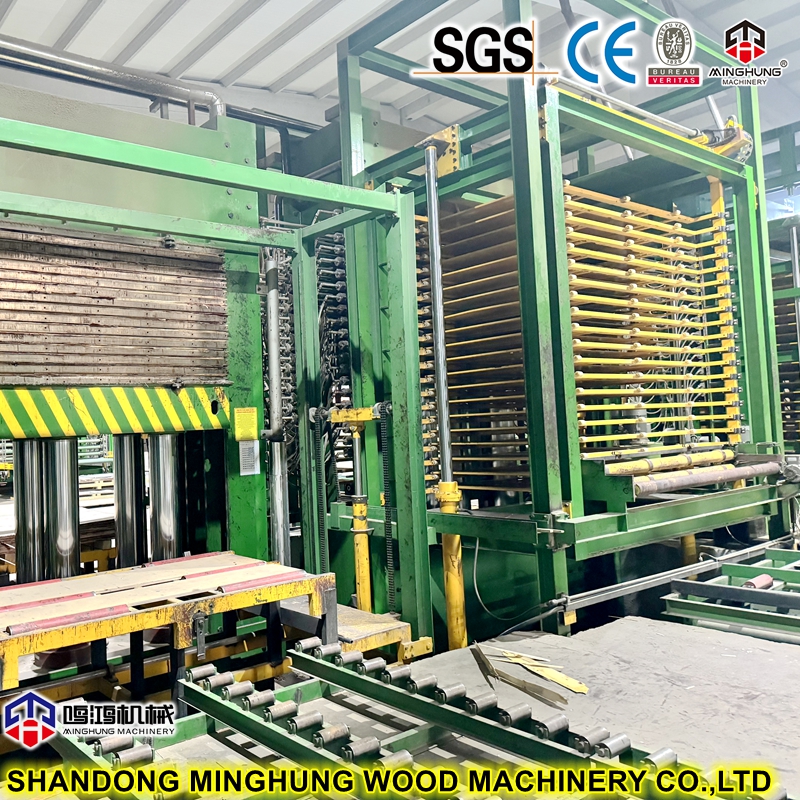

10. Hot Press (Three Technologies)

Type	Technical Features	Application
Multi-opening Press	12–30 openings, 2000–3500t pressure	Construction plywood
Continuous Press	Feed speed 1–5m/min, low energy	Thin boards (3–12mm)
HF Hot Press	80% faster curing, >40% energy saving	Thick/contoured boards, furniture

    HF Press Key Parameters:

      Frequency: 13.56/27.12 MHz

      Power density: 15–30 kW/m²

VII. Post-Processing Section

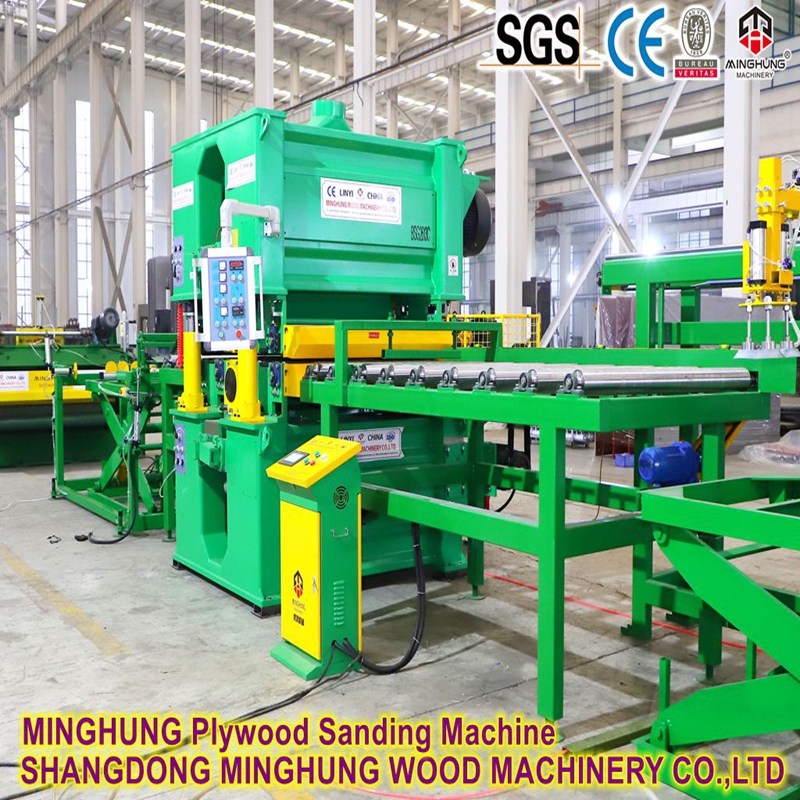

11. Calibrating Sander

    4-head wide-belt sander (width 2650mm)

    Sanding precision: ±0.1mm

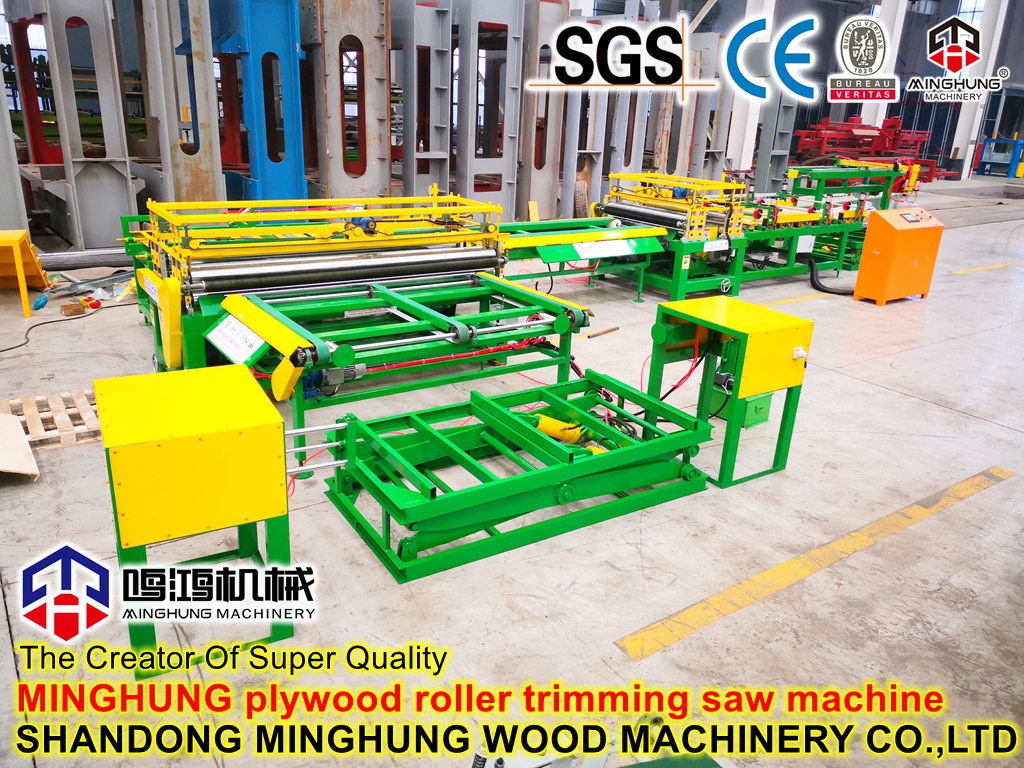

12. Crosscut & Rip Saw

    Double-end trimming, diagonal error ≤1mm

13. Automatic Grading Line

    Deep learning defect recognition (accuracy ≥98%)

VIII. Intelligent Control System

14. Central Control Platform

    Modular design (PLC + SCADA)

    Key functions:

      Real-time energy monitoring (electricity/steam/water)

      Predictive maintenance (vibration/temperature sensors)

      Digital twin process optimization

IX. Energy & Environmental Systems

15. Exhaust Treatment

    RTO regenerative thermal oxidizer (VOCs removal ≥99%)

    Wet electrostatic precipitator (PM2.5 ≤10mg/m³)

16. Energy Recovery Units

    Waste heat power generation (ORC low-temperature generator)

Wastewater biogas utilization

HF hot pressing revolutionizes plywood production by using high-frequency electromagnetic fields to generate rapid, uniform internal heating in the mat, replacing traditional thermal conduction.

1. Working Principle

Dielectric Heating:

 Water molecules and adhesive polymers in wood are polar molecules. Under high-frequency electric fields (typically 6–40 MHz), molecular friction generates heat, enabling self-heating within the mat.

Penetrative Heating:

 HF waves penetrate wood, achieving simultaneous core and surface heating, eliminating the "charred surface/uncured core" issue in conventional pressing.

2. Core Equipment

Component	Function
HF Generator	Converts grid power to HF energy (Typical: 20–200 kW; Frequency: 6–27 MHz).
Electrode Plates	Metal plates forming an HF field; the mat is placed between them (precise parallelism and adjustable spacing critical).
Impedance Matcher	Matches HF generator impedance with the load (mat), ensuring >95% energy transfer efficiency.

3. Technical Advantages

Rapid Curing:

 Adhesive curing time drops from 20–60 minutes (conventional) to 2–10 minutes (thickness-dependent).

Uniform Bonding:

 Core temperature deviation ≤ ±3°C, preventing under-curing or scorching.

Complex Shapes:

 Enables pressing curved/contoured parts (e.g., furniture components), unachievable with conventional methods.

Reduced Pressure:

 Pressure lowered to 1/3–1/2 of conventional presses (≈0.5–1.0 MPa), minimizing wood compression loss.

Metric	Conventional Steam Press	HF Hot Press Line	Savings
Pressing Cycle Time	40–60 min	5–8 min	Time ↓85%
Steam Use (ton/ton board)	1.2–1.5	0.3–0.5	Steam ↓65%
Power Use (kWh/m³)	80–100	30–45	Power ↓55%
Total Production Cost	Baseline 100%	60–70%	Cost ↓30–40%
