MH-CHP
MINGHUNG

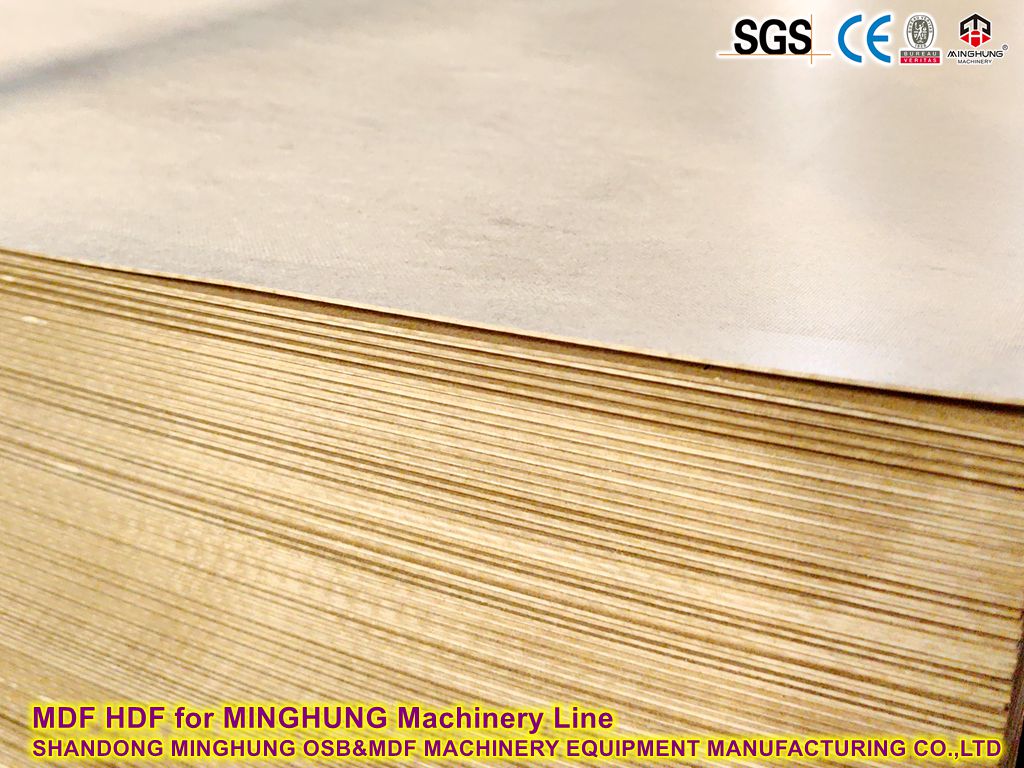

Medium Density Fiberboard
MDF (Medium Density Fiberboard) is an engineered wood panel made by refining wood fibers (from logs, branches, or recycled wood), blending with resin, drying, forming into a mat, and pressing under high temperature and pressure. It has a homogeneous structure with a typical density range of 720–800 kg/m³.
Product feature | Description |
homogeneous structure | Homogeneous structure: No grain direction, uniform cross-section density |
fiber morphology | Fine wood fibers (length: 0.5–5mm, diameter: 20–50μm) |
adhesive | Urea-formaldehyde (UF) resin (E1-grade low-formaldehyde formula) |
additive | Paraffin wax (water repellent), ammonium sulfate (curing agent) |
✅ Smooth Surface: Ideal for direct laminating, painting, or coating.
✅ Superior Machinability: Resists chipping during sawing, drilling, carving.
✅ Eco-Friendly: E1 formaldehyde emission (≤0.124mg/m³), safe for indoor use.
✅ Cost-Efficiency: Low raw material cost (waste wood usable), high output, 1/3–1/2 price of solid wood.
✅ Dimensional Stability: Isotropic structure resists warping/cracking.
Production Process
1. Raw Material Preparation:
Chipping → Screening (remove debris) → Washing (remove dirt)
2. Fiber Refining:
Steam Preheating (170–180°C) → Defibration (Refiner)
3. Resin Blending & Drying:
Fiber Resination (UF + wax spray) → Pipeline Drying (moisture: 8–10%)
4. Mat Forming & Pre-pressing:
Air-formed Mat → Pre-press (initial compaction)
5. Hot Pressing:
Continuous Press (180–210°C, 2–3.5MPa, 20–40 sec/mm thickness)
6. Finishing:
Cooling → Trimming → Sanding (double-side calibration) → Grading → Packaging
Annual production capacity 500000 m³
Capacity Scale Positioning
Indicator | Parameters | Industry Benchmark |
Annual Output | 500,000 m³/year | Top 15% globally (Mid-size model plant) |
Daily Output | 1,667 m³ (300 operating days/year) | ≈ Full load of 60 trucks |
Raw Material | Wood: ≈800,000 tons/year | Requires 500,000 mu fast-growing forest |
Energy Demand | Steam: 25 t/h | Equivalent to 100,000 households' daily usage |
Power: 12MW |
Scale Effect
Dimension | Scale Advantage |
Unit Cost | 18–22% lower vs. 200k m³ plant (labor/energy sharing) |
Equipment Utilization | Continuous press >90% runtime (downtime loss <5%) |
Raw Material Bargaining | Wood chip price reduced by 15% (10k-ton contracts) |
Logistics Cost | Full-truck load ratio >80% (saves ¥30/m³) |
Equipment Configuration
Equipment | Configuration |
Chipping system | Drum Chippers ×2 (Capacity: 60 t/h) |
Hot grinding system | 54" Refiners ×3 (Fiber output: 12 t/h/unit) |
drying system | Tri-pass Dryers ×2 (Water evaporation: 15 t/h) |
Pavement system | Mechanical/Pneumatic Formers (Width: 8 ft) |
Pressing machine system | Continuous Press (Length: 30m, Force: 35,000 kN) |
Sandblasting system | 8-Head Sanders ×2 (Accuracy: ±0.1mm) |
Heat Energy Center | Biomass Boiler (Fuel: wood dust/bark, Steam: 25 t/h) |
wood flaker machine
refiner
fiber drying machine

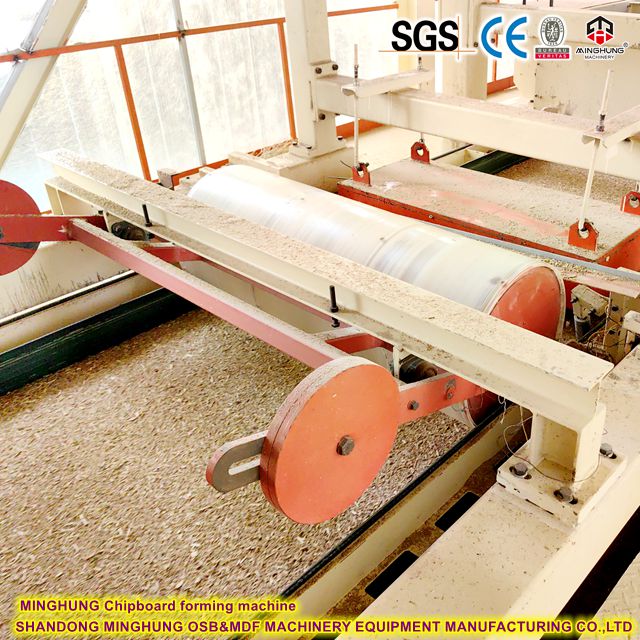

mat forming machine
pre press machine
continuous belt press
sander
energy center
"Economy-grade MDF" achieves cost reduction by
Raw Material: ≥60% recycled content (formwork, furniture scraps)
Process: Minimal sanding (≤0.5mm removal), lower density (720–750kg/m³)
Resin: Optimized UF formula (resin usage ≤100kg/m³)
Energy: Waste heat recovery cuts steam consumption by 30%
Environmental Protection E1 Grade
1. Core Features of Eco-Friendly E1-Grade Panels
1.1 Strict Formaldehyde Control (Core Eco-Index)
Emission Limit : ≤ 0.124mg/m³ (Climate chamber method, GB/T 39600-2021)
Health Safety : Safe for indoor use ; no irritant odor, no respiratory risks from long-term exposure
Global Compliance: Meets China E1, EU EN 13986, US CARB Phase 2 standards for worldwide acceptance
1.2 Eco-Friendly Production Technology
Adhesive Upgrade : Uses low F:U ratio UF resin or formaldehyde-free MDI to reduce free formaldehyde
Additive Control : Formaldehyde scavengers (e.g., urea, starch derivatives) neutralize residual formaldehyde
Green Manufacturing : Closed resin system + exhaust gas incineration (VOC reduction >90%)
1.3 Application Advantages
Home Furniture : Safe for enclosed spaces (children’s furniture, wardrobes, kitchens)
Construction Projects : Mandatory for public spaces (hospitals, schools, hotels)
Export Compliance : Breaches EU/US "green barriers"
1.4 Economic Value-Add
Certification Premium : 10–15% price premium vs. non-certified panels (high-end market demand)
Supply Chain Edge: Qualifies for green procurement lists (IKEA, Oppein) and large projects
Legal Risk Mitigation : Avoids recalls/fines
2. Eco-Grade Comparison (Key Differences)
Grade | Formaldehyde Limit | Applications | Cost vs. E1 |
E1 | ≤0.124mg/m³ | 90% interior decoration | Baseline |
E0 | ≤0.050mg/m³ | Nurseries/medical rooms | +20–30% |
NAF | ≤0.009mg/m³ | Premium custom/sensitive | +50–80% |
Scale advantage:
✅ Cost advantage: The cost per cubic meter of our product is ¥200 - ¥300 lower than that of small factories.
✅ Market control: We can cover a market area with a radius of 500 kilometers (accounting for 40% or more of the provincial demand).
✅ Risk resistance: We maintain a 10-day inventory buffer during raw material fluctuations (small factories have a buffer of no more than 3 days).
PACKING & SHIPPING
We maintain a long-term cooperation with a well-known freight forwarding company, and adhere to the customer-first philosophy. We strictly implement the quality inspection process before shipment to ensure that each batch of products meets international quality standards, We deeply understand that high-quality service is the cornerstone of winning customer trust, and we always create value for customers with professional and efficient supply chain management.
Exhibition
For more information, welcome contact us, we will reply you quickly and offer working videos with you.
Whatsapp: +8618769900191 +8615589105786 +8618954906501
Email: osbmdfmachinery@gmail.com
