 | Particleboard production process |
1. Raw Material Processing: Debarked pine logs cut into flakes (20-40mm) by drum flaker
2. Drying & Screening: Rotary dryer reduces moisture to 3-5% (inlet temp 180-220℃)→ Vibrating screen separates surface/core layer flakes
3. Blending & Gluing: Core layer sprayed with UF resin (10-12%), surface layer with MUF resin (8-10%)→ High-speed centrifugal blender
4. Forming & Pre-pressing: Graded structure formed by mechanical former→ Continuous pre-press for initial compaction
5. Hot Pressing: 8-opening press line (195-210℃, 3.5-4.0MPa, 4.5min/mm curing)
6. Post-processing: 24h conditioning→ Double-side calibrating sander (±0.1mm tolerance)→ Cross-cutting to 1250×2500mm
| Daily output: 800m³ |
Output Metrics: 35m³/hour production (22h/day operation), annual capacity ≈250,000m³
Raw Material: Daily consumption 1,040 tons pine wood (at 40% moisture)
Energy Demand: Natural gas 18,000m³/day, power load 2.8MW
| Core equipment |
Equipment | Specifications |
Drum Flaker | 8-10t/h capacity, Φ1600mm disc |
Triple-pass Dryer | 6t/h water evaporation, gas-fired |
High-speed Blender | Double-shaft design, >95% homogeneity |
Continuous Press | 30m press length, 3500kN pressure |
Sanding Line | 4-head + finish unit, ±0.1mm tolerance |
chipboard flaker

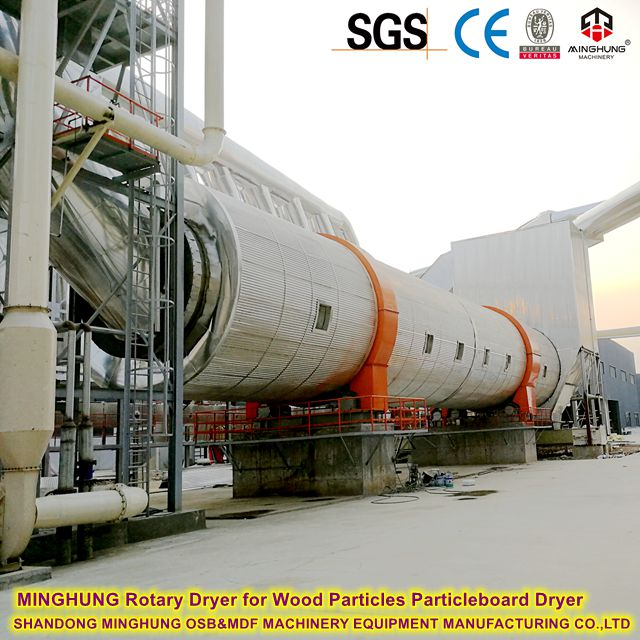

particle board dryer
gluing system

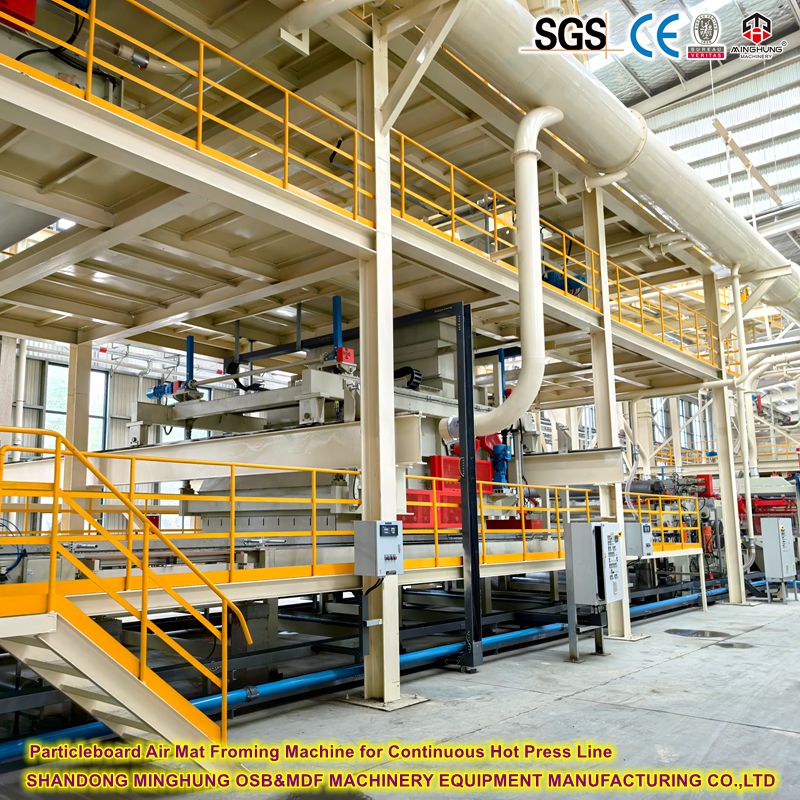

mat forming machine
continuous hot press

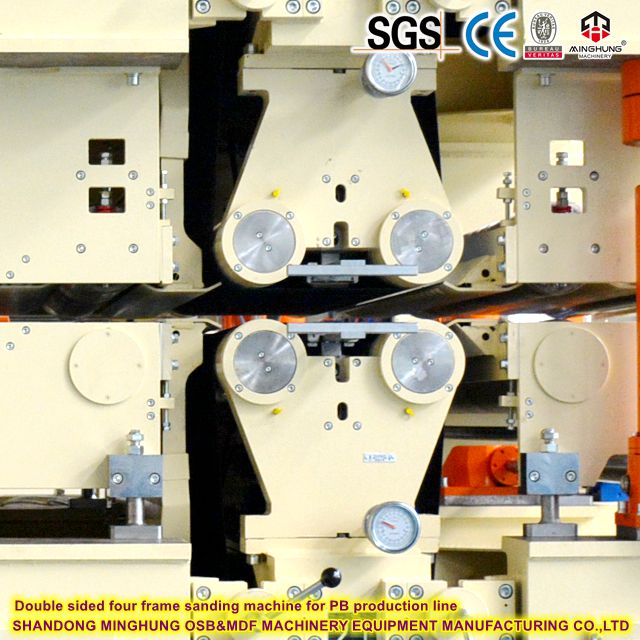

sander
| Pine |
Physical Properties:
Fiber length 1.8-3.2mm (superior to poplar's 1.0-1.5mm), aspect ratio >45
8-12% resin canals for natural decay resistance
Production Advantages:
30% lower chipping energy vs hardwoods (density 0.45g/cm³ vs oak 0.75g/cm³)
Glue penetration depth >0.5mm (enhances IB strength by 15%)
Packaging Superiority:
1. Mechanical Strength: MOR ≥18MPa (exceeds GB/T 4897 standard of 12MPa)
2. Impact Resistance: Ball-drop test >12J (vs 8J for mixed wood core)
3. Environmental Stability: No delamination at -25℃, deformation <0.8% at 35℃/90%RH
Other Applications:
Furniture: IKEA-grade panel substrate (with melamine overlay)
Formwork: >20 reuses (phenolic resin coated)
Acoustic Engineering: NRC 0.6-0.7 (theater wall panels)
| 19mm Thickness Significance |
Global standard for packaging boards (ISO 16893 specifies 18-21mm for industrial use)
Optimal cost/performance ratio: 40% stronger than 15mm, 24% material saving vs 25mm
| 1250×2500mm Advantages |
1. Container Loading: Fits 40HC container (2340mm inner width), 110 sheets/container
2. Material Yield: <5% waste when cutting standard pallets (1200×1000mm)
3. Equipment Compatibility: Adapts to edgebanding lines
| Global Particle Board Size Standards |
1. International Standard: 1220×2440mm (4ft×8ft) accounts for 65% global output
2. European Modular System: 1250×2500mm (matches EU construction modulus) & 2800×2070mm (German cabinet core)
3. Customization Options:
Length: 2600/2750/3050mm (oversized packaging)
Width: 1500/1830mm (wide door cores)
Thickness: 6-40mm (3mm increments), 19mm being optimal for packaging
| Dimension Selection Criteria |
Logistics Economy: 1220mm width fits 40HC container's 2340mm inner width (with ventilation gaps)
Manufacturing Compatibility: 2440mm length aligns with furniture cutting standards (e.g. 600mm wardrobe shelves)
Mechanical Advantage: Panels with ≥2:1 aspect ratio gain 15-25% longitudinal MOR
| Who We Are |
Shandong MingHung OSB&MDF Machinery Equipment is a China professional factory who specilize in manufacturering and offering Wood based panel machine, including OSB making machine, MDF making machine, and Chipboard /PB making machine.
The machines we can offer includes: Wood chipper, Ring flaker, Strander, Wet silo, Drum dryer, Dry silo, Glue dosing and applying system /Glue blender, Mat forming, Continuous Multi-rolls pre-press, Multi opening hot press and Continuous press, Auto edge cutting machine line, Sanding machine line, kinds of related belt conveyor and so on.
For more information, welcome contact us, we will reply you quickly and offer working videos with you.
Whatsapp: +8618769900191 +8615589105786 +8618954906501
Email: osbmdfmachinery@gmail.com
