12mm Daily Output 500m³Waterproof Mixed Wood OSB (1250×2500mm)

12mm Daily Output 500m³Waterproof Mixed Wood OSB (1250×2500mm)

Name: 12mm Daily Output 500m³Waterproof Mixed Wood OSB (1250×2500mm)
Brand: MINGHUNG
Rating: 5.0 (70 reviews)

Our premium 12mm Waterproof Mixed Hardwood OSB Board is engineered for high moisture resistance. Combining mixed hardwood with advanced waterproof resin technology, it delivers superior structural strength and durability. Standard size 1250×2500mm (customizable), with a daily output of 500m³ for large-scale projects. Compliant with EN 300 standards, ideal for roofing, wall sheathing, and floor load-bearing structures.


Availability:



Inquire Add to Basket

Model:
MH-OSB
Brand:
MINGHUNG

Product Description

12mm Daily Output 500m³Waterproof Mixed Wood OSB (1250×2500mm)

China wood based panel machinery

Production Process

1. Log Processing: Debarked mixed hardwood logs cut into 2.5m sections, softened by 100℃ steam

2. Stranding: Disk flakers produce oriented strands (100mm length × 0.6mm thickness)

3. Drying & Screening: Rotary dryer reduces moisture to 3%, vibrating screens filter qualified strands

4. Blending & Gluing: Surface/core strands separately coated with 8-10% phenolic resin (PF)

5. Oriented Layup: Cross-layered 3-ply structure (surface layer longitudinal + core layer transverse), density variation <5%

6. Hot Pressing: Continuous press (200℃, 1500psi) cures for 120 seconds

7. Conditioning & Cutting: Stress-relieved in climate-controlled chamber for 24hrs, sanded and cut to 1250×2500mm

8. Waterproofing: Nano-silane water repellent spray achieves 0.5mm penetration depth

9. QC & Packaging: Density graded by X-ray scanner, packed with moisture-proof film + wooden pallets

OSB Production process_副本

Key Machinery

Ring-type wood chipper

Operating Principle: Logs are radially cut by a high-speed rotating ring cutter (800-1200rpm). Hydraulic pushers feed logs at constant speed, with strand length controlled by feed rate.

Key Components:

Tungsten-carbide-tipped ring cutter (Ø2.5-3m)

Hydraulic constant-speed feed system

Adjustable counter knife bed

Strand screening unit (removes oversized chips)

Chips drying Machine for OSB Production Line

Drum dryer

Operating Principle: Wet strands tumble in an inclined rotating drum (3-5° tilt) under hot air (180-220℃). Moisture is exhausted via rear ducts, with drying process controlled by humidity sensors.

Key Components:

Rotating drum (20-30m long, internal lifters)

Gas/biomass hot air generator

Cyclone dust collector

In-line moisture sensors

Oriented Strand Board Glue Sizing System

Staining System

Operating Principle: Dry strands are coated with atomized resin in a rotating drum. Dual application (pneumatic nozzles + mechanical scattering) ensures uniformity, with glue volume metered by mass flow controllers.

Key Components:

High-speed blending drum (15-20rpm)

Multi-zone pneumatic resin spray towers

Adhesive preheating circulation unit

Gravimetric glue dosage system

Directional paving machine

Operating Principle: Electrostatic fields align glued strands at preset angles (surface layer 0°/core layer 90°) during free-fall. Servo-driven spreading heads traverse laterally for uniform mat formation.

Key Components:

High-voltage electrostatic generator (50-100kV)

Programmable spreading head traversing system

Multi-layer weighing belt scales

Real-time density scanners

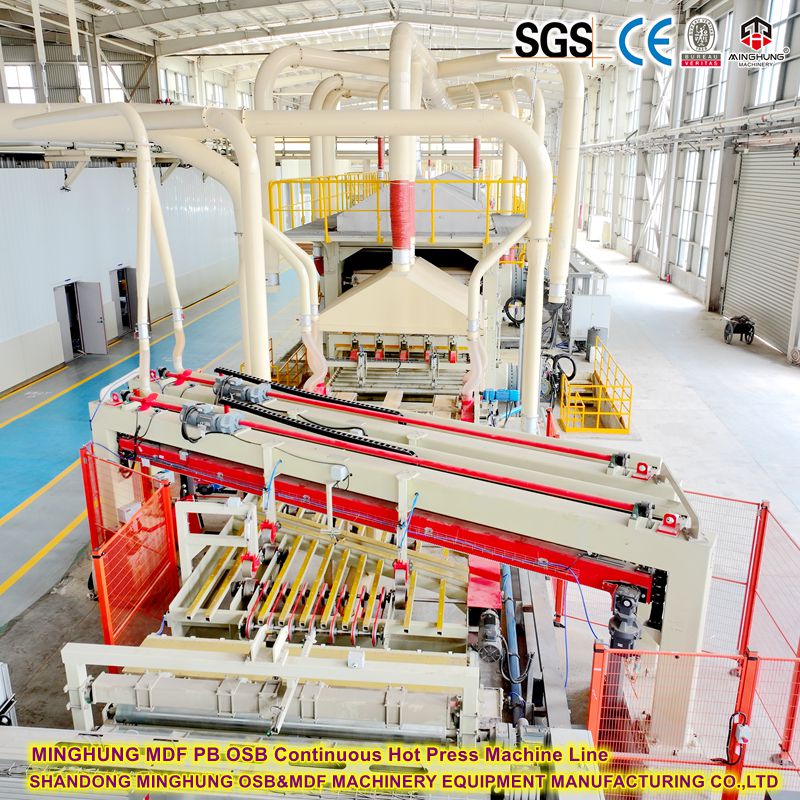

Continuous hot press machine

Operating Principle: Mat is compressed between two continuous steel belts with zonal pressure control (1500psi front → 800psi rear). Heated plates (200℃ via thermal oil) cure resin, with belt speed determining thickness.

Key Components:

Multi-zone hydraulic cylinder system (30+ groups)

Thermal oil heated plate assemblies

High-temperature alloy steel belts (1.5-2mm thick)

Laser thickness monitoring sensors

Sanding cutting line

Operating Principle: Boards are thickness-calibrated via dual-face sanding (40→120 grit progression), then cut to length by flying saws with simultaneous edge profiling/chamfering.

Key Components:

Heavy-duty thickness sander (contact roller + pressure bar)

Servo-driven flying saw (100m/min cutting)

CNC 4-edge milling station

Automated stacking robot

MINGHUNG wood based panel production line

Waterproof Mechanism

Triple Protection:

1. Resin Sealing: Phenolic resin forms waterproof mesh (contact angle >110°) during hot pressing

2. Structural Barrier: Cross-layered strands block vertical water penetration

3. Surface Treatment: Nano-silane coating creates lotus effect (water bead roll-off time <3 sec)

▶ Performance: <8% thickness swelling after 4hrs boiling (EN 300 requirement: ≤15%)

Technical Specifications

Thickness: 12mm (±0.3mm tolerance)

Dimensions: 1250mm × 2500mm (customizable up to 2800×6000mm)

Density: 650±50kg/m³

Moisture Content: 6-9% (factory standard)

Fire Rating: Class B1 (EN 13501-1 certified)

Operating Temperature: -30℃ to 80℃

Packaging: Moisture-proof PE film + wooden pallet (80-100 sheets/pallet)

Core Features

1. Superior Water & Moisture Resistance

Impregnated with phenolic resin technology, featuring water absorption expansion rate <15% (24-hour immersion test). Effectively resists rainwater and humidity erosion, suitable for high-humidity regions and outdoor temporary structures.

2. High-Strength Load-Bearing Structure

Cross-layered orientation of mixed hardwood strands delivers bending strength ≥22MPa and modulus of elasticity >3500MPa, significantly outperforming conventional plywood. Ensures structural stability in construction applications.

3. Eco-Friendly & Safe Material

Made from sustainable mixed hardwoods (eucalyptus/poplar blend) with formaldehyde emission ≤0.3mg/L (CARB Phase 2 compliant). FSC® certified for responsible sourcing. Non-toxic and safe.

4. Precision & Workability

Surface flatness tolerance <0.5mm. Pre-milled edges minimize chipping. Compatible with nail guns and screws. Optimized for efficient cutting and grooving, reducing labor costs.

5. Large-Scale Supply Capacity

Fully automated production line with daily output of 500m³ (approx. 40,000 sheets). Supports OEM size customization. Global orders delivered within 15 days.

Hardwood Blend Advantages

Advantage	Technical Basis
Cost Efficiency	23% lower cost than pure pine
Mechanical Strength	Fiber aspect ratio >80, +15% bending strength
Sustainability	Fast-growing species (5-7yr rotation)
Processing Stability	Balanced stress distribution minimizes warping
