MH-CHP
MINGHUNG
Ⅰ.Pine Wood
Pine Wood Properties
1. Fiber Structure:
Tracheids length 1.8-3.2mm (hardwood 0.7-1.3mm), aspect ratio >45
S2-layer microfibril angle 12-18° (hardwood 20-30°) enhances dimensional stability
2. Chemical Composition:
Cellulose 42±3% (optimal bonding range)
Natural resin acids 8-12% (ISO 846 Class B self-preservation)
Global Supply Bases (>100 million tons/year)
Boreal Zone: Siberian Russia (35%), British Columbia Canada (21%)
Subtropical Zone: Paraná Brazil (radiata pine 18-yr rotation), Guangxi China (masson pine)
Emerging Region: Biobío Chile (22m³/ha/year growth)
Ⅱ.Advantages for MDF Production
1. Processing Economy:
40% lower chipping energy (0.18kWh/kg vs hardwood 0.30kWh/kg)
92% fiber yield in refining (eucalyptus 85%)
2. Product Enhancement:
22% higher MOR at same density
Natural 30% formaldehyde reduction (resin acid neutralization)
3. Sustainability:
FSC-certified pine forests: 230 million ha (hardwood 80 million ha)
Ⅲ.MDF Production Process
Stage 1: Raw Material Prep
Debarking → Drum chipping (20×25×5mm flakes) → 3-stage washing (removes grit/resin)
Stage 2: Fiberizing
Pre-steaming (0.6MPa saturated steam) → Twin-disc refining (0.1mm gap, 170℃) → Fiber drying (inlet 180℃, outlet 8% MC)
Stage 3: Forming & Pressing
Air-felt forming (density gradient) → Continuous press (42m long, 185-210℃, 350kN/m) → Moisture control (12±0.5%)
Stage 4: Finishing
24h conditioning (22±2℃, 55% RH) → Double-side sanding (P60→P180) → Ultrasonic flaw detection

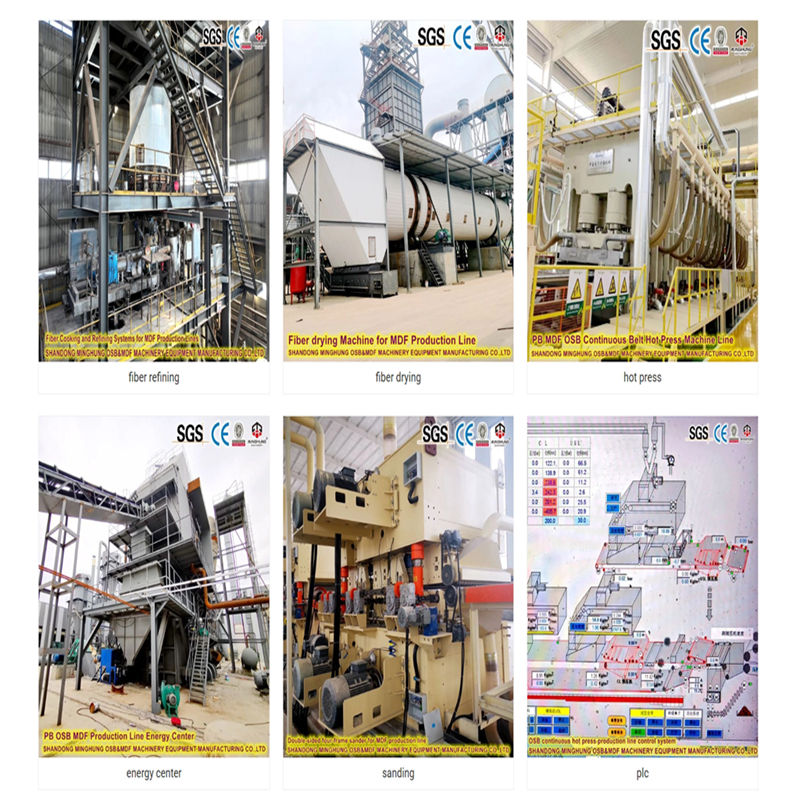

Ⅳ.Equipment configuration
1. Drum Chipping System
Working Principle: Logs fed hydraulically into rotating drum where flying knives (35m/s) shear wood against bed knives to produce dimensional flakes.
Key Components:
Multi-stage screen: Separates target flakes (20-30mm) from oversize
Metal detector: Magnetic removal of ferrous contaminants
Counter-flow wash tank: 3-stage rinsing for sand/resin removal

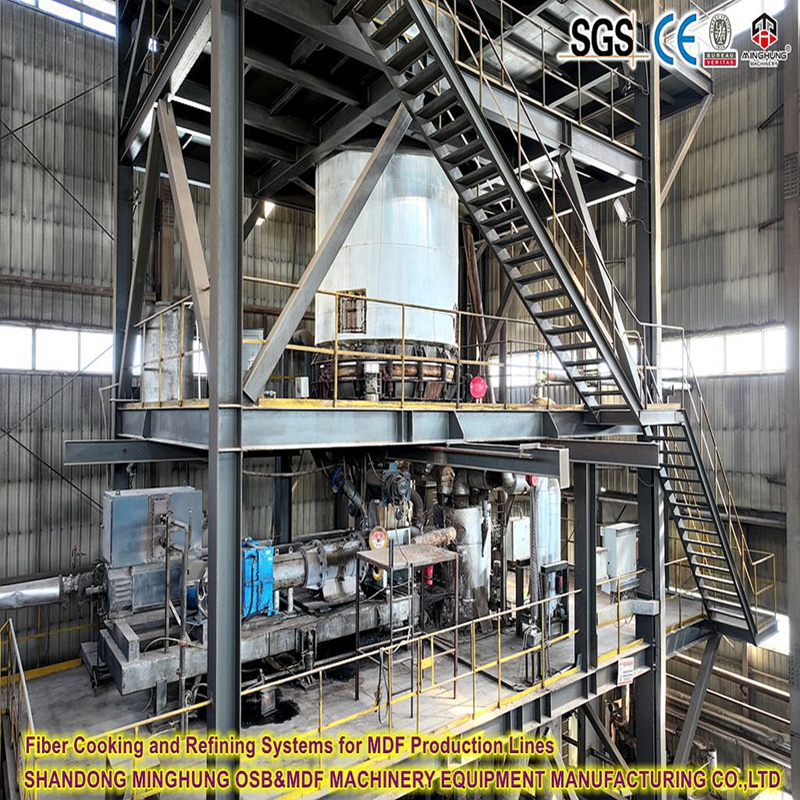

2. Thermo-Mechanical Refining System
Working Principle: Steam-softened chips (0.6-0.8MPa) are fiberized between rotating discs (1500rpm) with intermeshing refiner bars.
Key Components:
Screw feeder: Creates plug seal to prevent steam leakage
Dual-disc refining zone: Adjustable gap (0.05-0.3mm) controls fiber quality
Blow valve: Steam explosion disperses fiber bundles
3. Fiber Drying System
Working Principle: Wet fibers suspended in hot air stream (inlet 180-220℃) undergo convective drying during pneumatic transport.
Key Components:
Cyclone separator: Isolates dry fibers from humid air
Moisture feedback: Infrared sensors regulate inlet temperature
Explosion suppression: Nitrogen injection triggered by spark detectors
4. Air-Forming System
Working Principle: Compressed air propels fibers through oscillating nozzles to build layered mat (fine surface/core coarse) on moving screen.
Key Components:
Classifying screen: Segregates fine surface fibers (＜0.2mm)
Vacuum forming box: Stabilizes mat with negative pressure
Pre-press rolls: Compacts mat to 30% target thickness

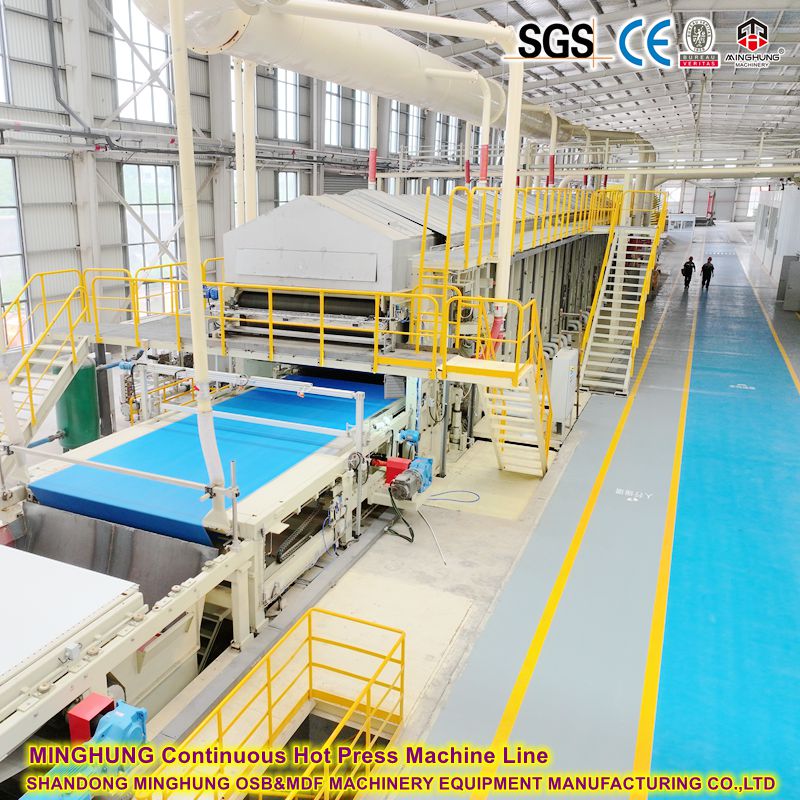

5. Continuous Hot Press
Working Principle: Mat cures under heat (180-210℃) and pressure (3-4MPa) while conveyed through steel belt press with staged compression.
Key Components:
Zoned pressure control: 30+ hydraulic cylinders adjust sectional force
Belt cooling section: Water-cooled zones prevent warping
Thickness scanner: Gamma-ray real-time monitoring with closed-loop control
6. Finishing Line
Working Principle: Pressed boards are conditioned for moisture equilibrium, then calibrated and trimmed to final dimensions.
Key Components:
Flip cooler: Forced-air cooling below 50℃
Multi-head sander: Coarse grinding (P60) → finish polishing (P180)
Cross-cutting saw: Servo-positioned cutting (±0.15mm tolerance)
Ⅴ.Annual production capacity of 300000m³
Global Tier Standards:
Small: <100,000m³/year (regional)
Medium: 100-250,000m³ (national)
Large: 250-500,000m³ (export-oriented) ← This project
Mega: >500,000m³ (global integration)
Economic Transport Radius:
Trucking: 800km (freight ≤$35/m³)
Railway: 2,000km (China-Europe rail 18 days)
Shipping: Global ports (wood chip shipping $18-25/t)
Key Markets:
1. Europe: Germany/Poland (500km radius)
2. Asia: Vietnam/Thailand (Beibu Gulf ports)
3. Americas: Mexico (US tariff avoidance)
Shandong MingHung OSB&MDF Machinery Equipment is a China professional factory who specilize in manufacturering and offering Wood based panel machine, including OSB making machine, MDF making machine, and Chipboard /PB making machine.
The machines we can offer includes: Wood chipper, Ring flaker, Strander, Wet silo, Drum dryer, Dry silo, Glue dosing and applying system /Glue blender, Mat forming, Continuous Multi-rolls pre-press, Multi opening hot press and Continuous press, Auto edge cutting machine line, Sanding machine line, kinds of related belt conveyor and so on.
Q:What can you purchase from us?
A:Particle board production line, directional particle board production line, medium/high fiber board production line, hot press, preforming press machine, plywood production line, automatic production line for hot press, veneer dryer, hot press, cold press machine and other woodworking machinery.
Q:How long the production time?
A:If one set machine,3-4 months;If the full production line 6-8 months.
Q:What are your advantages?
A:We have rich experience in the market, with the same cost, we do better because we have strict control of the production process. We have an independent inspection department to check the quality.
Q:What services can we provide?
A:Accepted delivery terms: FOB, CFR, CIF:
Accepted payment currencies: USD, EUR, RMB;
Accepted payment methods: T/T, L/C, D/P, D/A, PayPal, Western Union, Escrow;
Languages used: English, Chinese, Spanish, Russian
Contact us for a free quote today!
Our contacts:
Whatsapp: +8618769900191 +8615589105786 +8618954906501
