Uniform Texture High-Density Particleboard Production Line

Uniform Texture High-Density Particleboard Production Line

Name: Uniform Texture High-Density Particleboard Production Line
Brand: MINGHUNG
Rating: 5.0 (21 reviews)

This production line is specifically designed to produce high-density, uniform texture particleboard with finished panel density reaching 750–900 kg/m³, significantly higher than ordinary particleboard (600–700 kg/m³). Through refined flaking, precise classified gluing, and advanced hot pressing technology, it eliminates common problems such as loose core layers and large density gradients found in conventional particleboard, achieving highly consistent density distribution across the panel thickness. The resulting board exhibits excellent screw holding strength, bending strength, and a smooth surface, allowing it to directly replace medium-density fiberboard (MDF) and plywood in many applications.


Availability:



Inquire Add to Basket

Model:
MH-PB
Brand:
MINGHUNG

Product Description

Uniform Texture High-Density Particleboard Production Line

|

Product Definition & Performance Comparison

Performance Indicator	Ordinary Particleboard	Uniform High-Density Particleboard
Density range	600–700 kg/m³	750–900 kg/m³
Density uniformity through thickness	Large variation (high surface, low core)	Highly consistent (variation ≤ 8%)
Screw holding strength	Average (600–800 N)	Excellent (≥ 1100 N)
Modulus of Rupture (MOR)	12–18 MPa	22–30 MPa
Modulus of Elasticity (MOE)	2000–2800 MPa	3500–4500 MPa
Surface smoothness	Average, requires overlaying	Good, can be painted or thin-veneered
24h thickness swell	8–12%	4–7%

Chipboard From MINGHUNG Chipboard Production Line

|

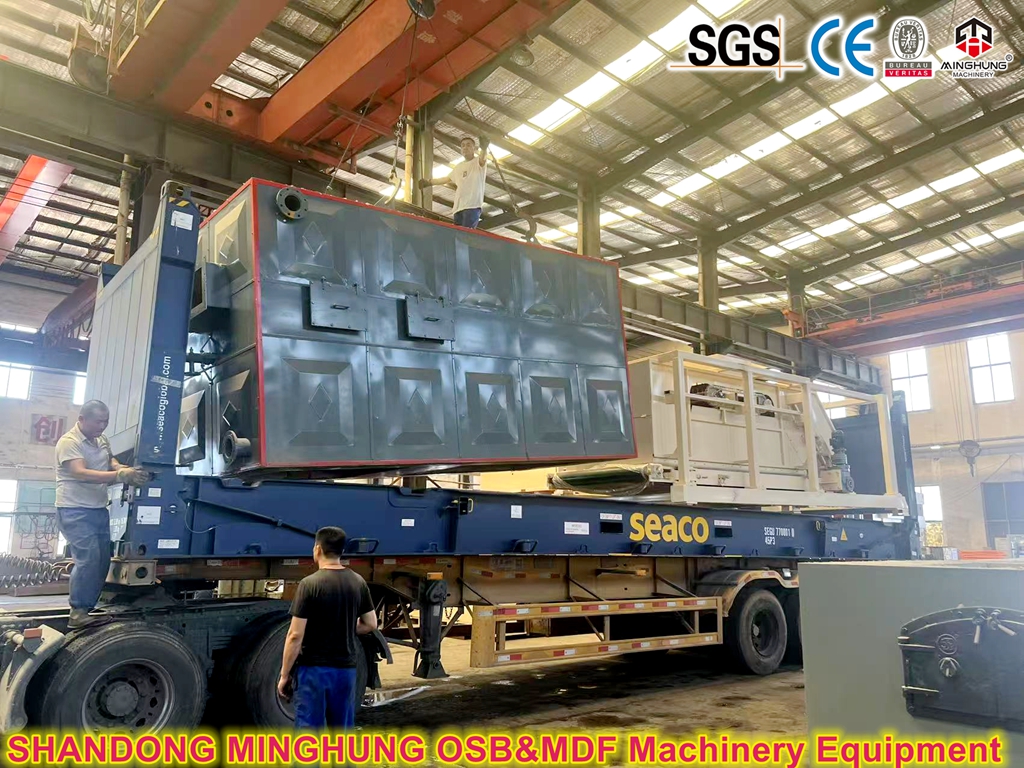

Product Packaging

China MINGHUNG OSB MAKING MACHINE FACTORY

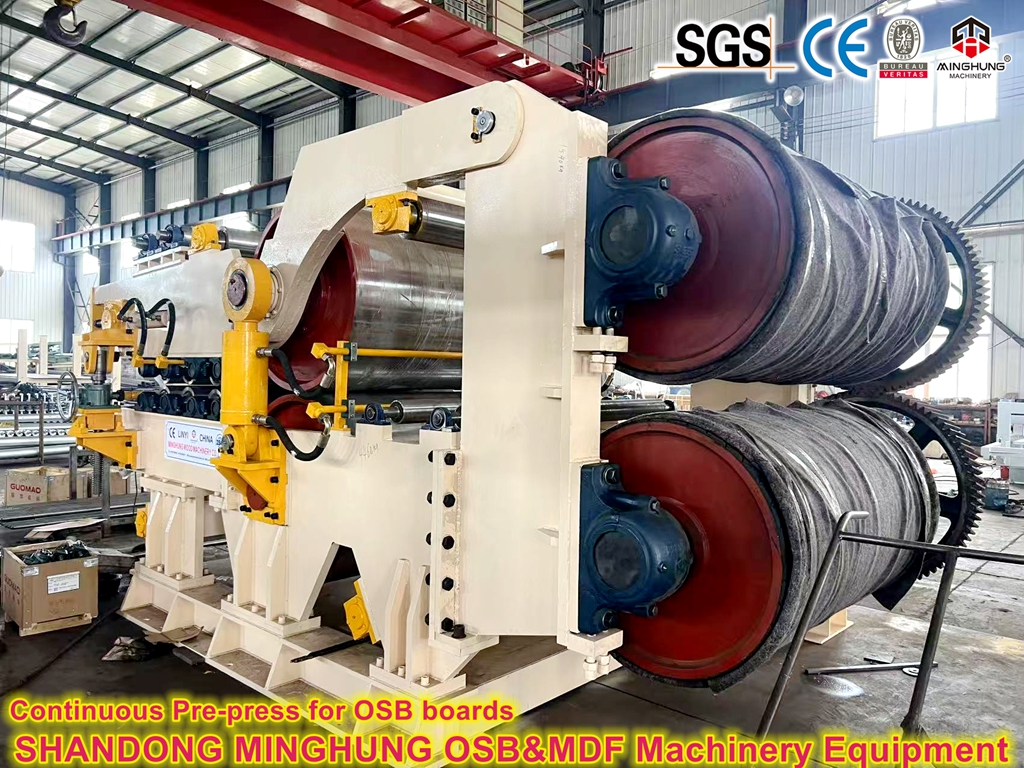

MINGHUNG OSB Continuous pre-press loading

|

Application Video

|

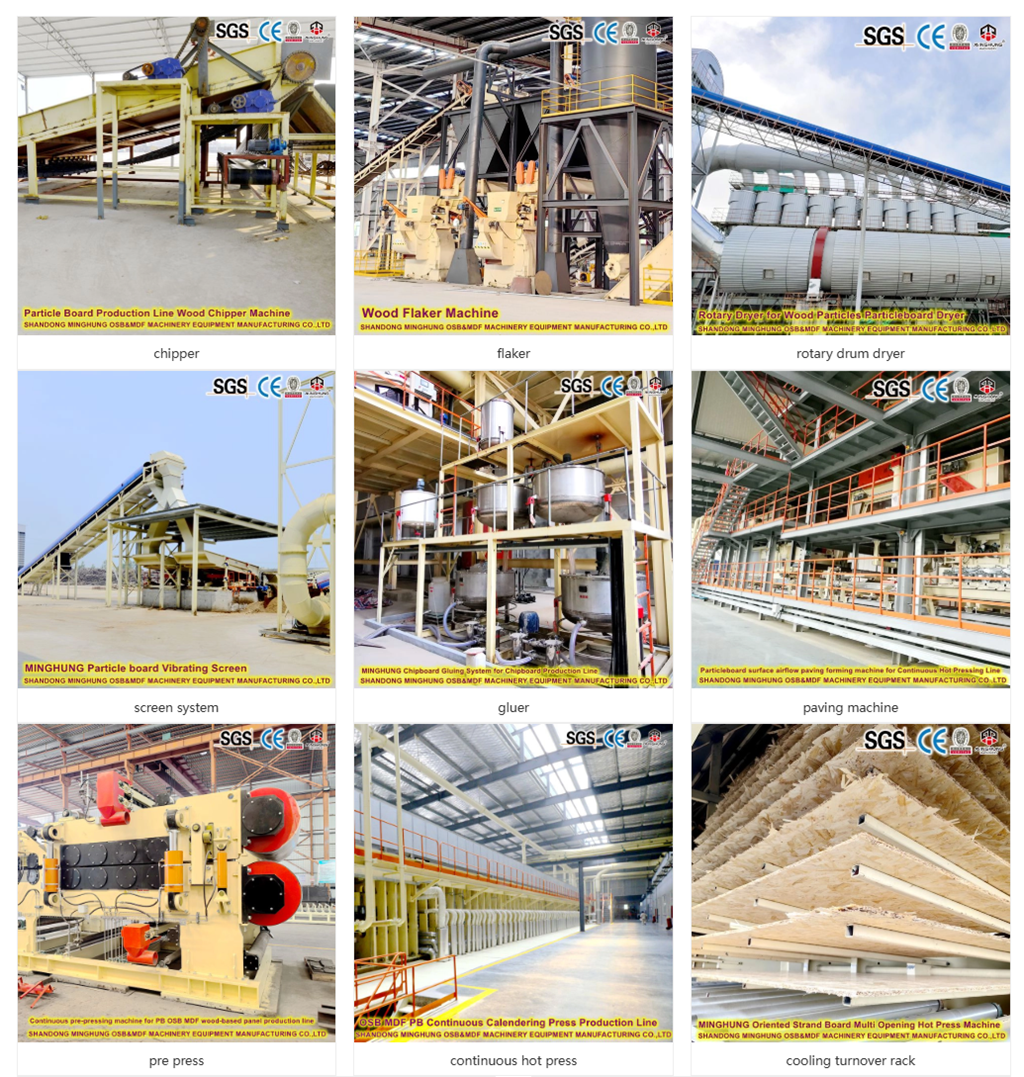

Main Production Line Equipment

Equipment Unit	Functional Description
Chipper (disc/drum)	Initial chipping of logs/veneer waste
Ring Flaker	Produces uniform thin long particles
Rotary Drum Dryer	Moisture control to 2–4%
High-Efficiency Screening System	Precise classification, removal of fines and oversize
Fine Refiner	Prepares superfine surface material (0.2–0.5 mm)
Independent Gluing Systems (surface/core)	Separate metering, high-pressure spray gluing
Combined Forming Machine (air + mechanical)	Forms uniform stepless gradient mat
Pre-press	Mat pre-compaction
Continuous Hot Press	High temperature & pressure curing
Cooling Turnover Rack	Stress release and cooling
High-Precision Wide Belt Sander	Thickness tolerance ±0.15 mm

wood based panel machine

|

Technical Parameters

Parameter	Range/Value
Finished panel thickness	4 – 25 mm (common: 6/8/10/12/16/18/20 mm)
Finished panel width	1220 – 2800 mm
Finished panel length	2440 – 5600 mm (or customized)
Finished panel density	750 – 900 kg/m³ (adjustable)
Density uniformity	Variation across thickness ≤ 8%
Modulus of Rupture (MOR)	≥ 22 MPa (at 750 kg/m³)
Screw holding strength (face/edge)	≥ 1100 N / ≥ 800 N
24h thickness swell	≤ 6% (≤ 4% with moisture-resistant formula)
Formaldehyde class	E1 / E0 / NAF (optional)
Annual capacity	30,000 – 200,000 m³

|

Suitable Raw Materials

|

Certifications

Chipboard multi-channel drying equipment

|

Company Profile

MINGHUNG OSB&MDF Machinery Equipment Manufacture Co., Ltd. Located in Xiaogezhuang Industrial Zone, Yitang Town, Lanshan District, Linyi City.

MINGHUNG Company provides a complete set of process design, electrical design and manufacturing, We can provide one-stop complete factory solutions for wood-based panel customers. MINGHUNG product series include medium density fiberboard (MDF), high density fiberboard (HDF), particle board (PB), oriented strand board (OSB), veneerable super strong particle board (LSB) multi-layer heat press production line, double-sided fixed thickness broadband Sanding machine, gauge saw, mechanical paving machine, air flow paving machine, channel dryer, super screen, post-processing system artificial panel cooling system, turning machine, stacker, storage and transportation trolley. etc. For artificial panel equipment mainly involved in particleboard, medium density fiberboard, oriented strand board, multilayer plywood machinery.
