Working Principle

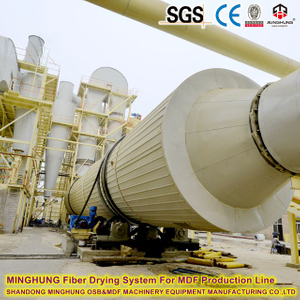

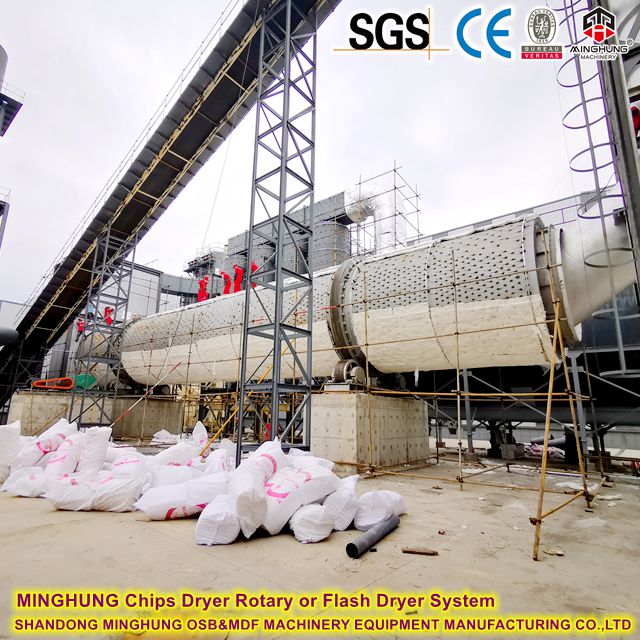

Wet density board fibers are evenly fed into the continuous drying drum via a belt conveyor. The inner wall of the drum is equipped with specially designed lifting plates, which repeatedly lift and disperse the fibers as the drum rotates, ensuring full contact with high-temperature hot air from the hot air furnace. Moisture is rapidly evaporated, and the exhaust gases are discharged after two-stage purification through a cyclone dust collector and a bag filter. The dried fibers are continuously discharged through a rotary airlock to the next process. The entire line is automatically controlled by a PLC central control system, which adjusts feeding speed, drum rotation speed, hot air temperature, and airflow, enabling fully unmanned continuous production.
|

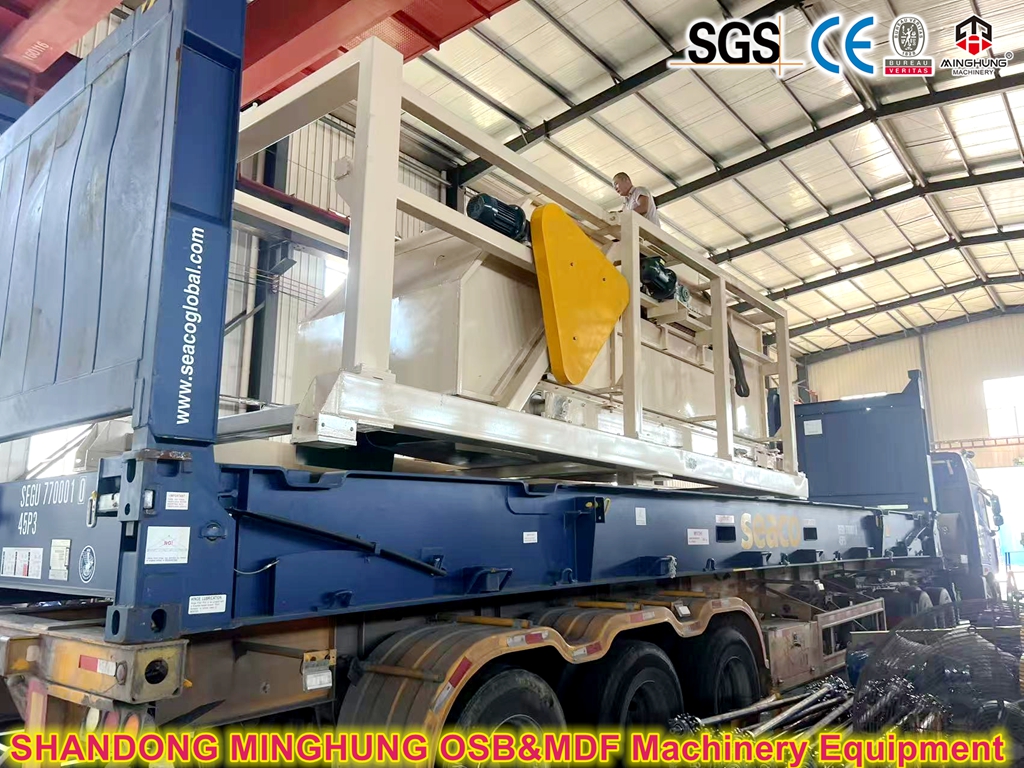

Product Packaging
|
Main Components
1. Belt-type quantitative feeder
2. Continuous drying drum (with wear-resistant lifting plates)
3. Hot air furnace (biomass / gas / oil / coal optional)
4. High-efficiency circulating fan
5. Cyclone dust collector (primary filtration)
6. Pulse jet bag filter (secondary filtration)
7. Discharge rotary airlock / star feeder
8. PLC fully automatic control system (with remote monitoring interface)
9. Temperature, humidity, and pressure sensor set
10. Conveying pipes and sealing structure
|
Key Advantages
1. Fully automatic continuous operation: Stable 24/7 production without frequent manual intervention, significantly reducing labor costs.
2. High drying uniformity: Optimized lifting plates and air duct design ensure outlet moisture deviation ≤1%.
3. Outstanding energy saving: Hot air recirculation + waste heat recovery reduce energy consumption by 25%-35% compared to traditional batch dryers.
4. Eco-friendly emission compliance: Two-stage dust removal + sealed design, dust emission concentration ≤20mg/Nm³.
5. Intelligent self-adaptation: PLC automatically matches feed rate, temperature, and drum speed to adapt to fluctuations in raw material moisture.
6. Easy maintenance: Modular design of key components allows quick replacement of wear parts, minimizing downtime.
|
Main Specifications
Inlet moisture content: 40% – 65%
Outlet moisture content: 6% – 12% (adjustable)
Drying temperature: 140 – 240℃ (automatic control)
Hot air furnace thermal power: 1.5 – 15 MW (depending on model)
Drum dimensions: diameter 1.2 – 3.0m, length 8 – 25m
Drum rotation speed: 2 – 8 rpm (VFD adjustable)
Dust removal efficiency: ≥99.9%
Total installed power: 55 – 450 kW
Total line length: 25 – 60 meters
Operation mode: PLC control in central control room + on-site HMI touch panel
|
Company Profile
Shandong MingHung OSB&MDF Machinery Equipment is a China professional factory who specilize in manufacturering and offering Wood based panel machine, including OSB making machine, MDF making machine, and Chipboard /PB making machine.
|
Services We Offer
1. Customized design: Provide complete process solutions and equipment selection based on customer’s site, target capacity, and raw material characteristics.
2. Complete line supply: Supply all equipment including drying drum, hot air furnace, dust removal system, conveying system, and control system.
3. On-site installation guidance: Dispatch professional engineers to customer’s factory to guide equipment installation and pipeline connection.
4. Commissioning and trial operation: Responsible for no-load and load commissioning until the production line operates stably and meets standards.
5. Personnel training: Provide comprehensive training on operation, maintenance.
6. Spare parts and technical support: Long-term supply of original spare parts, online remote diagnosis, and on-site service response within 48 hours.
7. Old line upgrading and retrofitting: Provide automation and energy-saving retrofit services for existing batch-type or low-efficiency drying lines.
For more information, welcome contact us, we will reply you quickly and offer working videos with you.
