MH-OSB
MINGHUNG
The core design principle of this production line is "economical," meaning that it optimizes configuration and selects cost-effective, mature, and stable equipment to reduce initial investment and operating costs, while ensuring the quality and capacity of key processes. Below is a detailed list of the core equipment required, presented in the order of the production process.
Core Equipment for the OSB Production Line (Annual Output: 250,000 m³)
 | Stage 1: Raw Material Preparation Section |
The goal of this stage is to process raw materials like mixed hardwood into qualified wood chips.
1. Debarker (Optional):
If the mixed hardwood has thick bark or contains a lot of sand/gravel, a debarker is recommended to reduce the negative impact of bark on board quality and adhesive consumption.
Economic Consideration: This step can be simplified or omitted if the raw material has low bark content or if the requirements for board appearance are not extreme. Deficiencies can be remedied in subsequent cleaning and screening steps.
2. Chipper:
Chips logs, small-diameter wood, and wood processing residues into uniform-sized process chips. This is the first key equipment for producing qualified strands.
Type: A disc chipper is typically used for its large capacity and stable operation.
3. Chip Screen and Re-crusher:
Screens the chips. Oversized chips are sent back to the re-crusher for further processing, and fine particles can be used as fuel. Only uniformly sized, qualified chips proceed to the next stage. This is fundamental for ensuring strand quality.
| Stage 2: Stranding, Drying, and Sorting Section |
The goal of this stage is to produce dry, clean, and properly sized strands.

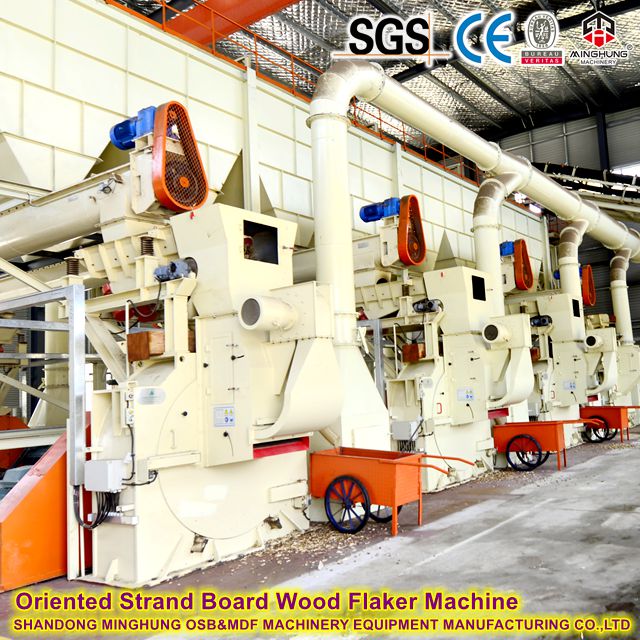

4. Strander (Flaker):
Planes the process chips into thin, narrow strands that meet the design requirements. This is the foundation of the "oriented" structure of OSB.
Key Point: It must ensure the uniformity of strand length, thickness, and shape.
5. Drying System:
Reduces the moisture content of the strands from 40%-60% to a precise and stable low level (typically 2%-4%) to meet the requirements of the blending and pressing processes.
Core Equipment: Typically uses efficient and mature triple-pass or single-pass rotary drum dryers.
Heat Source: An economical solution often uses a biomass-fired (sawdust, sander dust) hot air furnace, significantly reducing fuel costs.

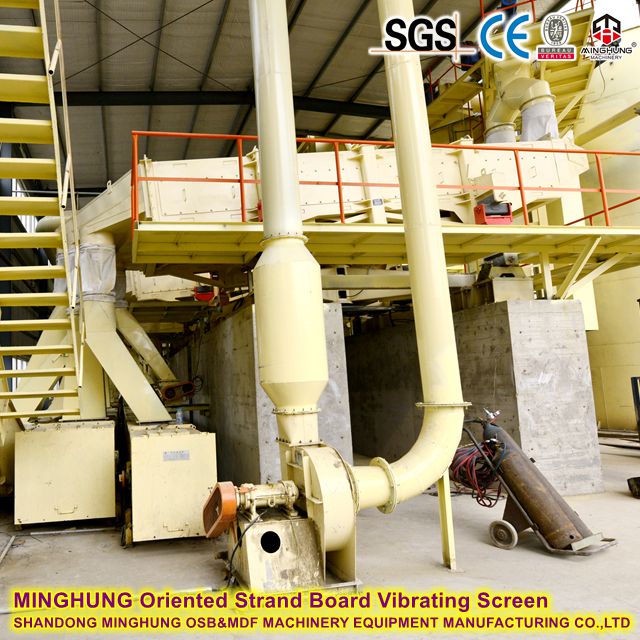

6. Strand Screening and Classification System:
Screening: Removes fine powder generated during drying.
Classification: Uses multi-deck vibrating screens to separate strands into fine face-layer strands, coarse core-layer strands, and oversized strands (which are sent back to a grinder for reprocessing). This is a key step for achieving the "fine surface, coarse core" structure, which optimizes surface quality and mechanical properties.
| Stage 3: Blending, Forming, and Pre-pressing Section |
This is the core technical stage of OSB production.
7. Blending System (Glue Application):
Precisely and evenly sprays adhesive (typically MDI isocyanate) and additives (wax, water repellent, etc.) onto the surface of the strands.
Core Equipment: Includes resin preparation systems and high-speed rotary blenders. Equipment requires good sealing and easy cleaning for MDI adhesive.
Economic Relevance: Although MDI adhesive is relatively expensive, its low usage rate, formaldehyde-free nature, and suitability for mixed hardwoods offer advantages in overall cost and production efficiency.

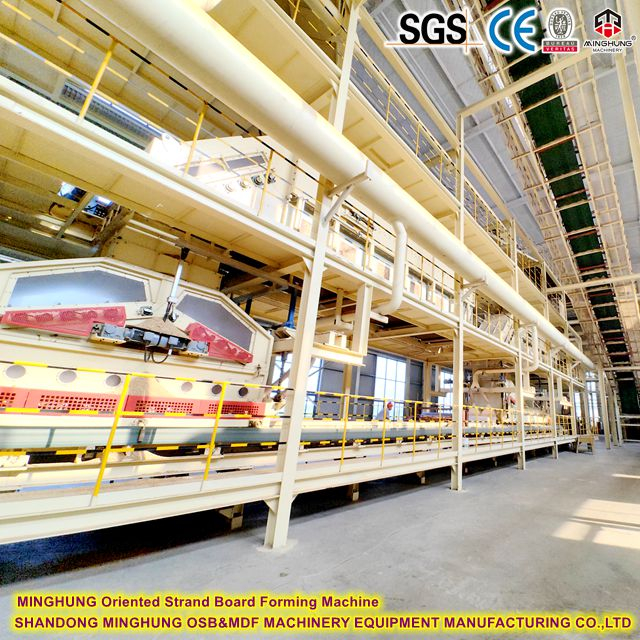

8. Oriented Forming Machine:
This is the signature equipment of OSB production. It uses mechanical or electrostatic methods to orient the face-layer strands along the length of the board (longitudinal direction), while the core-layer strands are laid randomly or in a cross-direction, forming a three- or multi-layer structure.
Type: Economical production lines typically use mechanical orienting heads, which are mature technology and easy to maintain.
9. Pre-press:
Applies a cold pre-pressing step to the loose mat before it enters the hot press. This gives the mat initial strength for easier transportation and loading into the hot press, while also reducing the opening height of the hot press, thereby improving efficiency.
| Stage 4: Hot Pressing and Post-Processing Section |
This is the stage where the board is finalized.
10. Continuous Hot Press:
Subjects the mat to high temperature and pressure, curing the adhesive and firmly bonding the strands together to form a dense board.
Economic Choice: For a capacity of 250,000 m³, a continuous flat press is the optimal choice. Although the single investment is high, its high production efficiency, stable board quality, and reduced sanding allowance make it more economical in the long run. This is the "heart" of the production line, where cost-cutting is not advisable.
11. Cooler and Turner:
Evenly cools the high-temperature boards (>100°C) exiting the hot press down to ambient temperature. This prevents board warping and completes post-curing.
12. Cut-to-Size and Stacking System:
Saws the continuous board into final dimensions according to order specifications (e.g., 1220x2440mm, 1250x2500mm) and automatically stacks them.
| Stage 5: Sanding and Packaging Section |
13. Storage and Conditioning Area (Optional but Important):
Allows the boards to rest for 24-48 hours in a natural environment. This allows internal stresses to equalize and moisture content to stabilize, which improves the quality and stability of subsequent sanding. An economical line can use a simple storage area for this purpose.
14. Double-Dimension Wide-Belt Sander:
Precisely sands the top and bottom surfaces of the board to ensure uniform thickness and a smooth, flat surface across the entire board, providing an excellent base for further processing or direct sale.
15. Automatic Packaging and Palletizing System:
Automatically packages the finished boards (e.g., shrink-wrapping or bundling) and palletizes them neatly for convenient storage and shipping.
A wide variety of "mixed hardwood" can be used for producing OSB (Oriented Strand Board). This is a significant advantage of OSB technology: it does not rely on a single tree species and can efficiently utilize various low-value, small-diameter wood resources.
| I. Classification by Tree Type |
1. Softwoods
Softwoods typically have long fibers and a less dense structure, making them easy to strand and excellent raw material for OSB.
Pine: Such as Masson Pine, Slash Pine, Loblolly Pine. This is one of the most commonly used raw materials for OSB globally, known for its good performance.
Spruce: Has straight fibers and good strength, also an ideal raw material.
Fir, Larch: Can also be used. Note that Larch is denser and may cause slightly higher wear on cutting tools.
spruce
monterey pine
pine
2. Hardwoods
Hardwoods have shorter fibers and higher density, but they can be fully used in OSB production with appropriate processes, often mixed with softwoods.
Poplar: A high-quality hardwood for OSB production. Poplar grows fast, has relatively soft wood that is easy to process, and yields strands with good morphology. It is widely used in many regions (e.g., North America, Europe, China).
Eucalyptus: A fast-growing species with good fibers, but high density and hardness can lead to increased equipment wear. Process parameters for stranding and drying need adjustment. It is often blended with softer woods.
Birch, Beech, Maple: These are common mixed hardwoods suitable for OSB, but their proportion in the mix is usually kept moderate to avoid excessive equipment wear and increased adhesive consumption.
Other Small-Diameter Hardwoods: Such as Alder, Willow, Paulownia, etc.
popla
birch
eucalyptus
| II. Classification by Raw Material Source |
This is the core of the "mixed hardwood" concept. An OSB production line can utilize wood from various sources.
1. Small-Diameter Wood
Refers to small logs that do not meet the specifications for sawn timber. This is the primary raw material for OSB.
Thinning Wood: Small or weak trees removed from plantations to make space for the growth of other trees.
Tending Wood: Wood generated during forest tending operations.
2. Tending Residues
Branches, tops, and other leftovers after forest harvesting and tending.
3. Processing Residues
By-products from wood processing plants, available at very low cost.
Slabs, Edgings: By-products generated when sawmills process logs.
Plywood Cores: The central core remaining after veneer peeling.
4. Non-Traditional Lignocellulosic Raw Materials
In some cases, even the following can be used:
Bamboo: With long fibers and high strength, it can be used to produce high-performance Bamboo OSB.
Agricultural Residues: Such as wheat straw, rice straw, etc. However, this requires a completely different production line and adhesives (typically MDI), resulting in "straw board," which differs in process and performance from traditional OSB.
| How to use the "miscellaneous wood" mixture |
Although OSB can handle "mixed feed," maintaining stable production quality requires attention to the following points:
1. Species Mix Ratio: The production line requires a relatively stable raw material mix ratio. It cannot run on 100% softwood one day and 100% hardwood the next. A basic species mix ratio (e.g., 70% softwood + 30% hardwood) is usually established and maintained as steadily as possible.
2. Density and Moisture Content: Different species have different densities and initial moisture contents, which affect stranding, drying parameters, and pressing conditions. The production line needs some capability for process adjustment.
3. Bark Content: Bark can affect the mechanical properties and appearance of the board and increases adhesive consumption. An economical production line typically sets an acceptable upper limit for bark content (e.g., 5%-10%) and controls it through debarking and/or screening operations.
4. Adhesive Compatibility: Fortunately, MDI adhesive, the primary resin used for OSB, has broad compatibility with different wood species and bonds well with various mixed hardwoods. This is a key technological enabler allowing OSB to utilize mixed wood extensively.
Summary Table
Category | Specific Examples | Characteristics & Notes |
High-Quality Common Species | Pine, Spruce, Poplar | Good fiber quality, easy to process, ideal primary raw materials. |
Good Blending Species | Eucalyptus, Birch, Alder | Suitable for use, but may require process adjustments; often blended with primary species. |
Low-Value Raw Materials | Small-diameter wood, Thinning wood, Processing residues (slabs, edgings) | The core value of OSB technology; significantly reduces raw material costs. |
Claim Your Free OSB Line Layout! Get end-to-end plant design from strand preparation to sanding. Receive 3D factory plan within 30 days.
