Ⅰ. Complete Equipment
This is a technologically advanced, highly automated complete production line for Oriented Strand Board (OSB), specifically designed for 100% poplar wood raw material and guaranteed to meet high environmental standards. With an annual capacity of 80000 m³, it represents an efficient medium-capacity configuration, ideal for regional OSB manufacturers. The entire line consists of the following core equipment systems:
1. Raw Material Preparation Section
Debarker (Optional): If logs are used, debarking is the first step to ensure strand quality and reduce impurities.
Chipper: Processes poplar logs, blocks, or slabs into process chips that meet specific requirements.
Strander: A key machine for OSB production. It slices the chips into strands of specific dimensions. The length-to-width ratio of the strands is fundamental to the mechanical properties of the final OSB board. The knife angle and clearance are optimized for poplar's characteristics to achieve ideal strand geometry.
OSB peeling machine
chipping machine
wood flaker machine
2. Strand Preparation, Drying, and Screening Section
Crusher/Re-crusher: Re-processes oversized strands or chips.
Drying System: Typically employs efficient and energy-saving triple-pass or single-pass rotary drum dryers. It uniformly reduces the moisture content of strands from about 50%-60% down to the required 2%-4% for blending. The system includes advanced hot air generators and explosion-proof safety devices.
Screening and Classification System: Uses multi-deck vibrating screens to precisely separate dried strands into fine face-layer strands, coarse core-layer strands, and oversize/fines for recycling. Accurate classification is essential for high-quality oriented forming.
3. Blending and Oriented Forming Section (Core OSB Technology)
Eco-Friendly Blending System:
Wax System: Adds waterproofing agent (wax).
Eco-Friendly Resin System: Uses MDI (Isocyanate) or modified low-formaldehyde/added-formaldehyde-free Phenolic Resin as the primary adhesive. This is key to achieving "eco-friendly" boards. The system features precise metering and mixing units.
Separate Blenders: Typically three separate systems for independent and precise blending of face strands and core strands. The fast-curing nature of MDI requires special considerations in equipment materials and process design.
Oriented Forming Station (The Heart of the OSB Line):
This is the defining equipment that differentiates OSB from ordinary particleboard. It uses mechanical or electrostatic methods to orient the resinated face strands along the panel's length (longitudinal direction), while the core strands are laid randomly or cross-oriented.
This "oriented-random-oriented" three-layer structure gives OSB its high bending strength and dimensional stability. The forming accuracy directly determines the final mechanical properties of the board.
4. Forming and Pre-pressing Section
Mat Conveying and Pre-press: The formed, fluffy mat is first conveyed over a scale for online weight measurement (for density control) and then enters a high-pressure pre-press. Pre-pressing initially compacts the mat, giving it sufficient strength for intact transfer into the hot press and removing some air.
5. Hot Pressing Section
Continuous Press: The core of a modern, high-efficiency OSB line. The mat is continuously pulled through a long, heated press tunnel by steel belts. Compared to multi-opening presses, the continuous press offers significant advantages: higher output, precise thickness control, uniform board density, and lower energy consumption, making it particularly suitable for lines with 80, 000 m³/year capacity and above.
Heating System: Usually a thermal oil heater or steam system provides a stable heat source for the hot press.
6. Finishing Section
Cooler and Turner: The continuous board exiting the hot press is at high temperature and must be cooled and conditioned in a cooler/turner to release internal stresses and prevent warping.
Trim Saw and Cross-Cut Saw: Cuts the cooled board strip to the required width and length (e.g., standard 2440mm x 1220mm or other custom sizes).
Stacker: Automatically stacks the finished panels into piles.
7. Sanding and Quality Control Section

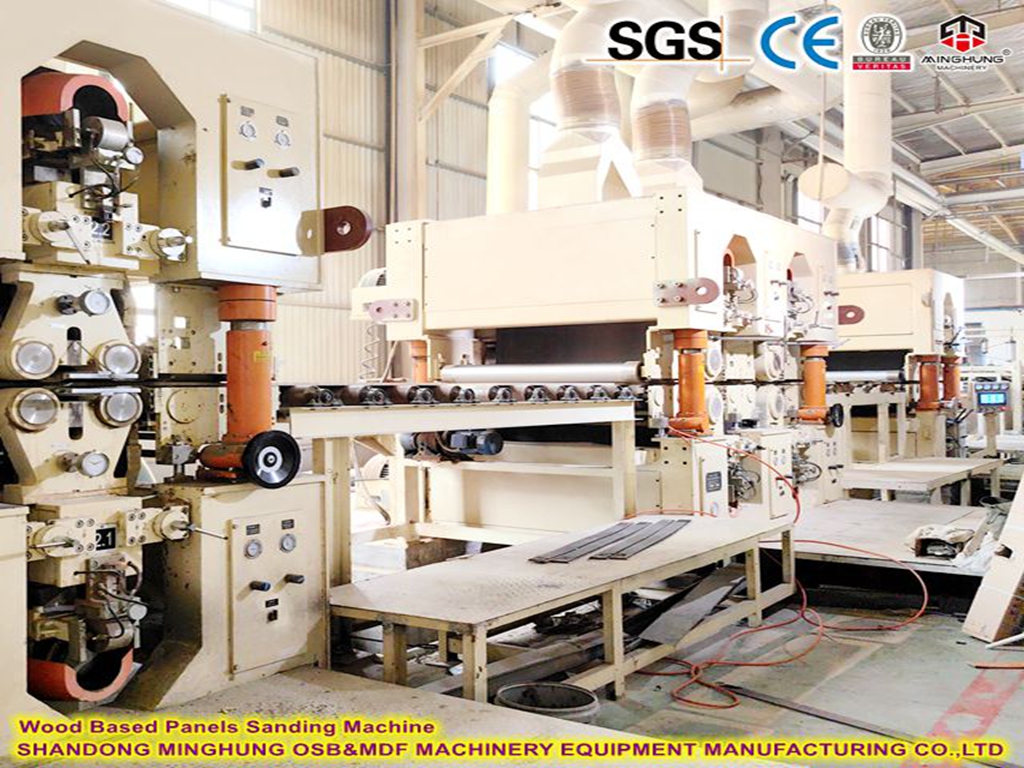

Wide-Belt Sander: Typically a heavy-duty sander with multiple heads (4-6 heads). It sands the top and bottom surfaces of the OSB panels to a precise thickness, eliminating deviations and creating a uniform, flat surface, providing a perfect substrate for direct use or further processing (e.g., laminating).
Quality Control System: Includes online thickness gauges, density scanners, etc., integrated with the central control system to ensure consistent product quality.
Summary of Key Line Features:
Raw Material Specificity: Equipment optimized for poplar's low density and uniform texture to ensure strand quality and forming results.
Core Eco-Friendly Technology: Utilizes MDI or No-Added-Formaldehyde resin systems to control formaldehyde emissions at the source, meeting international high-end environmental standards.
High Efficiency & Automation: Centered around the continuous press and precision orienting former, coupled with a PLC central control system, enabling high-yield, stable, and energy-efficient production.
Turnkey Project: Provides a complete solution from process design, equipment manufacturing, installation & commissioning, to technical training.
Ⅱ. Production Process
This production line is specifically engineered for the efficient and environmentally friendly manufacturing of OSB using 100% poplar wood. Its core lies in the oriented forming technology that gives the boards superior mechanical properties and the use of eco-friendly adhesives to ensure the final product meets international green standards. The entire process is highly continuous and automated.
Core Eco-Friendly Concept: The use of no-added-formaldehyde MDI resin or ultra-low-emitting phenolic resin controls formaldehyde emissions at the source, allowing the final product to comply with the most stringent standards such as CARB NAF or F★★★★.
1. Raw Material Preparation and Stranding
Process: Poplar logs or blocks are first processed through a Debarker (optional but recommended for superior product quality) to remove bark. They are then converted into standard wood chips by a Chipper. These chips are fed into the core equipment—the Strander—where they are sliced into strands with specific length-to-width ratios, forming the "skeleton" of the OSB panel.
Technical Focus: Optimize the knife angle and clearance of the strander for poplar's relatively soft texture to obtain intact, smooth strands and minimize fines. High-quality strands are the foundation for subsequent orienting and high panel strength.
2. Drying and Screening
Process: The green strands are dried in a Rotary Drum Dryer (often an efficient triple-pass design), reducing moisture content from approximately 50%-60% down to an even 2%-4%.
Technical Focus: Precisely control drying temperature and duration to prevent over-scorching or uneven drying. The dried strands are precisely classified by a Multi-deck Screening System into:
Fine Face Strands: For the top and bottom layers, ensuring surface smoothness and orientation effectiveness.
Coarse Core Strands: For the core layer, providing thickness and support.
Oversize/Fines: Recycled or re-processed.
3. Blending and Oriented Forming (The Core OSB Technology)
Process: The classified face and core strands are directed into separate Blenders.
Eco-Friendly Core: In the blenders, strands are uniformly mixed with Eco-Friendly Adhesive (MDI or Phenolic Resin), waterproofing wax, etc. The use of MDI is key to achieving "No-Added-Formaldehyde".
Core Technology: The resinated strands are conveyed to the Oriented Forming Station. This is the soul of OSB production. It uses mechanical disks or electrostatic fields to ensure:
Face Strands: Are oriented along the panel's length (longitudinal direction).
Core Strands: Are typically laid randomly or at a cross-directional angle.
Result: A stable, three-layer "oriented-random-oriented" mat is formed. This structure gives OSB its exceptional bending strength, similar to plywood.
4. Pre-pressing
Process: The fluffy, formed mat is first passed through a Pre-press, where it is initially compacted under room temperature.
Technical Focus: Pre-pressing gives the mat sufficient initial strength for intact transfer into the hot press and removes a significant amount of air, preventing "blows" during hot pressing.
5. Hot Pressing and Curing
Process: The pre-pressed mat enters the Continuous Press. The mat continuously moves through a high-temperature, high-pressure tunnel where the adhesive cures rapidly, bonding the oriented strands firmly into a dense panel.
Technical Focus: The continuous press ensures the high efficiency required for the 80, 000 m³/year capacity. Precise control of temperature, pressure, and speed guarantees uniform thickness and density across the entire board area, which is critical for producing consistent thick panels like 25mm.
6. Finishing
Cooling: The panels exiting the hot press are extremely hot and must be cooled and conditioned in a Cooler/Turner to release internal stresses and prevent warping.
Cutting: The cooled continuous board is trimmed to standard dimensions (e.g., 2440mm x 1220mm) by a Trim Saw and Cross-Cut Saw.
Sanding: The cut panels are calibrated by a Heavy-Duty Wide-Belt Sander with multiple heads to eliminate thickness deviations and achieve a smooth, flat surface, ready for direct use or further lamination.
Stacking and Packaging: Finally, the finished panels are automatically stacked by a Stacker, inspected, and packaged.
In Summary: The success of this process relies on three pillars: ① Raw material optimization for poplar; ② Precision oriented forming technology; ③ The combination of eco-friendly adhesives and continuous pressing. The resulting OSB panels are not only strong and dimensionally stable but also genuinely green building materials.
Ⅲ. Characteristics of Poplar Wood
Fast Growth, Abundant Resource: Poplar is a typical fast-growing species with a short rotation cycle, enabling sustainable supply and relatively low raw material cost.
Soft Texture, Light Color: Poplar has low density, uniform texture, fine structure, and indistinct color difference between heartwood and sapwood, presenting a light yellowish-white hue.
Easy Workability: Poplar fibers are of moderate length, making the wood easy to chip and process with less tool wear.
High Initial Moisture Content: Fresh poplar wood has a high initial moisture content, requiring a thorough drying process.
Ⅳ. Core Advantages of Poplar as Raw Material for OSB
Excellent Processing Suitability: Its soft texture facilitates easy stranding, allowing for the production of high-quality strands with intact form and smooth surfaces, which is fundamental for high-quality oriented forming.
Good Gluing Performance: The smooth surface of poplar strands ensures good wettability and high bond strength with common OSB adhesives like MDI and Phenolic Resin.
Achievement of High Target Board Density: Due to its inherently low density, less poplar wood (by mass) may be required to achieve a target OSB density compared to denser woods. Alternatively, a higher board density can be achieved with the same amount of wood, enhancing mechanical properties. Commercially, this helps control raw material costs.
Uniform and Aesthetically Pleasing Product Color: The light color of poplar results in OSB panels with a uniform, bright, and consistent appearance, which is more marketable, especially for applications requiring clear coating or where aesthetics are emphasized.
Sustainability and Eco-Friendly Image: Using fast-growing poplar aligns with green and sustainable development principles, enhancing the environmental brand value of the final product.
Ⅴ. Final Properties of OSB Panels Produced from Poplar
Excellent Mechanical Strength and Stiffness: Leveraging the good orientability of poplar strands, the produced OSB panels exhibit high bending strength and modulus of elasticity in the longitudinal direction, offering outstanding structural performance.
Homogeneous Internal Structure and Stable Performance: The uniformity of poplar wood contributes to consistent internal panel structure, resulting in good dimensional stability and resistance to warping and twisting.
Smooth and Flat Surface: The fine poplar strands contribute to a flatter mat, yielding a high-quality surface after sanding. This provides an excellent substrate for subsequent laminating or coating.
Relatively Light Weight: Compared to OSB made from hardwoods (e.g., eucalyptus, birch), poplar-based OSB has a relatively lower density, making it lighter for the same thickness, which facilitates transportation and handling on-site.
High Environmental Standard: When combined with no-added-formaldehyde MDI adhesives, it is possible to produce "NAF" OSB panels that meet the world's most stringent emission standards (e.g., CARB NAF), catering to high-end market demands.
