MH-CHP
MINGHUNG
Annual Capacity: 50,000 m³ (based on 16mm standard thickness)
Raw Material: Forest thinnings, wood processing residues (shavings, sawdust)
Product Range: Thickness 8-40mm, Density 600-750kg/m³
Section | Equipment | Function |

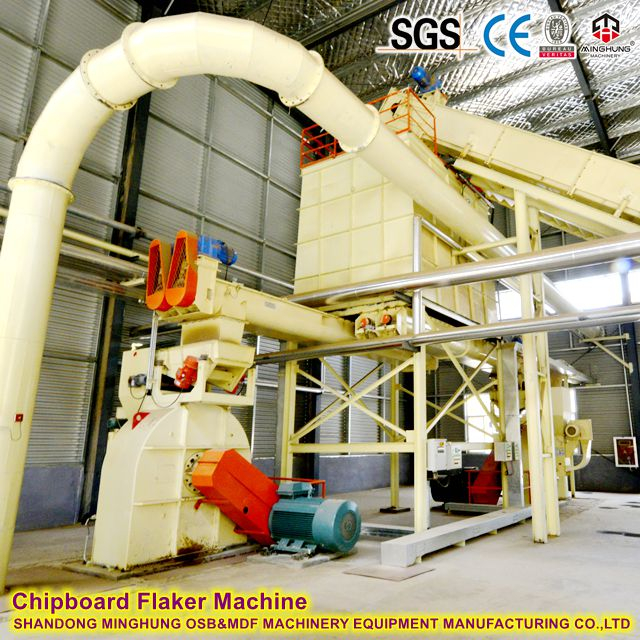

Raw Material | Drum Chipper + Hammer Mill | Reduce wood to 20-40mm particles |
Drying | Triple-pass Rotary Dryer (gas-fired) | Reduce moisture from 50% to 3% |
Glue Blending | Ring Blender + PMDI/MUF Resin System | Precision adhesive spraying |

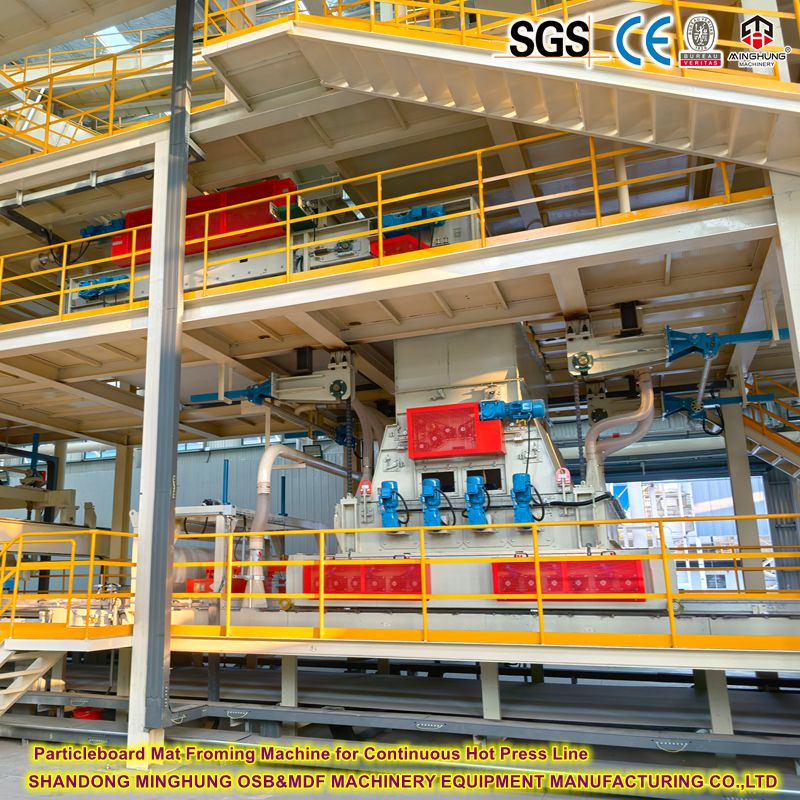

Forming | Mechanical-Pneumatic Forming Station | Create graded/3-layer mat |
Hot Pressing | Continuous Press (25m length) | Cure at 200℃, 3.5MPa pressure |

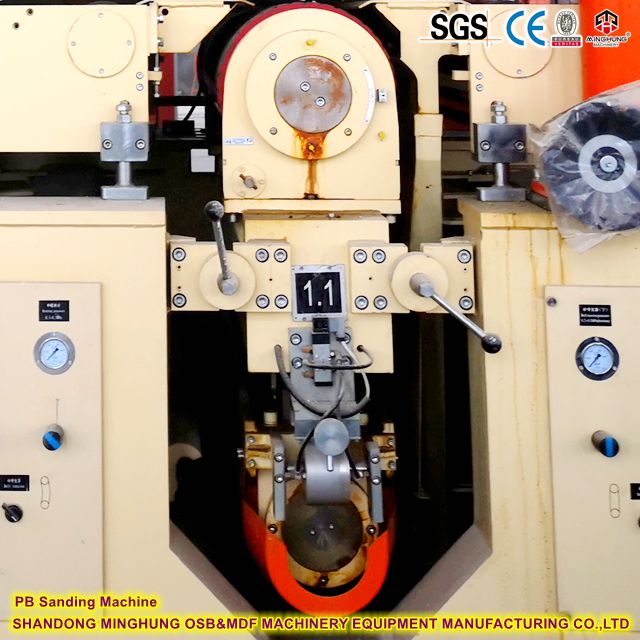

Finishing | Cantilever Saw + 4-head Sander | Cutting & surface finishing (±0.1mm) |
Pressing Speed: 40 seconds/mm thickness (11 min for 16mm board)
Adhesive Usage: 120-150kg/m³ (solid content)
Energy Consumption:
Electricity: 350-400kWh/m³
Thermal Energy: 1.8-2.2GJ/m³ (gas/biomass)
High-Efficiency Continuous Production:

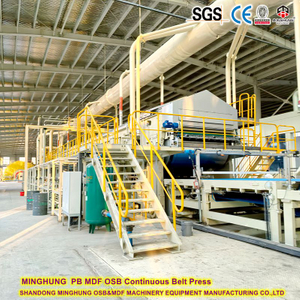

The continuous press replaces traditional multi-opening presses, enabling the particleboard mat to pass continuously and uniformly through the hot-pressing zone.
Significantly increases production efficiency with high output per unit time, which is the core guarantee for achieving the 50,000 m³/year target.
Ensures stable production rhythm, minimizing start-stop losses.
Exceptional Product Quality:
Continuous, uniform pressure and temperature distribution ensure minimal thickness tolerance and more homogeneous density profiles across the entire board.
Excellent surface flatness, reducing sanding requirements and saving raw materials.
More stable and superior physical-mechanical properties (e.g., internal bond strength, modulus of rupture (MOR), modulus of elasticity (MOE), surface bond strength).
Capable of stable production of particleboard meeting E0/E1 and higher environmental standards.
Energy Efficiency & Reduced Consumption:
Continuous operation mode avoids the significant energy losses associated with the frequent opening/closing of multi-opening presses.
Advanced heating control systems (typically thermal oil or steam) and insulation technology ensure high thermal efficiency.
Precise glue application systems minimize resin waste.
Reduced sanding lowers abrasive consumption and dust handling burden.
Flexibility & Adaptability:
Compatible with various raw materials: small-diameter logs, thinnings, wood processing residues (shavings, sawdust, chips), recycled wood, etc.
Capable of producing particleboard in different specifications and thicknesses (typically 6mm to 40mm+, common widths 1220mm/1830mm/2440mm).
Can produce standard particleboard, moisture-resistant (MR) particleboard, fire-retardant (FR) particleboard (requires corresponding configuration), and other types.
Easy adjustment of production parameters to adapt to market demand changes.
Stability & Reliability:
Key equipment (e.g., continuous press, blender, forming station) employs mature, reliable international advanced technology or proven high-quality domestic technology.
Robust mechanical design ensures long-term stable operation.
Comprehensive safety interlock protection systems.
Exhaust Treatment: RTO (VOCs removal >95%)
Dust Control: Pulse-jet Bag Filter (emission <20mg/m³)
Noise Control: Vibration damping + acoustic enclosures (noise ≤65dB)
We are China professional factory and supplier of OSB board making machine, MDF/HDF making machine and Flakeboard/Particleboard making machine. Whatever which size, thickness, capacity you want to make, and whatever what kinds of raw materials do you use, our professional team can offer a suitable and good solution for you.

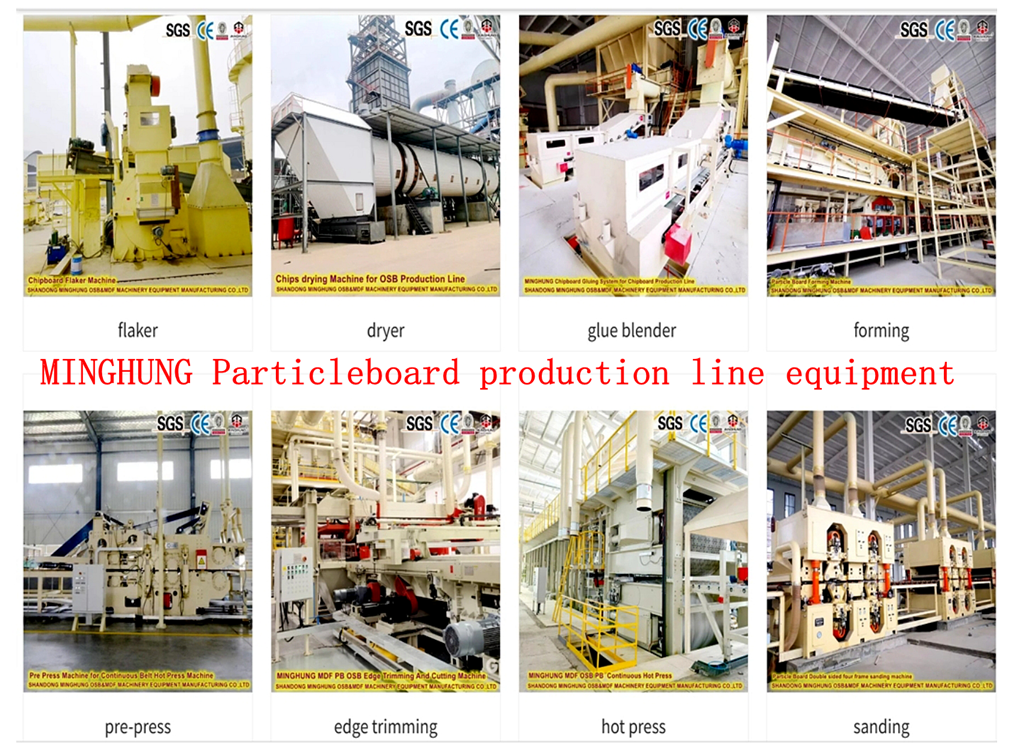

From A to Z, from Raw materials to the final wood based panel, we can offer you all necessary machinery. including: Wood chipper, Strander, Disc chipper, Ring flaker, Rotary drum dryer, Vibrating screener, Glue dosing and applying system, Refiner, Mat frorming line, Continuous pre-press, synchronous Cross-cut saw, Multi-layers Hot press /Continuous single layer hot press, Auto edge trimming machine line，Sanding line，etc.
Customize Your Line! Full-service solution from layout design to production optimization. Request a tailored proposal now.
